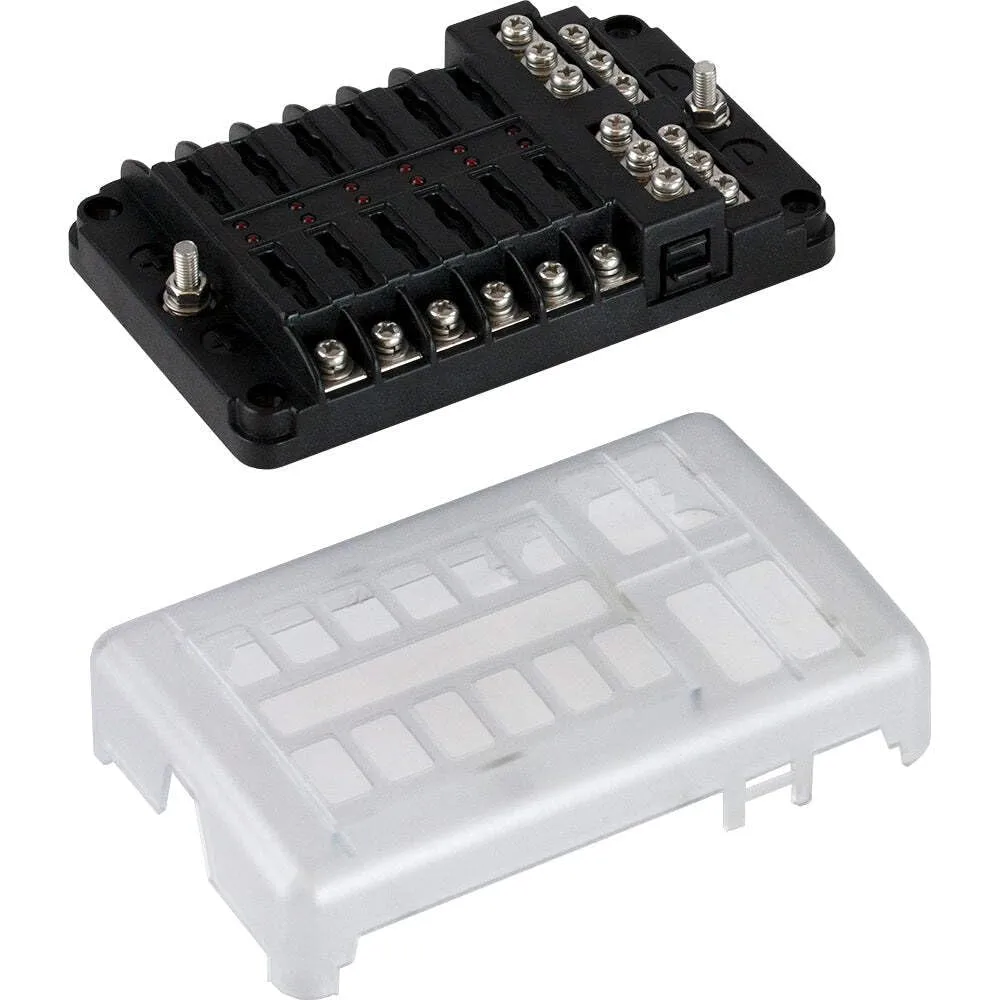

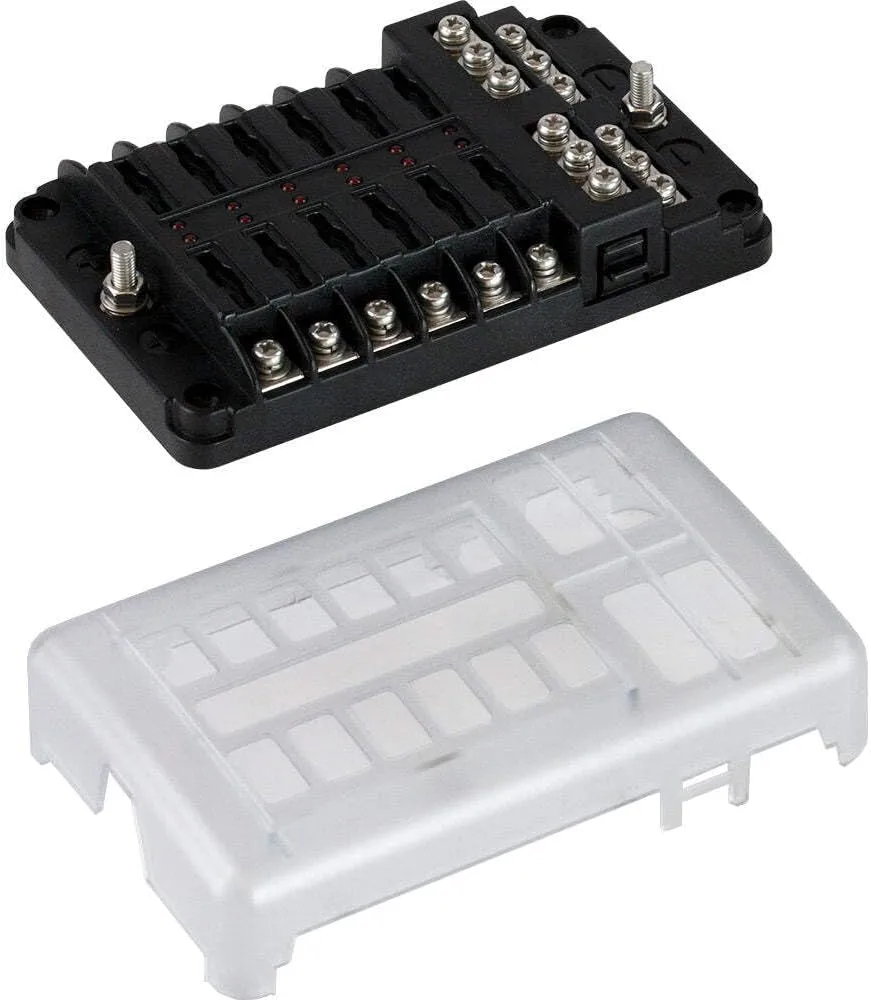

Blade Style LED Indicator Fuse Block with Negative Bus Bar - 12 Circuit Nickel Plated Copper/Stainless Steel/Injection Molded ABS. Features: Red LED lights indicate when fuse is blown or missing Uses ATO/ATC & ATM fuses 1A-30A Main line terminal rating is 100A 32VDC max, with M5 metric threaded studs Single line terminal rating is 30A 32VDC max, with M4 metric threaded studs Includes semi-transparent cover and 71 labels Terminals are nickel plated copper with stainless steel screws Installs with four #8 FH fasteners (not included) WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Fuse Type: ATO/ATC/ATM , Type: Fuse Blocks Great Product.
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Connector Type | Screw |
| Current Rating | 30 Amps |
| Fuse Type | Ato/Atc/Atm |
| Global Trade Identification Number | 00035514446617 |
| Included Components | Great Product |
| Mounting Type | DIN Rail Mount |
| Number Of Contacts | 12 |
| Number of Items | 1 |
| Number Of Poles | 12 |
| Type | Fuse Blocks |
| UPC | 035514446617 |
| Upper Temperature Rating | 85 Degrees Celsius |
| Voltage | 32 Volts |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 5 x 2 inches |
| Size | No Size |
| Weight | 10.4 ounces |
| Width | 5 inches |
| Technical Specifications | |
| Connector Type | Screw |
| Current Rating | 30 Amps |
| Mounting Type | DIN Rail Mount |
| Number Of Contacts | 12 |
| Number Of Poles | 12 |
| Upper Temperature Rating | 85 Degrees Celsius |
| Voltage | 32 Volts |
