StarTech.com 1-Port Parallel PCIe Card - PCI Express DB25 LPT Printer Card 1 Port
Customize

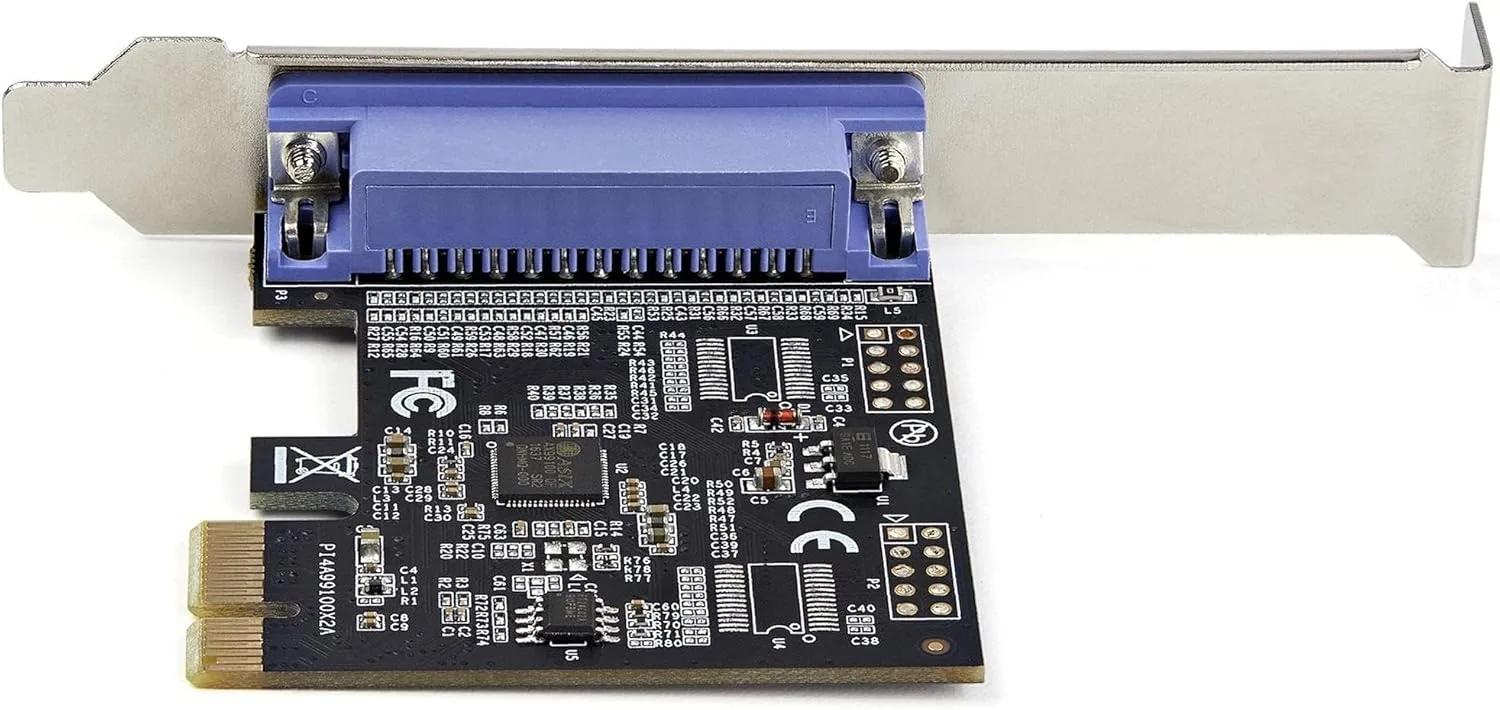

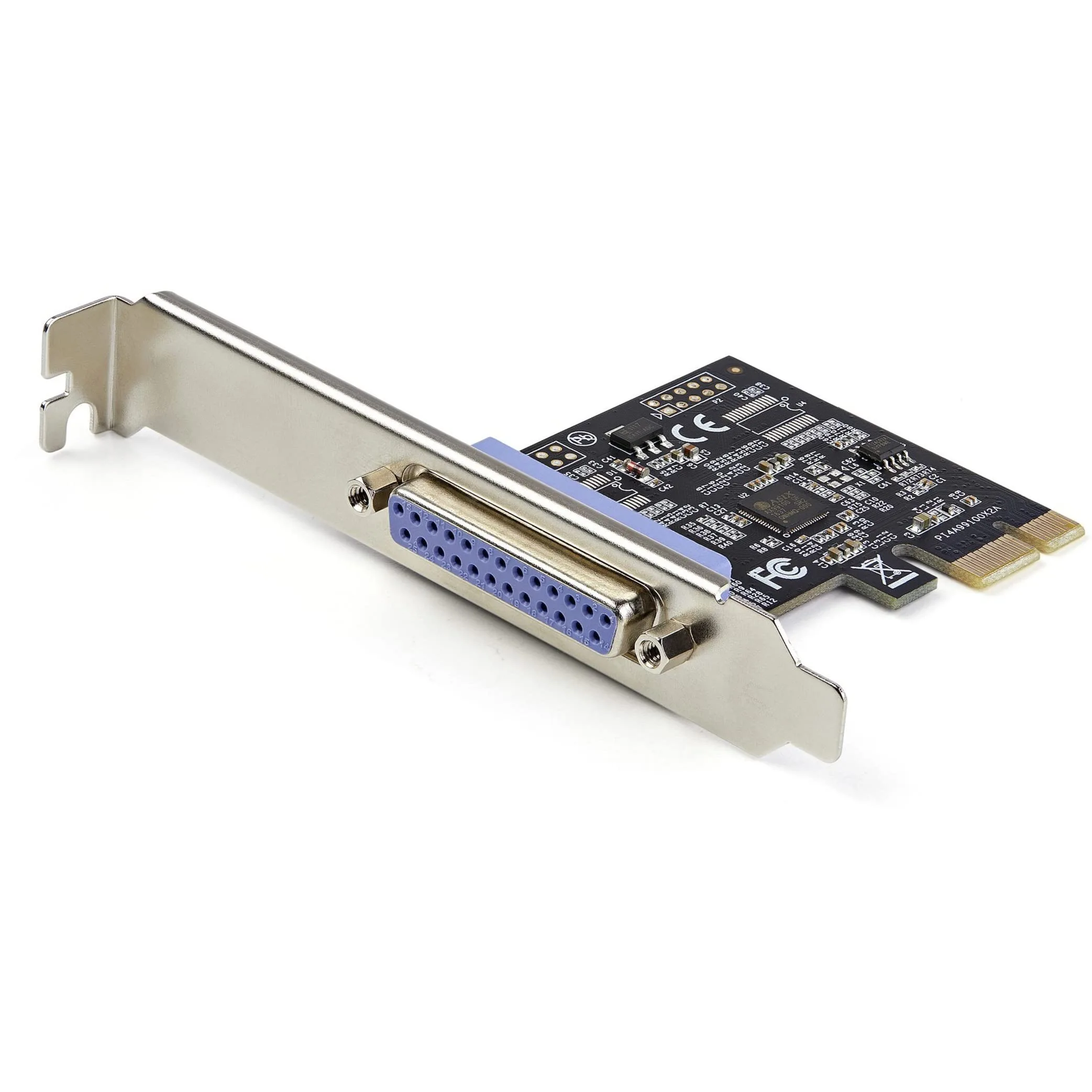

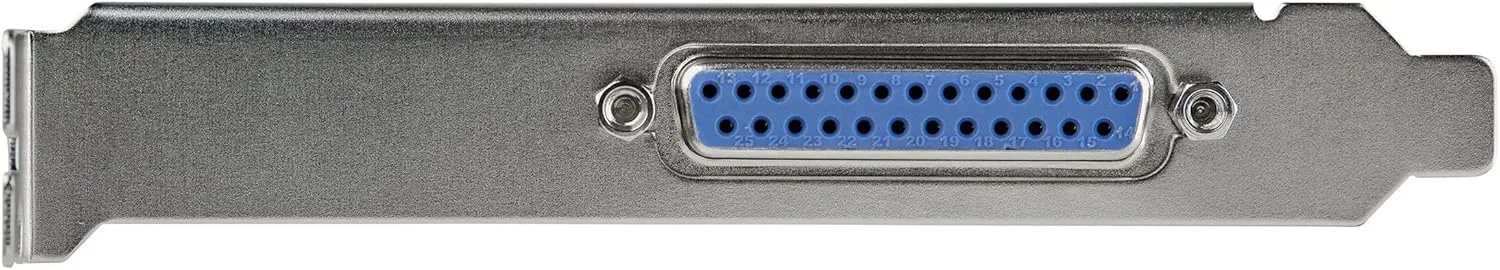

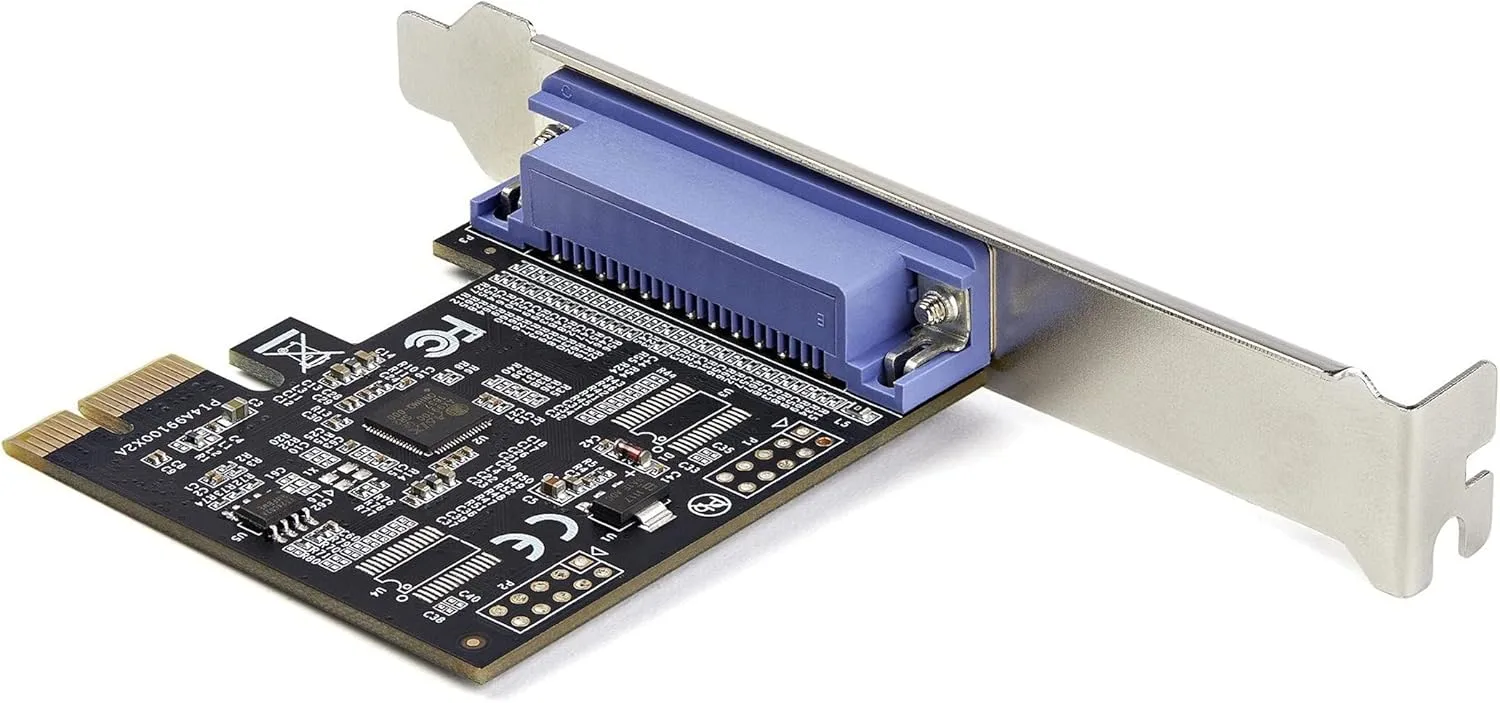

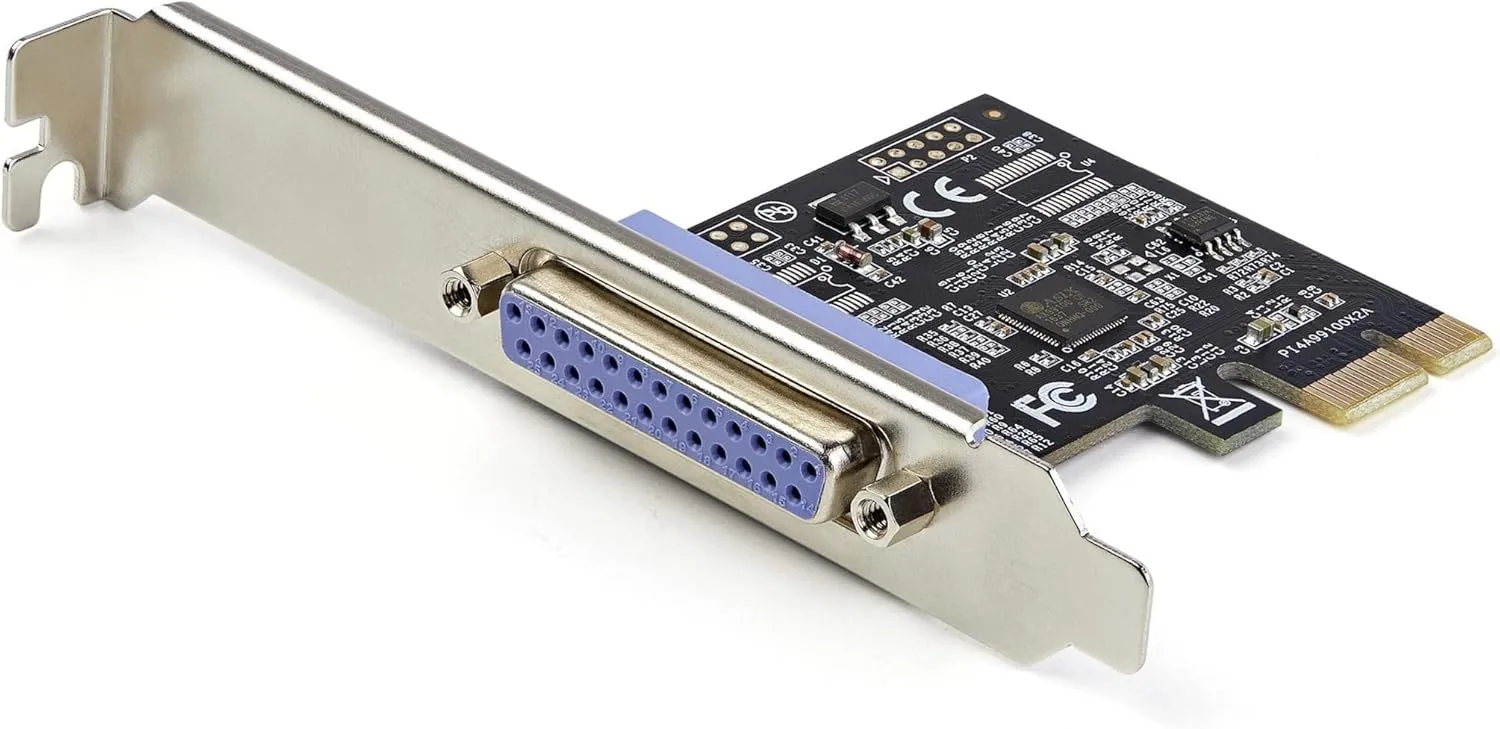

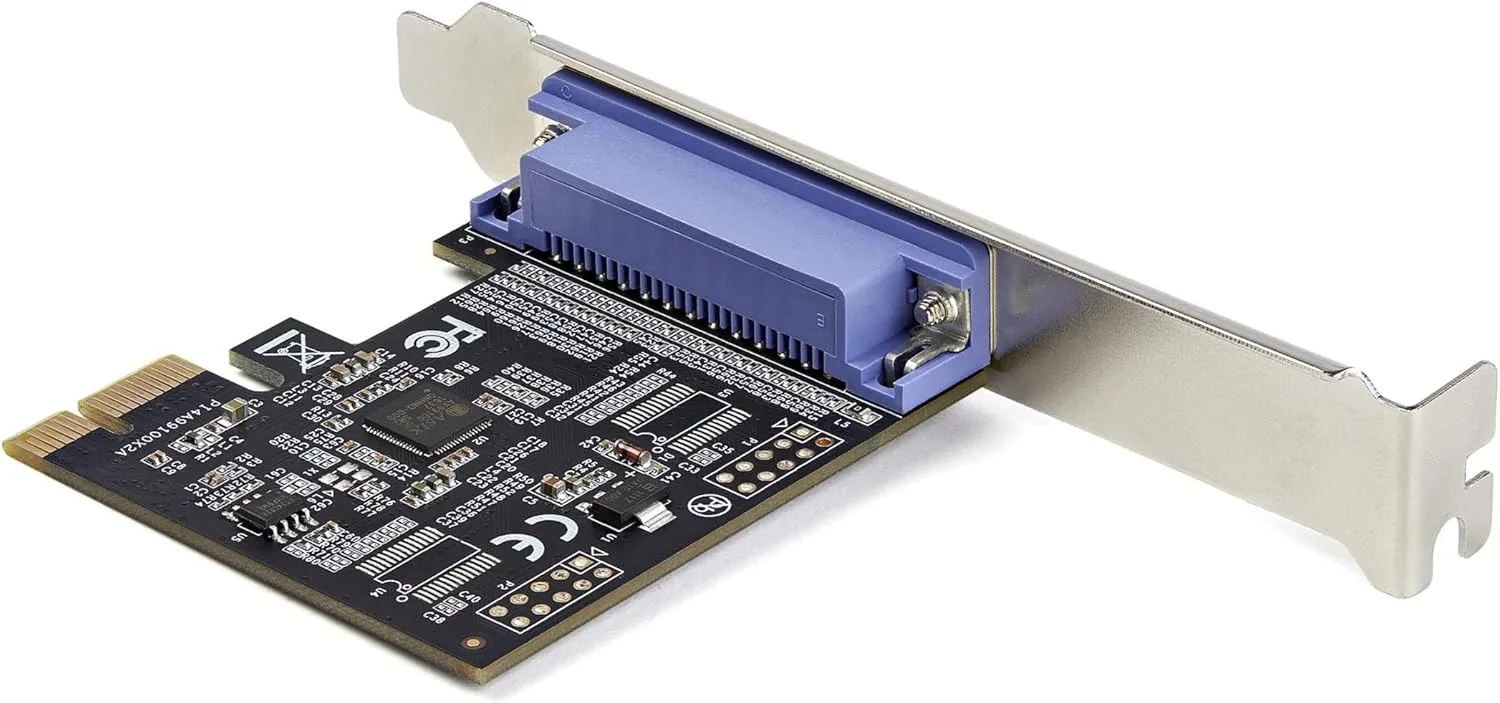

StarTech PEX1P2 1-Port Parallel PCIe Card (DB25 LPT) is a PCI Express x1 internal expansion card that adds a parallel communications port to desktop computers. It uses the Asix AX99100 chip and supports SPP/Byte/Nibble/ECP modes and IEEE 1284. The card installs in full-profile or low-profile PCIe slots (brackets included) and supports speeds up to 2.5 Mbps. Ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment and oscilloscopes. Compatible with Windows (including XP and newer), Windows Server (2003 and newer) and Linux (2.6.x and newer). Environmental compliance: WEEE and RoHS. Warranty: 2-Year Limited. StarTech.com provides technical support and is a long-standing provider for IT professionals.
- WIDE COMPATABILITY: Fully compliant with PCI Express Base Specifications Revision 1.1 and PCI Power Mgmt 1.2; Compatible with PCI-e x1 slot and up; Supports Windows (incl. XP and up) Windows Server (2003 and up) and Linux (2.6.X and up)
- VERSATILE APPLICATIONS: Parallel port expansion card works with printers, scanners, plotters, point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, oscilloscope
- TECH SPECS: Parallel port LPT controller card supports SPP/Byte/Nibble/ECP modes | Compatible with IEEE 1284 | Speeds up to 2.5Mbps | Asix AX99100 chip | Full profile bracket pre-installed
- 1-PORT PARALLEL PCIe CARD: Using a 1x PCI Express 2.0 Gen 1 slot, add a DB25 parallel communications port to your computer; Installs in full/standard or low profile PCIe cards slots (brackets incl.); Latest version of our popular parallel card PEX1P
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Color | Black |
| Country of Origin | China |
| Environmental Compliance | Waste Electrical And Electronic Equipment Directive (Weee); Restriction Of Hazardous Substances (Rohs) |
| Hardware Interface | PCI Express x1, Parallel interface |
| Item model number | PEX1P2 |
| Maximum Data Transfer Rate | 2.5 Mbps |
| Number Of Parallel Ports (External) | 1 |
| Operating System | Windows® 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.6.x and up - LTS Versions only |
| Product Dimensions | 4.7"L x 2.9"W x 0.7"H |
| Series | 1-Port Parallel PCIe Card |
| Style | 1 Port |
| Warranty | 2-Year Limited |
| Sizing & Dimensions | |
| Height | 0.7 inches |
| Item Dimensions Lx Wx H | 4.7 x 2.9 x 0.7 inches |
| Length | 4.7 inches |
| Product Dimensions | 4.7"L x 2.9"W x 0.7"H |
| Product Weight | 0.3000 |
| Weight | 1.6 ounces |
| Width | 2.9 inches |
| Technical Specifications | |
| Bus Type | Parallel |
| Chip | Asix AX99100 |
| Chipset | Asix AX99100 |
| Compliance | IEEE 1284; PCI Express Base Specifications Revision 1.1; PCI Power Mgmt 1.2 |
| Country of Origin | China |
| Hardware Interface | PCI Express x1, Parallel interface |
| Humidity | 40%80% RH |
| Maximum Data Transfer Rate | 2.5 Mbps |
| Operating System | Windows® 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.6.x and up - LTS Versions only |
| Operating Temperature | 5C to 50C 41F to 122F |
| Port Style | Integrated on Card |
| Storage Temperature | 20C to 60C 68F to 140F |
