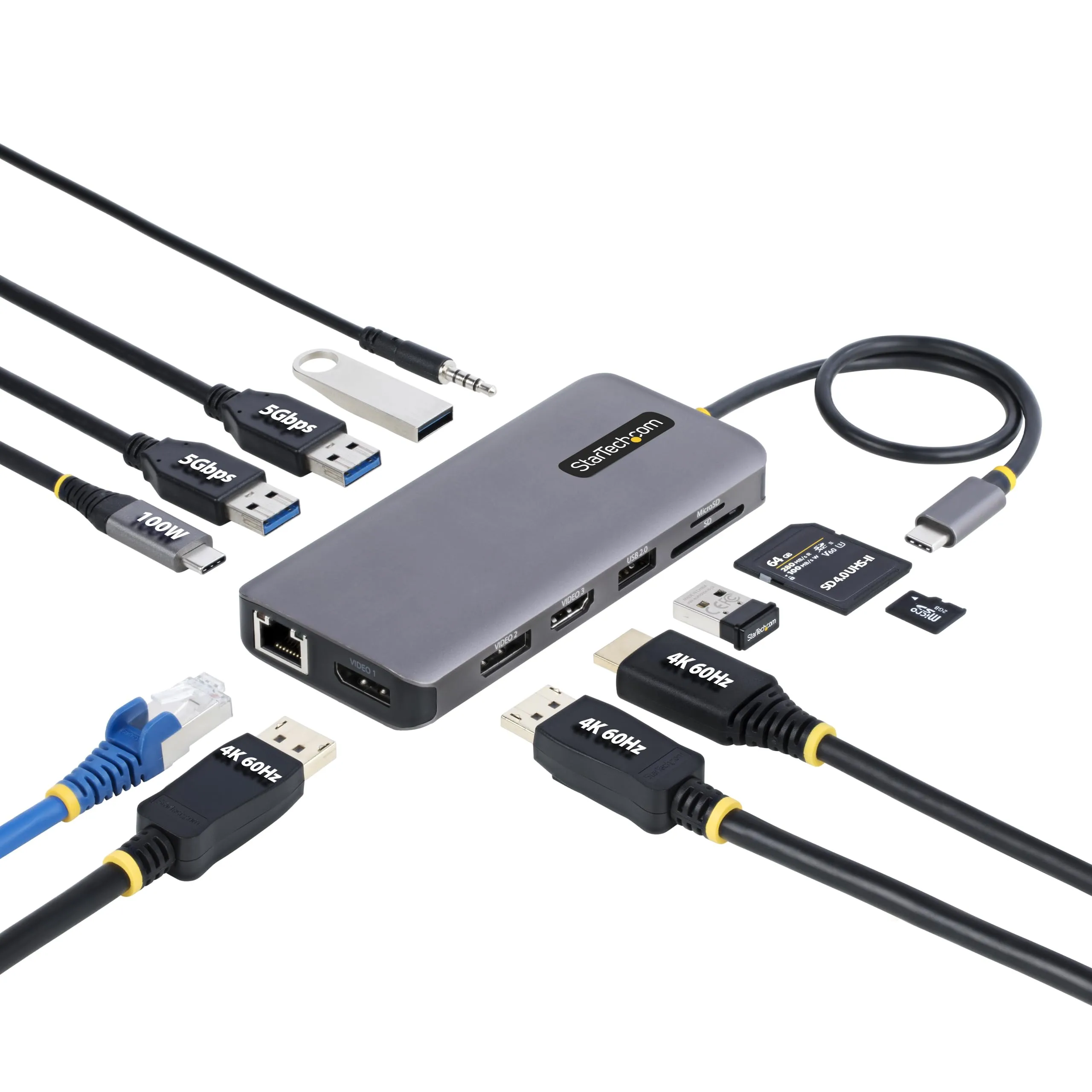

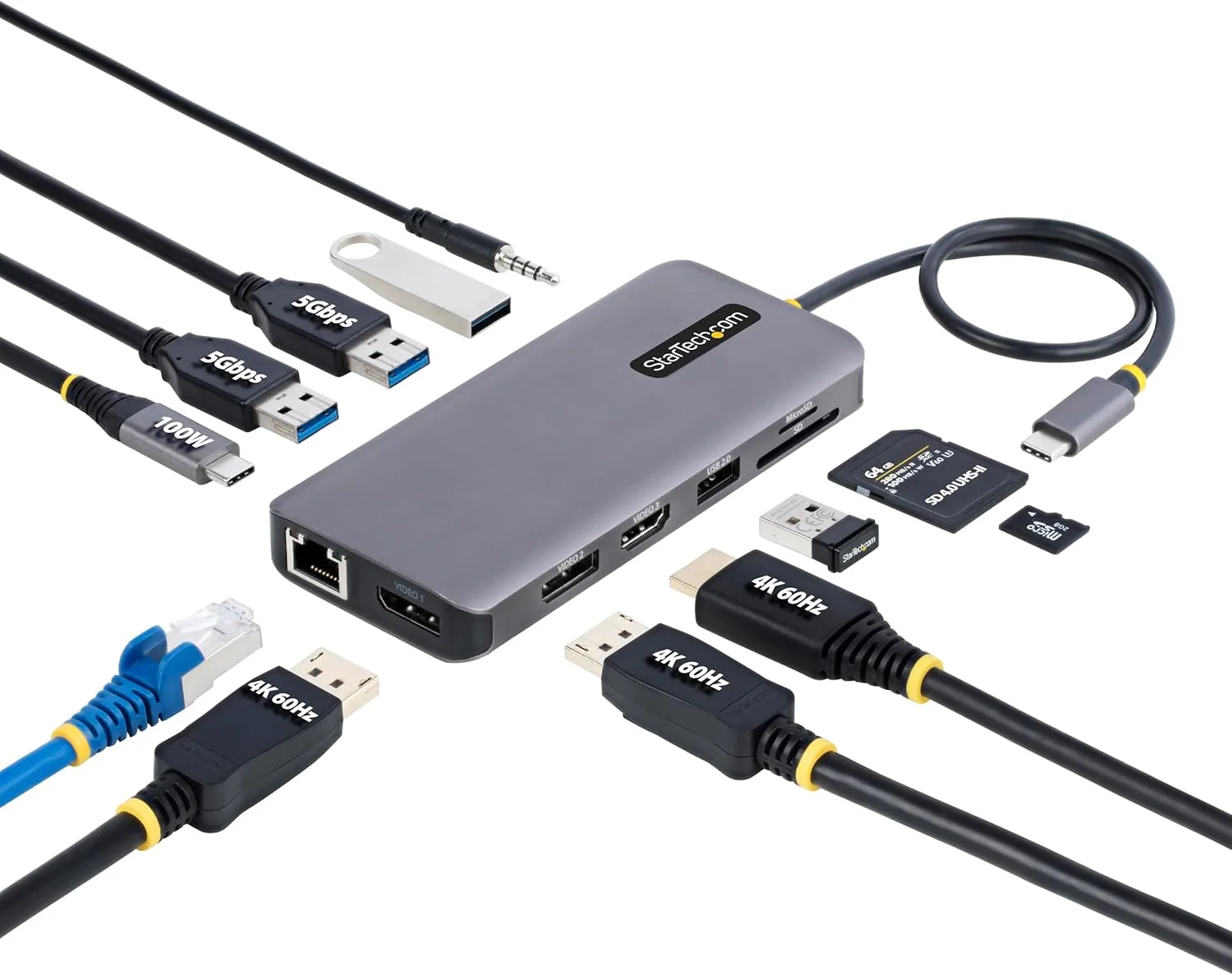

StarTech.com USB-C Docking Station for Windows and ChromeOS, Triple 4K HDMI DP Video, USB 10Gbps Hub - GbE, SD, MicroSD
Customize
OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout. FLEXIBLE MULTIMONITOR OUTPUT: Triple, Dual, or Single monitors up to 2x 4K 60Hz and 1x 4K 30Hz (Intel 11th Gen or later with DSC required for max performance); Utilizes integrated or discrete laptop GPU for uncompressed video and low CPU usage. EXTRA LONG CABLE & DURABLE BUILD: Built-in 1ft (30cm) host cable features high-quality TPE jacket & strain relief for enhanced durability & longevity; Rugged aluminum housing; 4-Port USB Type-A Hub; SD/MicroSD reader provides direct access to memory cards. COMPATIBILITY: Travel Docking Station for USB-C, USB4, TB3 and TB4 computers running Windows & ChromeOS; Features 100W PD pass-through with 15W reserved for adapter & up to 85W for host laptop charging; Works w/DP 1.2 Alt Mode at lower resolutions. HIGH PERFORMANCE TRIPLE 4K: Driverless setup (no drivers required); provides a combination of 2x DisplayPort 1.4 & 1x HDMI 2.0b outputs; 4-port USB-A Hub (2x USB 5Gbps, 2x USB 2.0); Gb Ethernet; 3.5mm headset port; SD/MicroSD reader; 100W PD Pass-Through.

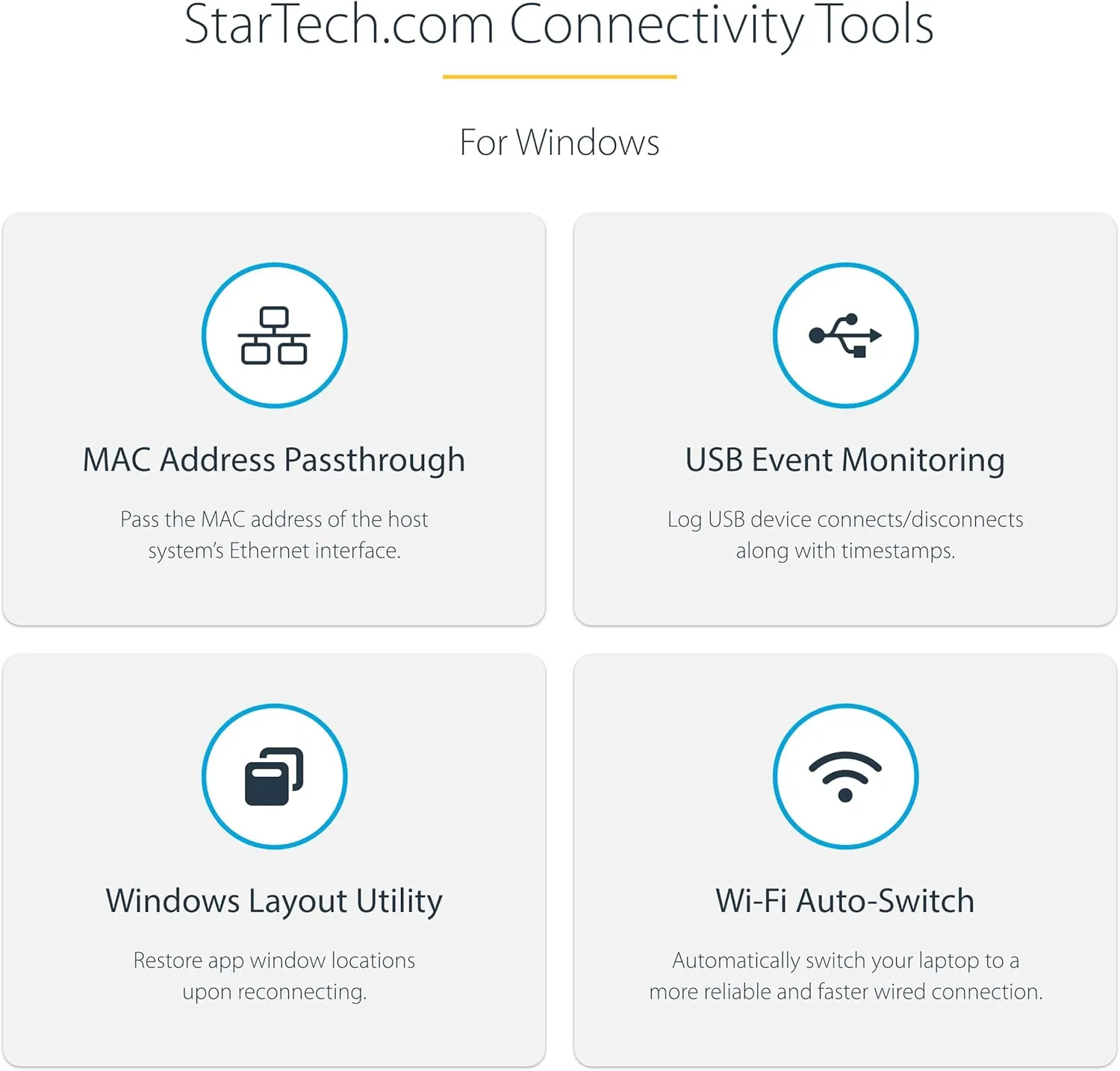

- OUR ADVANTAGE: INCLUDED CONNECTIVITY TOOLS FOR IT PROS AND IT HELP-DESK SUPPORT TEAMS WITH NETWORK MAC ADDRESS PASS-THROUGH FOR NETWORK SECURITY, WIFI AUTO SWITCHING FOR IMPROVED NETWORK PERFORMANCE, USB EVENT MONITORING, AND WINDOWS LAYOUT OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout

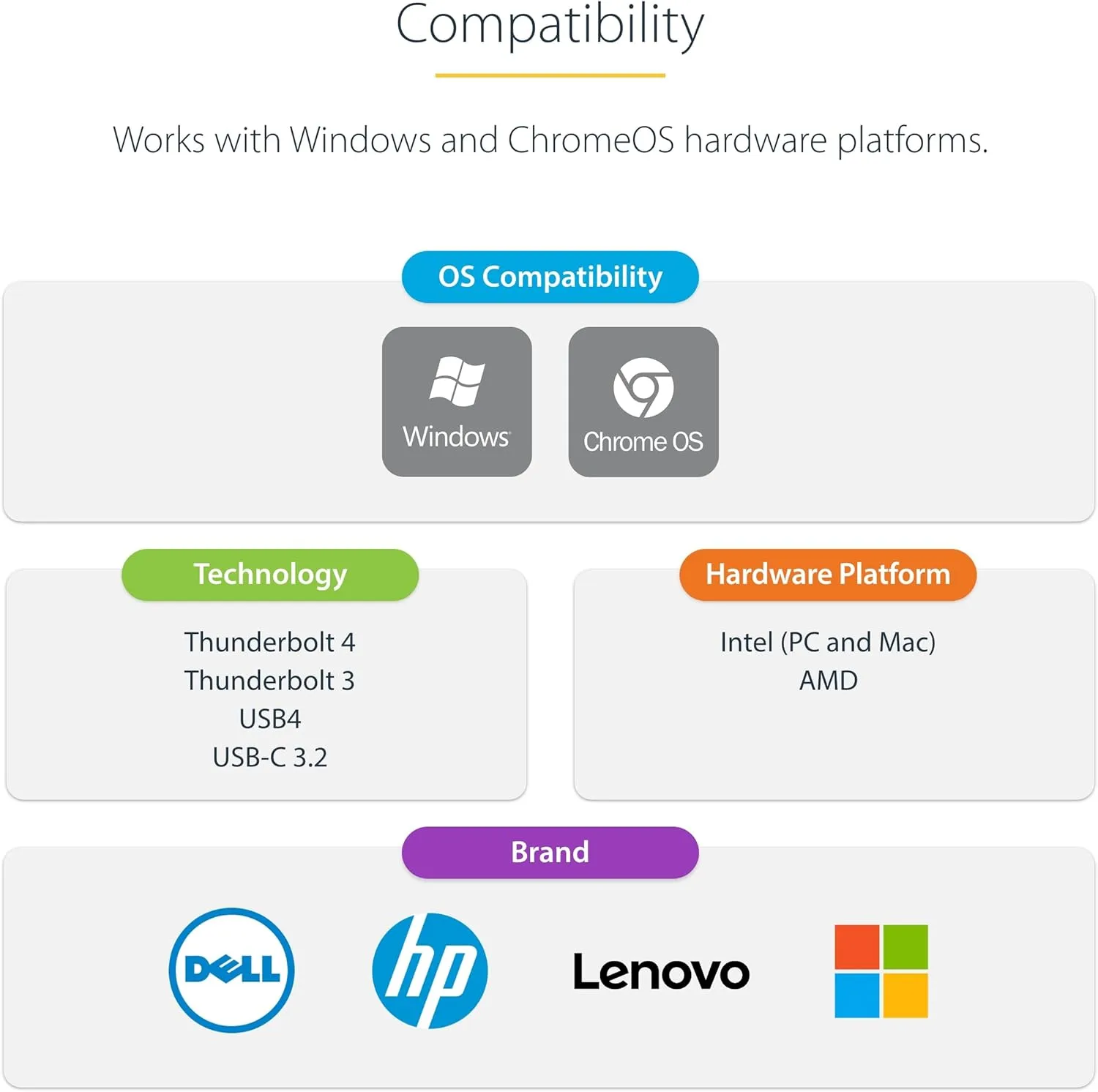

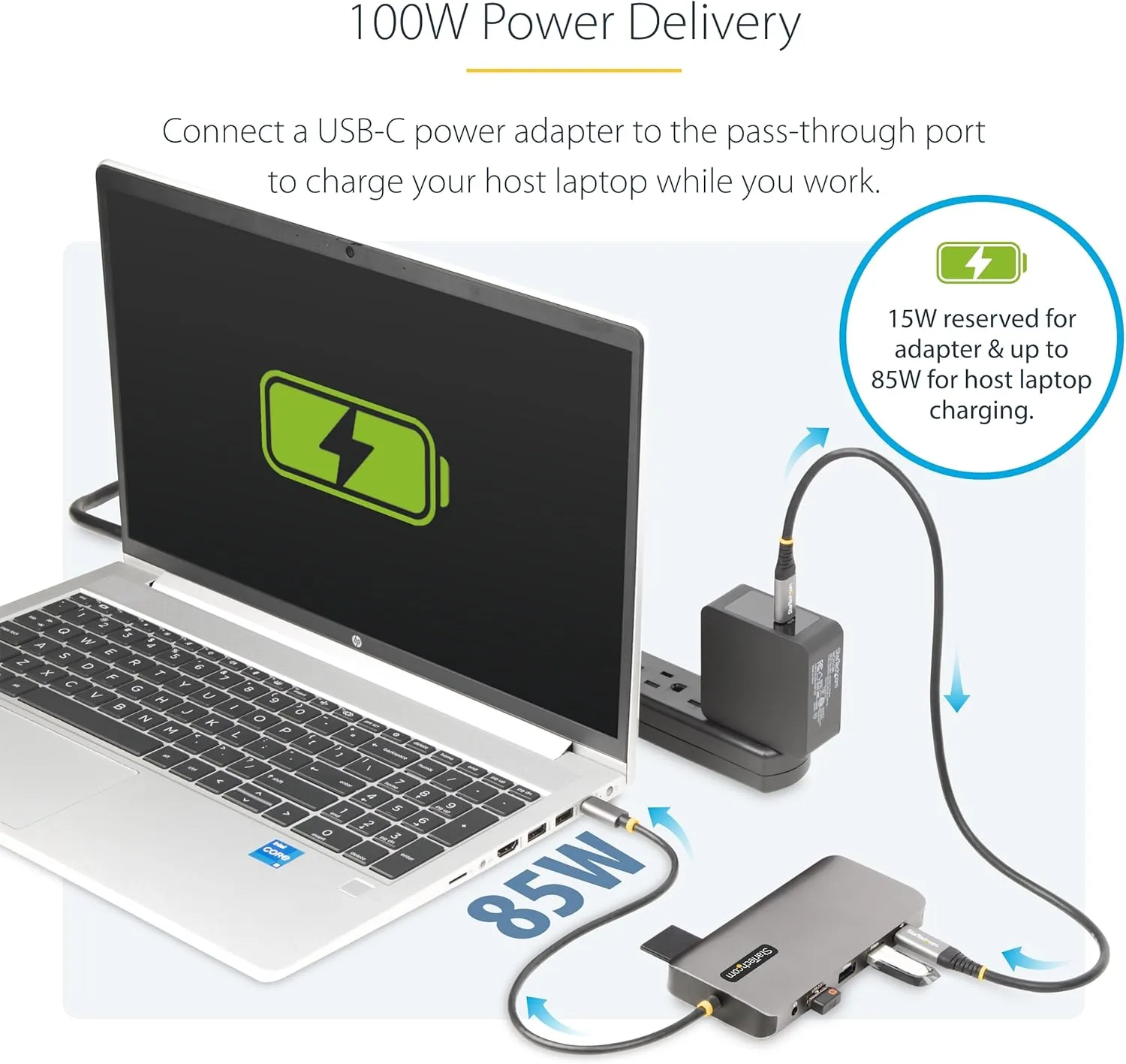

- COMPATIBILITY: TRAVEL DOCKING STATION FOR USB-C, USB4, TB3 AND TB4 COMPUTERS RUNNING WINDOWS & CHROMEOS; FEATURES 100W PD PASS-THROUGH WITH 15W RESERVED FOR ADAPTER & UP TO 85W FOR HOST LAPTOP CHARGING; WORKS W/DP 1.2 ALT MODE AT LOWER RESOLUTIONS COMPATIBILITY: Travel Docking Station for USB-C, USB4, TB3 and TB4 computers running Windows & ChromeOS; Features 100W PD pass-through with 15W reserved for adapter & up to 85W for host laptop charging; Works w/DP 1.2 Alt Mode at lower resolutions

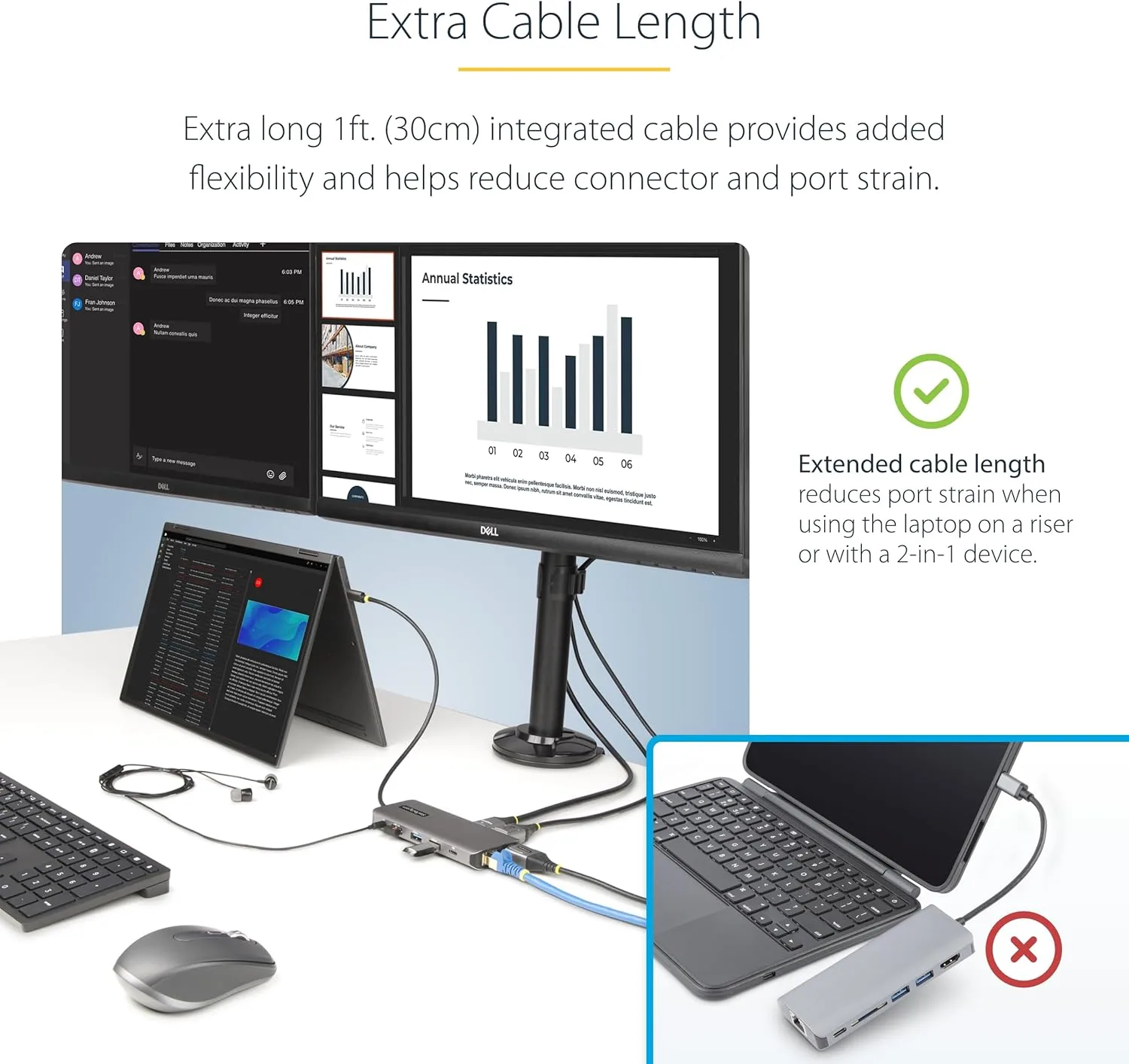

- EXTRA LONG CABLE & DURABLE BUILD: BUILT-IN 1FT (30CM) HOST CABLE FEATURES HIGH-QUALITY TPE JACKET & STRAIN RELIEF FOR ENHANCED DURABILITY & LONGEVITY; RUGGED ALUMINUM HOUSING; 4-PORT USB TYPE-A HUB; SD/MICROSD READER PROVIDES DIRECT ACCESS TO MEMORY CARDS EXTRA LONG CABLE & DURABLE BUILD: Built-in 1ft (30cm) host cable features high-quality TPE jacket & strain relief for enhanced durability & longevity; Rugged aluminum housing; 4-Port USB Type-A Hub; SD/MicroSD reader provides direct access to memory cards

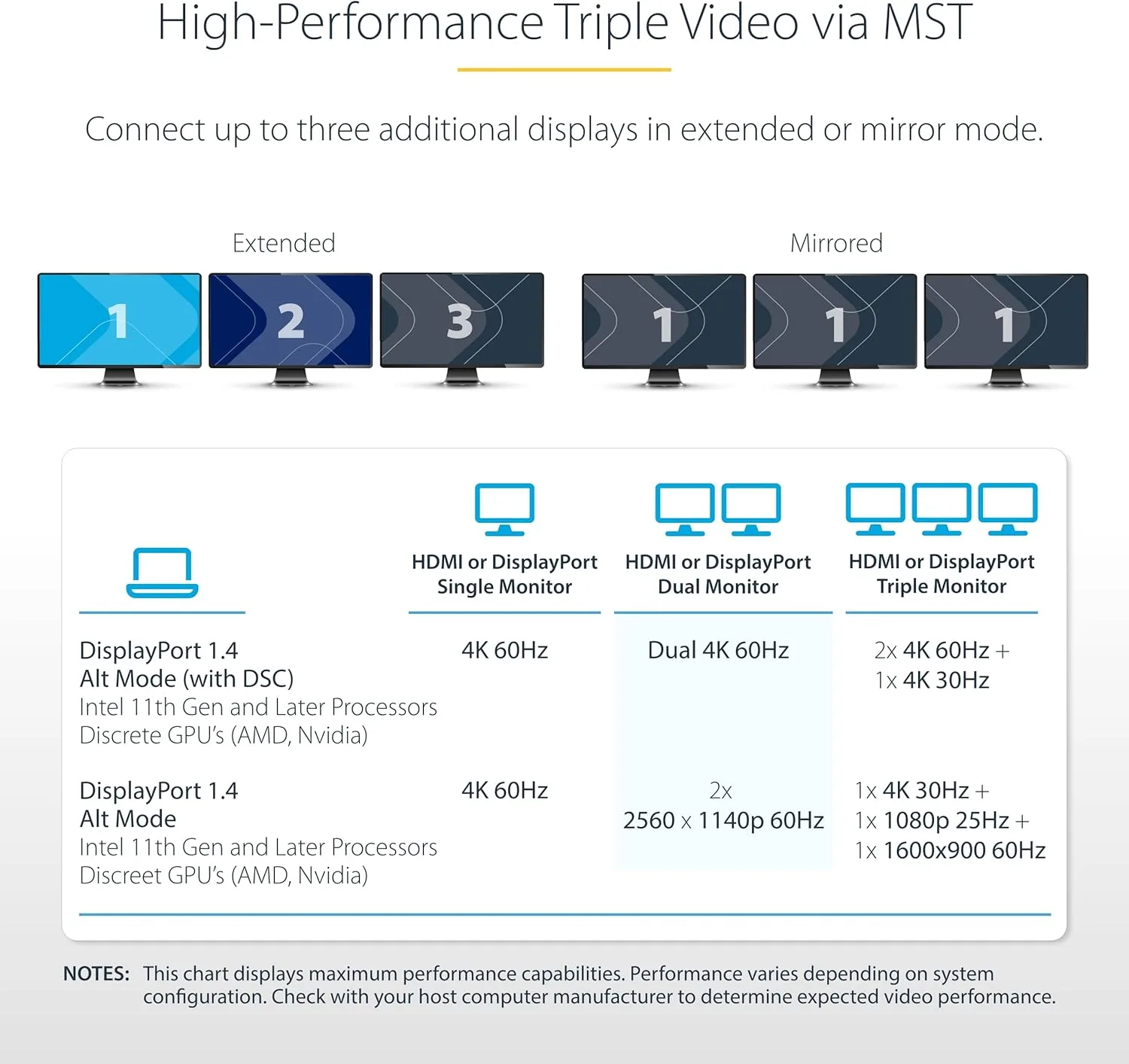

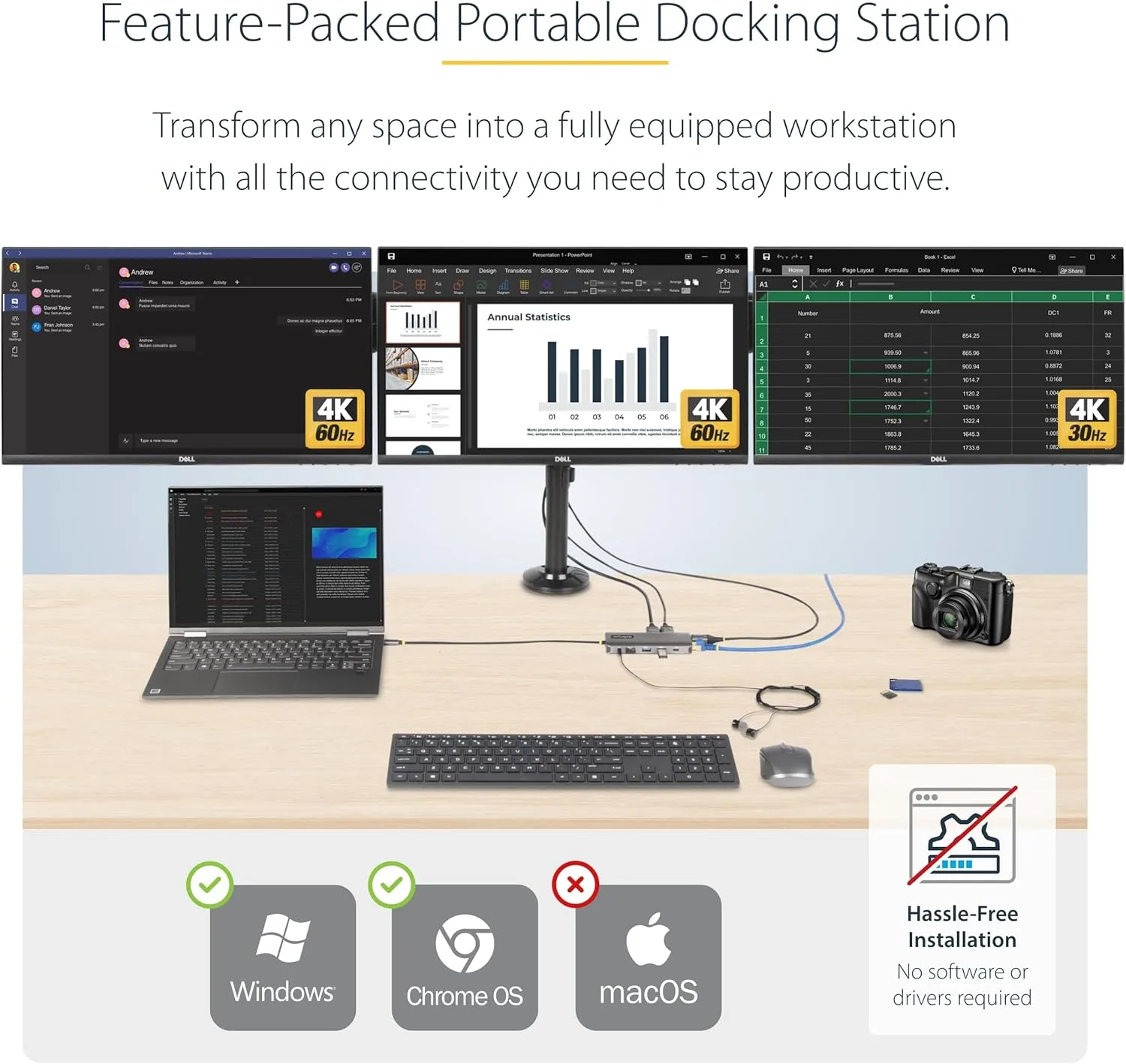

- FLEXIBLE MULTIMONITOR OUTPUT: TRIPLE, DUAL, OR SINGLE MONITORS UP TO 2X 4K 60HZ AND 1X 4K 30HZ (INTEL 11TH GEN OR LATER WITH DSC REQUIRED FOR MAX PERFORMANCE); UTILIZES INTEGRATED OR DISCRETE LAPTOP GPU FOR UNCOMPRESSED VIDEO AND LOW CPU USAGE FLEXIBLE MULTIMONITOR OUTPUT: Triple, Dual, or Single monitors up to 2x 4K 60Hz and 1x 4K 30Hz (Intel 11th Gen or later with DSC required for max performance); Utilizes integrated or discrete laptop GPU for uncompressed video and low CPU usage

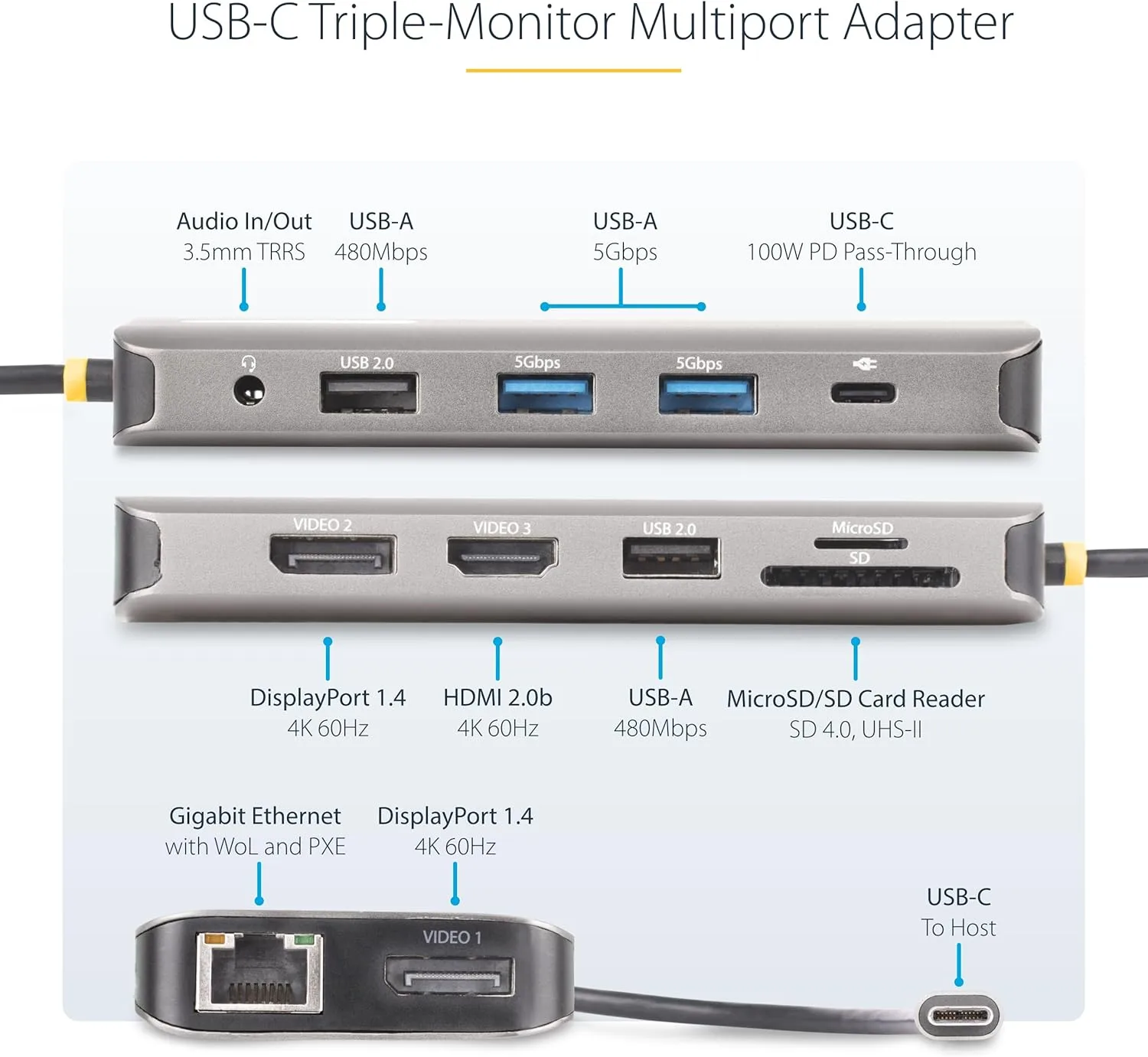

- HIGH PERFORMANCE TRIPLE 4K: DRIVERLESS SETUP (NO DRIVERS REQUIRED); PROVIDES A COMBINATION OF 2X DISPLAYPORT 1.4 & 1X HDMI 2.0B OUTPUTS; 4-PORT USB-A HUB (2X USB 5GBPS, 2X USB 2.0); GB ETHERNET; 3.5MM HEADSET PORT; SD/MICROSD READER; 100W PD PASS-THROUGH HIGH PERFORMANCE TRIPLE 4K: Driverless setup (no drivers required); provides a combination of 2x DisplayPort 1.4 & 1x HDMI 2.0b outputs; 4-port USB-A Hub (2x USB 5Gbps, 2x USB 2.0); Gb Ethernet; 3.5mm headset port; SD/MicroSD reader; 100W PD Pass-Through
Specifications:
| Materials & Construction | |
| Color | Space Gray |
| Material | Aluminum housing |
| Product Details | |
| Color | Space Gray |
| Displayport Version | 1.4 |
| Hdmi Version | 2.0b |
| Management Features | Pxe Boot; Wake-On-Lan; Mac Address Pass-Through |
| Memory Card Reader | Yes |
| Model | Usb-C Triple-Monitor Multiport Adapter, Hdmi/Dp/Card Reader |
| Model Number | 154B-USBC-MULTIPORT |
| Number Of Displays Supported | 3 |
| Number Of Ports | 5 |
| Number Of Rj-45 Ports | 1 |
| Number Of Usb 3.2 Gen 1 Type-A Ports | 1 |
| Number Of Usb Type-A Ports | 4 |
| Number Of Usb Type-C Ports | 1 |
| Operating System Supported | Windows 10; Windows 11; Windows 8.1; ChromeOS 78.x |
| Ports | Rj-45; Hdmi |
| Power Source Type | Power Adapter |
| Rugged | Yes |
| Usb Power Delivery | 100W |
| Usb Type-C Detail | 1 X Usb Type-C (24 Pin) Usb Power Delivery Only, 1 X Usb 3.2 Type-C (24 Pin, Gen 1, 5gbps) |
| Warranty | 3-Year Limited |

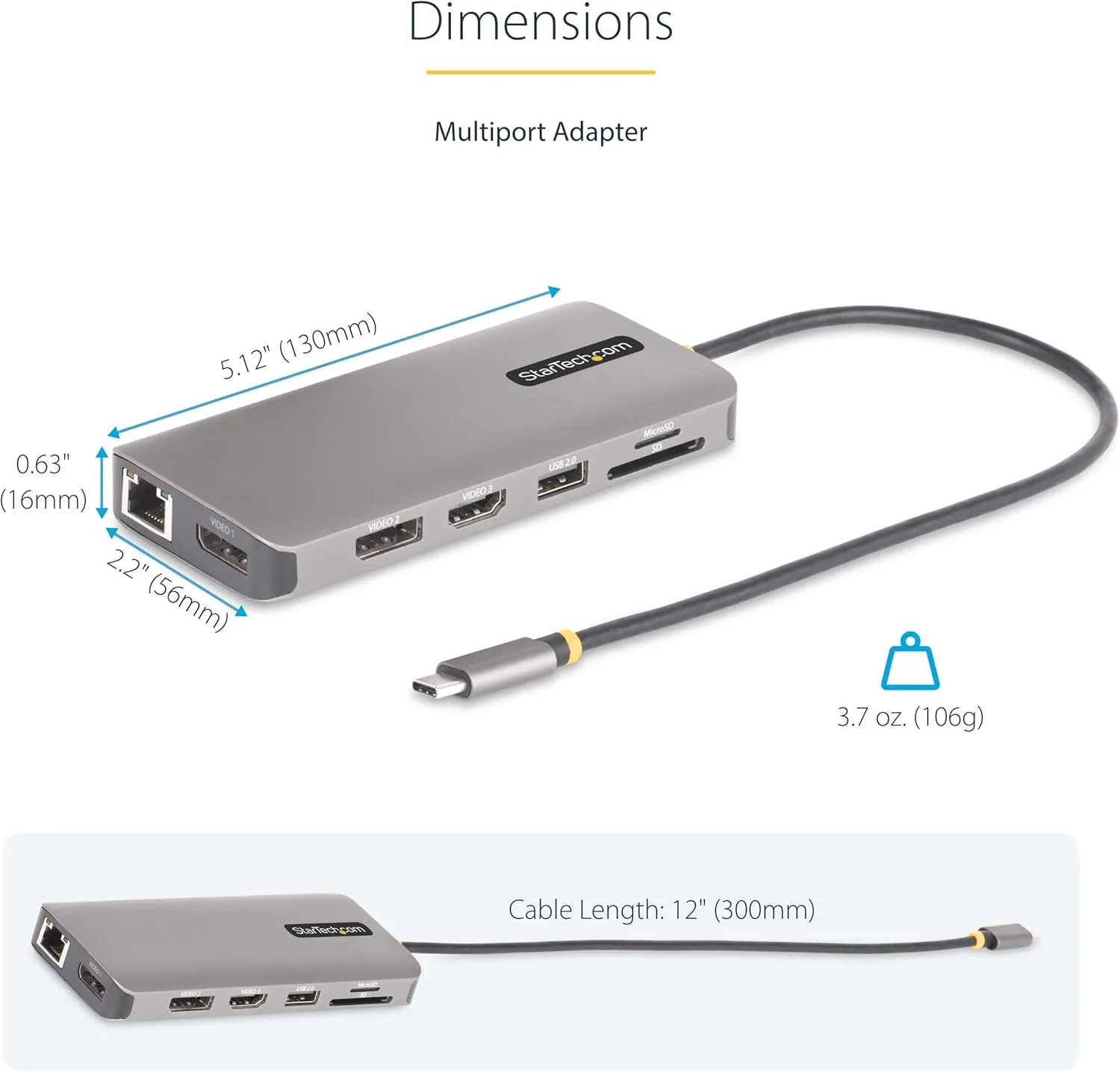

| Sizing & Dimensions | |
| Height | 0.6 inches |
| Length | 5.1 inches |
| Product Dimensions | 5.1 x 2.2 x 0.6 inches |
| Size | 5.1 x 2.2 x 0.6 inches |
| Weight | 3.84 ounces |
| Width | 2.2 inches |
| Technical Specifications | |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs); Waste Electrical And Electronic Equipment Directive (Weee) |
| Hardware Interface | USB Type C |
| Screen Mode Supported | 4k @ 60hz; 4k Uhd |
| Special Feature | Pass Through Charge |
| Supported Resolutions | 3840.000216 |
