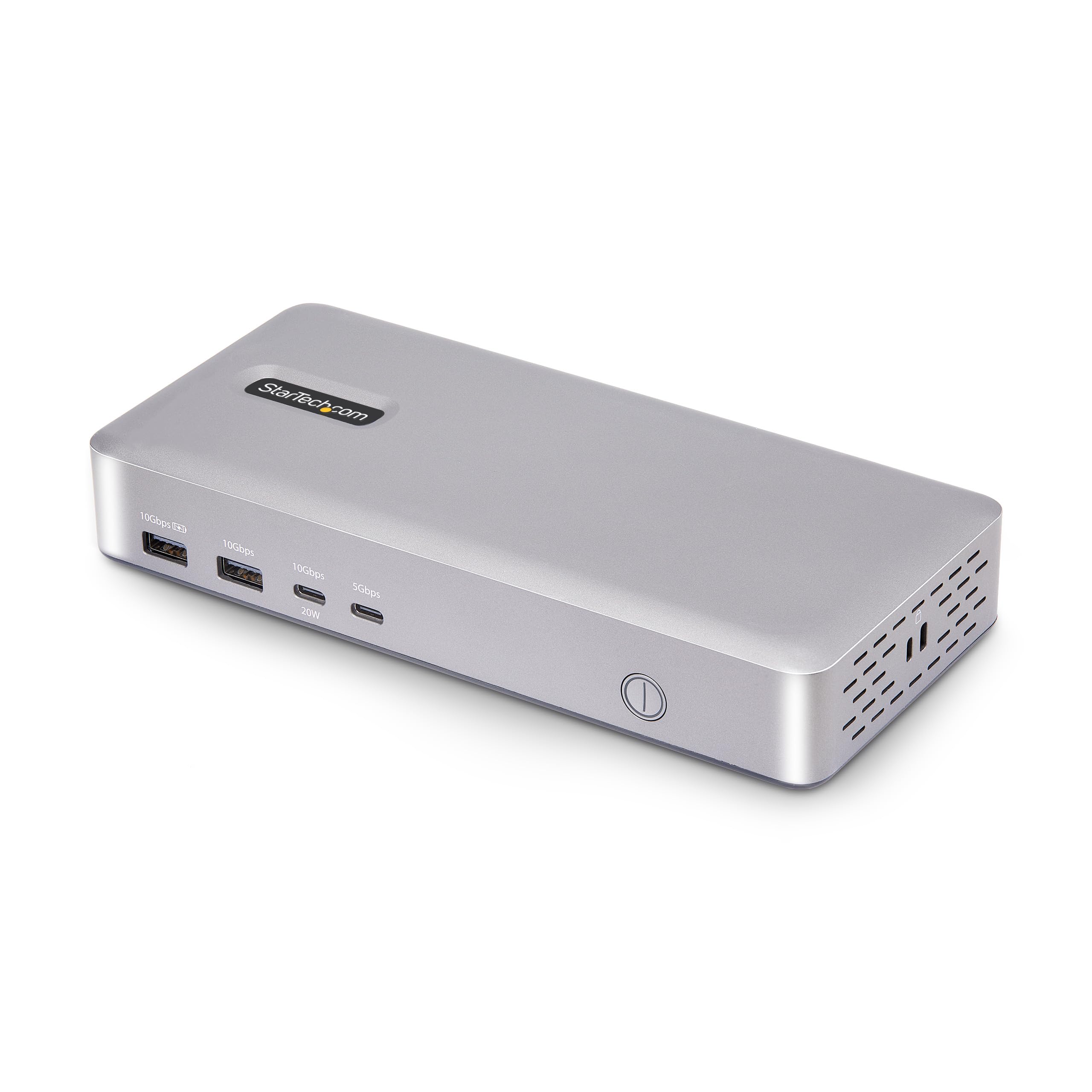

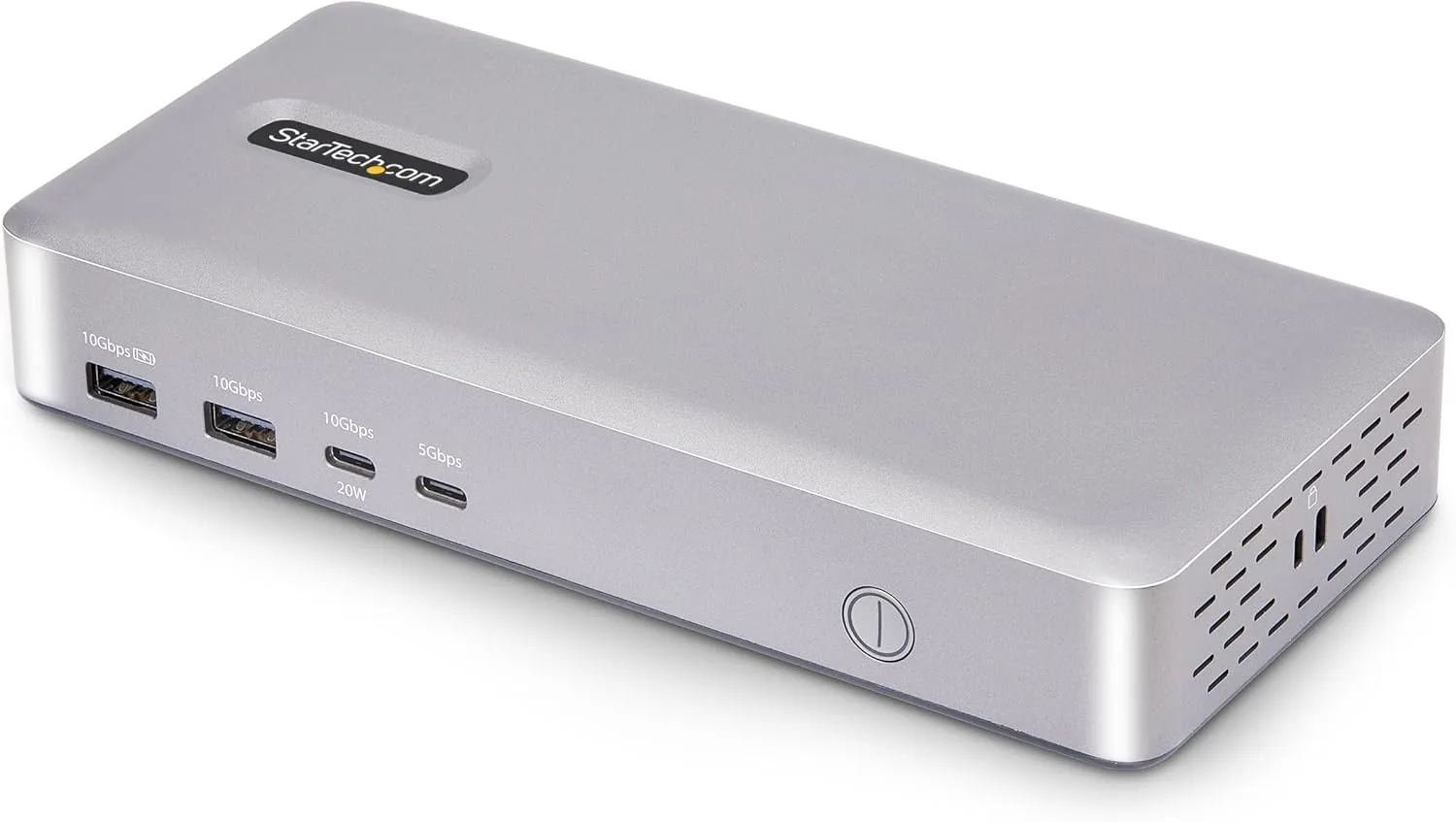

StarTech.com USB-C Docking Station (10-in-1, USB4), Up to 100W Charging for Laptop, 40Gbps Data Transfer, 2.5Gb Ethernet
Customize
StarTech USB4 docking station combines high-speed USB4/Thunderbolt connectivity with comprehensive port expansion and laptop charging. The dock supports dual HDMI 2.1 displays at up to 4K60 4:4:4 (or dual 4K120 at 4:2:2), single-display 8K support, and leverages 40Gbps throughput for high-performance data and video. It features a 6-port USB hub (including 10Gbps and 5Gbps ports), a 2.5GbE port with PXE and WoL, and delivers up to 100W PD to charge laptops while powering peripherals. The product is built for compatibility across Windows 10/11 and ChromeOS and is optimized for Thunderbolt 4 and USB4 hosts. ProductDatabase notes: multi-monitor dock, 6x USB, 2.5GBE, 100W PD; ProductDatabase long description highlights support for up to 2x 4K60 4:4:4 (RGB) or 2x 4K120 4:2:2 and up to 8K single-display operation.

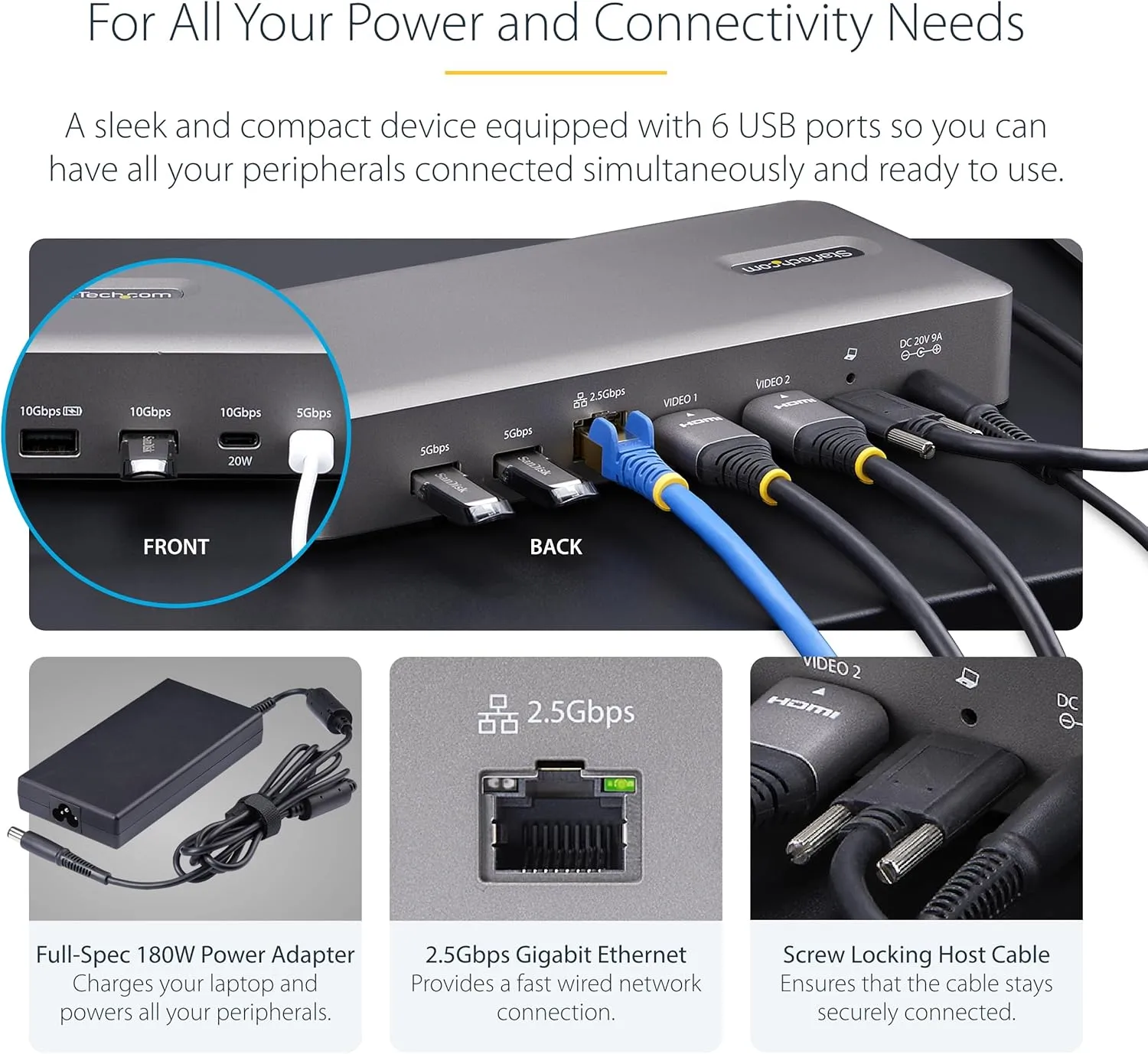

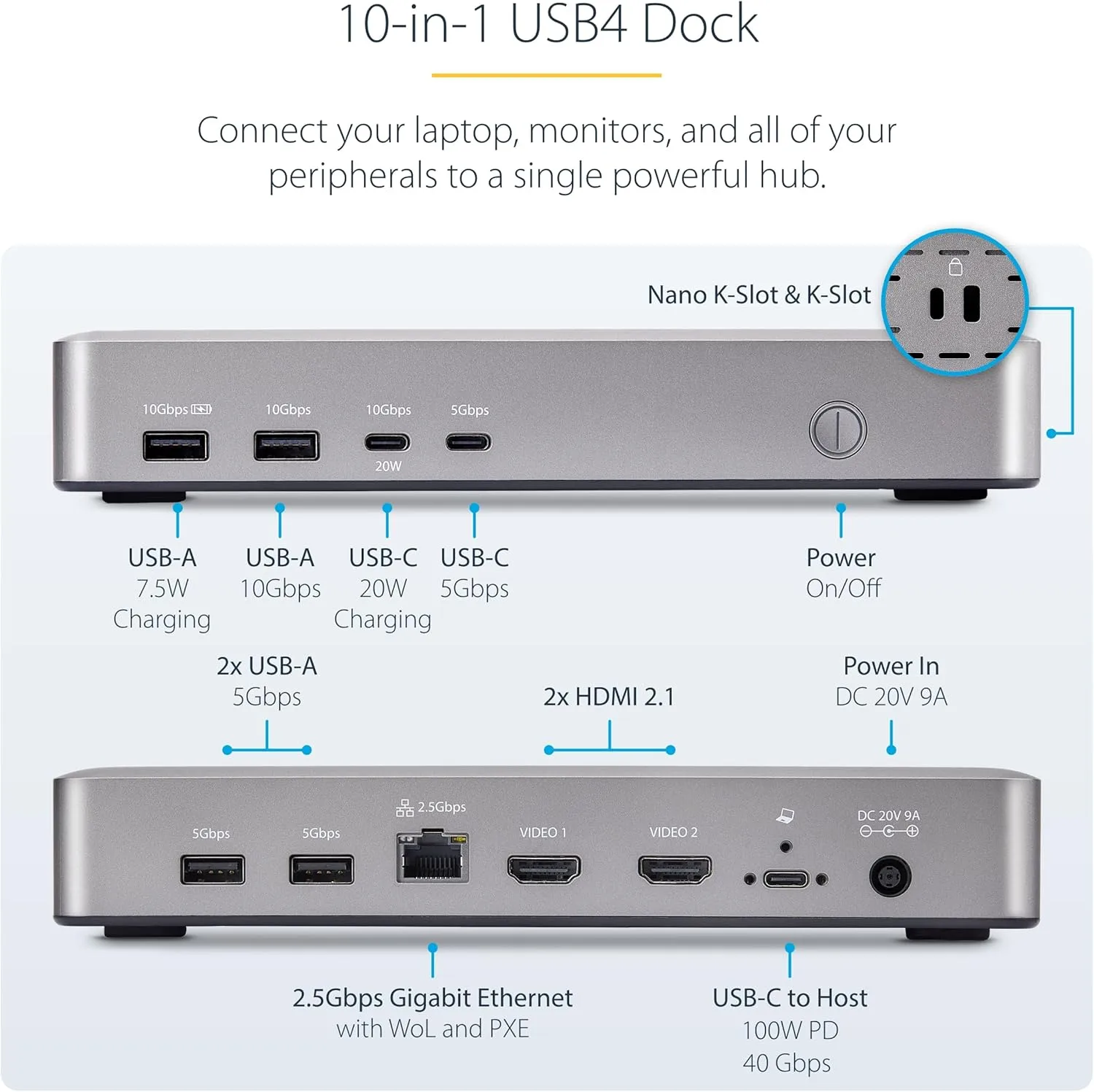

- PORTS: 6-port USB hub (2x USA-A 10Gbps / 2x USB-A 5Gbps / 1x USB-C 10Gbps / 1x USB-C 5Gbps); 2.5Gb LAN (10/100/1000/2500Mbps, WoL/PXE); 180W power adapter charges laptop (100W PD) & powers all ports; 1x 20W USB-C, 1x 7.5W USB-A for charging USB devices

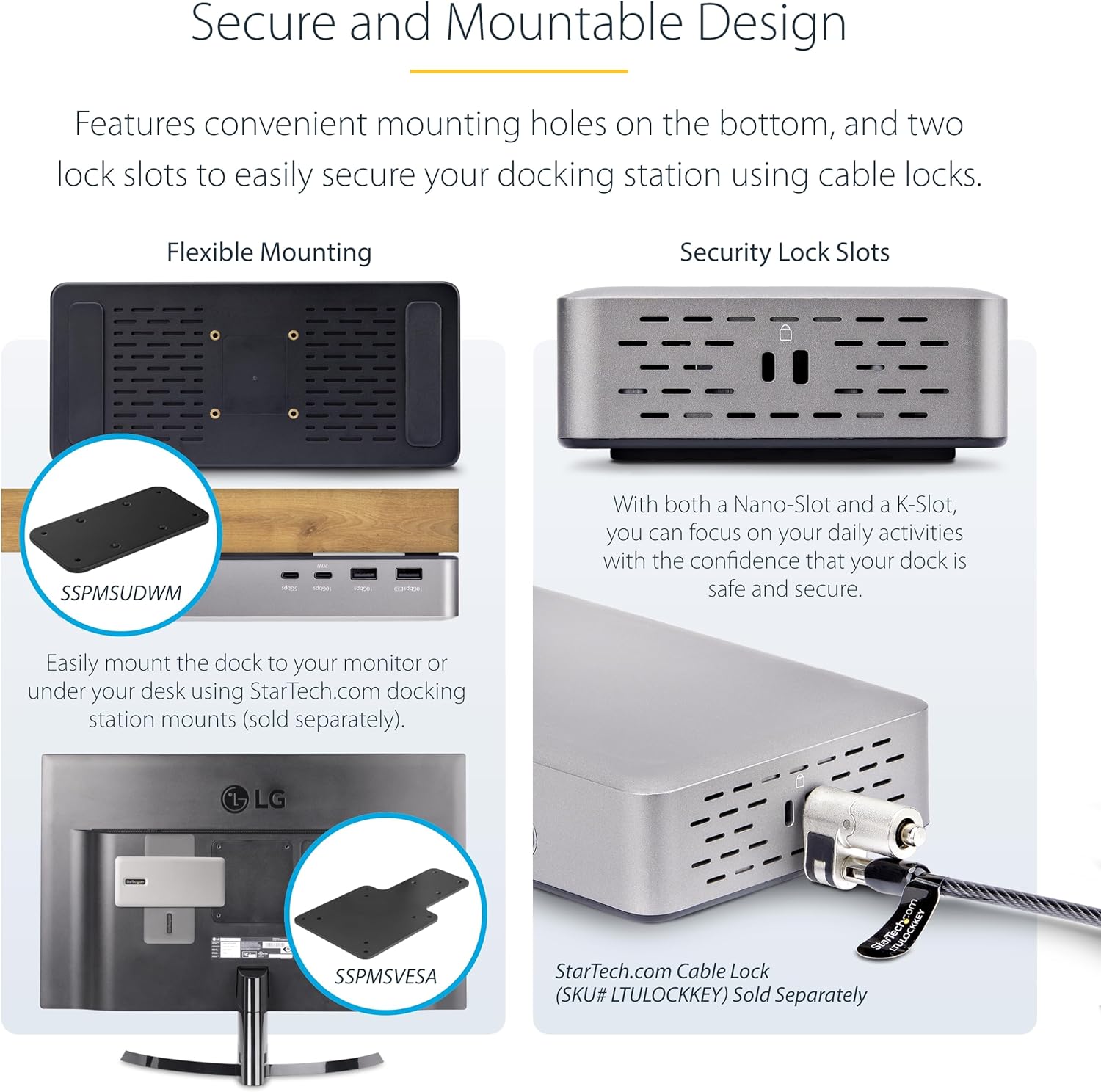

- DEVICE SECURITY: Secure 3.3ft (1m) USB-C locking cable for host port; Mounting holes available for optional mounting bracket; K-slot & Nano security slots; USB Event Monitoring, Mac Address Pass-Through with included Connectivity Tools software suite

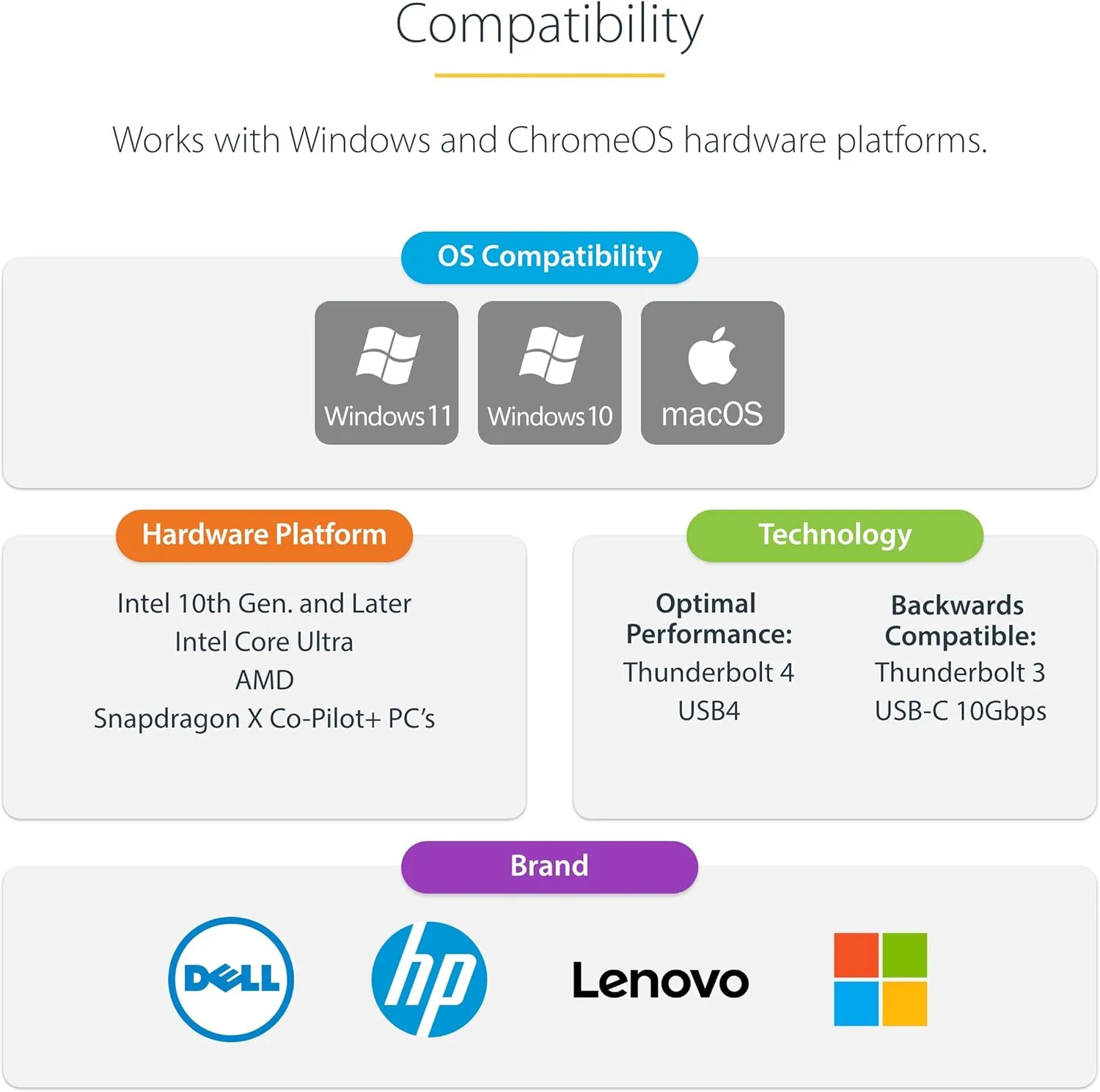

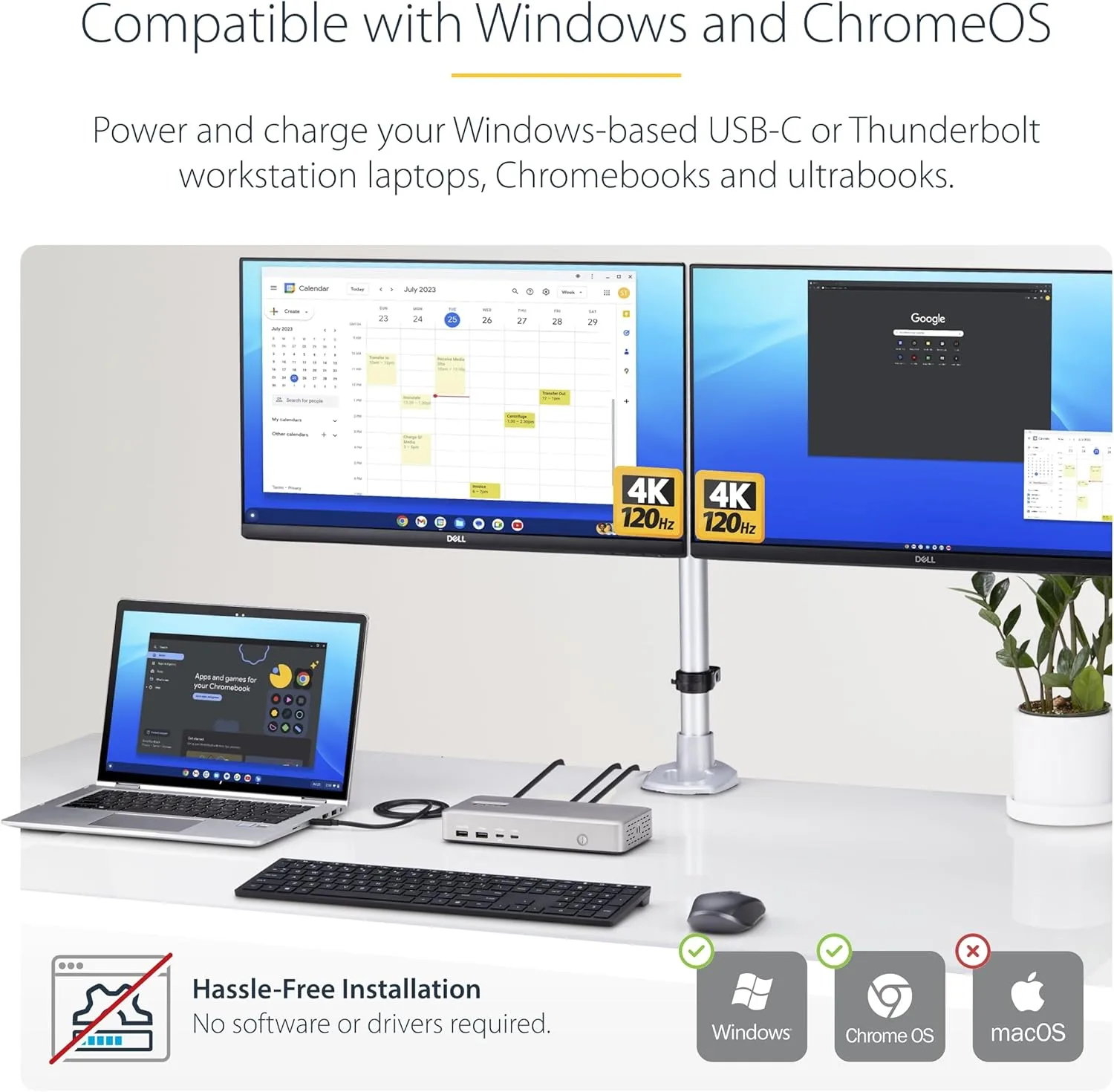

- COMPATIBILITY: Dock is Compatible with Windows 11 (x64 and ARM), Windows 10, and ChromeOS; Optimal performance with Thunderbolt 4 and USB4 laptops; Compatible with Intel 12th Gen and later, Intel Core Ultra, AMD, and Snapdragon X Co-Pilot+ PC's

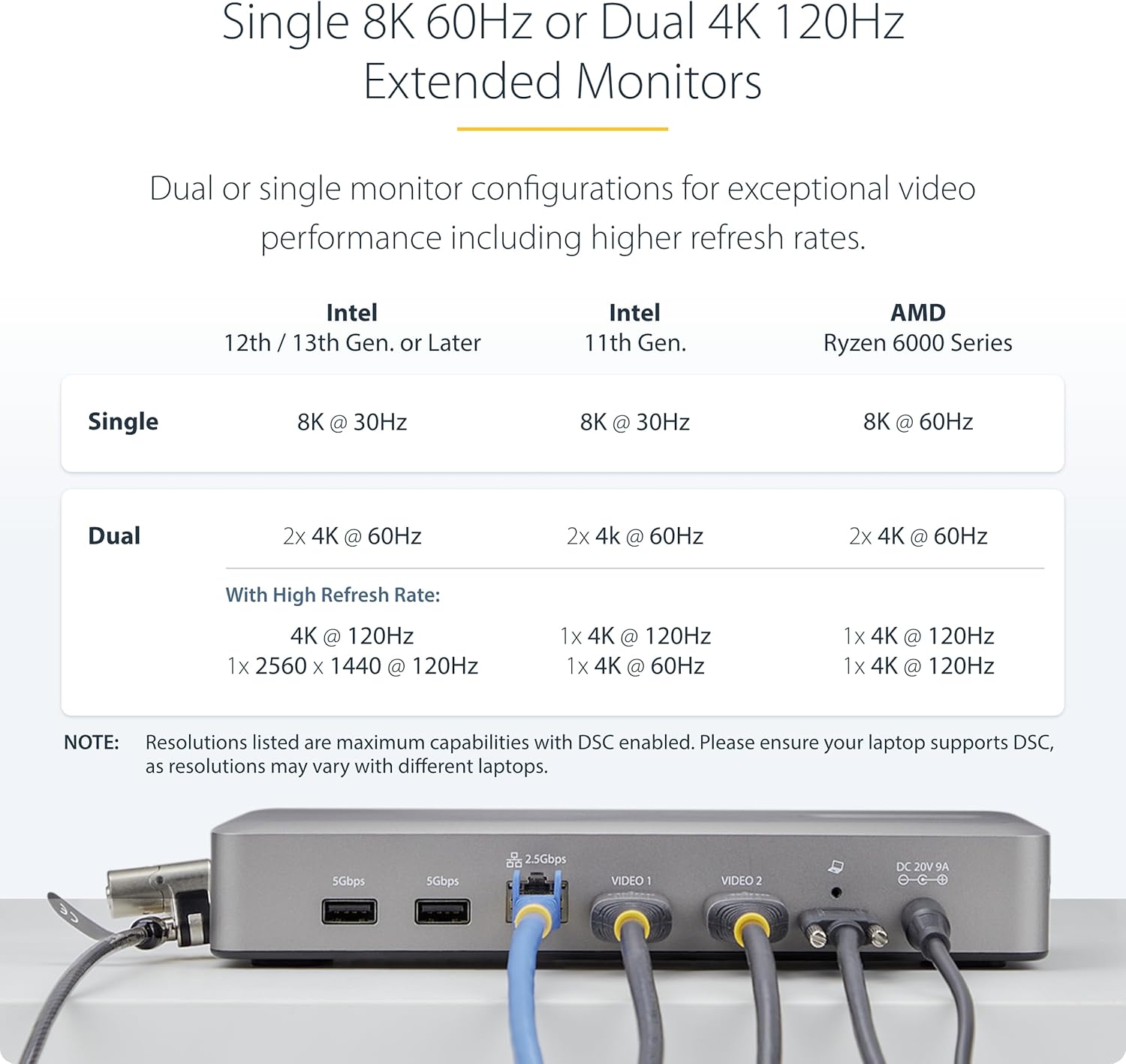

- DUAL 4K 60Hz/120Hz VIDEO: 2x HDMI 2.1 ports support Dual 4K 60Hz or up to Dual 4K 120Hz / Single 8K 60hz at 4:2:2; Delivers direct GPU performance with no software or compression

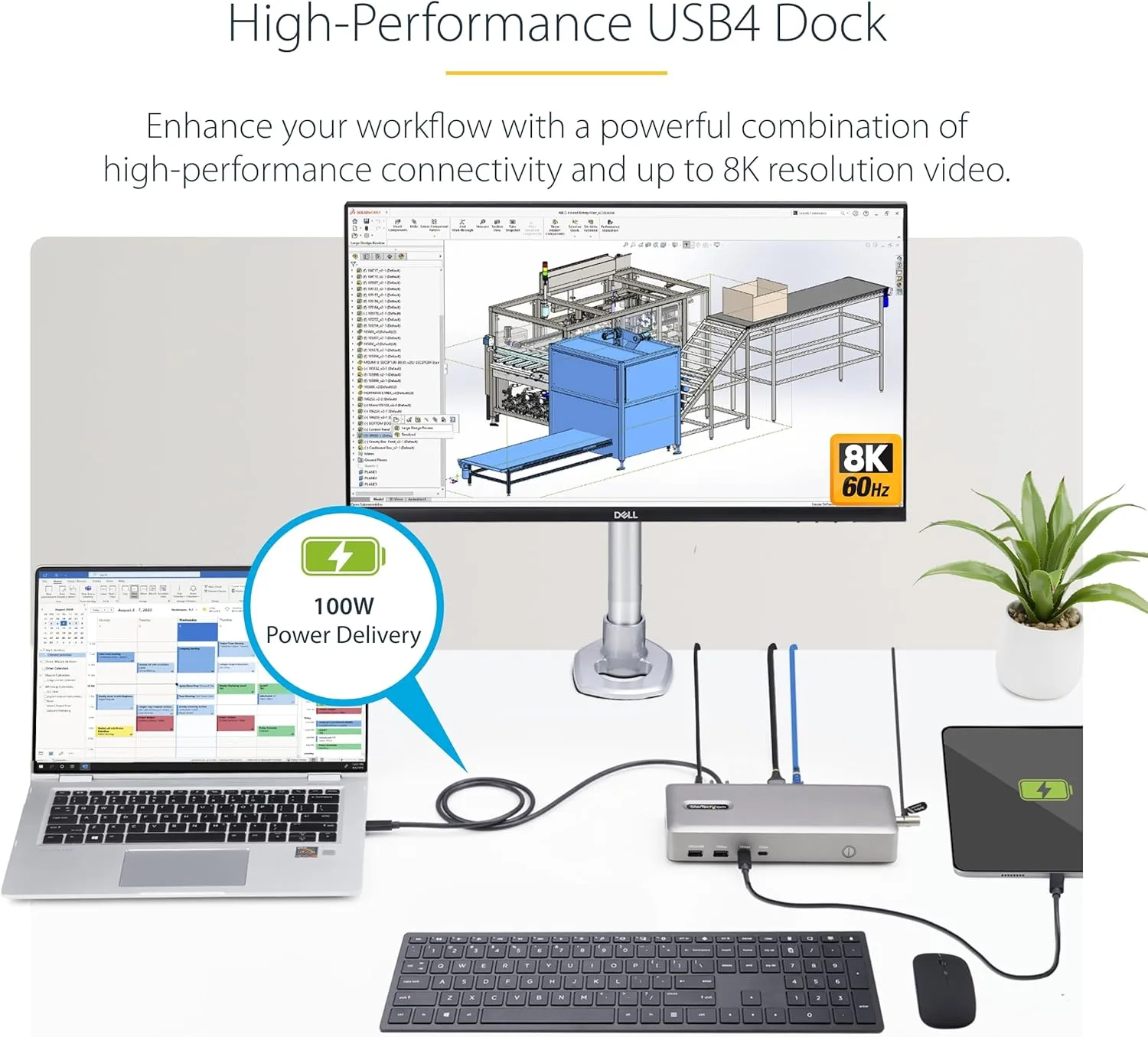

- HIGH-PERFORMANCE USB4 DOCK: USB4 delivers 40Gbps data transfer speeds, and improved bandwidth for video, making this mobile docking station an ideal solution for high-performance computing & seamless device connectivity
Specifications:
| Materials & Construction | |
| Color | Space Gray |
| Product Details | |
| Compatible Devices | Monitor, Windows 10, 11 and ChromeOS, HP Spectre x360 13-aw0000/... (full compatible devices list as provided in source) |
| Hardware Interface | USB, HDMI, USB 3.0, Thunderbolt |
| Item model number | 155NA-USB4-DOCK |
| Number of Ports | 10 |
| Total HDMI Ports | 2 |
| Total USB Ports | 6 |
| Wattage | 165 |

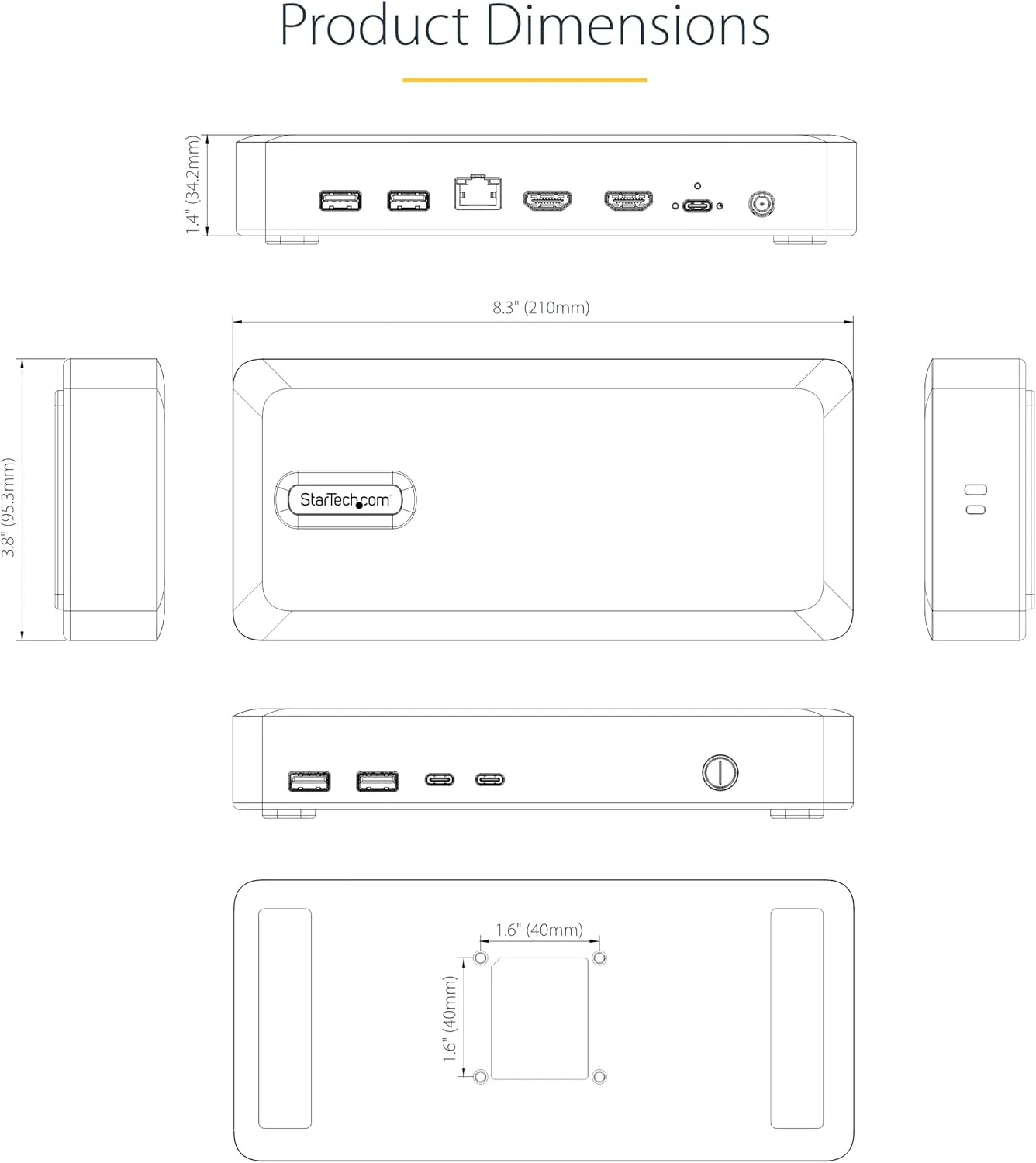

| Sizing & Dimensions | |
| Height | 1.3 inches |
| Length | 3.8 inches |
| Product Dimensions | 3.8"L x 8.3"W x 1.3"H |
| Weight | 4.96 ounces |
| Width | 8.3 inches |
| Technical Specifications | |
| Total HDMI Ports | 2 |
| Total USB Ports | 6 |
| Wattage (adapter) | 165 |
