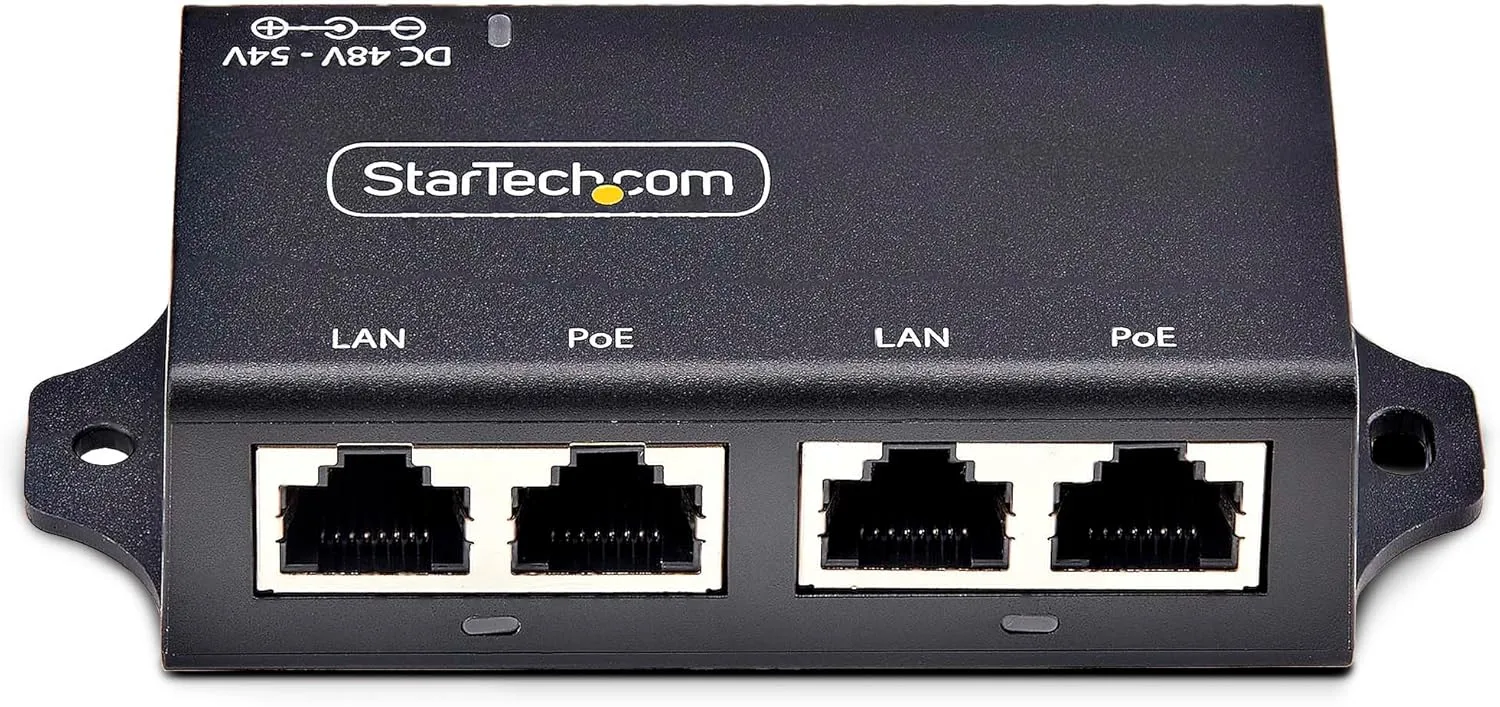

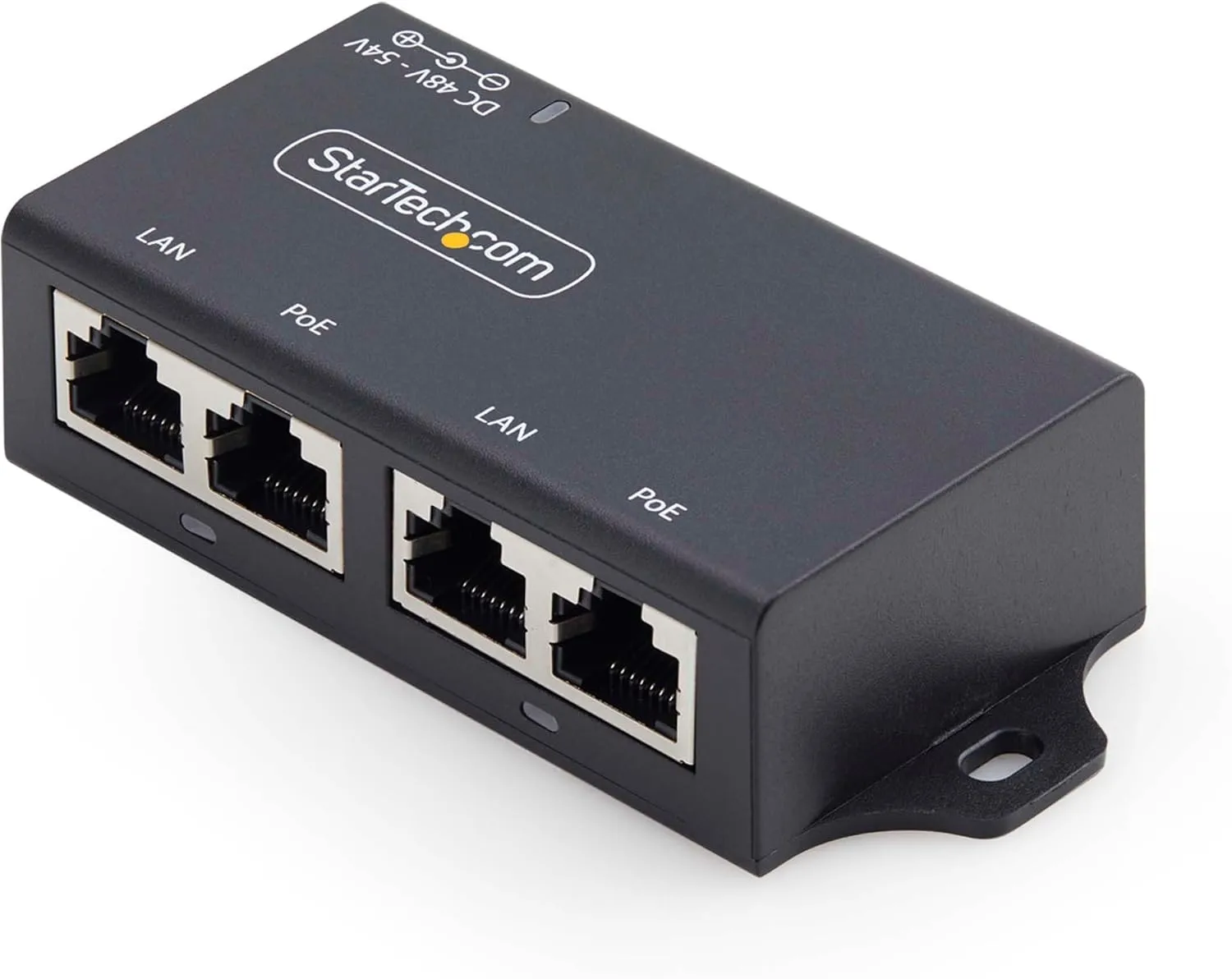

StarTech.com 2-Port PoE+ Injector, 10/100/1000Mbps, PoE/PoE+ (802.3af/at), 4X 10/100/1000BASE-T RJ45, 30W, Wall Mountable

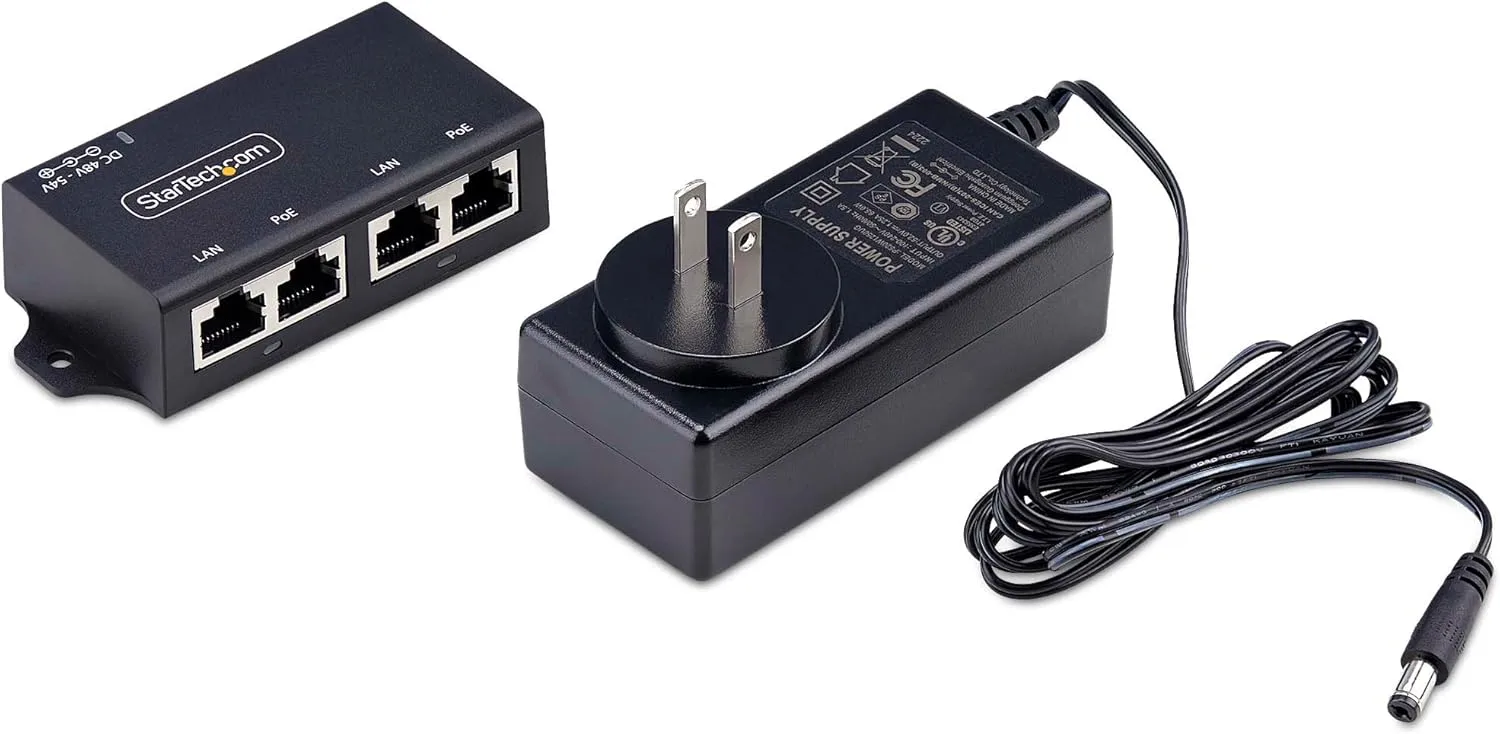

This 2-port multi-speed PoE+ injector (AF221C-POE-INJECTOR) from StarTech provides Power Sourcing Equipment (PSE) functionality delivering network data and power to two Powered Devices (PD). It supports 10/100/1000Mbps (Gigabit) speeds and is compliant with IEEE 802.3af and IEEE 802.3at, delivering up to 30W output (52V/0.580A). The injector is an unmanaged, mid-span inline unit that transmits data and power up to 328 ft (100 m). The compact, wall-mountable design allows desktop or surface-mount installation with front-facing mounting ears for organized cabling. Includes 4x RJ45 ports (2x data input, 2x data output + power), NA power adapter and quick-start guide. Typical applications include powering IP cameras, wireless access points, VoIP phones, IPTV and access control devices. Features include auto-negotiation to 10/100/1000Mbps, support for jumbo frames, ESD protection and surge protection as specified by the manufacturer.

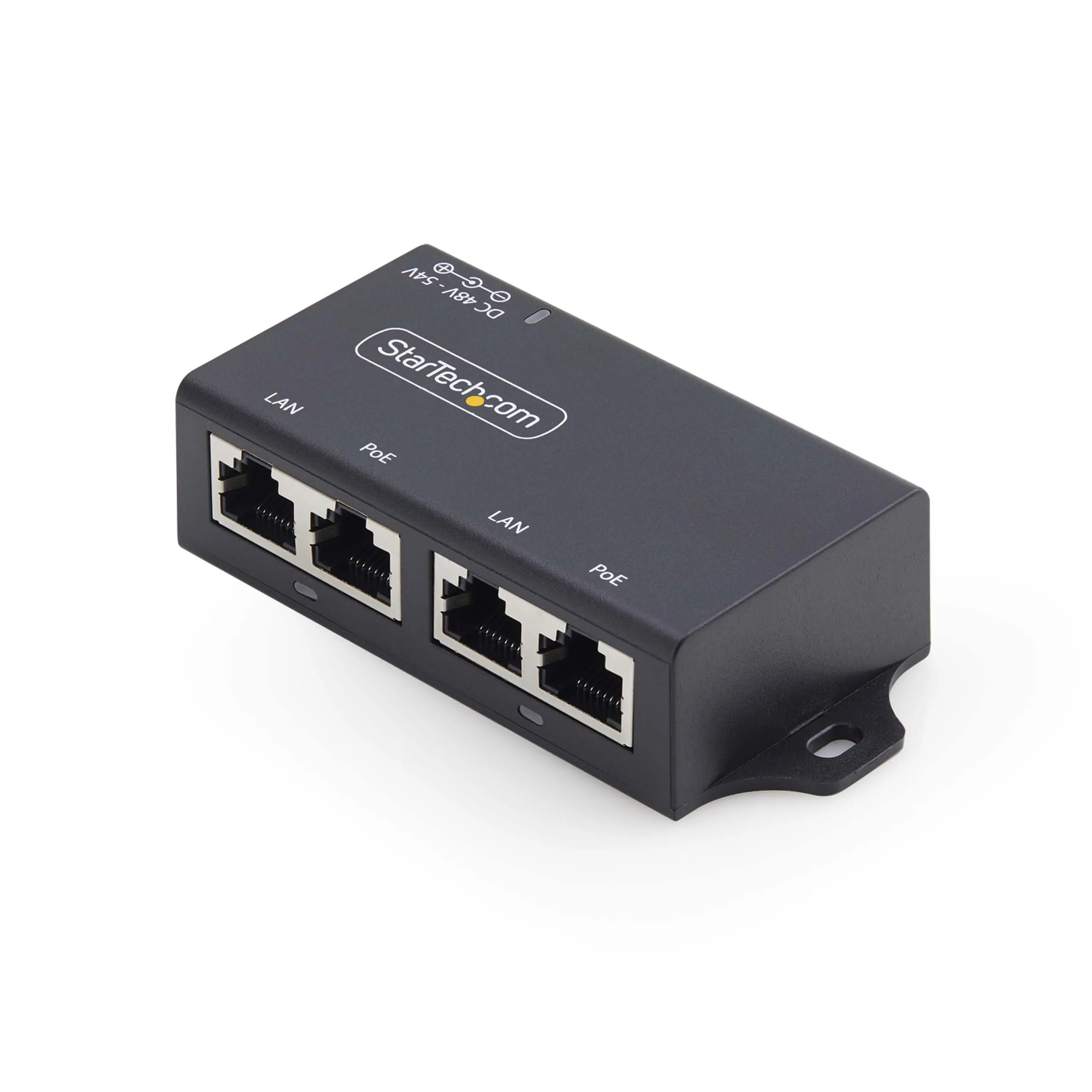

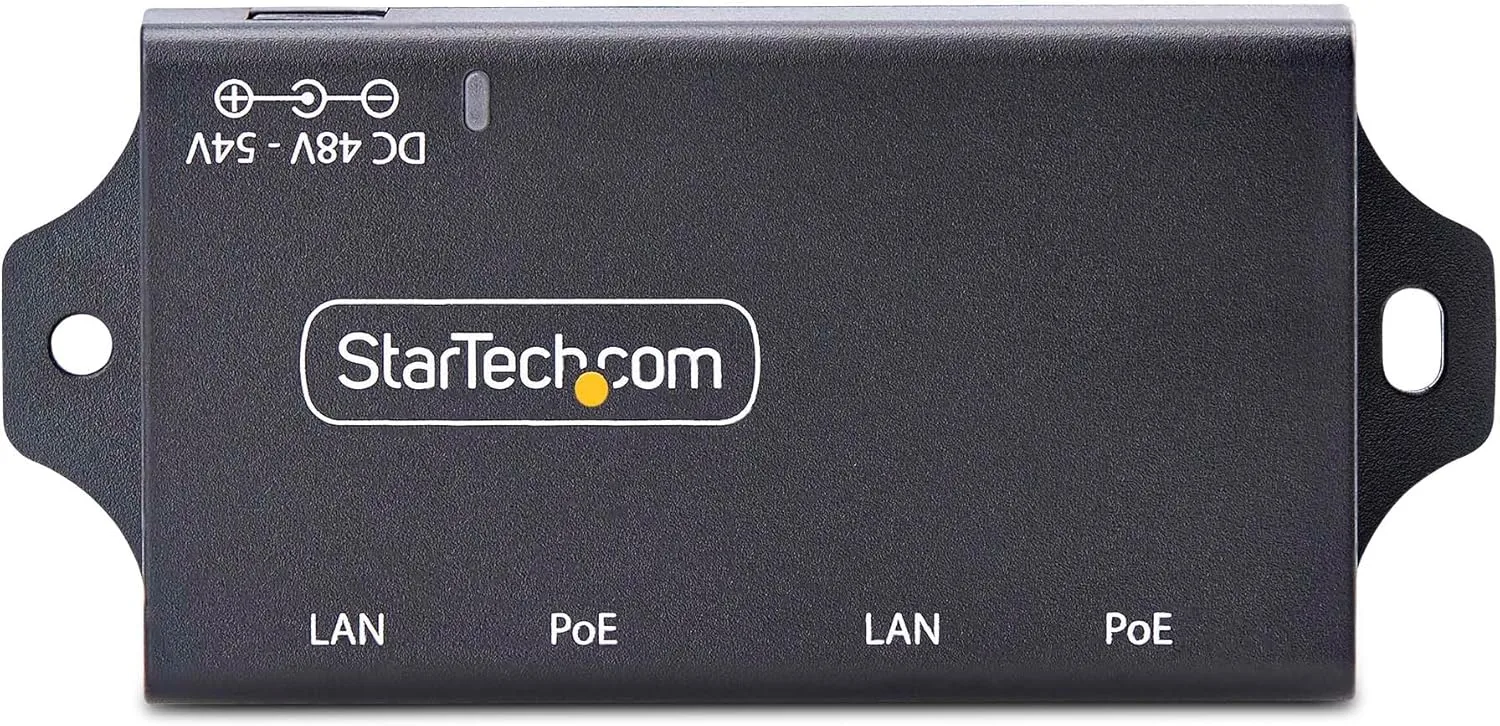

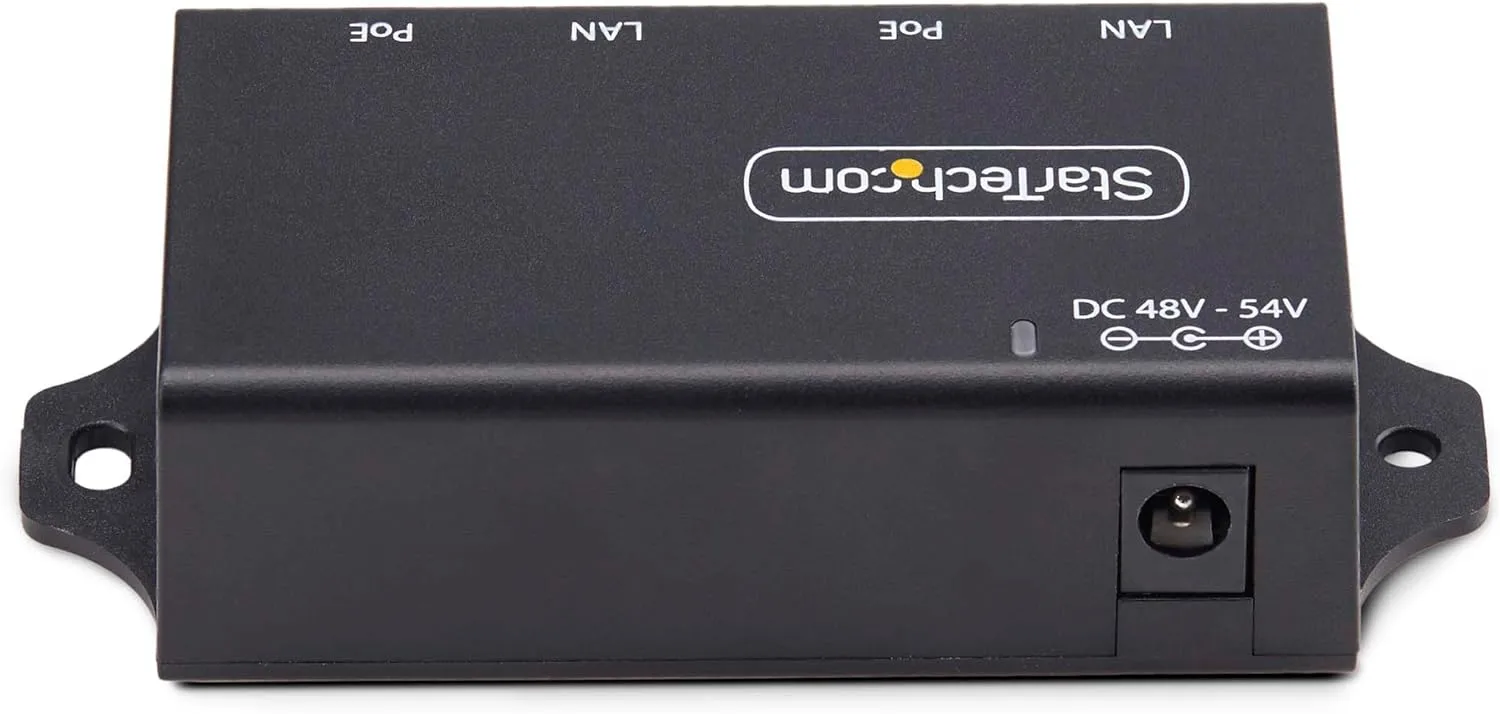

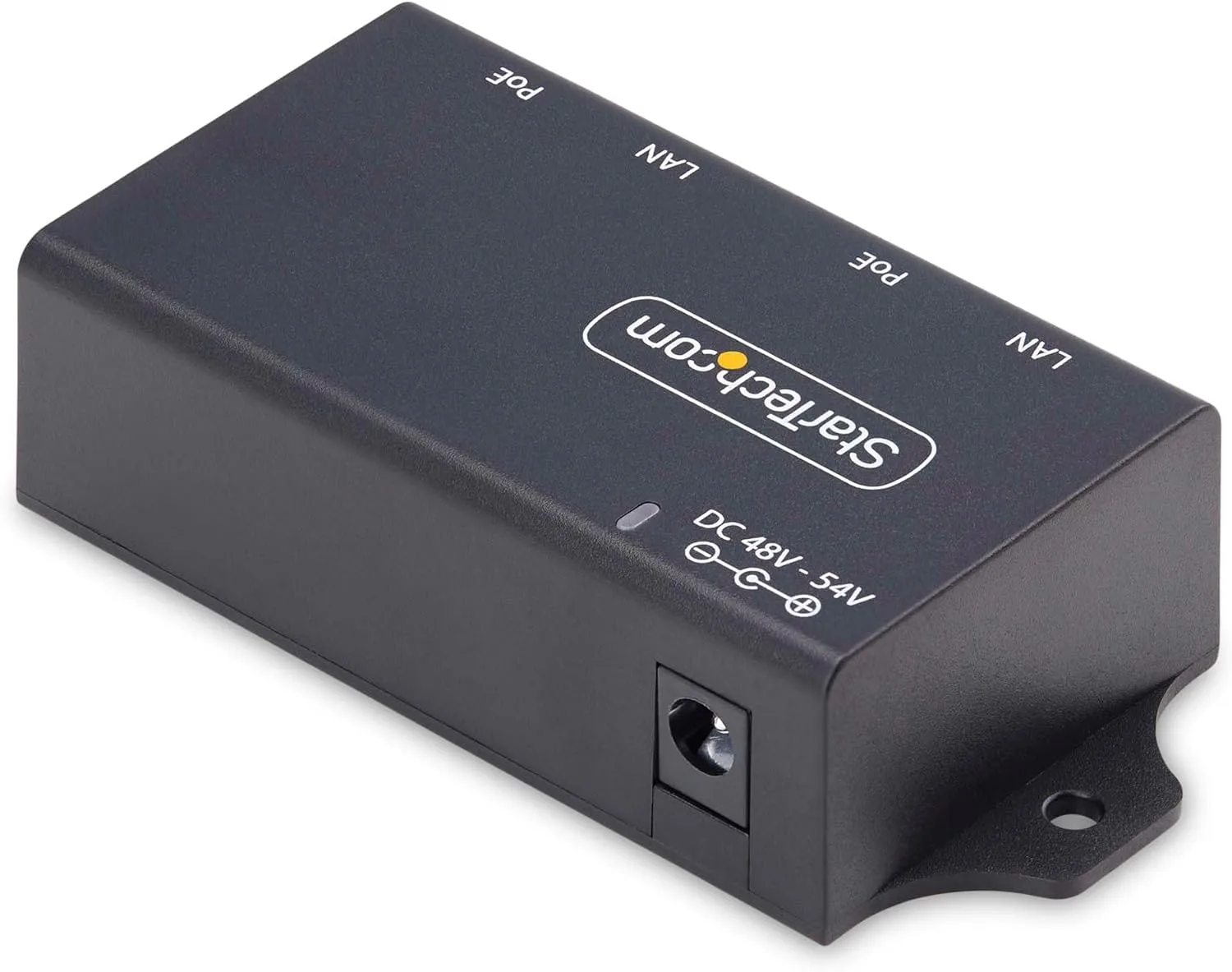

• TECH SPECS: 4x RJ45 ports (2x data input, 2x data output + power); 30W max output, 52V 0.580A output per port; Compliant with IEEE 802.3af and IEEE 802.3at; 10/100/1000Mbps & 1Gbps; 9K jumbo frames; Dimensions 3.2x1x1.8-inch(82x25x46mm)
• APPLICATIONS: Provides more power and bandwidth over 2x RJ45 interfaces to demanding PoE devices such as IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points; Compatible w/1000Base-T/100Base-TX/10Base-T Ethernet

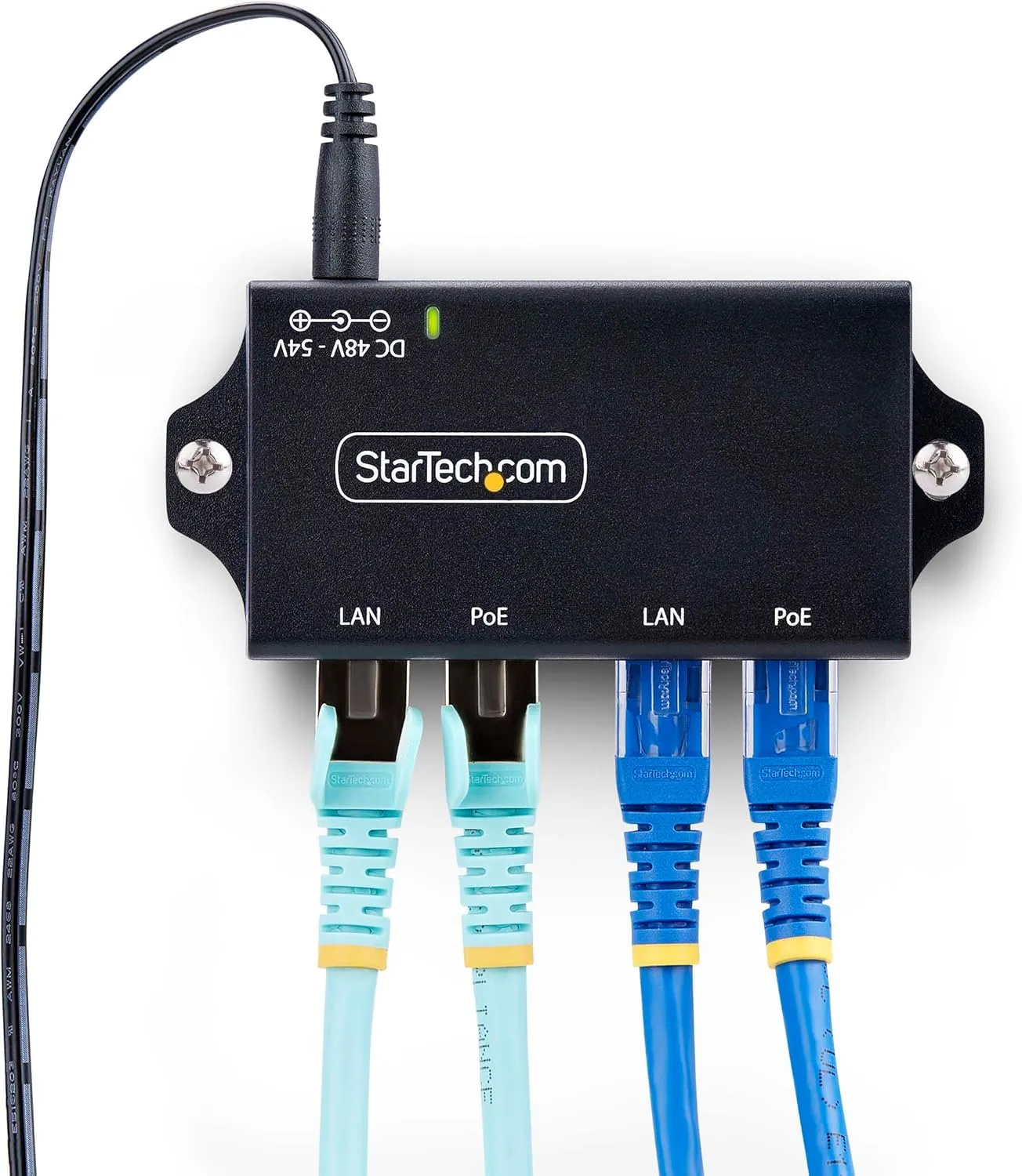

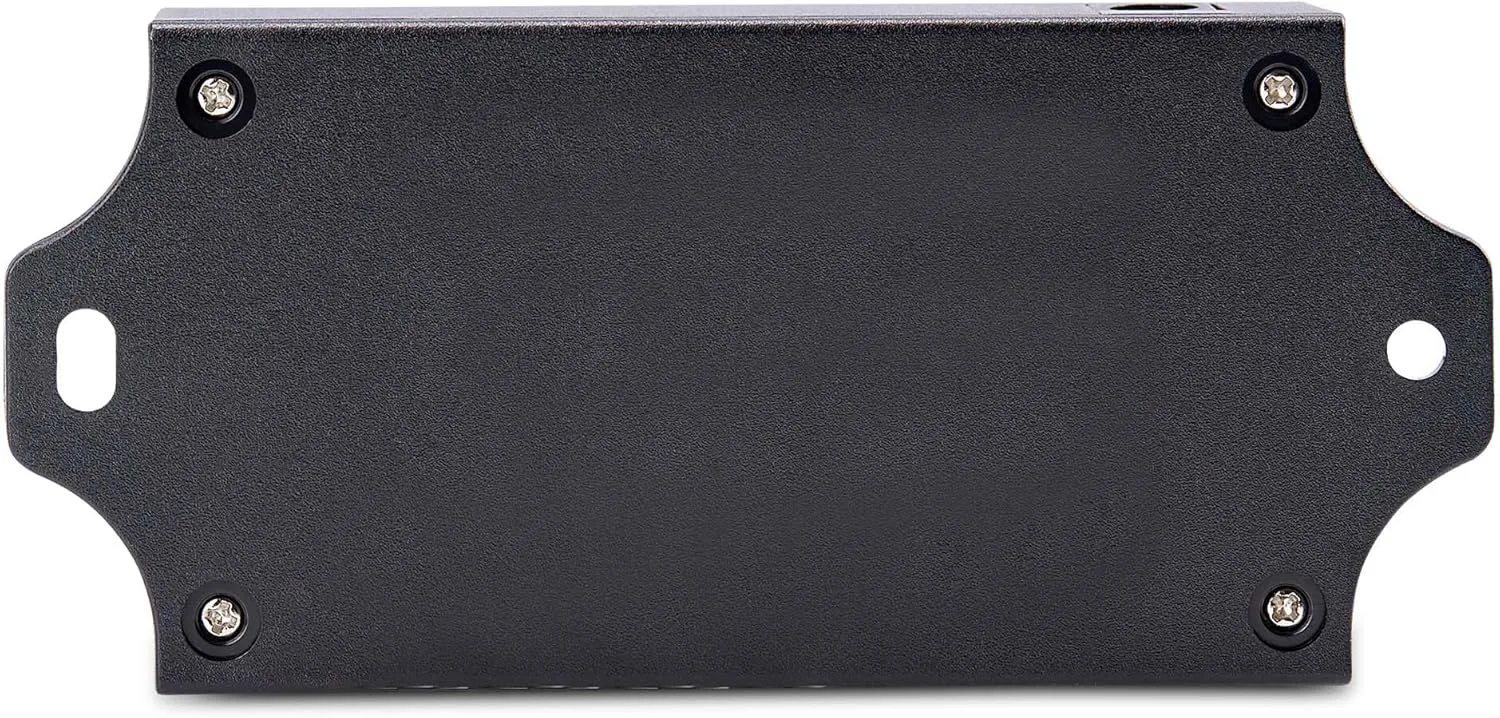

• HASSLE-FREE INSTALLATION: Wall-mountable w/front facing mounting ears and screw holes molded into the housing; Streamline deployment without additional software; Connect the PoE injector to the network (switch/router)/remote PD via standard cabling
• NETWORK COMPATIBILITY: Auto-negotiation between 10/100/1000Mbps; Deliver data and power to up to two Powered Devices (PDs) up to 328ft (100m) with Cat5/5e/6/6a cabling; Surge protection up to 2kV
• TWO-PORT POE+ INJECTOR: Power Sourcing Equipment provides up to 30W PoE/PoE+ and 1Gbps to two Powered devices; Level-4 ESD protection (15kV air and 8kV contact) and LAN transformer enhance device safety and maintain signal quality with reduced EMI
