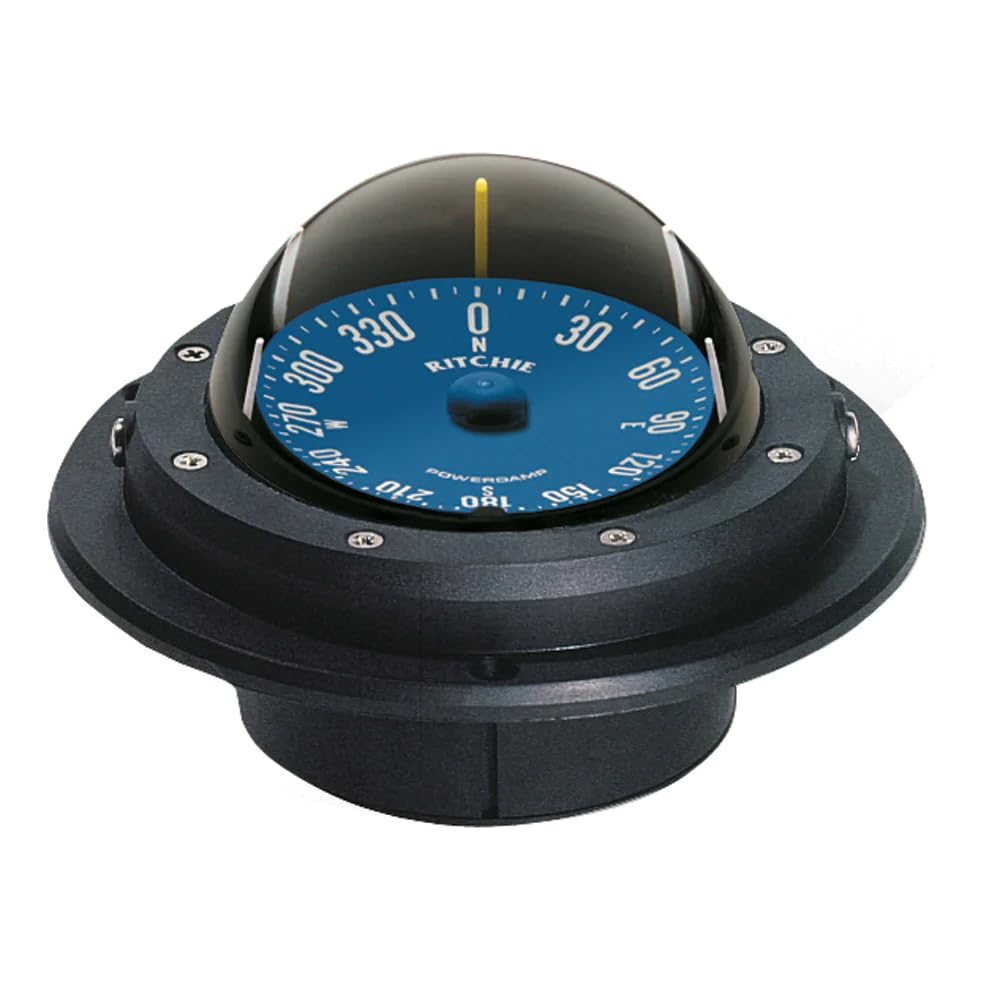

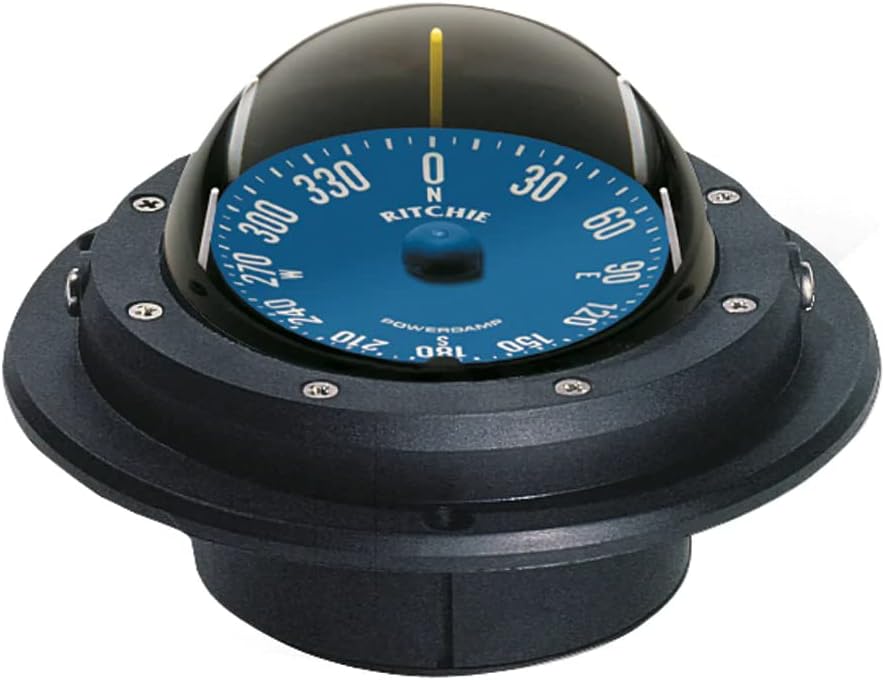

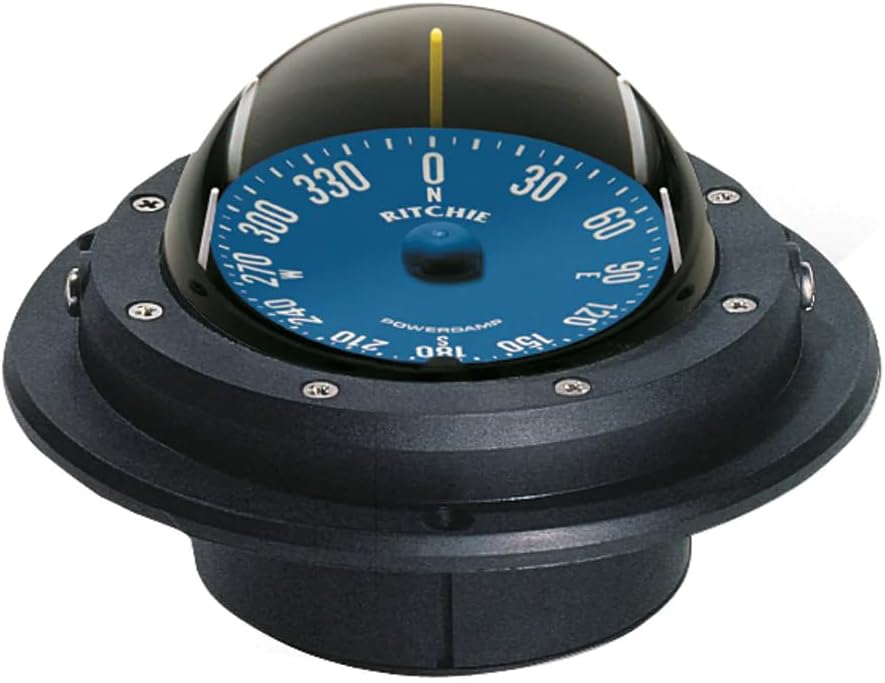

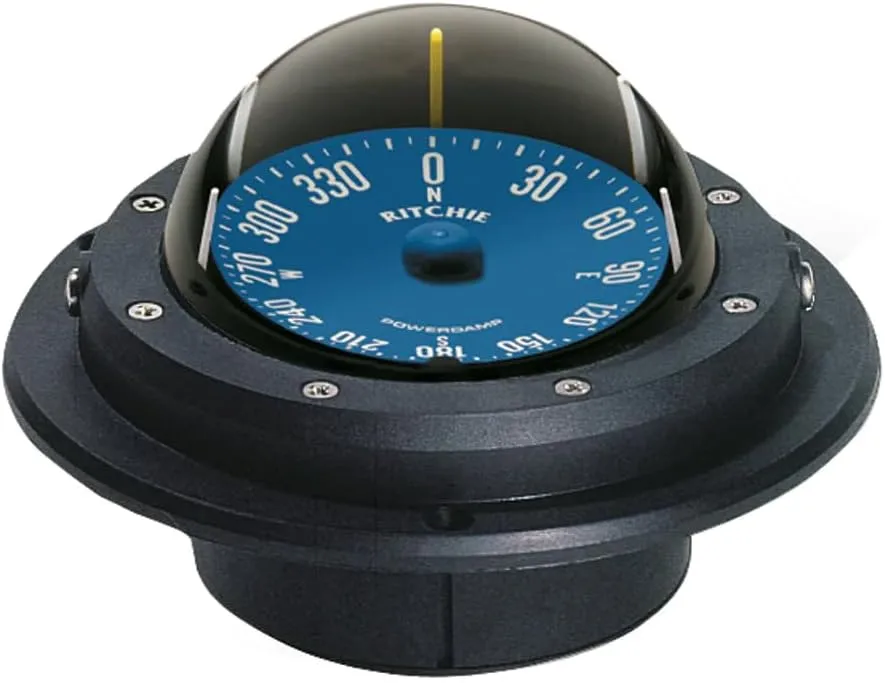

Voyager Compass Features: 3" (76 mm) PowerDamp Flat Dial. Easily installed into a 3 1/2" hole. Scientifically matched sapphire jewel and hardened steel pivot dial movement. Powerful directive-force magnets for fast heading lock-on. 45 & 90 degree lubber lines. High temperature composite construction for extended operating range. 100% repairable. Exclusive 5-Year Ritchie Warranty. Approx. Shipping Weight: 1.5lbs (680g). Notes: For RU-90s with Optional Lighting Kit installed, use Protective Cover part# V-80-C. Read: Rear. Mounting Style: Flush. Lubber Lines: Yes. Backlight: No.
Specifications:
| Materials & Construction |
| Color | Black |
| Material | Plastic |
| Product Details |
| Backlight | No |
| Global Trade Identification Number | 00010342140012 |
| Included Components | Ritchie RU-90 Voyager Compass - Flush Mount - Black |
| Lubber Lines | Yes |
| Model Name | Ritchie RU-90 Voyager Compass - Flush Mount - Black |
| Model Year | 2017 |
| Mounting Style | Flush |
| Mounting Type | Flush Mount |
| Number of Items | 1 |
| Read | Rear |
| Special Feature | Portable |
| Sizing & Dimensions |
| Height | 1.3 inches |
| Length | 6 inches |
| Product Dimensions | 6 x 6 x 1.3 inches |
| Size | One Size |
| Weight | 1.3 pounds |
| Width | 6 inches |
| Technical Specifications |
| Warranty Description | Warranty |
