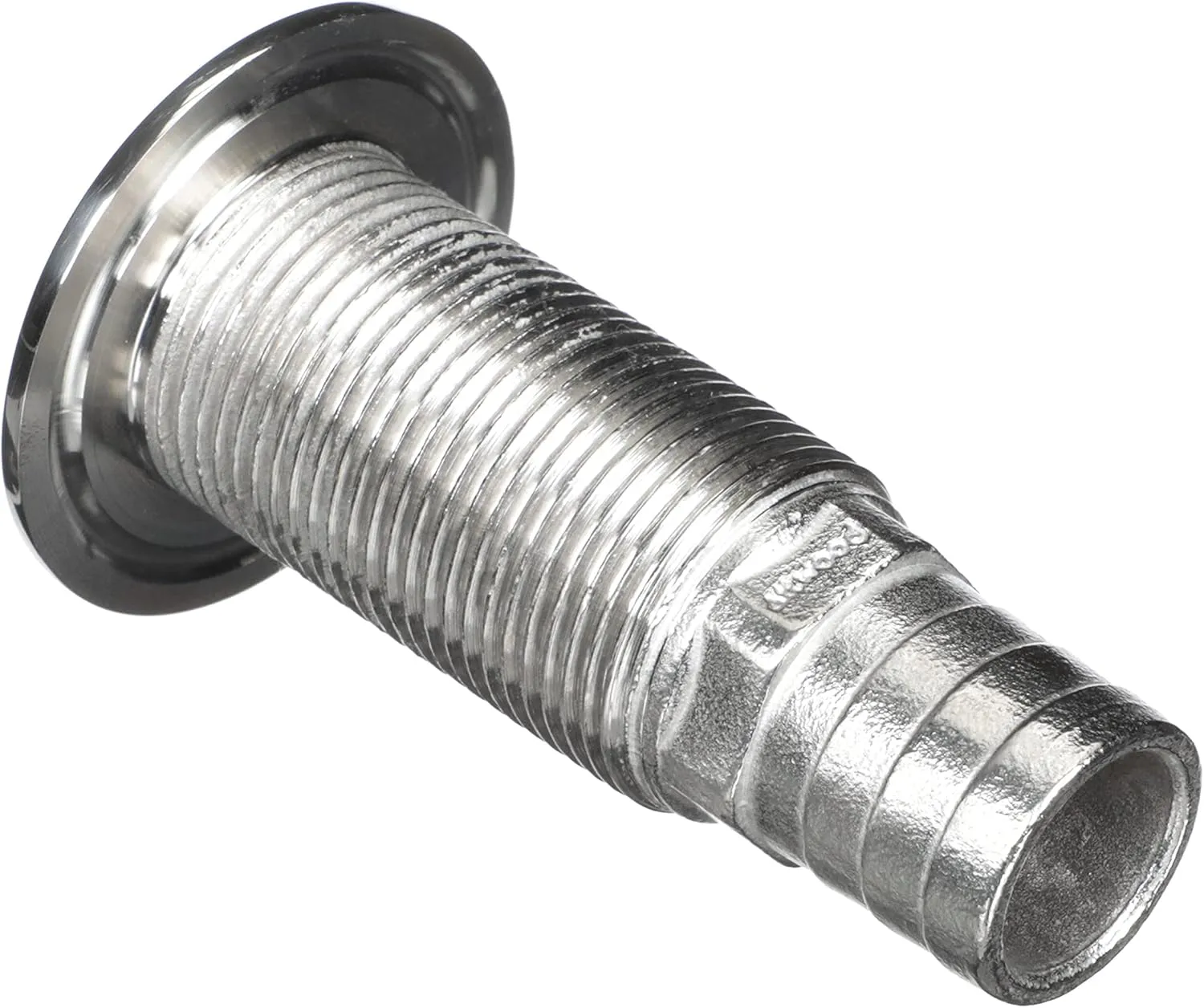

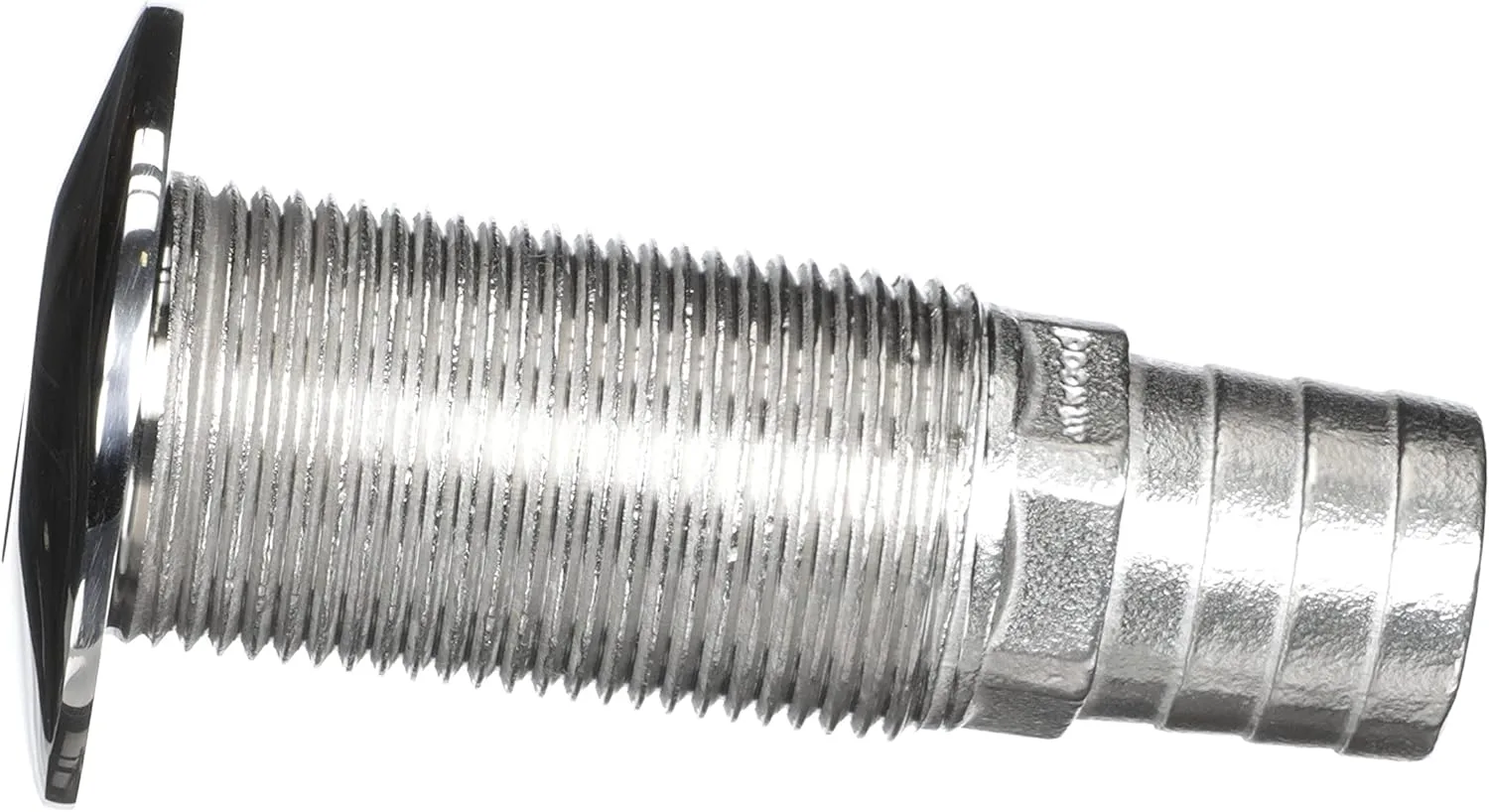

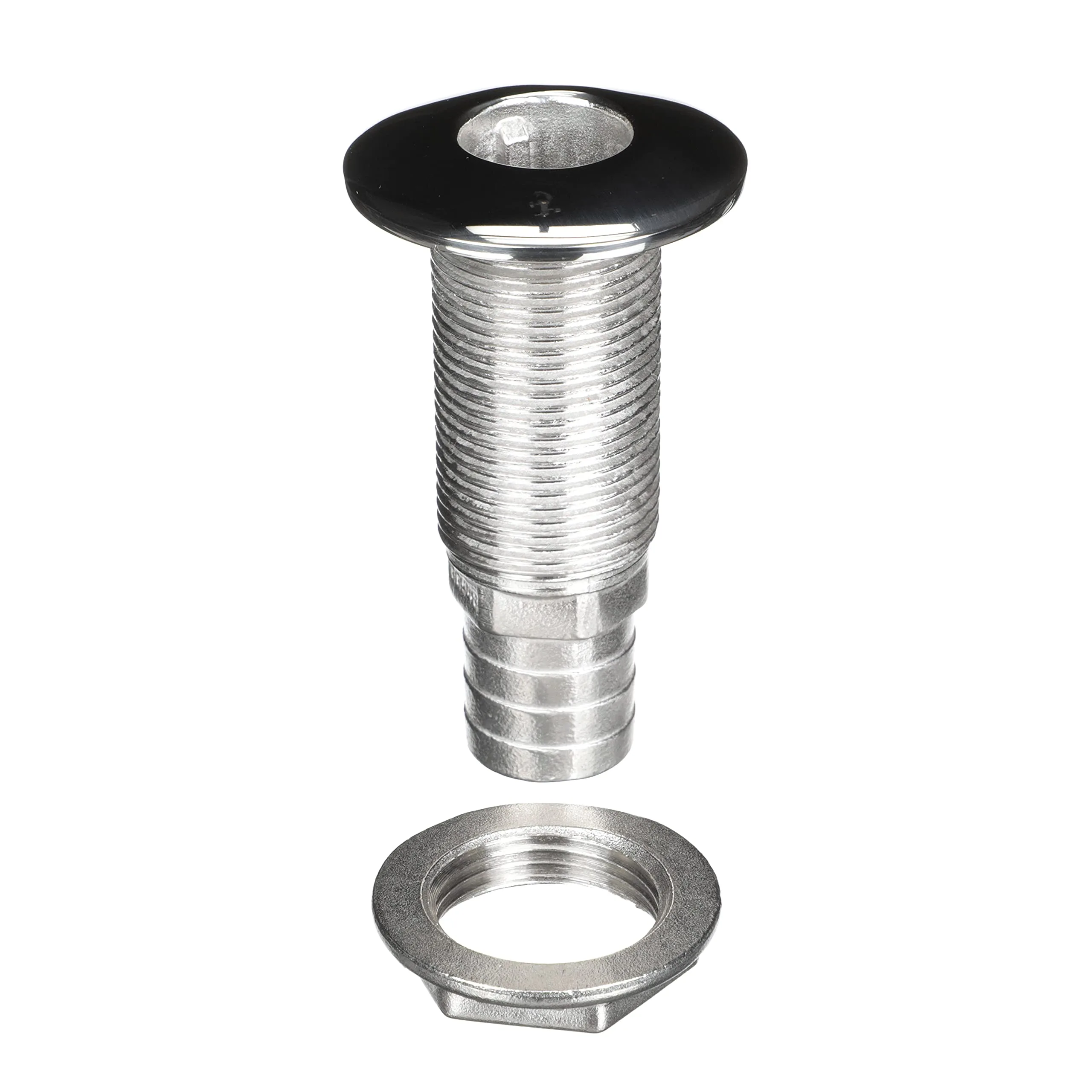

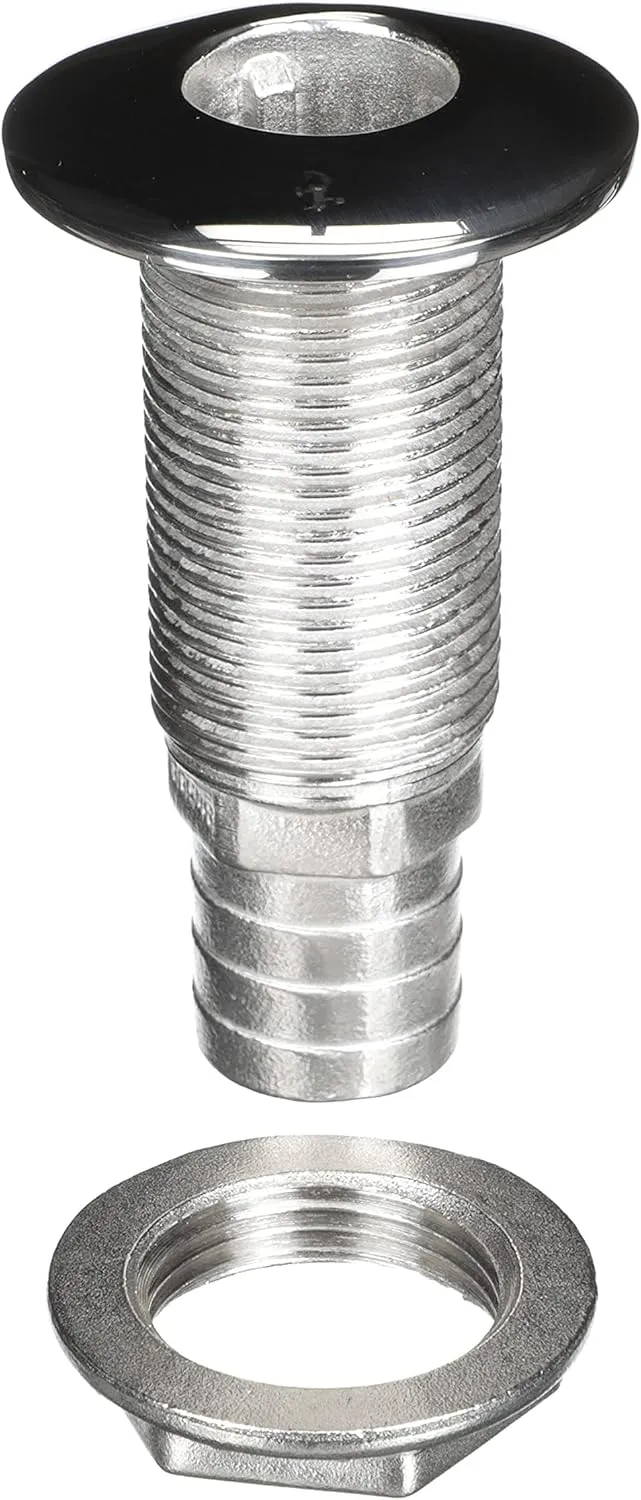

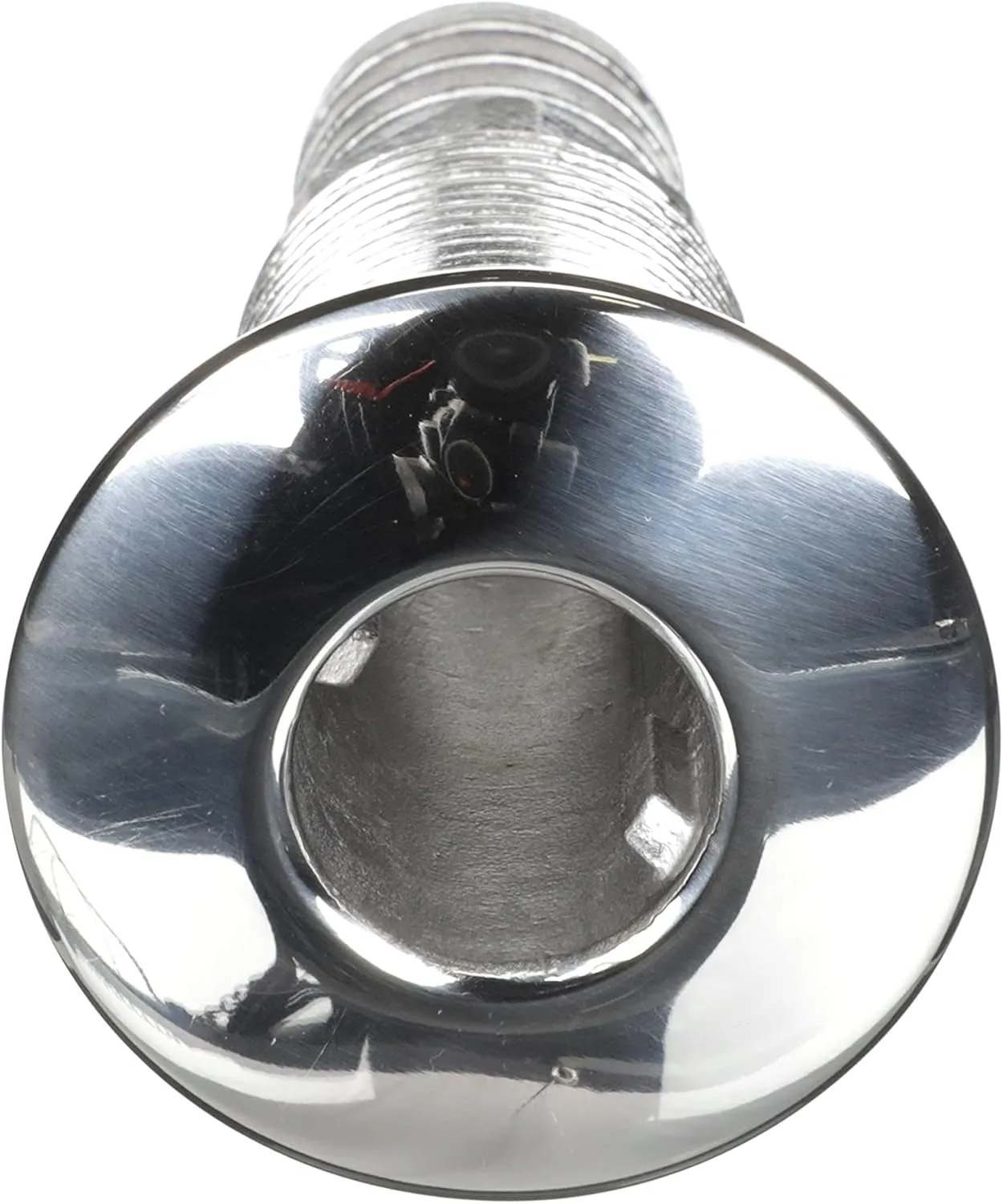

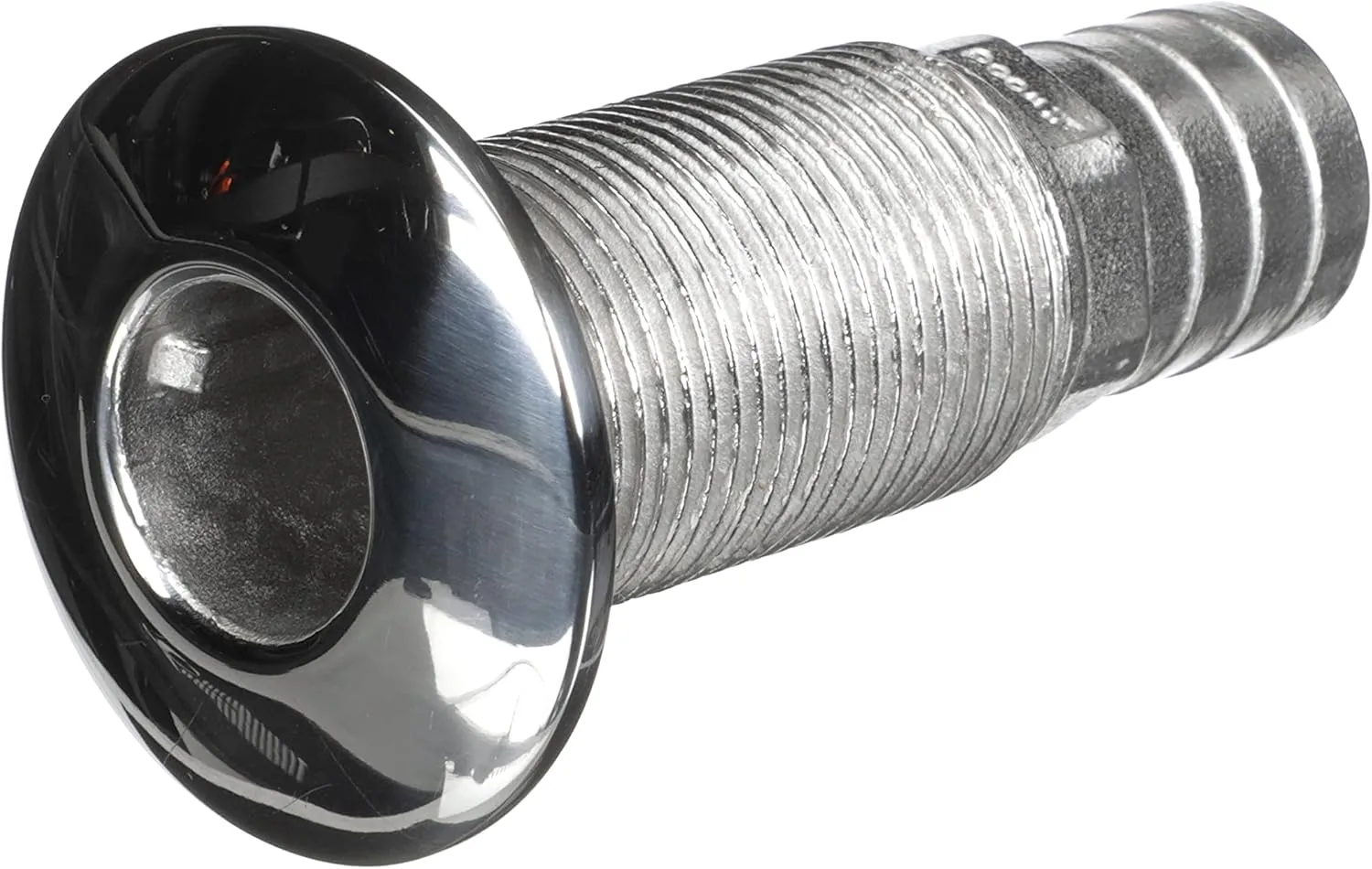

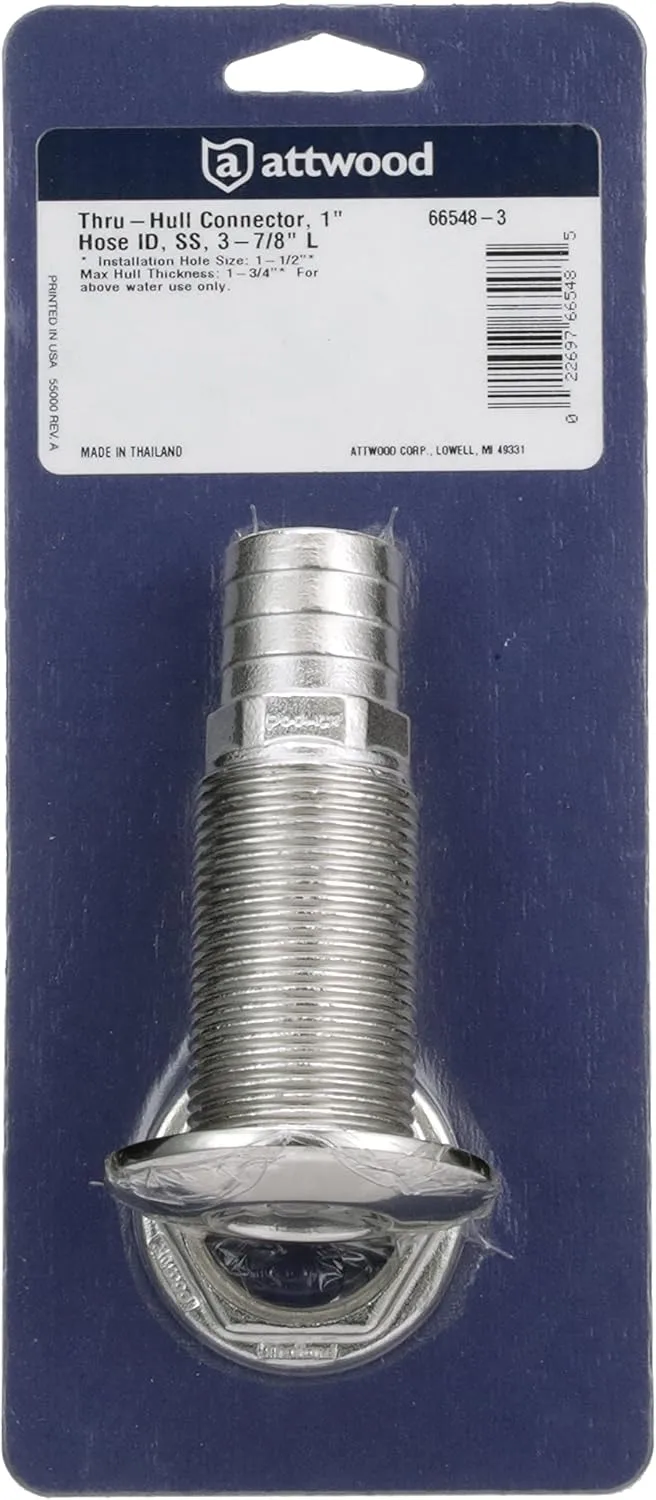

Attwood 66548-3 Stainless Steel Barbed Standard Length Straight Thru-Hull, 1-Inch
Customize
Stainless Steel Thru-Hull Standard Straight Barbed - 1" Inner Diameter. Polish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat? Rugged Stainless Construction: Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance. All visible areas are polished to a mirror finish, then passivate each part for additional protection. Thick steel sidewalls withstand continual stress and hose flexing. Faster, Simpler Installation: Each Thru-Hull is available with a new silicone gasket. A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal. All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull. The barbed tail ends provide plenty of room to hold multiple clamps. Stainless Steel Straight Thru-Hulls, Barbed. Standard Thread model has a full-length thread for thick hulls and easy tightening. Attwood Corporation has been an award-winning leader in engineering, testing, and manufacturing the highest quality marine products for over 100 years. We deliver safe and reliable lighting, fuel systems, water systems, seating & pedestals, swim ladders, custom upholstery, and general marine accessories that are easy to install and meet regulatory compliance.
- Install hole size 1-1/2", Thread NPSM: 1", Max hull thickness: 1-3/4
- Thread O.D.: 1-3/8", Thread length: 2-1/4", Barb length 1-1/4", Total length: 3-7/8"
- Flange Diameter: 2-1/4"
- Hose size: 1" I.D
- Standard Thread has full length thread for thick hulls and easy tightening
Specifications:
| Materials & Construction | |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Hose Size | 1" |
| Included Components | End Product & Information |
| Number of Items | 1 |
| Sport Type | Boating |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 1 inches |
| Package Dimensions | 6.73 x 4.17 x 3.66 inches |
| Product Dimensions | 1 x 1 x 1 inches |
| Size | 1" |
| Weight | 0.73 pounds |
| Width | 1 inches |
| Technical Specifications | |
| Item Dimensions Lx Wx H | 1 x 1 x 1 inches |
| Item Package Dimensions L x W x H | 6.73 x 4.17 x 3.66 inches |
