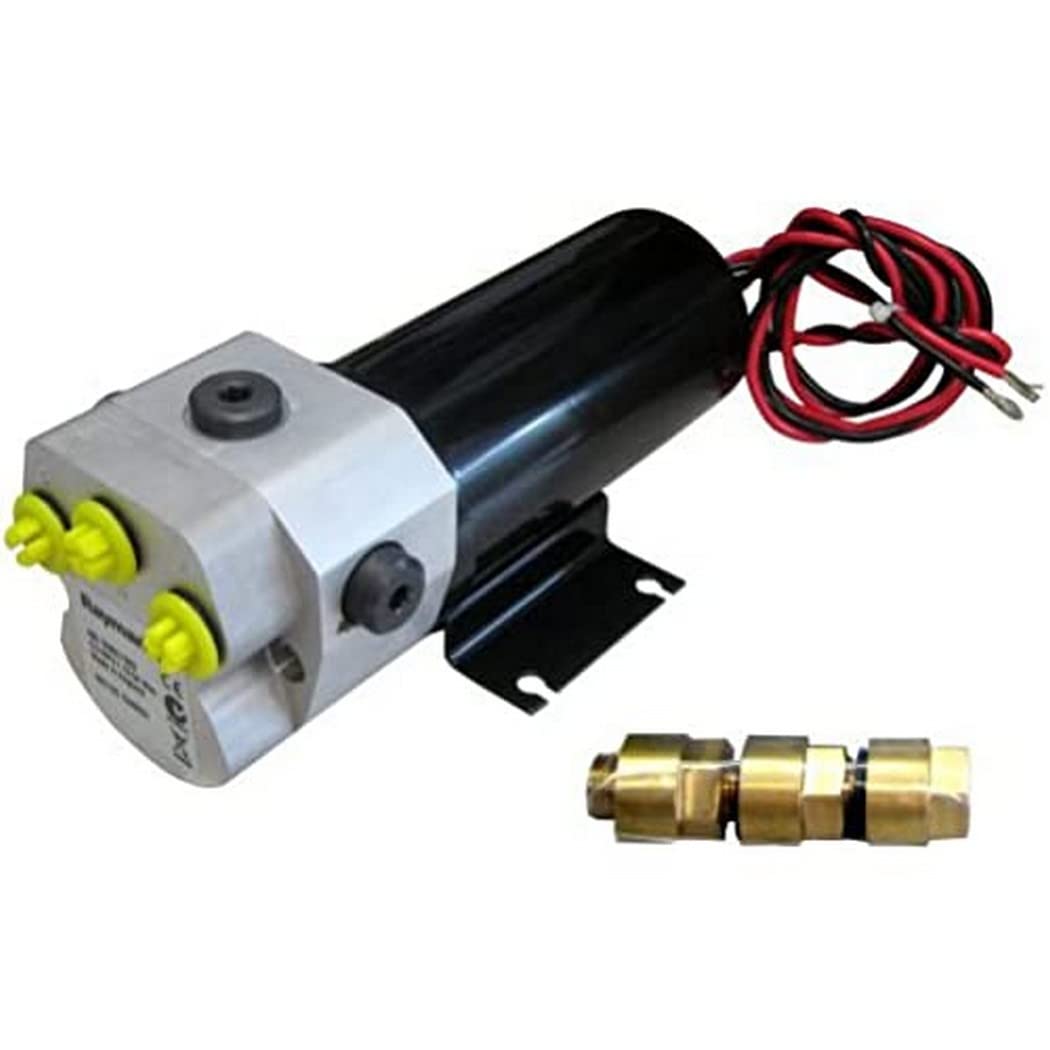

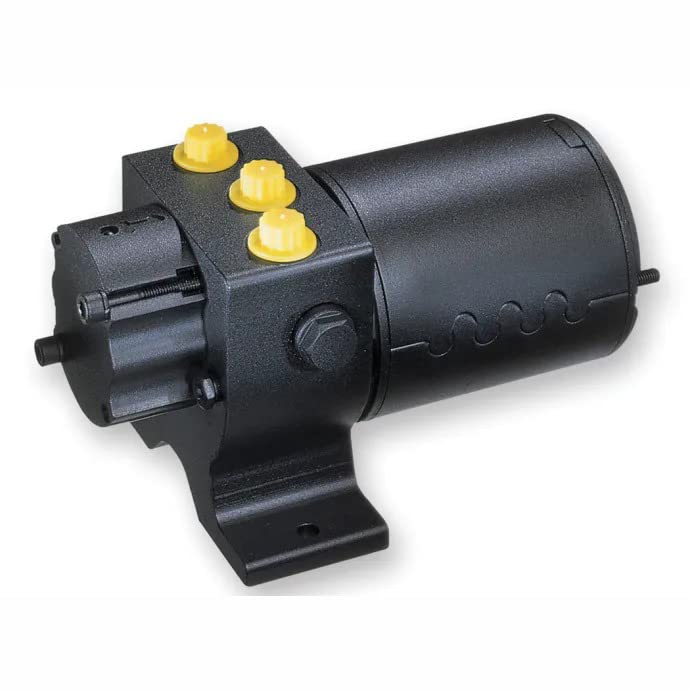

Raymarine M81120 Hydraulic Reversing Pump, Type 1, 12V
Customize
Type 1 Pump 12volt Reversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams. The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepack Corepack Used S1 or S1G Ram Capacity 4.9in - 10.5in (80CC-172CC) Maximum Stall Pressure at 12V 750psi (50bar) (no load) 67in/min (1000cc/min) Corepack Used S2 or S2G Ram Capacity 4.9in - 14in (80cc - 230cc) Maximum Stall Pressure at 12V 750psi (50bar) Peak Flow Rate (no load) 67in/min (1000CC/min), Type: Pumps/Drives Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. For use with steering systems equipped with 4.9 - 14 cubic inch (80cc - 230cc) hydraulic steering rams. 12 Volt, reversing hydraulic pump. Type 1 hydraulic pump.
- Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment
- For Use with steering Systems equipped with 4.9 - 14 cubic inch (80cc - 230cc) hydraulic steering Rams
- 12 Volt, reversing hydraulic pump
- Type 1 hydraulic pump
Specifications:
| Product Details | |
| National Stock Number | 4320-01-549-8863 |
| Type | Pumps/Drives |
| Sizing & Dimensions | |
| Height | 15.75 inches |
| Length | 15.75 inches |
| Product Dimensions | 15.75 x 15.75 x 15.75 inches |
| Weight | 5.3 pounds |
| Width | 15.75 inches |
| Technical Specifications | |
| Is Discontinued By Manufacturer | No |
