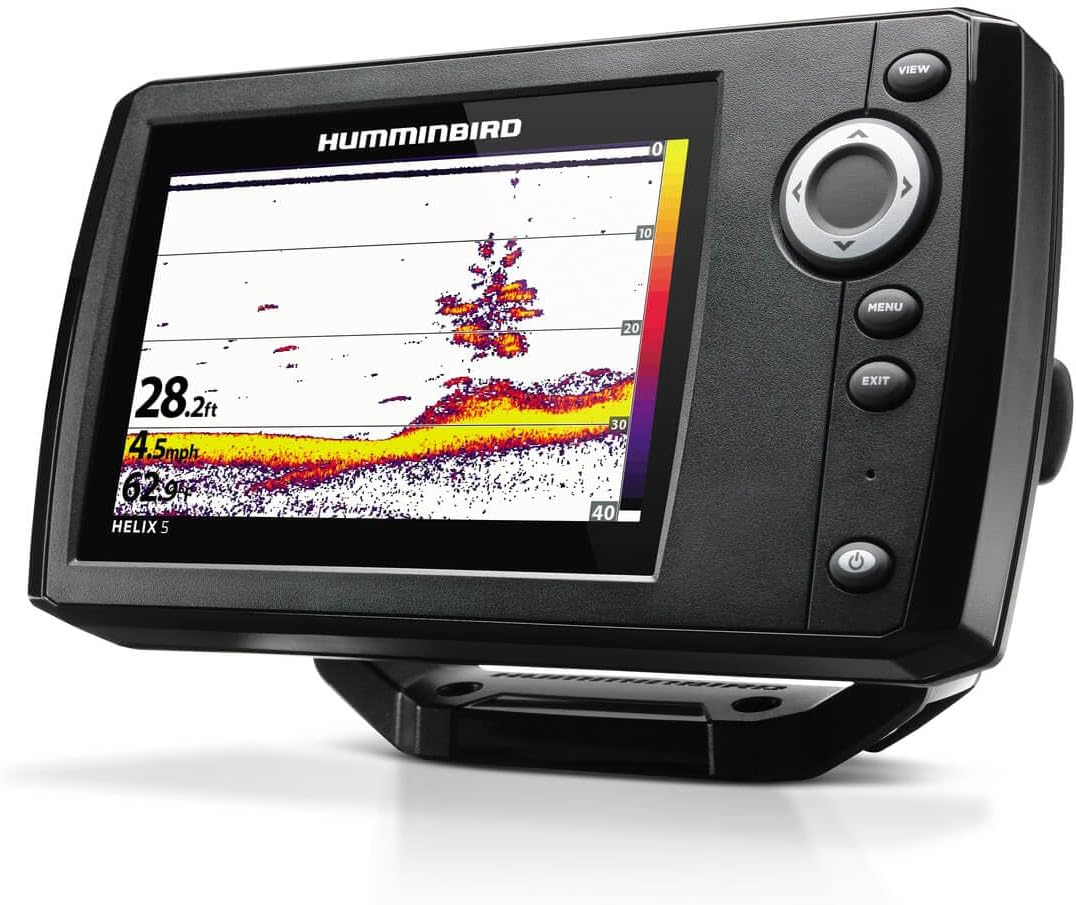

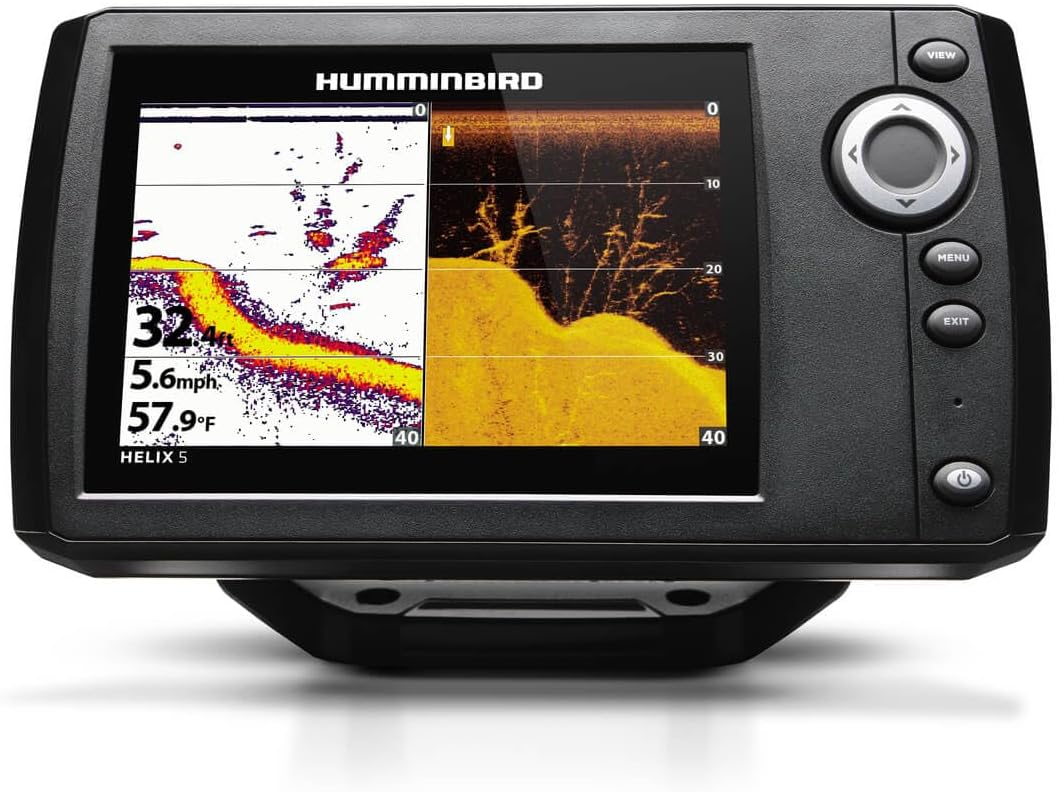

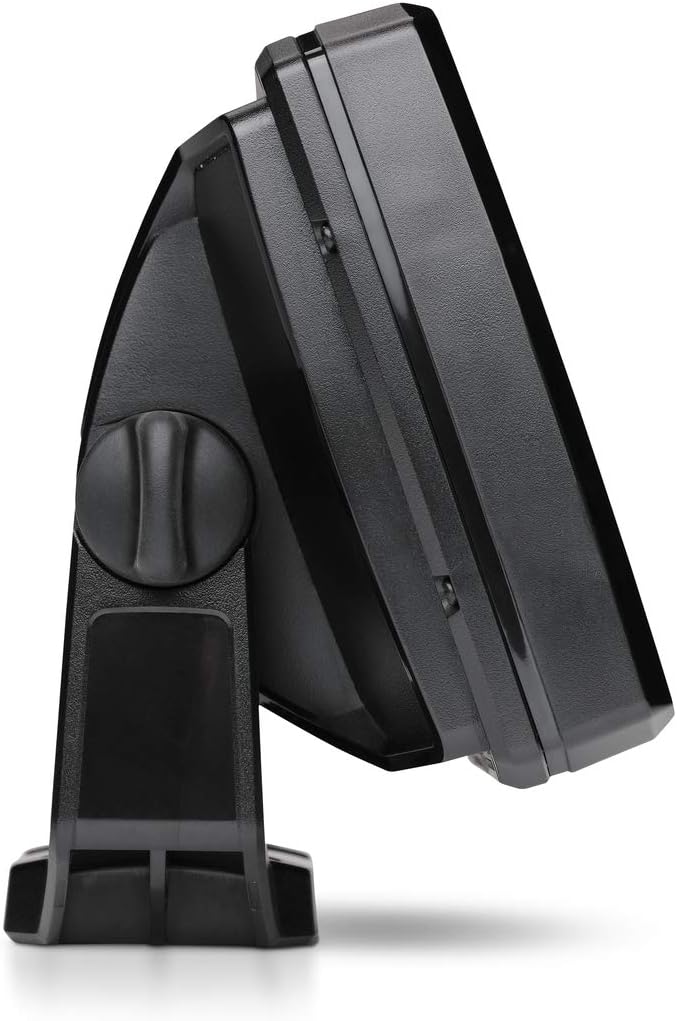

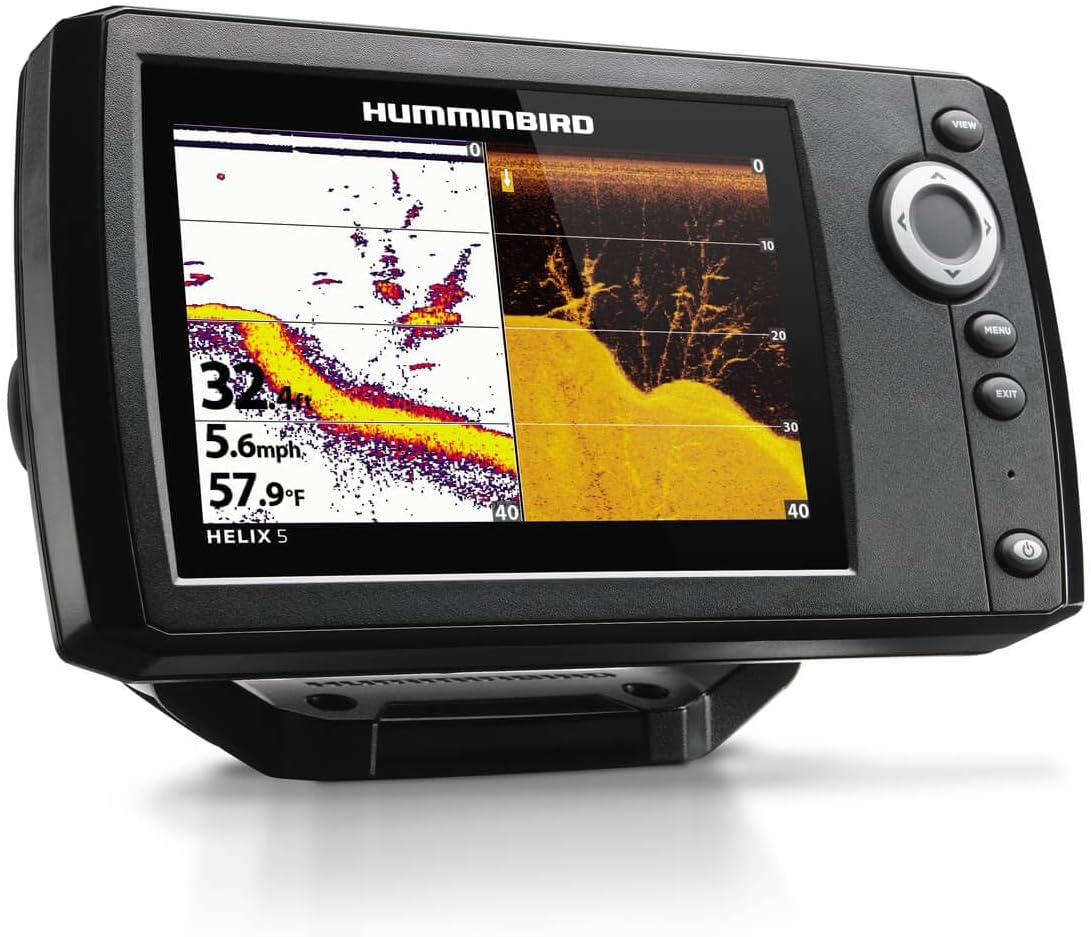

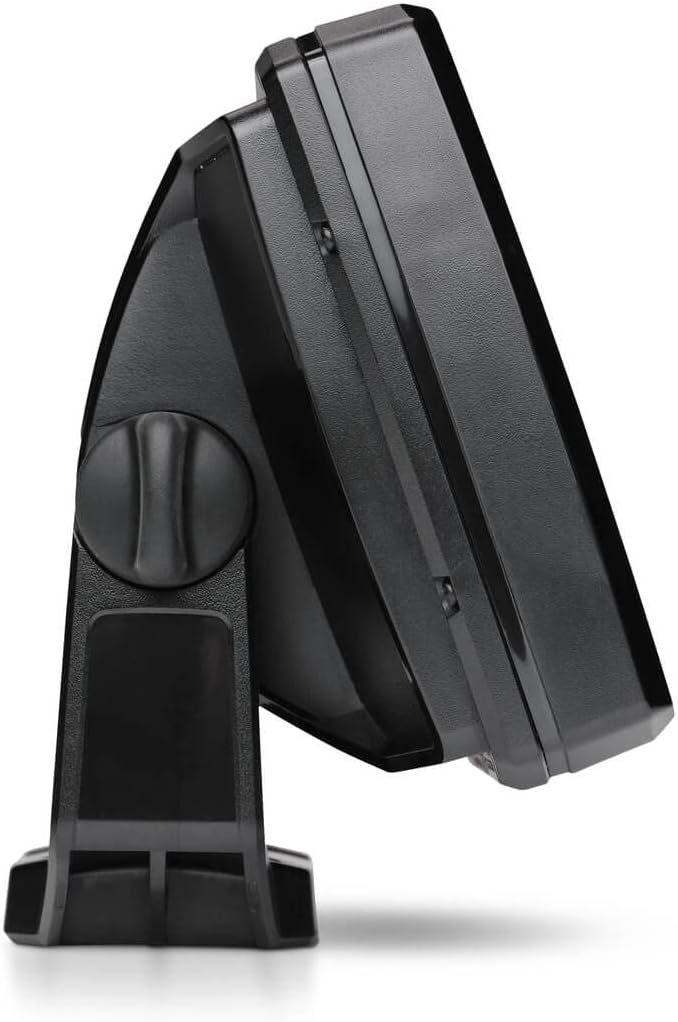

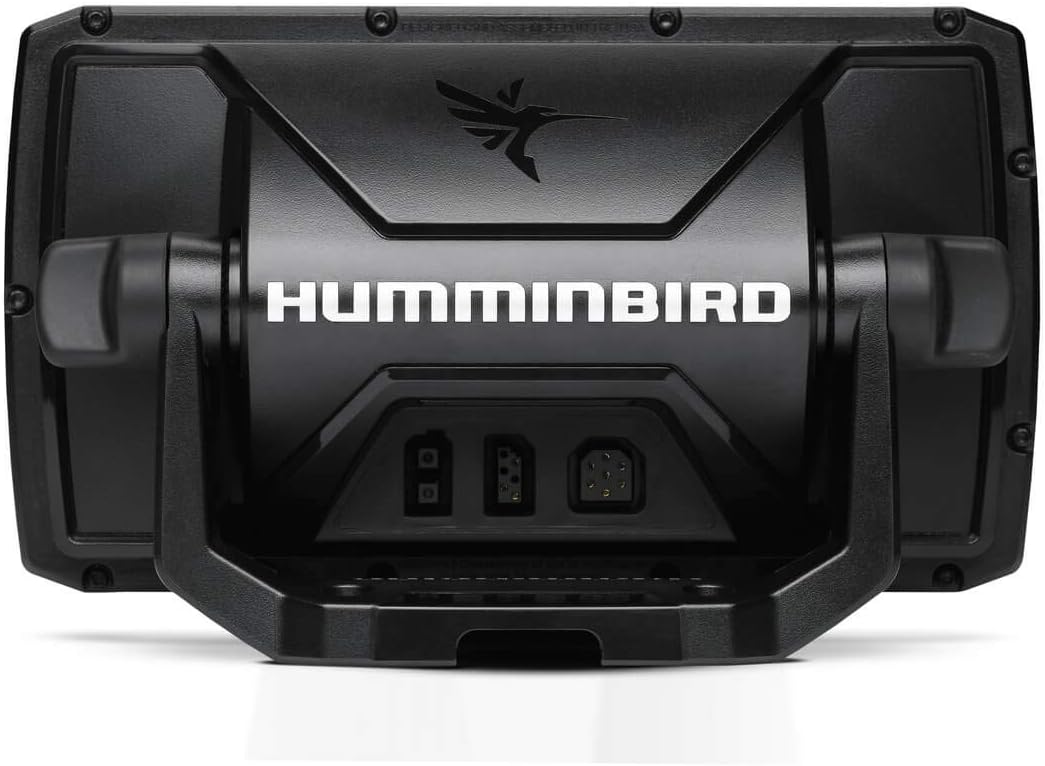

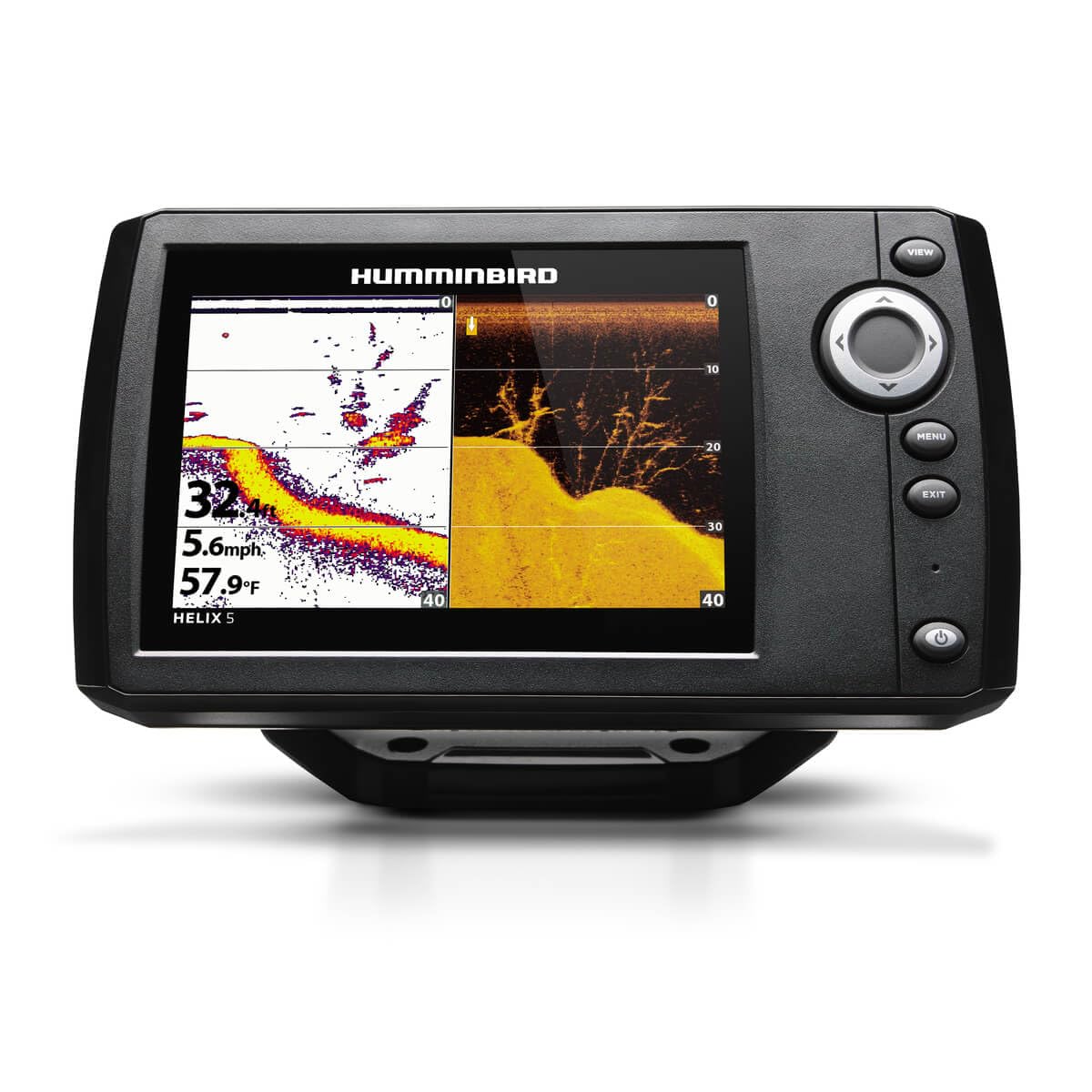

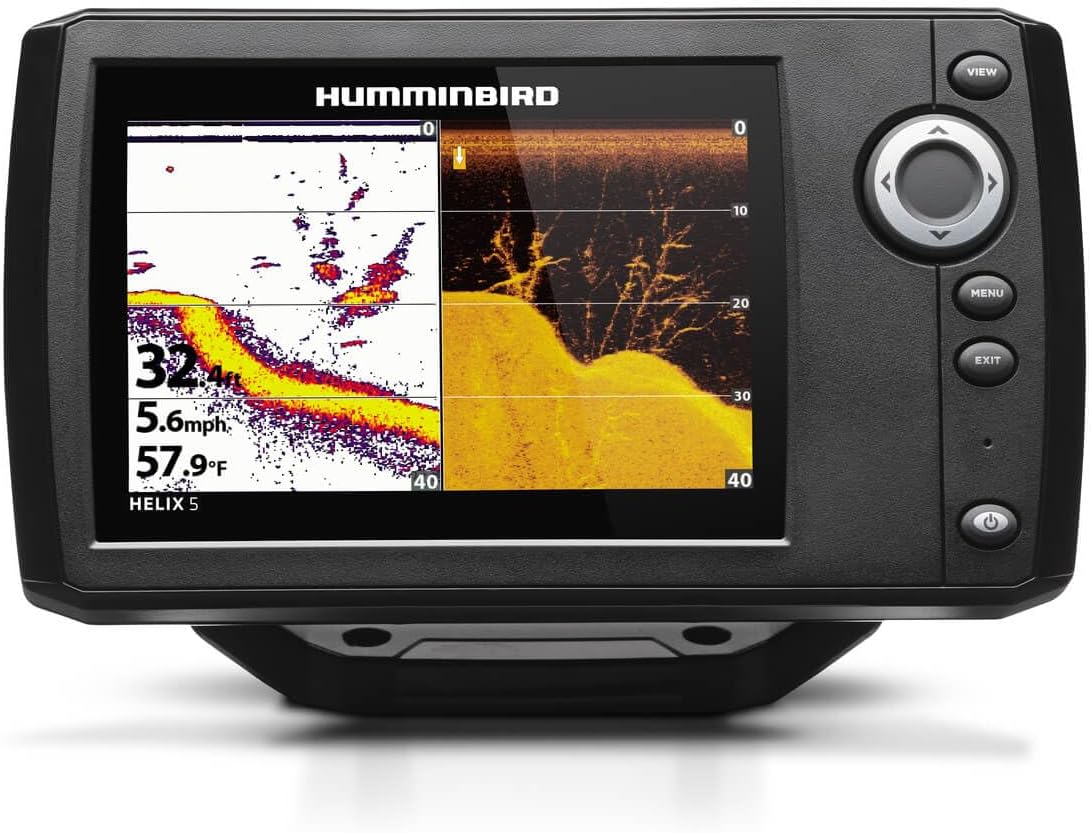

Humminbird HELIX 5 DI G2 Fishfinder
Customize
HELIX 5 DI G2 Fishfinder The HELIX 5 DI G2 with an improved user interface and operating system, features a brilliant 800H x 480V, 5" 256 color display with backlight. Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 DI fishfinder system. CHIRP Frequencies (Out of Box Transducer) 455 kHz: 420-520 kHz 800 kHz: 790-850 kHz Maximum Depth: 600 feet DOWN IMAGING SONAR Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves. SWITCHFIRE SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes. DUALBEAM PLUS SONAR Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area. UPGRADEABLE SOFTWARE Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site. WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Included Transducer: XNT-9-DI-T , Screen Size: 5" , Transducer Type: Transom Mount , Transducer Included: Yes Features from marketplace: 1-Year Limited Warranty. Dual Beam PLUS Sonar: Two beams combine for great detail and a generous coverage area, helping you identify fish, structure and contours. Use the narrow beam for high-accuracy returns of fish, structure, detail and the bottom profile. Opt for the wide beam when you want a larger search area. You can view the beams separately, side-by-side or blended together for the complete picture. Your coverage area will be equal to your depth. SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button. Down Imaging: Get a clear view of what's happening below your boat with Down Imaging. As you patrol the water, you'll watch timber, brush, bridge pilings, rocks and any other structure pop with great detail.
- 1-Year Limited Warranty
- Dual Beam PLUS Sonar: Two beams combine for great detail and a generous coverage area, helping you identify fish, structure and contours. Use the narrow beam for high-accuracy returns of fish, structure, detail and the bottom profile. Opt for the wide beam when you want a larger search area. You can view the beams separately, side-by-side or blended together for the complete picture. Your coverage area will be equal to your depth.
- SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.
- Down Imaging: Get a clear view of what's happening below your boat with Down Imaging. As you patrol the water, you'll watch timber, brush, bridge pilings, rocks and any other structure pop with great detail.
Specifications:
| Materials & Construction | |
| Color | Not Available |
| Material | Plastic |
| Product Details | |
| Display Type | Color TFT |
| Included Components | Fish finder control head; Power cable; XNT 9 DI T transom-mount transducer; Mounting hardware |
| Included Transducer | Xnt-9-Di-T |
| Model Name | HELIX |
| Mounting Type | found in image |
| Power Source | Battery Powered |
| Screen Size | 5 Inches |
| Style | Fish Finders |
| Transducer Type | Transom Mount |
| Warranty Description | 1 year Manufacturer |
| Sizing & Dimensions | |
| Height | 4.28 inches |
| Item Package Dimensions | 15.51 x 9.76 x 4.84 inches |
| Length | 7.55 inches |
| Product Dimensions | 7.55"L x 1.13"W x 4.28"H |
| Weight | 2.60 pounds |
| Width | 1.13 inches |
| Technical Specifications | |
| Global Trade Identification Number | 00082324049019 |
| Item Package Dimensions L x W x H | 15.51 x 9.76 x 4.84 inches |
| Number of Items | 1 |
| Size | One Size |
| Sport Type | fishing;boating;fish |
| UPC | 082324049019 |
