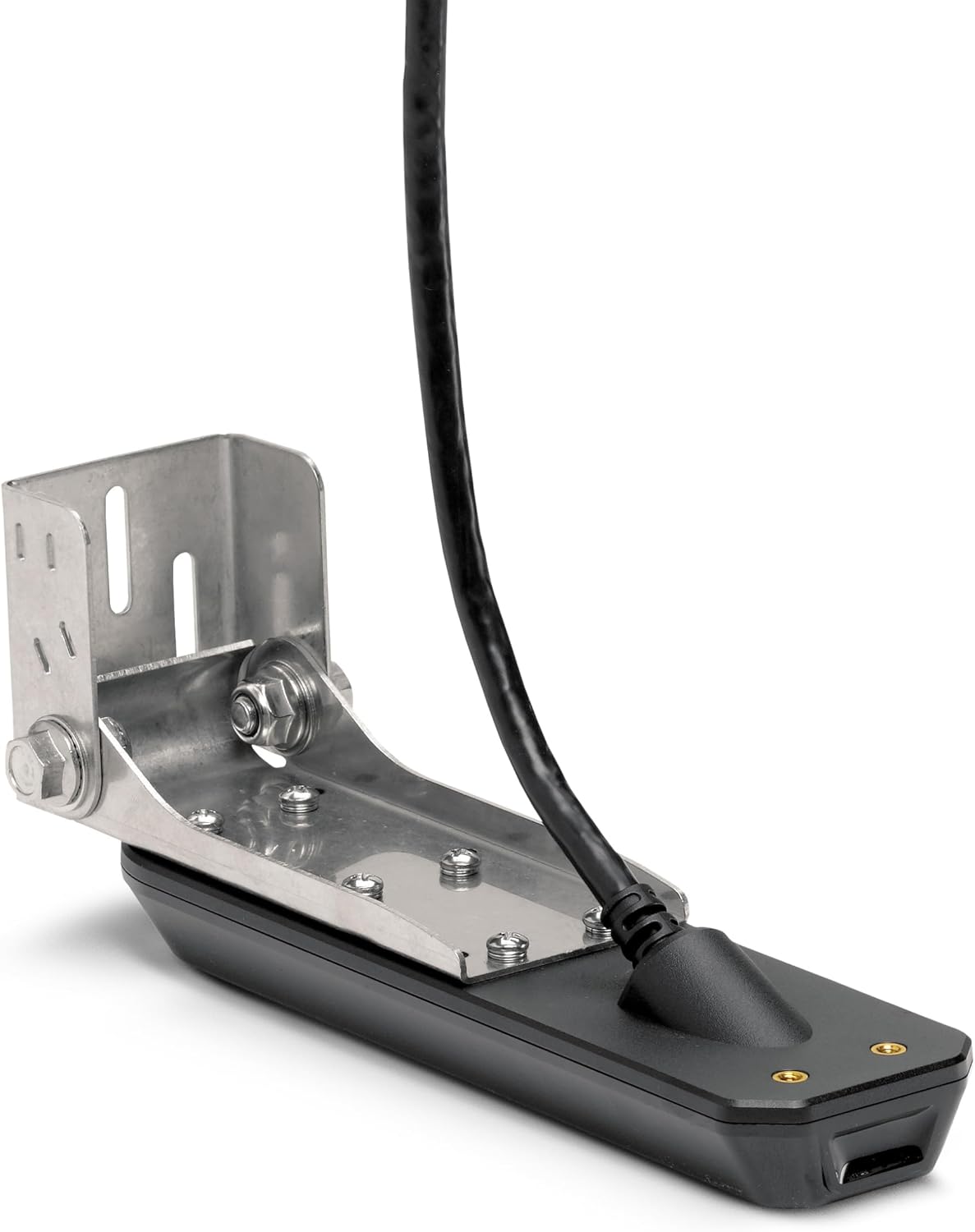

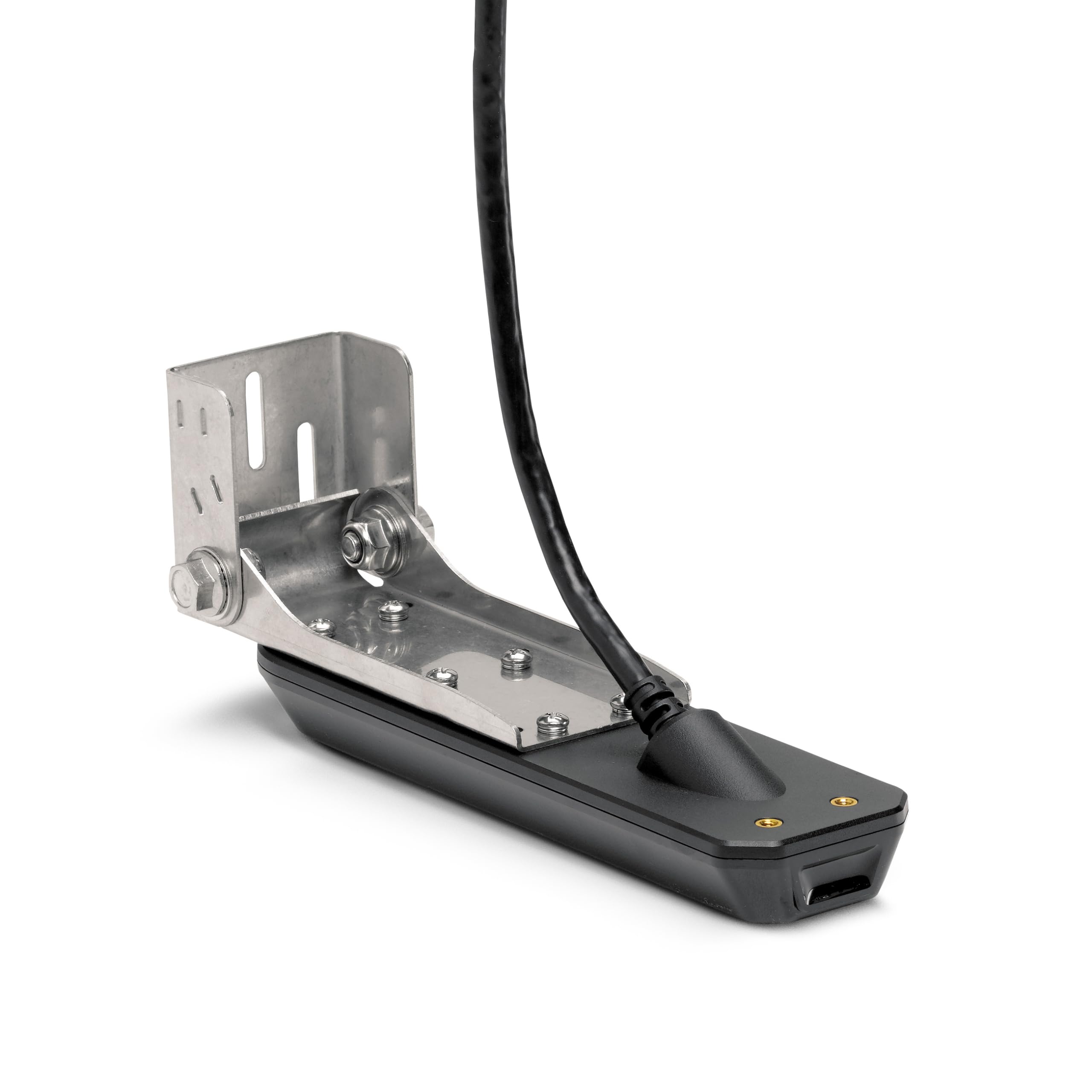

Humminbird XM 14 HW MSI T Transom Transducer for SOLIX with MEGA Side/Down Imaging+ and Dual Spectrum CHIRP Sonar, w/ Temp
Customize
XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer with Temp for SOLIX MEGA Side Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable. Features: This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m) MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m), Cable Length (Feet): 20' , Temperature: Yes , Speed Included: No , Pins: 14 , Mounting Style: Transom , Imaging: Standard/Down/Side , Chirp: High Wide
- 1-Year Limited Warranty
- MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
- MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Cable Length: 20 Feet
- Compatible with: All XPLORE models, All APEX models, All SOLIX CHIRP MEGA SI+ G2 and G3 models
Specifications:
| Materials & Construction | |
| Color | Not Available |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Fishing Technique | Any |

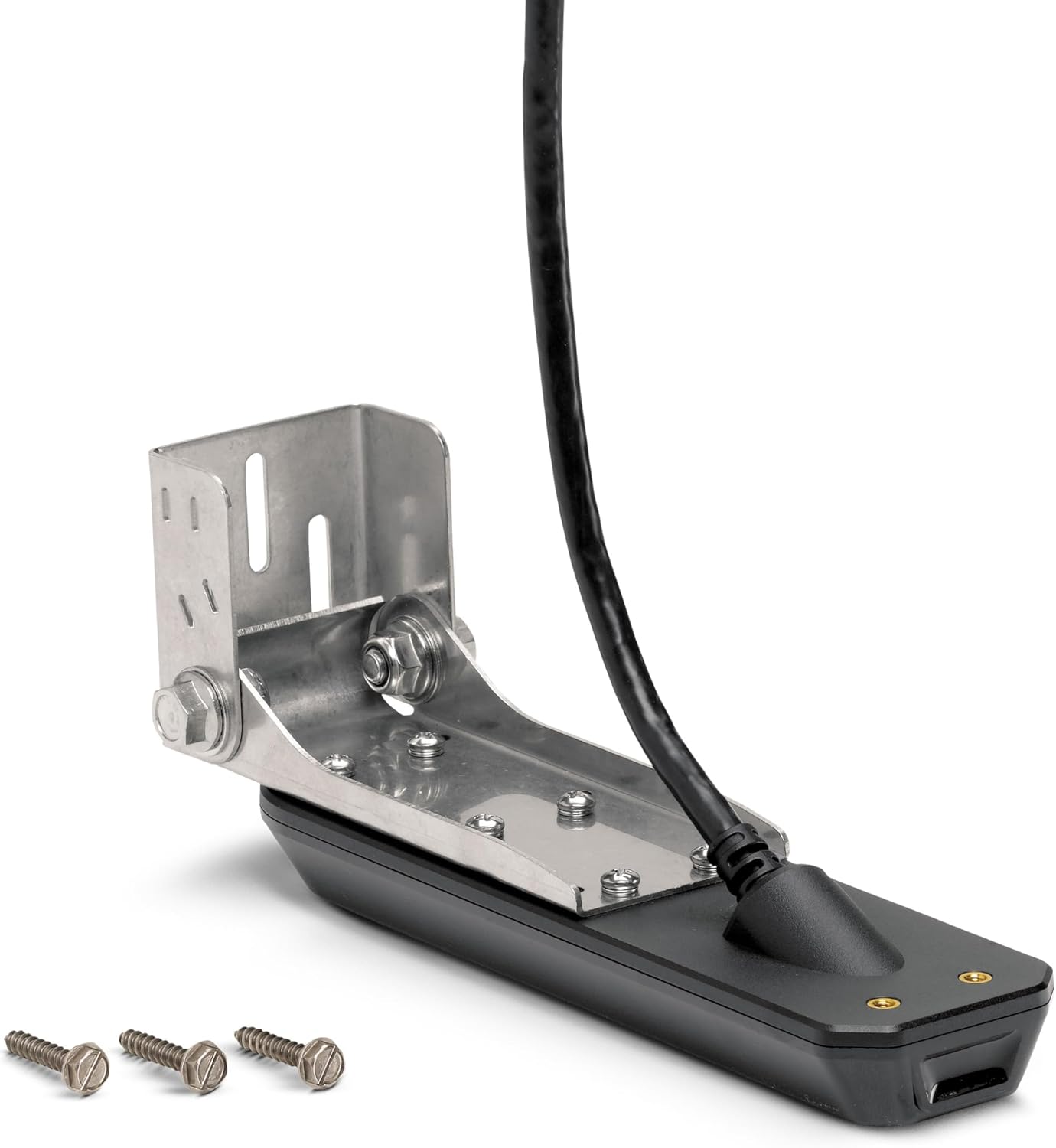

| Included Components | Transom mount transducer (includes built-in Temperature) with 20 ft cable length; Mounting hardware; Installation instructions |
| Model Name | Transom Mount Transducer |
| Model Year | 2019 |
| Number of Items | 1 |
| Sport Type | Fishing |
| Style | Transducers |
| Warranty Description | 1 year Manufacturer |
| Sizing & Dimensions | |
| Height | 3.75 inches |
| Length | 14.75 inches |
| Product Dimensions | 14.75 x 9.63 x 3.75 inches |
| Size | One Size |
| Weight | 2 pounds |
| Width | 9.63 inches |
| Technical Specifications | |
| Cable Length (Feet) | 20' |
| Chirp | High Wide |
| Imaging | Standard/Down/Side |

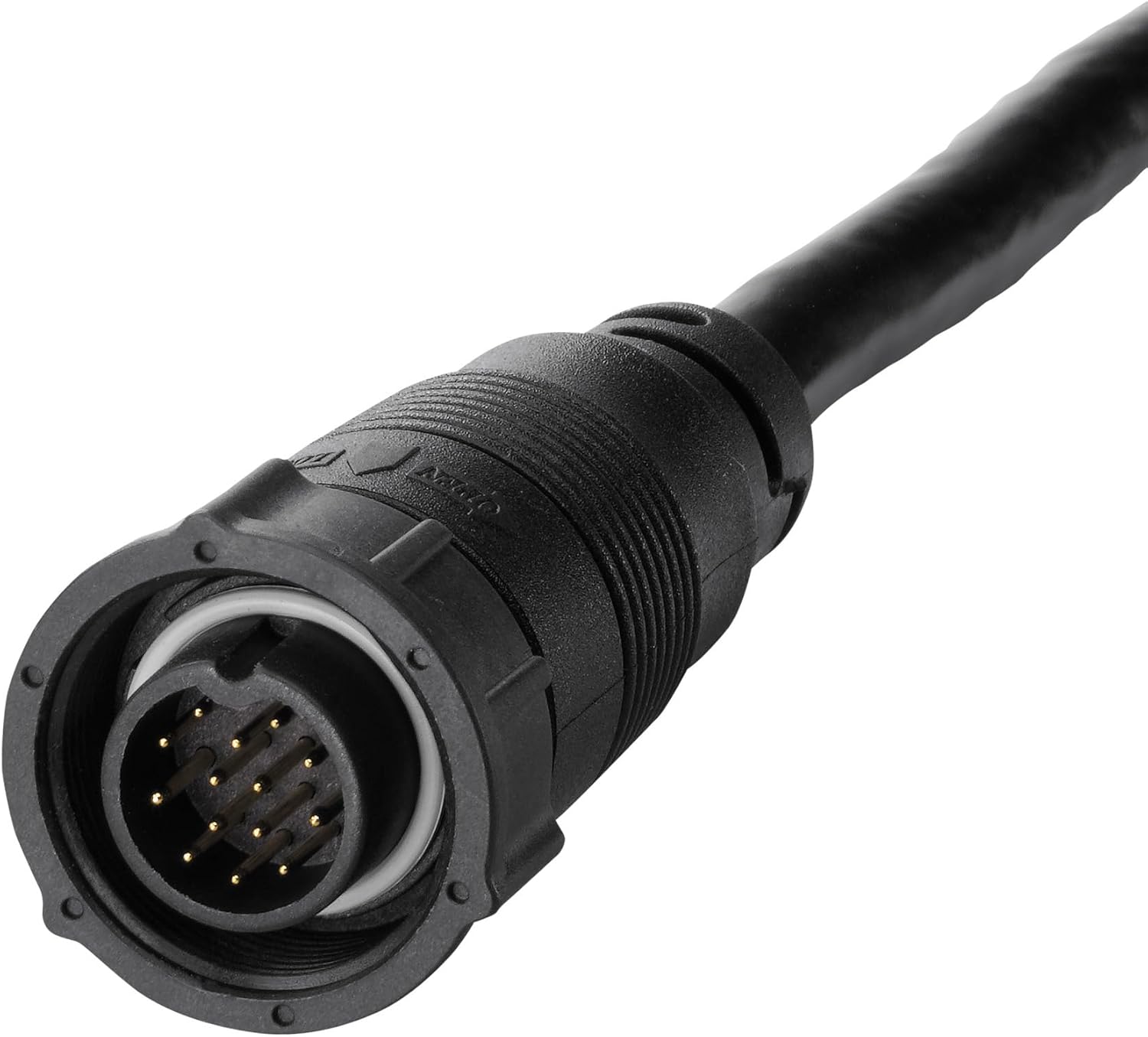

| Pins | 14 |
| Speed Included | No |
| Temperature | Yes |
| Warranty | 1 year Manufacturer |
