Humminbird XNT 9 HW MSI 150 T Transom Transducer for HELIX 7 with MEGA Side/Down Imaging and Dual Spectrum CHIRP Sonar
Customize

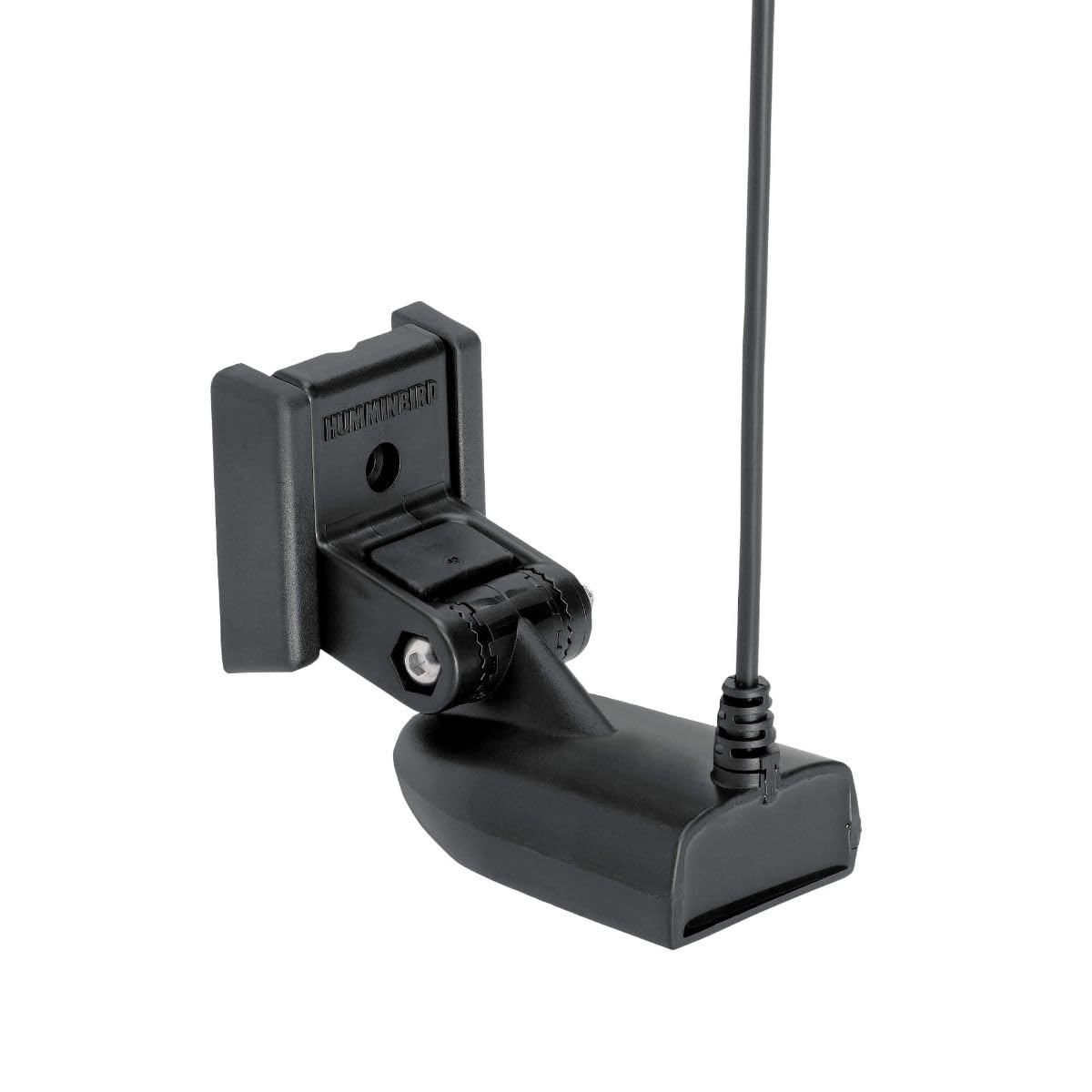

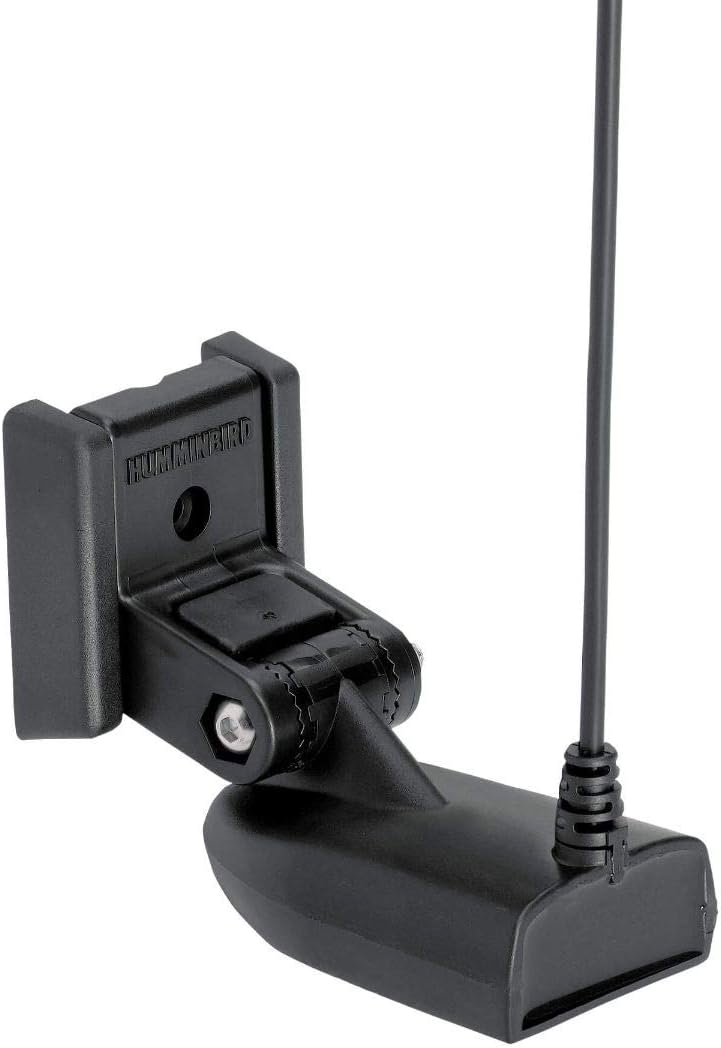

The Humminbird XNT-9-HW-MSI-150-T is a transom-mount MEGA SI/DI transducer offering Dual Spectrum CHIRP 2D sonar plus MEGA Side and Down Imaging. Frequencies include 455 kHz and MEGA SI (around 1.075–1.15 MHz) as well as CHIRP 150–220 kHz for 2D sonar. Cable length is 20 feet and a built-in temperature sensor is included. Compatible with HELIX 7 CHIRP MEGA SI GPS G3/G4 and G3N/G4N units. Features include Dual Spectrum CHIRP full/narrow/wide ranges (Full: 150-220 kHz; Narrow: 180-240 kHz; Wide: 140-200 kHz), Dual Spectrum CHIRP Max Depth up to 1200 ft (365 m), side imaging maximum ranges at 455 kHz and MEGA SI, and down imaging depths for 455 kHz and MEGA DI. Transom mounting hardware and installation instructions included. WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- 1-Year Limited Warranty
- Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 125ft (38m), MEGA DI: 1075-1150 kHz - 75ft (23m)
- Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (146m), MEGA SI: 1075-1150 kHz - 250ft (76m)
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Cable Length: 20 Feet
- Compatible with: HELIX 7 CHIRP MSI GPS G3, HELIX 7 CHIRP MSI GPS G3N, HELIX 7 CHIRP MSI GPS G4, HELIX 7 CHIRP MSI GPS G4N
Specifications:
| Materials & Construction | |
| Color | Not Available |
| Material | Plastic |
| Product Details | |
| Cable Length (Feet) | 20' |
| Chirp | High Wide |
| Display Type | LCD |
| Imaging | Standard/Down/Side |

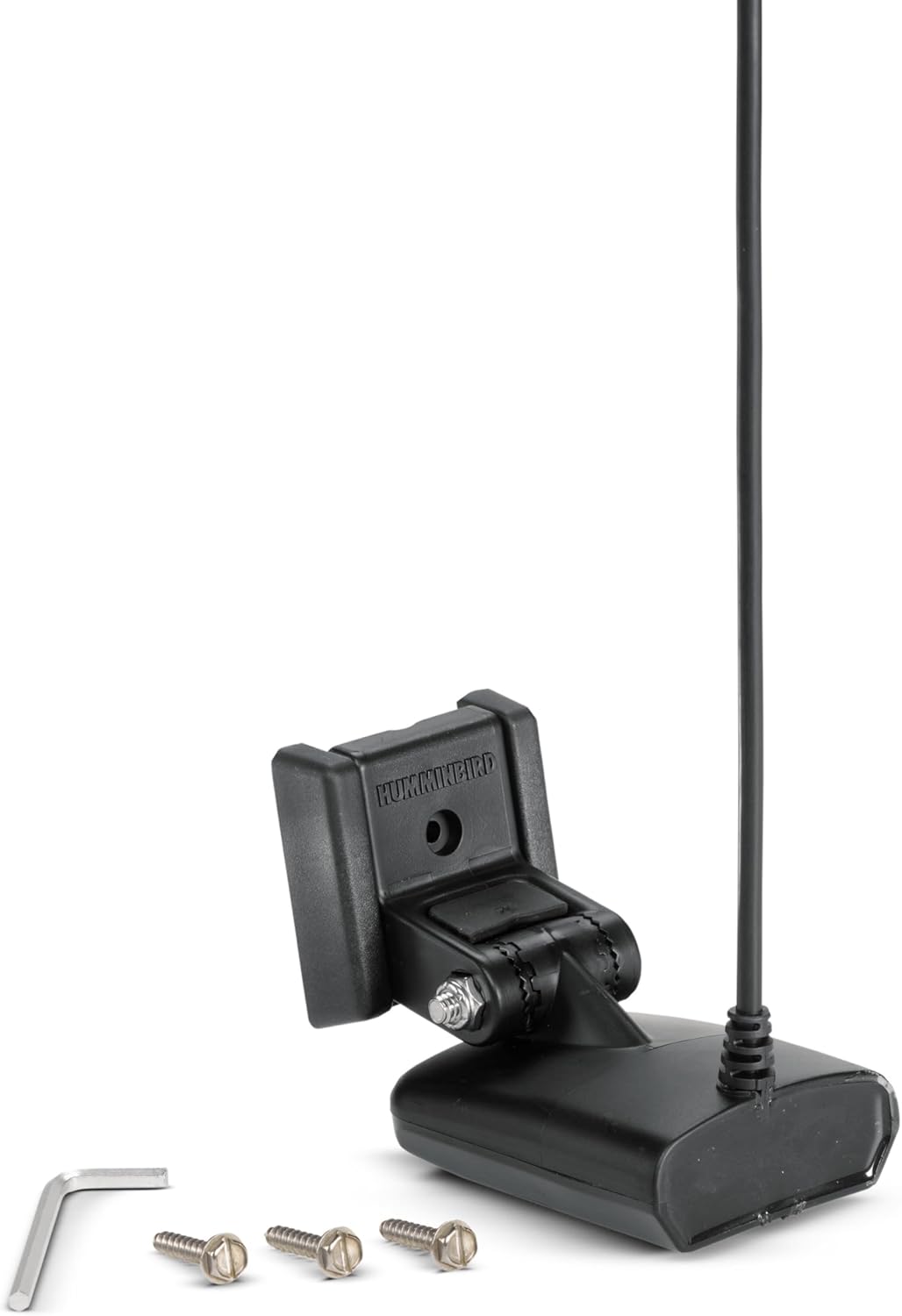

| Included Components | Transom mount transducer (includes built-in Temperature) with 20 ft cable length; Mounting hardware; Installation instructions |
| Maximum measuring depth | 1200 Feet |
| Model Name | Transom Mount Transducer |
| Mounting Style | Transom |

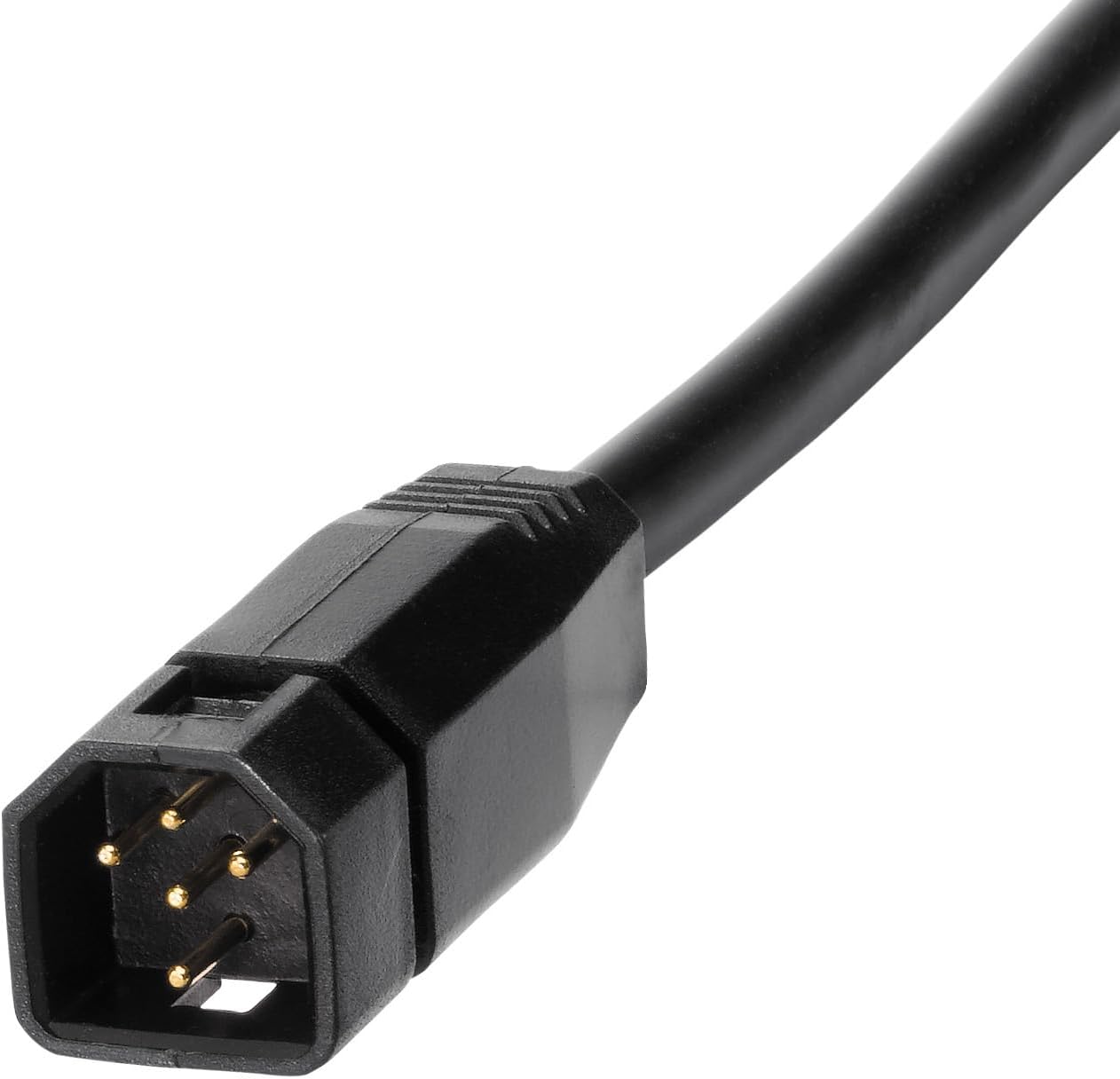

| Pins | 7 |
| Speed Included | No |
| Style | Transducers |
| Temperature | Yes |
| Sizing & Dimensions | |
| Height | 8.5 inches |
| Length | 3.75 inches |
| Product Dimensions | 3.75 x 7.5 x 8.5 inches |
| Size | One Size |
| Weight | 1.45 pounds |
| Width | 7.5 inches |
| Technical Specifications | |
| Down Imaging Frequencies - Max Depth | 455kHz: 440-500 kHz - 125ft (38m), MEGA DI: 1075-1150 kHz - 75ft (23m) |
| Dual Spectrum CHIRP Frequencies | Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz |
| Dual Spectrum CHIRP Max Depth | 1200ft (365m) |
| Side Imaging Frequencies - Max Range (side-to-side) | 455kHz: 440-500 kHz - 800ft (146m), MEGA SI: 1075-1150 kHz - 250ft (76m) |
| Warranty | 1 year Manufacturer |
