Humminbird SSTH 14 HW MSI+ T Thru-Hull Temperature Transducer with MEGA Side/Down Imaging+ and Dual Spectrum Chirp Sonar
Customize

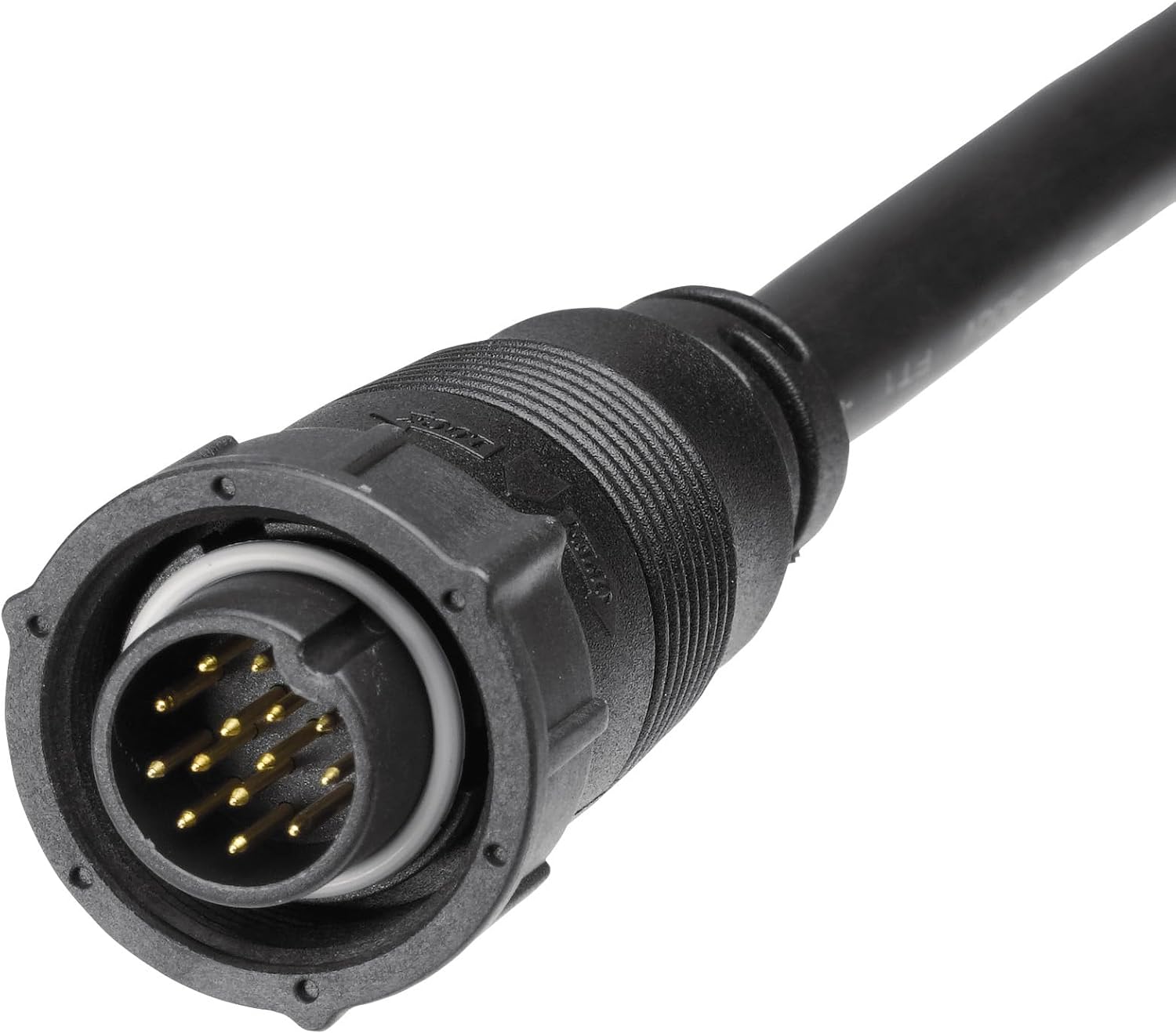

SSTH 14 HW MSI+ Stainless Steel Mega Thru-Hull 14-Pin. Measures depth and temperature. Frequency support includes 83/200/455/800 kHz and 1.2 MHz. SOLIX MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220 kHz. Includes built-in temperature sensor, rugged composite design and cable. Dual Spectrum CHIRP Max Depth: 1200 ft (365 m). MEGA Down Imaging+ and MEGA Side Imaging+ frequency and max depth ranges supported. Transducer is stainless steel, includes mounting hardware and installation instructions, and is compatible with many Humminbird HELIX, SOLIX, XPLORE and APEX models (adapter cable required for certain models). Package and product dimensions and weights are provided for shipping and installation.
- Compatible with: All XPLORE models, All APEX models, All SOLIX G2 and G3 models
- Connects to HELIX 8-15 MSI+ G3N and G4N models using adapter cable MKR MI-1 Humminbird HELIX Adapter Cable (#1852088)
- Cable Length: 20 Feet
- This transducer provides Side Imaging (800kHz/455kHz), Down Imaging (MEGA DI+/800kHz/455kHz) and Dual Spectrum CHIRP 2D sonar with a CHIRP range of 150-220kHz
- MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
- MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- Transducer dimensions: 8.4L x 2.3"W x 1.65"D (below hull); Shaft diameter: 1.5", Shaft length: 5" fairing block included
- 1-Year Limited Warranty
Specifications:
| Materials & Construction | |
| Material | Plastic |
| Product Details | |
| Global Trade Identification Number | 00082324054815 |

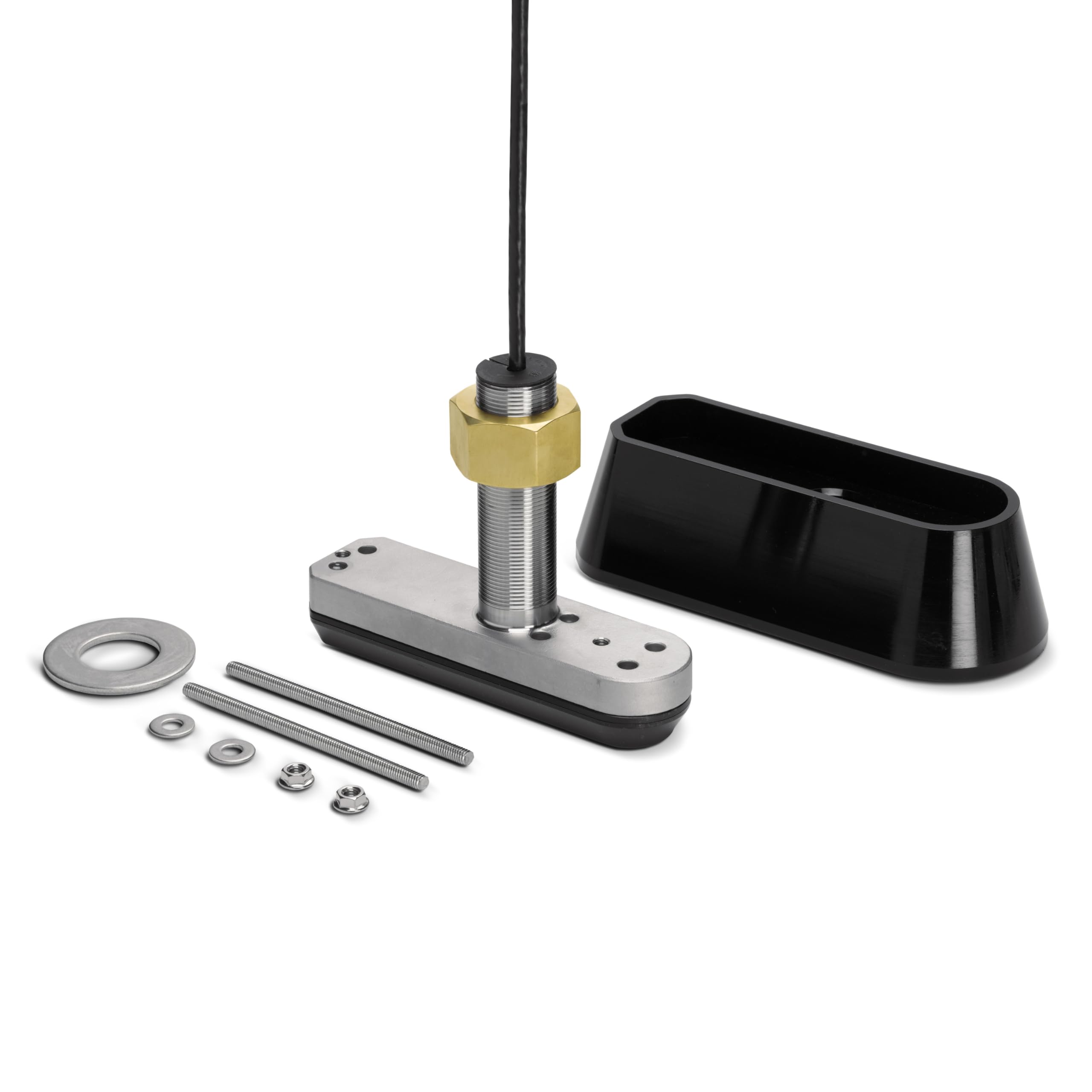

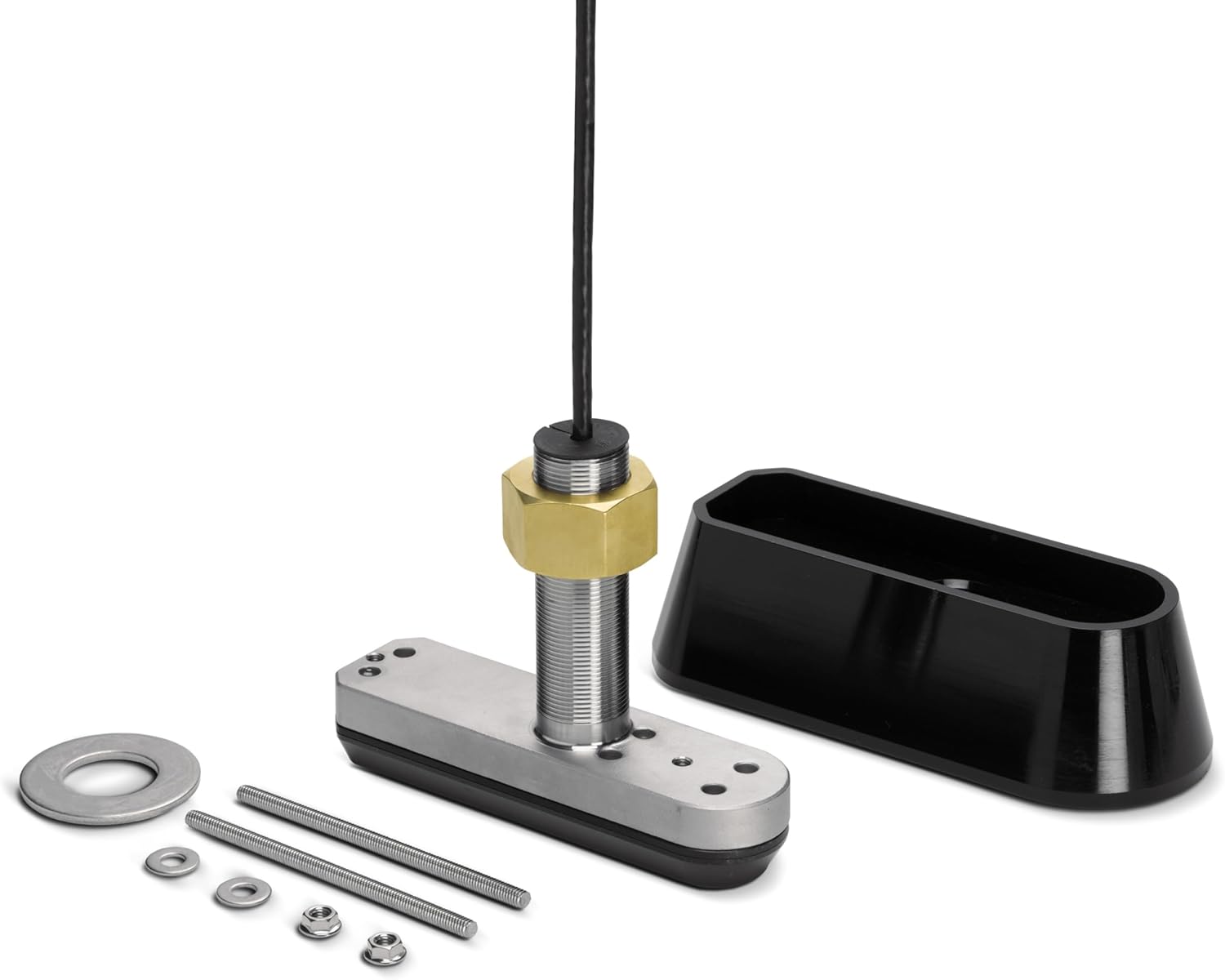

| Included Components | Stainless Steel Thru-Hull transducer (includes built-in Temperature) with 20 ft cable length; Mounting hardware; Installation instructions |
| Model Name | Stainless Steel Thru Hull Transducer |
| Model Number | 710302-1 |
| Model Year | 2019 |
| Number of Items | 1 |
| Style | Transducers |
| UPC | 082324054815 |
| Sizing & Dimensions | |
| Height | 6.8 inches |
| Length | 19.2 inches |
| Product Dimensions | 19.2 x 13.2 x 6.8 inches |
| Size | One Size |
| Weight | 12.6 pounds |
| Width | 13.2 inches |
| Technical Specifications | |
| Display Type | LCD |
| Maximum measuring depth | 1200 Feet |
| Mounting Type | Flush Mount |
| Power Source | Direct DC Power |
| Screen Size | 5 Inches |
| Sport Type | Boating, Fishing, Outdoor Lifestyle |
| Warranty | 1 year Manufacturer |
