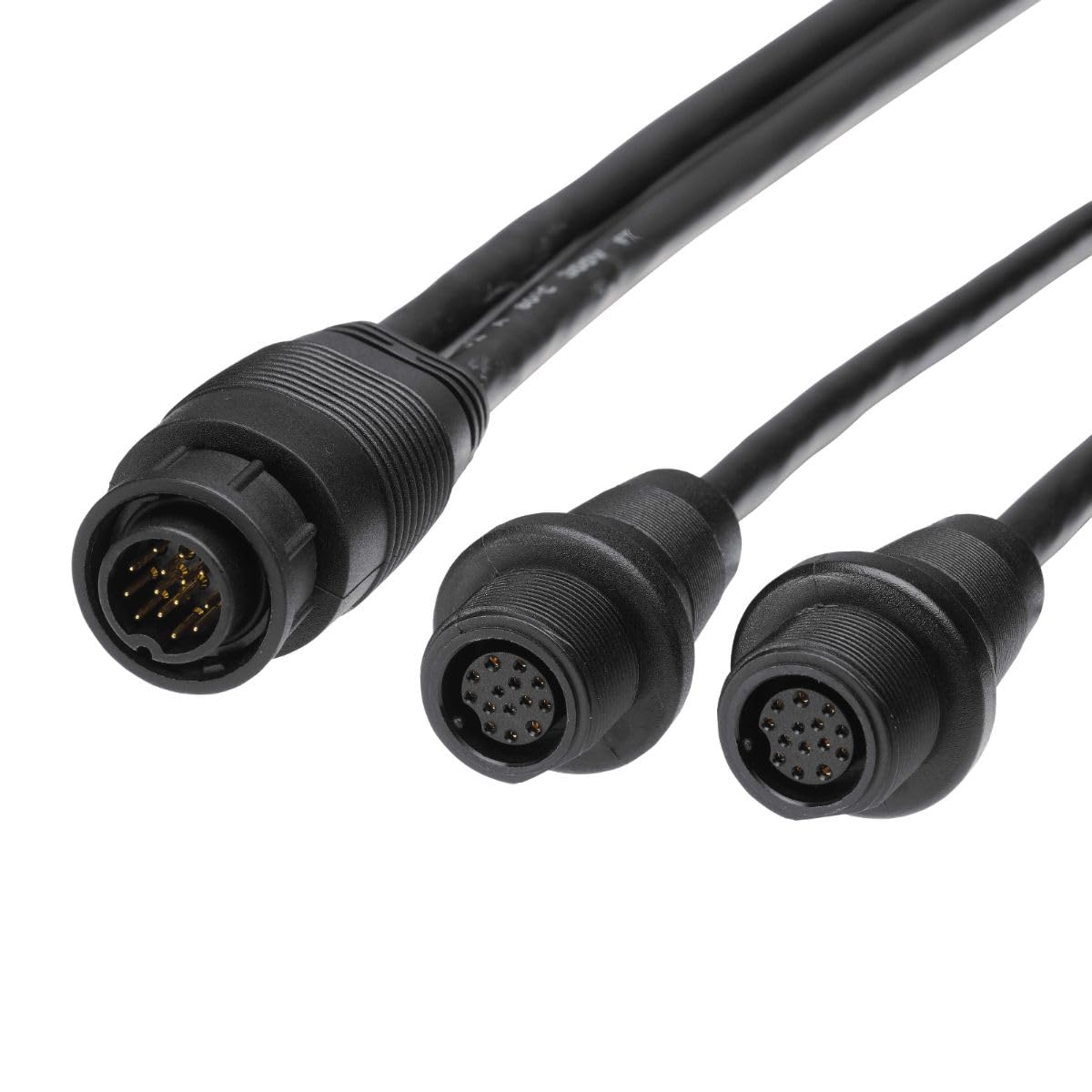

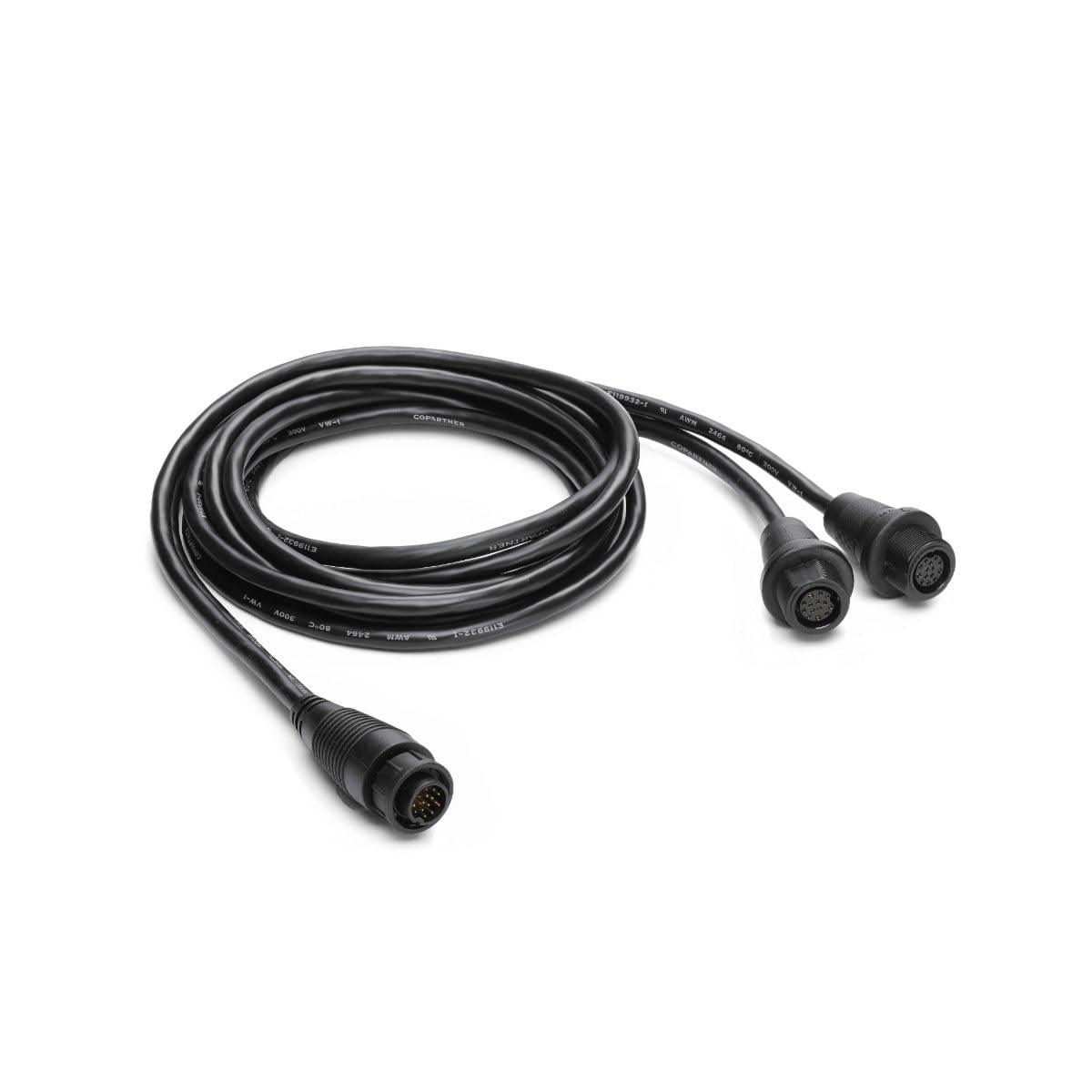

Humminbird 14-M360-2DDI-Y - MEGA 360 & 2D/MDI 14-Pin Y-Cable
Customize
14-M360-2DDI-Y - MEGA 360 & 2D/MDI 14-Pin Y-Cable. This Y cable allows for the connection of a MEGA 360 Imaging transducer and a 14-pin HW / MDI+ transducer (including Built-in MEGA Imaging) to the same compatible Humminbird fish finder. Combines MEGA 360 Imaging transducer and 14-pin Dual Spectrum / MEGA Imaging+ transducers (including Built-in MEGA Imaging) into one 14-pin plug for connection to the same, compatible SOLIX fish finder, or HELIX fish finder with additional AD HELIX M360 adapter. For use when connecting a MEGA 360 Imaging transducer to a compatible SOLIX or HELIX fish finder, in conjunction with a Built-in MEGA Imaging transducer or external 14-pin HW /MDI+ transducer. If this cable is being used with a HELIX fish finder, then the #720106-1 AD HELIX M360 adapter must be attached between this y-cable and the HELIX unit, to the single plug end of the Y cable. Compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors. Cable lengths: 30" (76 cm) on Dual Spectrum CHIRP side of cable; 10 ft (3 m) on the MEGA 360 side. Waterproof, screw-on, 14-pin connectors. 1-Year Limited Warranty. Compatible with MEGA 360, All APEX models, All SOLIX G2 and G3 models; compatible with select HELIX models when used with the AD HELIX M360 adapter.
- Compatible with: MEGA 360, All APEX models, All SOLIX G2 and G3 models
- Compatible with the following HELIX models when used with #720109-1 AD HELIX M360: HELIX 15 MSI+ GPS G4N, HELIX 15 MDI+ GPS G4N, HELIX 12 MSI+ GPS G4N, HELIX 12 MSI+ GPS G3N, HELIX 12 MDI+ GPS G4N, HELIX 12 MDI+ GPS G3N, HELIX 10 MSI+ GPS G4N, HELIX 10 MSI+ GPS G3N, HELIX 10 MDI+ GPS G4N, HELIX 10 MDI+ GPS G3N, HELIX 9 MSI+ GPS G4N, HELIX 9 MSI+ GPS G3N, HELIX 9 MDI+ GPS G4N, HELIX 9 MDI+ GPS G3N, HELIX 8 CHIRP MSI+ GPS G4N, HELIX 8 MSI+ GPS G3N
- Cable Length: 10 ft (3m) cable MEGA 360 side, 30 in (76 cm) cable on 2D / MDI side
- For use when connecting a MEGA 360 Imaging transducer to a compatible APEX, SOLIX, or HELIX fish finder, in conjunction with a Built-in MEGA Imaging transducer or external 14-pin 2D /MDI transducer
- If this cable is being used with a HELIX fish finder, then the #720109-1 AD HELIX M360 must be attached between the single plug end of the Y cable and the HELIX unit
- Compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors
- Waterproof, screw-on, 14-pin connectors
- 1-Year Limited Warranty
Specifications:
| Product Details | |
| Display Type | LCD |
| Model Name | Transducer |
| Power Source | Battery Powered |
| Screen Size | 7 Inches |
| Type | Adapters |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 8 x 4 inches |
| Size | 9 x 8 x 4 inches |
| Weight | 14.29 ounces |
| Width | 8 inches |
