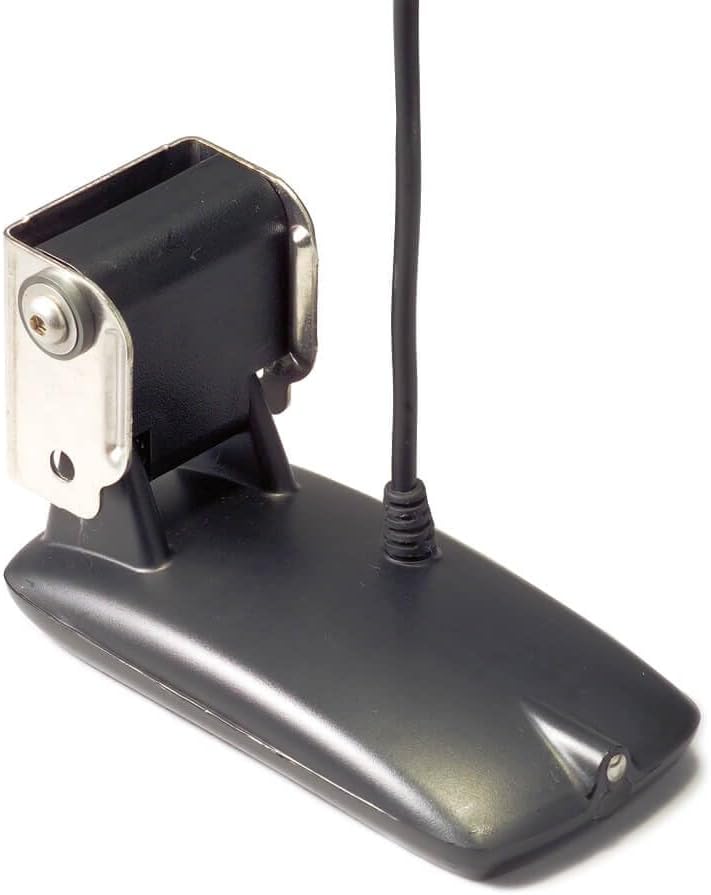

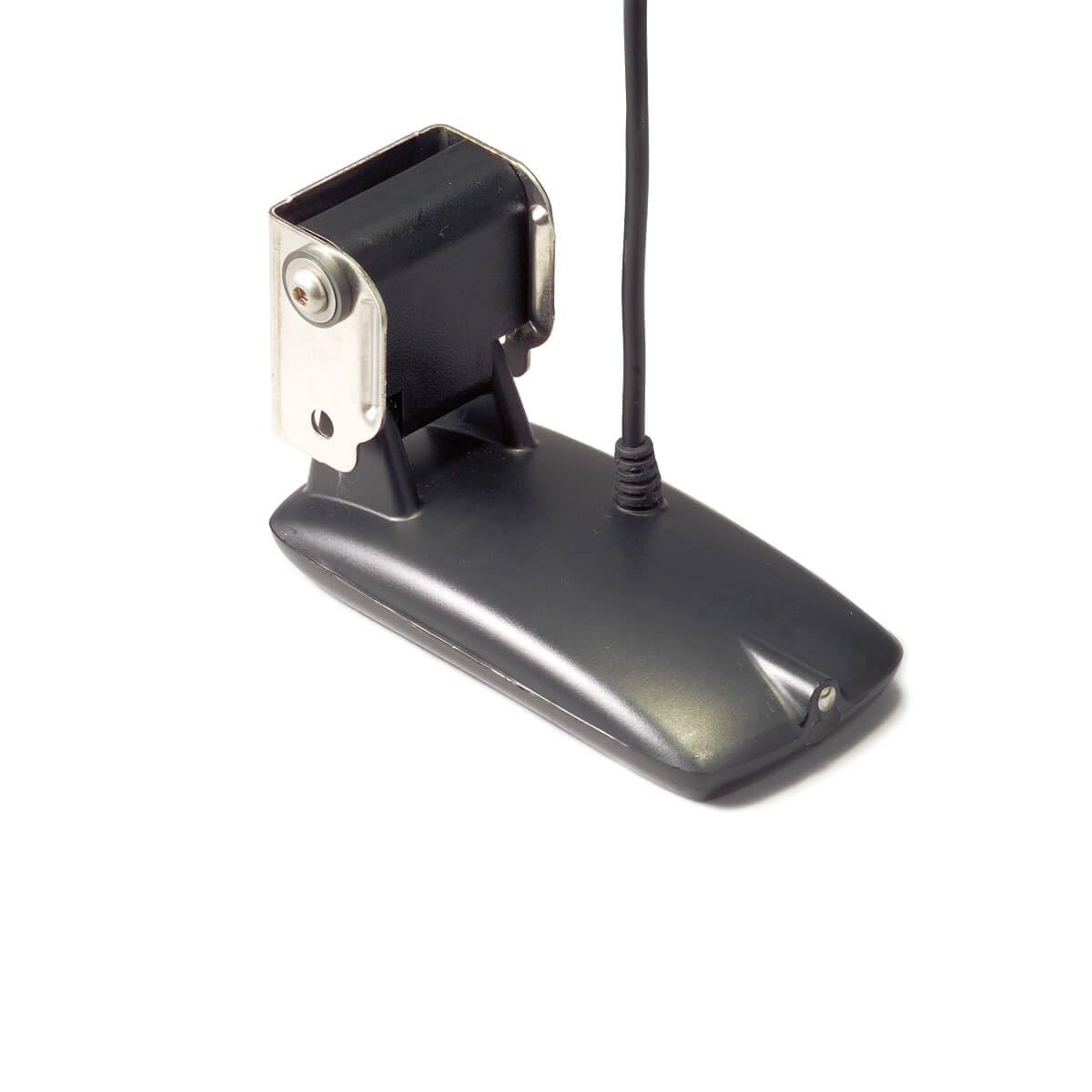

Humminbird XHS 9 HDSI 180 T Transom Transducer

PRODUCT DESCRIPTION Transom Mount, Dual/High Definition Side Imaging 20/60/180 Degree, 200/83/455/800 kHz with built-in temperature. AMAZON.COM The Humminbird XHS 9 HDSI 180 T Transom Mount Transducer is a high-speed transducer designed to mount on the transom, or back, of the boat, in contact with the surface of the water, and operate in conjunction with a compatible Humminbird sonar or fish finder system. This unit is combination DualBeam PLUS transducer that features 20- and 60-degree cone angles operating on 200 kHz and 83 kHx frequencies respectively, as well as a side-imaging sonar with two 84-degree beams operating at 800 kHz. The XHS 9 HDSI 180 T includes a built-in temperature sensor, a 20-foot cable, and all the necessary high-speed hardware to get up and running right away. Although this unit has the same hole pattern as some older-version transducers, it utilizes a new design that is more secure and less prone to kick up at the high force of waves, as well as having an improved running angle, and an optional lock-down screw to override the kick up. The Humminbird XHS 9 HDSI 180 T transducer is specifically designed for use with Humminbird's 997c SI Combo fish finder and other side-imaging sonar systems. This transducer is backed by Humminbird's one-year limited warranty.

• Compatible with: all HELIX Side Imaging units except HELIX 7 CHIRP MSI GPS G3/G3N/G4/G4N, HELIX 7 SI GPS G4 to the maximum capability of the transducer. Also compatibility with 1199ci HD SI, 999ci HD SI, 899ci HD SI, 1198c HD SI, 998c HD SI, 998c SI, 898c HD SI, 898c SI to the maximum capability of the transducer
• Cable Length: 20 Feet
• 1-Year Limited Warranty
• New design is more secure, less prone to kick up, with improved running angle
• Includes 20-foot cable, necessary mounting hardware, and built-in temperature sensor
• Combination DualBeam 20- and 60-degree beam sonar, and side-imaging sonar with two 84-degree beams
• Compatible with 997c SI Combo fish finder and other side-imaging Humminbird sonar systems
• Backed by manufacturer's one-year limited warranty
