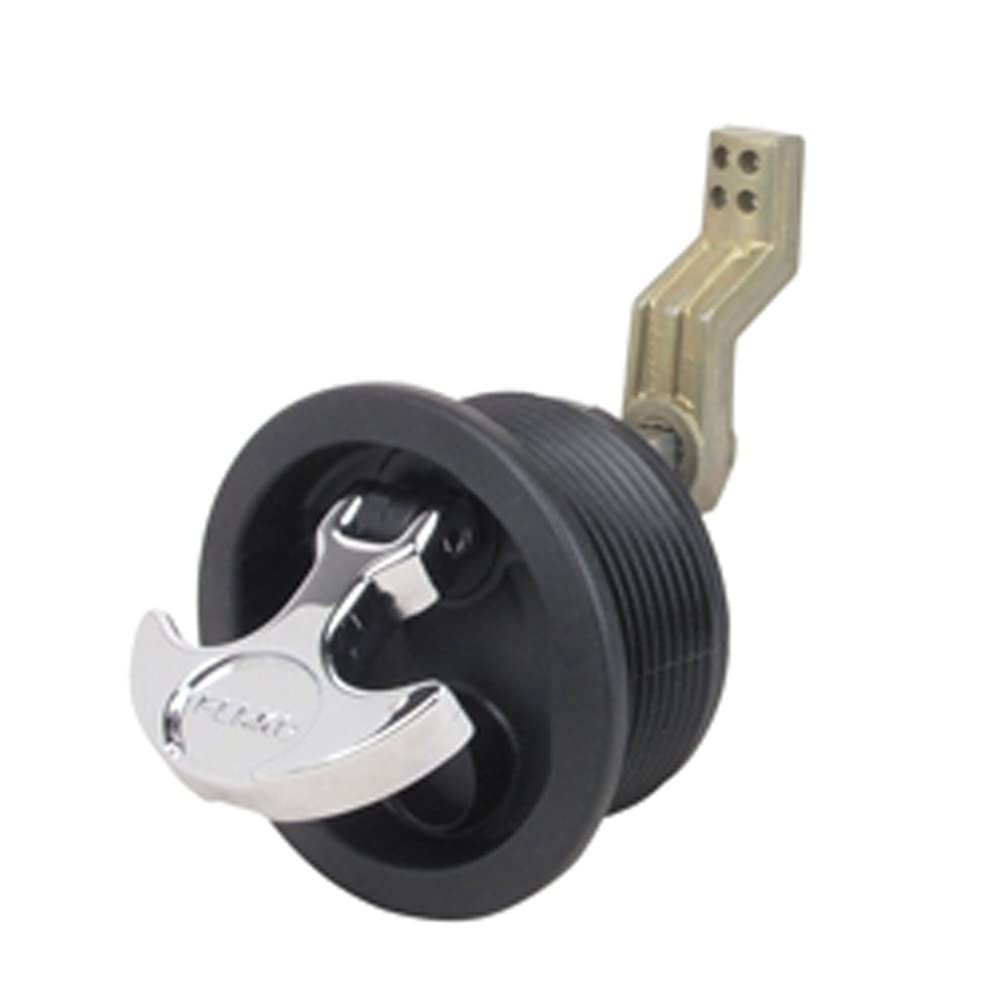

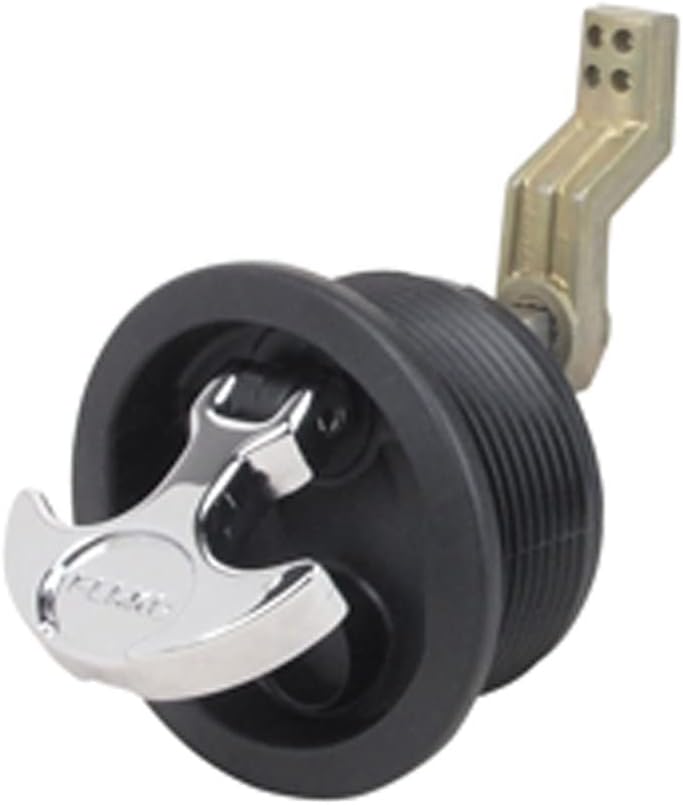

Surface Mount Latch for Smooth & Carpeted Surfaces with Offset Cam Bar. Features: Black polymer body, chrome plated zinc alloy components, black or white polymer T-handle, stainless steel stem latch (non-locking). Easily installs in a 2-1/2" diameter hole for mounting surfaces 1/8" to 3/4" thick. The T-handle drops down flush in either the open or closed (180° rotation) position (except with the offset cam bar positioned upward). Perko's black fiber reinforced polymer surface mount is designed for smooth and carpeted surfaces. Specifications include 3/4" - 2-3/8" cam bar adjustment, chrome plated zinc alloy, black or white polymer T-handle, and stainless steel stem.
- Gasket included for smooth surface applications
- Latch (non-locking) 1/8" to 3/4" thick
- Stainless steel stem
- Face plate diameter: 3"
- Easily installs in a 2-1/2" diameter hole
Specifications:
| Materials & Construction |
| Color | Black |
| Material | Metal |
| Product Details |
| Included Components | Perko 1092DP1BLK Non-Locking Surface-Mount Latch - 3/4" to 2-3/8" Cam |
| Model Name | 1092DP1BLK |
| Mounting Type | Surface Mounted |
| Part Number | 1092DP1BLK |
| Sizing & Dimensions |
| Length | 2.5 inches |
| Product Dimensions | 2.5 x 3 inches |
| Product Weight | 0.25 pounds |
| Size | One Size |
| Weight | 4 ounces |
| Width | 3 inches |
| Technical Specifications |
| Maximum Weight Recommendation | 25 Pounds |
