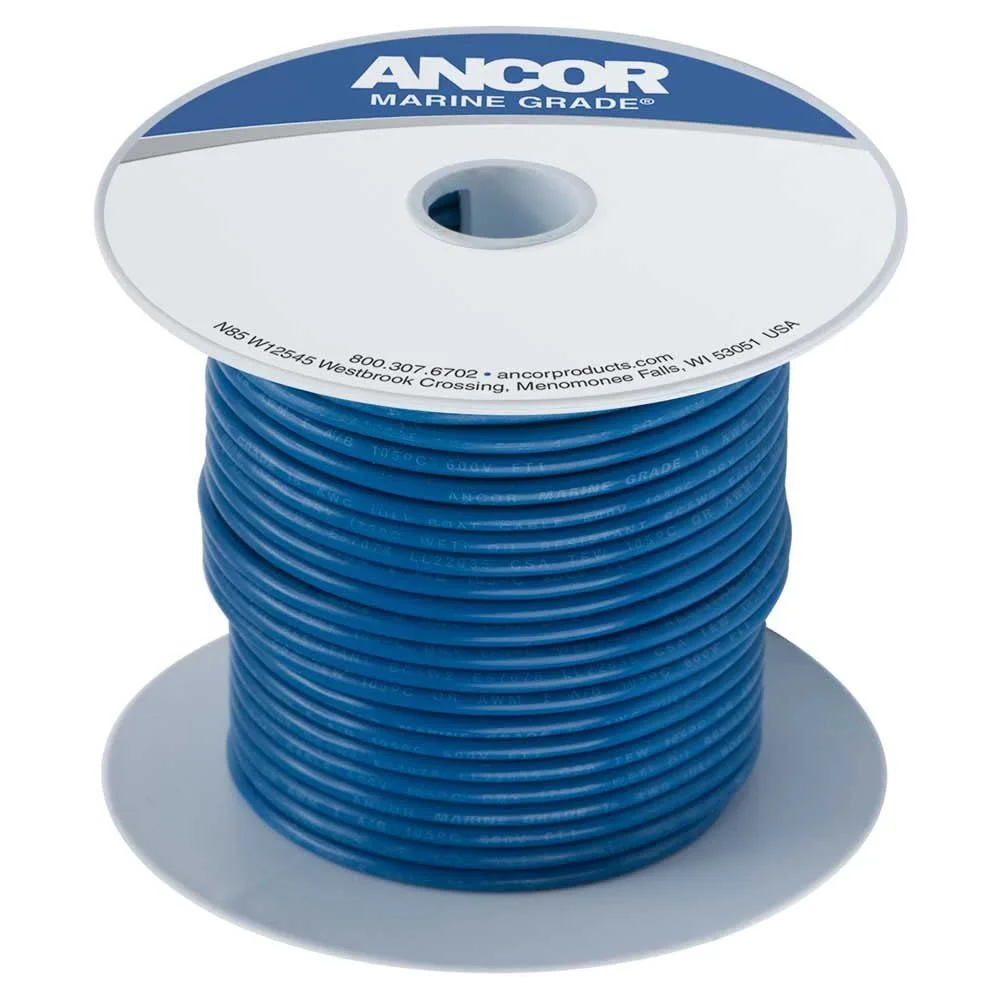

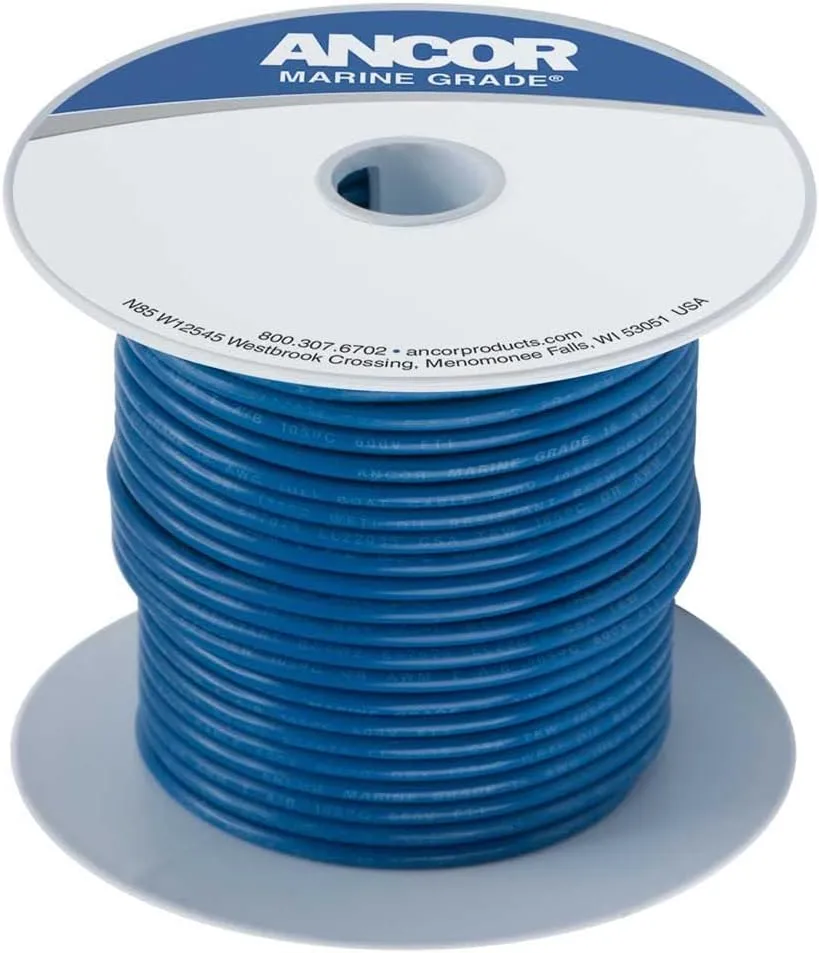

Ancor 100110 Marine Grade Electrical Primary Tinned Copper Boat Wiring (18-Gauge, Dark Blue, 100-Feet)
Customize
Dark Blue 18 AWG Tinned Copper Wire - 100'. Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. Constructed with premium vinyl insulation rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. Manufactured from individual copper strands and tinned to perform in the harshest marine environments. 100 feet of dark blue 18 AWG marine grade wire. Wire Gauge: 18 AWG. Nominal O.D. (inches): 7/64. Nominal O.D. (mm): 3. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- 100 Feet of Dark Blue 18 AWG marine grade wire
- Manufactured from individual copper strands and tinned to perform in the harshest marine environments
- They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards
- Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection
Specifications:
| Materials & Construction | |
| Color | Dark Blue |
| Material | Tinned Copper |
| Outer Material | Vinyl |
| Product Details | |
| Included Components | Great Product |
| Model Number | 100110 |
| Number of Items | 1 |
| Style | 18 Awg |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 4 x 4 inches |
| Size | 100 Feet |
| Weight | 0.85 pounds |
| Width | 4 inches |
| Technical Specifications | |
| Item Dimensions Lx Wx H | 4 x 4 x 4 inches |
| Item Package Dimensions L x W x H | 3.6 x 3.3 x 3.2 inches |
| No. of wires | 1 |
| Number of Cable Strands | 1 |
| Voltage | 600 Volts |
| Warranty | Warranty |
