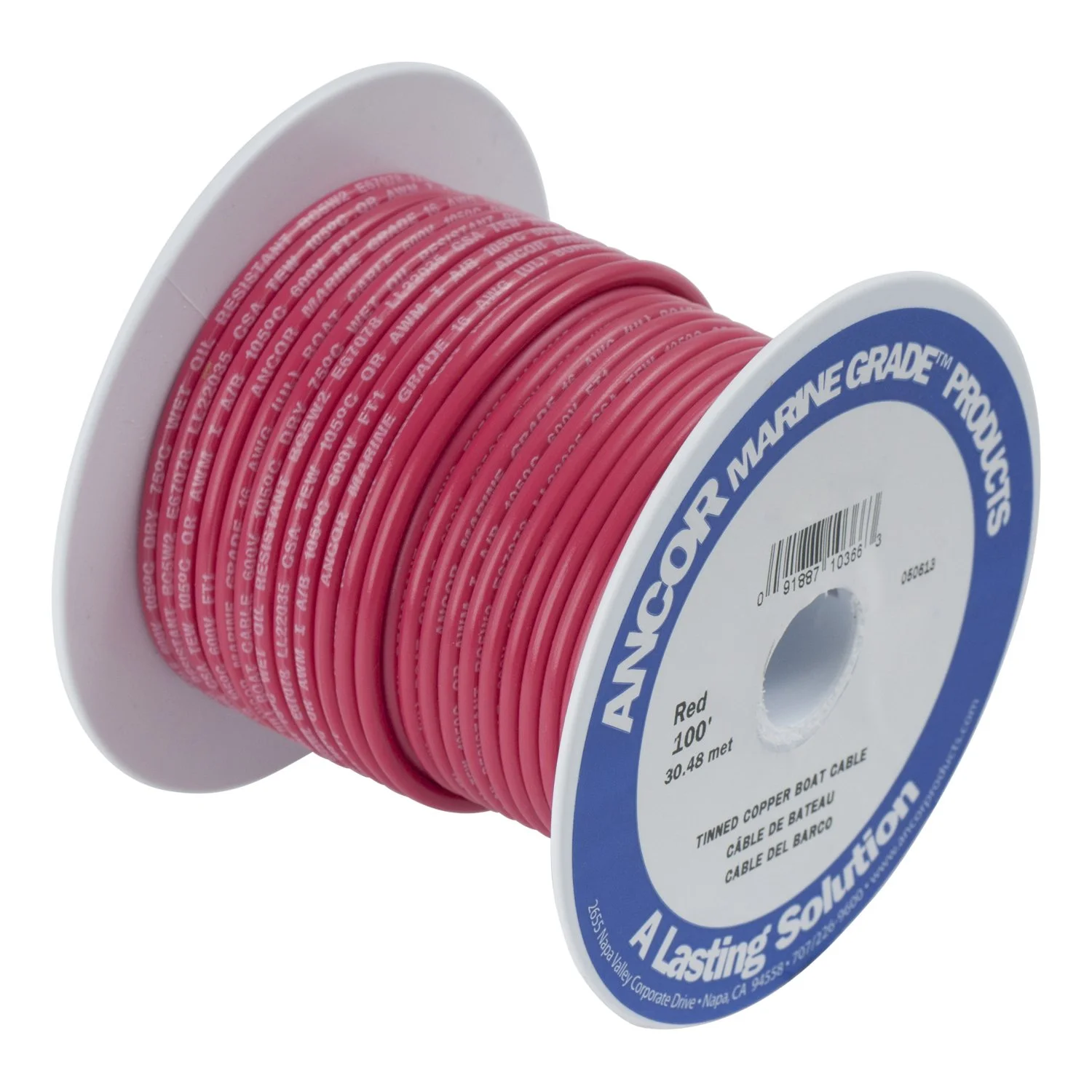

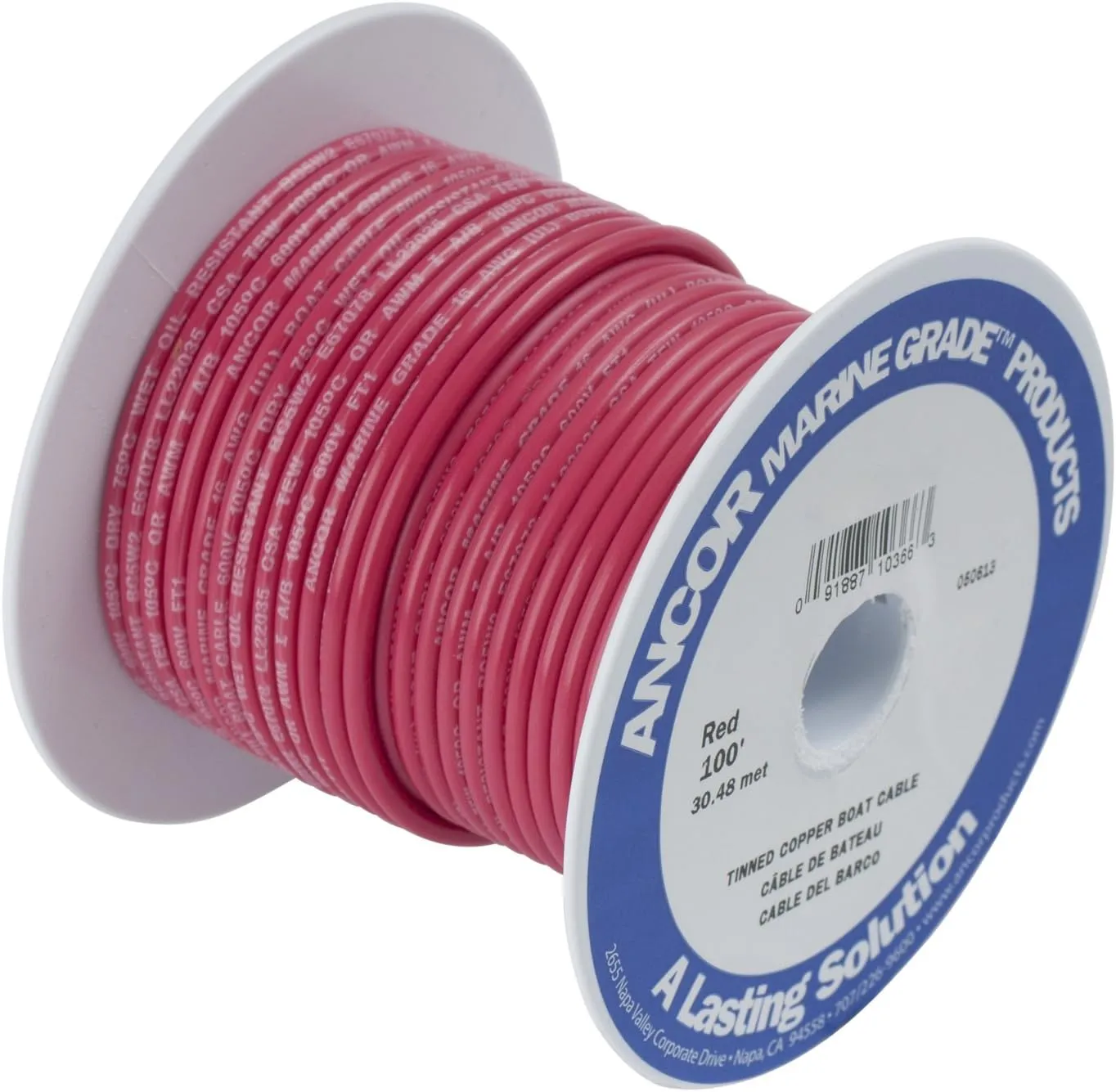

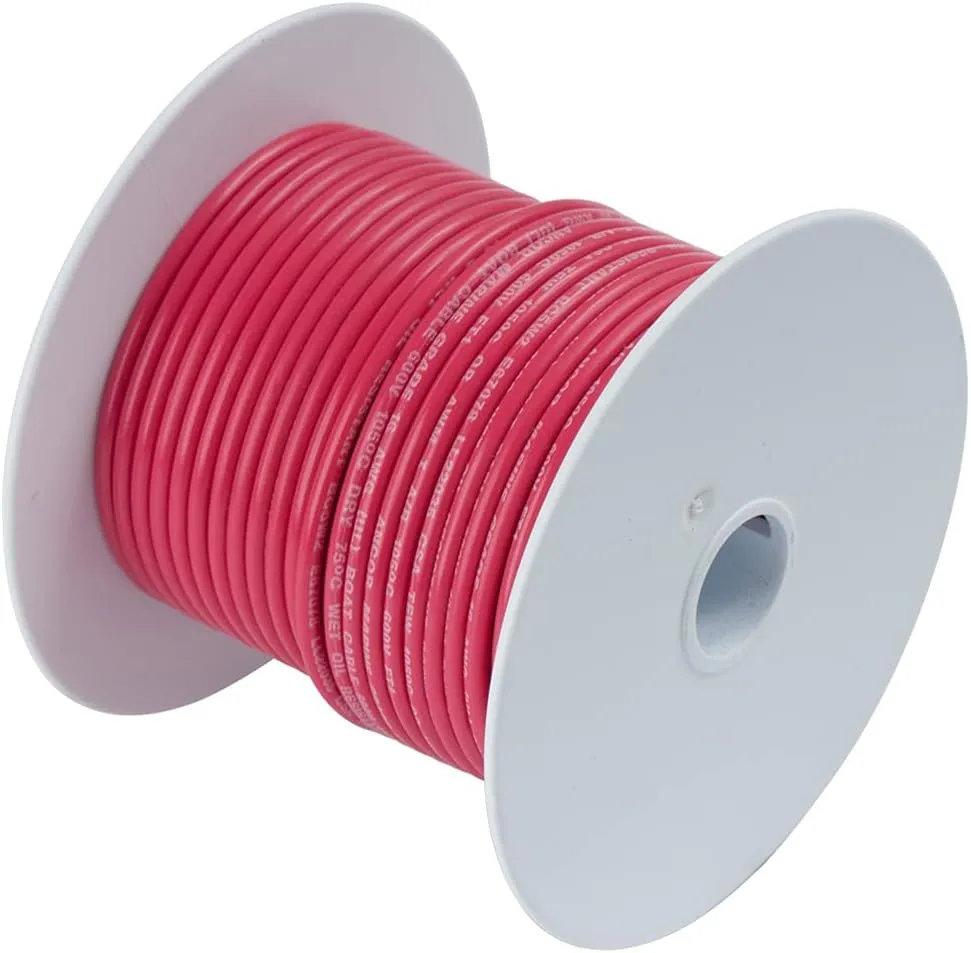

Ancor 100810 Tinned Copper Wire, 18 AWG (0.8mm2), Red - 100ft
Customize
Red 18 AWG Tinned Copper Wire - 100' Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°F dry and 75°F wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. Wire Gauge: 18 AWG Nominal O.D. (inches): 7/64 Nominal O.D. (mm): 3. Tinned-copper stranding. Maximum protection against corrosion & electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration & flexing. Premium vinyl insulation resists saltwater, battery acid, oil, gasoline & ultra-violet radiation. Rated at 600 volts & 106C, the heavy-duty insulation is resistant to heat & abrasion. Exceeds all UL 1426, USCG Charter boat (CFR title 46) & ABYC standards.
- They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards
- Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection
- Manufactured from individual copper strands and tinned to perform in the harshest marine environments
- 100 Feet of Red 18 AWG marine grade wire
Specifications:
| Materials & Construction | |
| Color | Red |
| Gauge | 18.0 |
| Material | Copper |
| Number of Cable Strands | 18 |
| Product Details | |
| Global Trade Identification Number | 00091887102024 |
| Included Components | Great Product |
| Model Name | 100810 |
| Number of Items | 1 |
| Part Number | 100810 |
| Size | 100 Feet |
| Style | 18 Awg |
| Sizing & Dimensions | |
| Height | 3.25 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 4 x 3.25 inches |
| Product Weight | 0.33 pounds |
| Size | 100 Feet |
| Weight | 5.28 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Item Dimensions Lx Wx H | 4 x 4 x 3.25 inches |
| Item Package Dimensions L x W x H | 5.31 x 4.53 x 4.06 inches |
| No. of wires | 1 |
| Voltage | 600 Volts |
| Warranty Description | Warranty |
