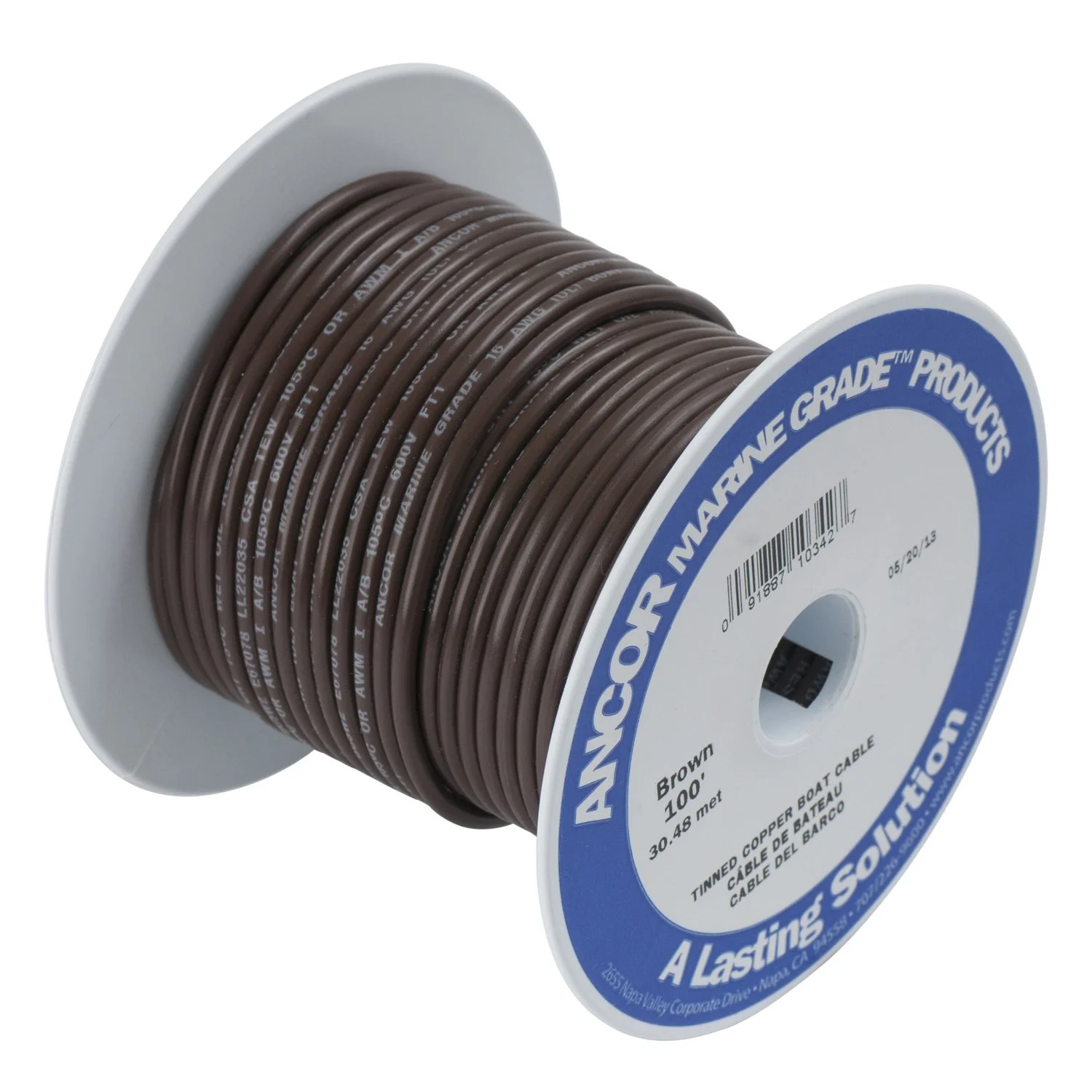

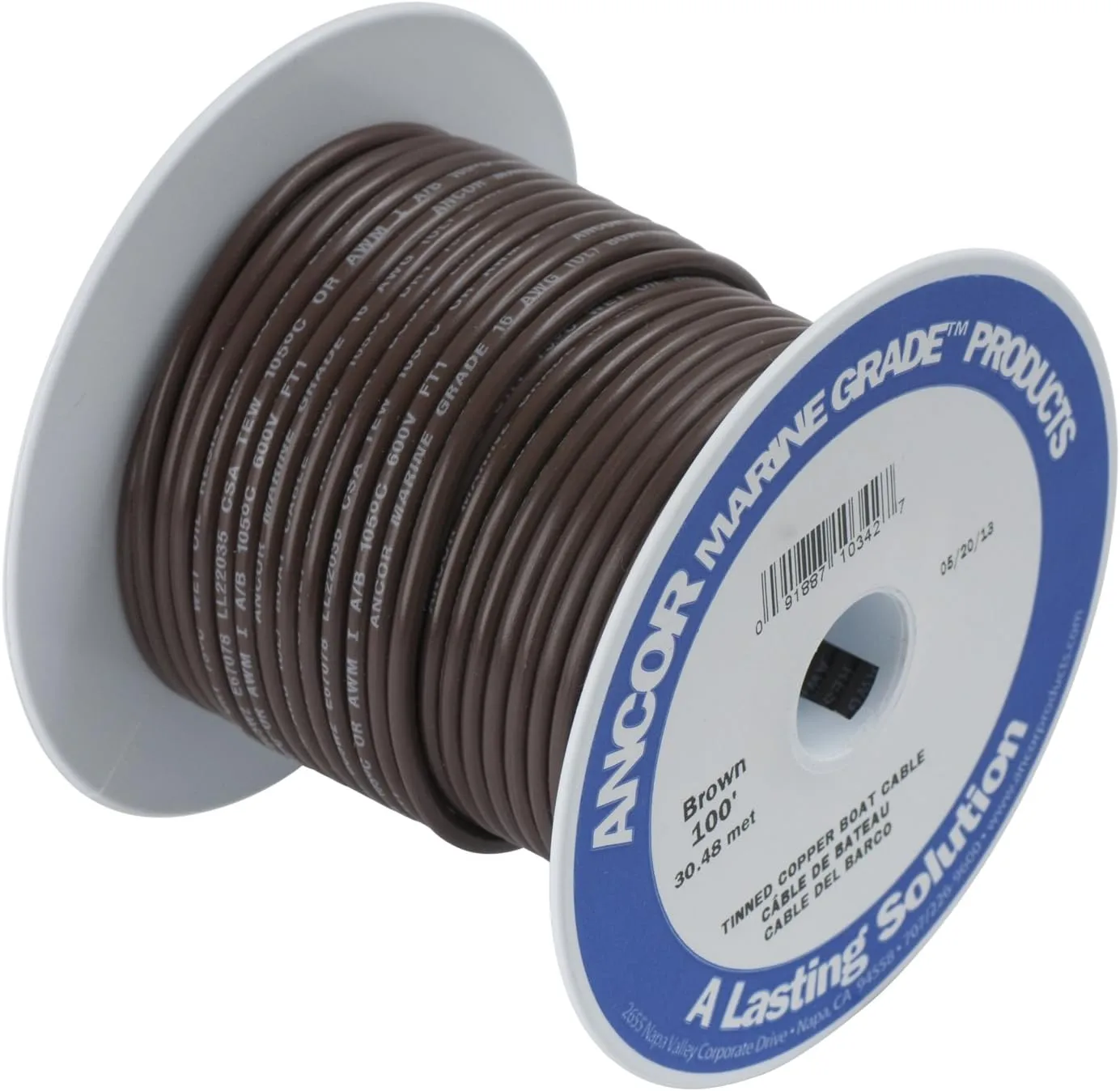

Ancor 102210 Tinned Copper Wire, 16 AWG (1mm2), Brown - 100ft
Customize
Ancor Marine Grade Primary Wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra-flexible (Type 3) stranding helps prevent fatigue due to vibration and flexing. Ancor's proprietary premium vinyl insulation stays flexible even in extreme cold (-40° F/ -40° C) and resists salt water, battery acid, oil, gasoline, and ultraviolet radiation. The wire's exclusive insulation is rated at 600 volts, 221° F / 105° C dry and 167° F / 75° C wet, and is engineered to withstand heat and abrasions. Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46), and ABYC standards. Brown 16 AWG Tinned Copper Wire - 100' Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. Wire Gauge: 16 AWG.
- 100 Feet of Brown 16 AWG marine grade wire
- Manufactured from individual copper strands and tinned to perform in the harshest marine environments
- Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards
- They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation
Specifications:
| Materials & Construction | |
| Color | Brown |
| Material | Plastic |
| Product Details | |
| Color | Brown |
| Gauge | 16 AWG |
| Material | Plastic |
| No. of wires | 1 |
| Number of Cable Strands | Multi Strand |
| Size | 100 Feet |
| Style | 16 Awg |
| Voltage | 600 Volts |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 4 x 3 inches |
| Size | 100 Feet |
| Weight | 6.7 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Voltage Rating | 600 Volts |
| Warranty | Warranty |
