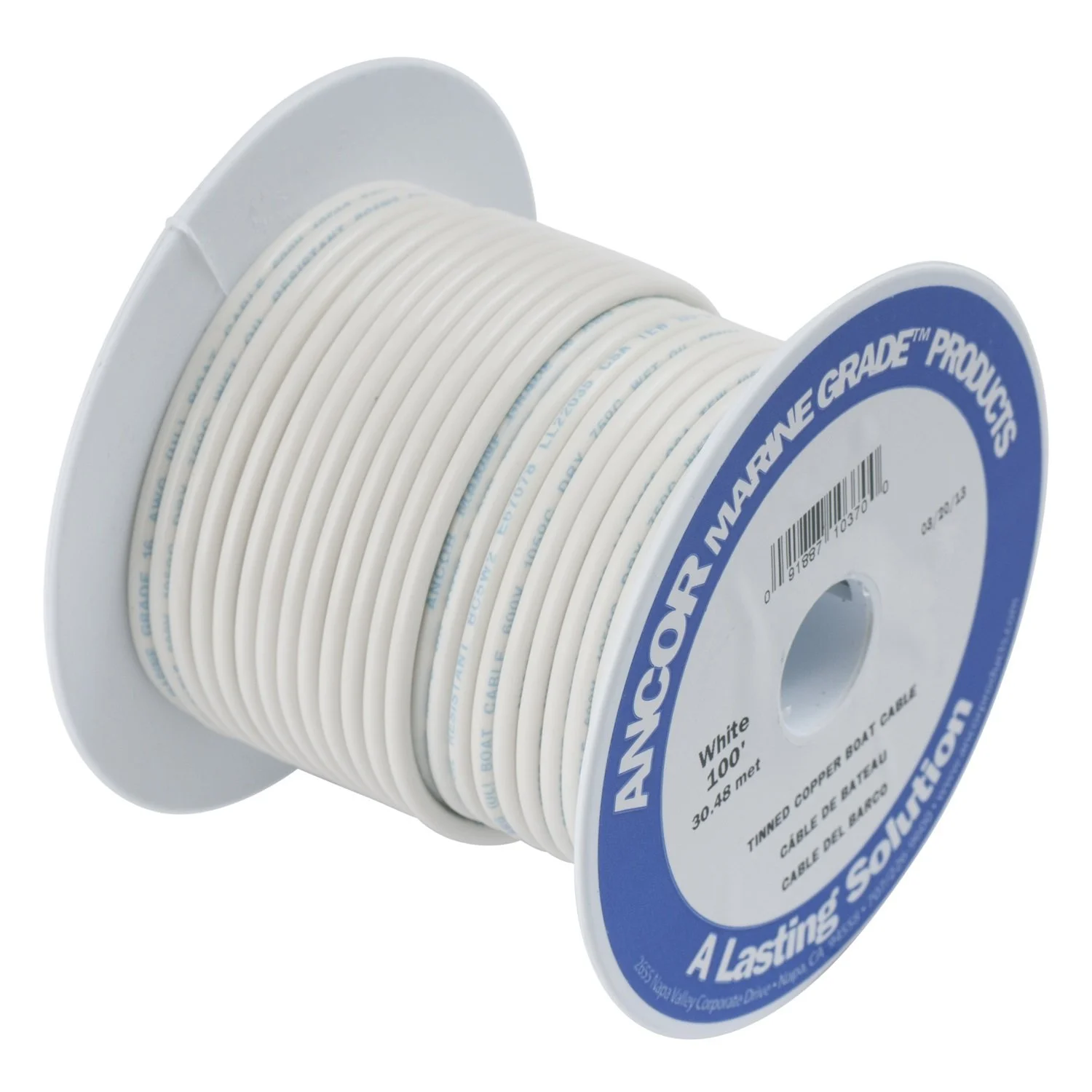

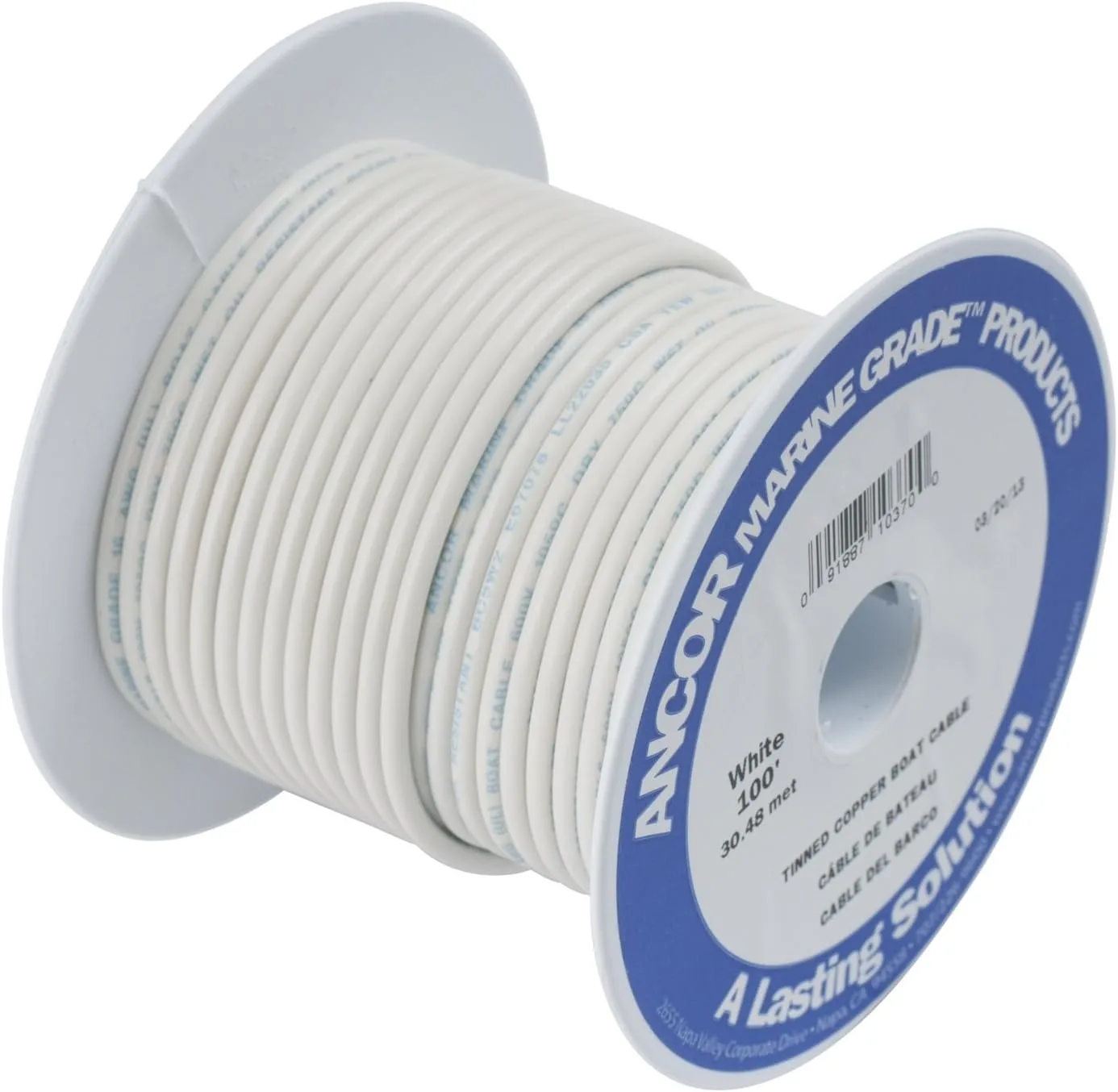

Ancor 106910 Marine Grade Electrical Primary Tinned Copper Boat Wiring (12-Gauge, White, 100-Feet)
Customize
White 12AWG Tinner Copper Wire - 100' Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. ANCOR Marine Grade wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing. ANCOR's proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 105° C dry and 75° C wet, and is resistant to heat and abrasion. Exceeds all UL 1426, US Coast Guard Charterboat (CFR Title 46) and ABYC standards.
- They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards
- Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection
- Manufactured from individual copper strands and tinned to perform in the harshest marine environments
- 100 Feet of White 12 AWG marine grade wire
Specifications:
| Materials & Construction | |
| Color | White |
| Gauge | 12 Awg |
| Material | Plastic |
| Product Details | |
| Included Components | Ancor 106910 Primary Wire #12 AWG/3mm - White, 100' |
| No. of wires | 1 |
| Number of Cable Strands | Multi Strand |
| Part Number | 106910 |
| Size | 100 Feet |
| Style | 12 Awg |
| Sizing & Dimensions | |
| Height | 3.25 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 4 x 3.25 inches |
| Size | 100 Feet |
| Weight | 2.85 pounds |
| Width | 4 inches |
| Technical Specifications | |
| Number of Items | 1 |
| Voltage | 600 Volts |
