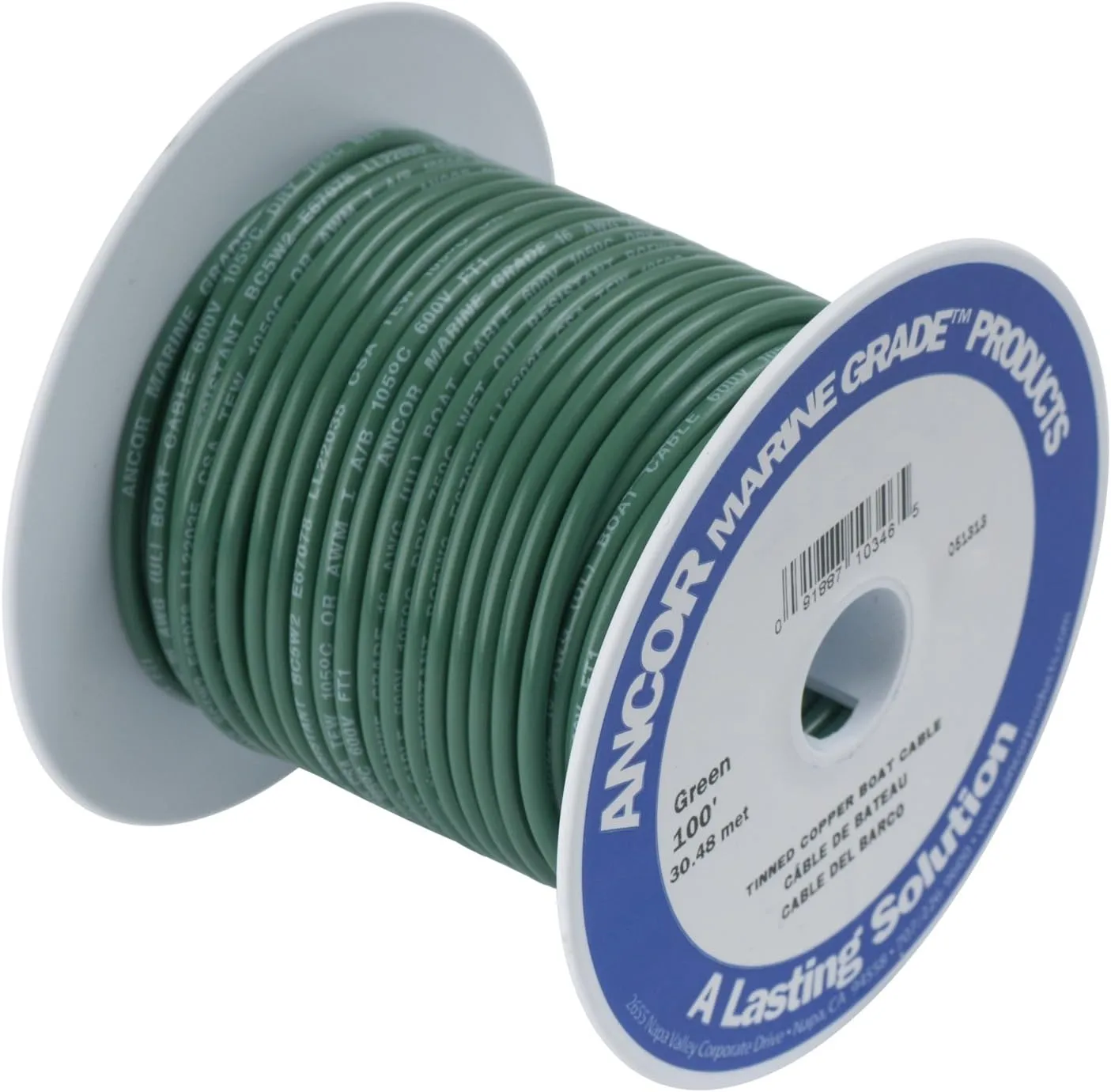

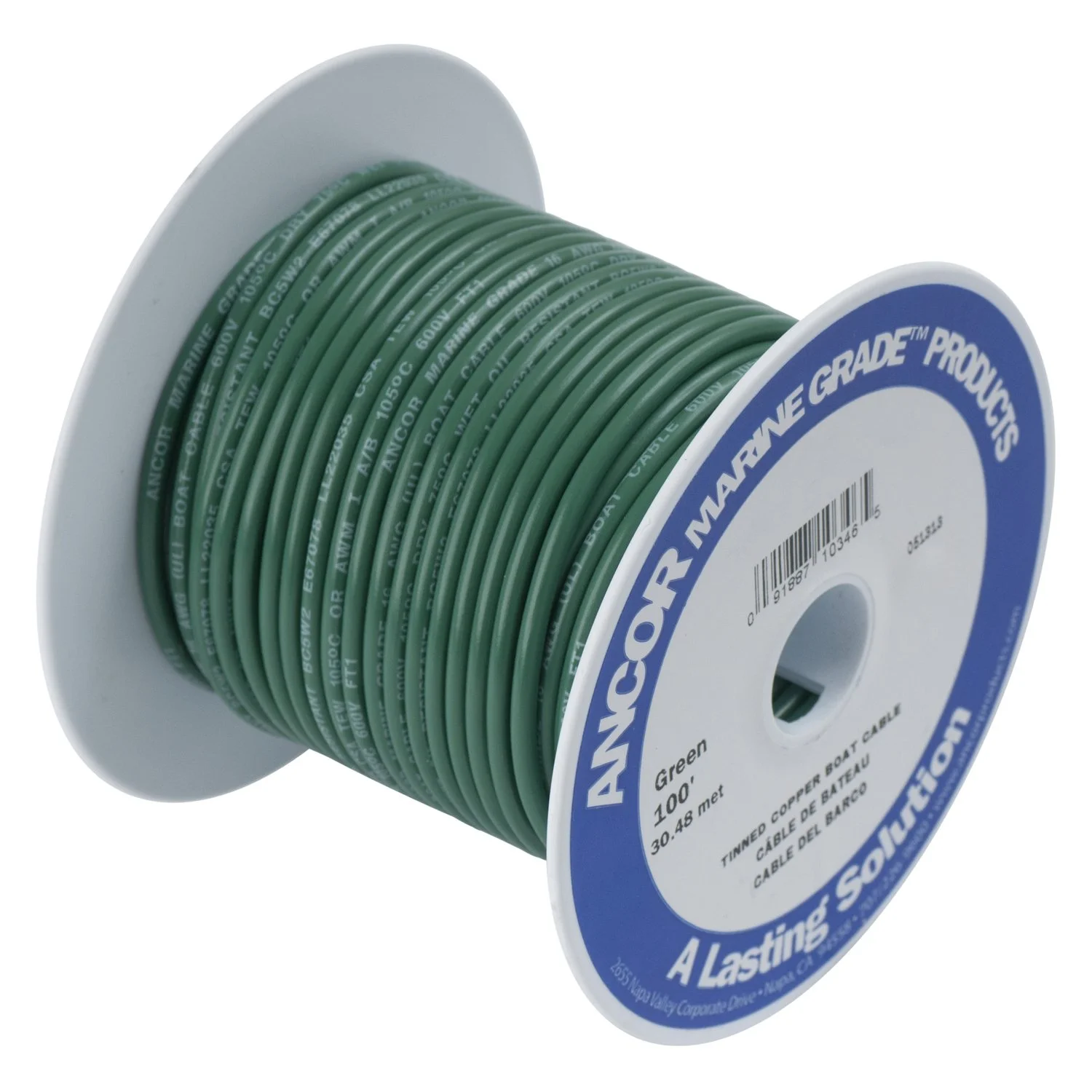

Ancor 112310 Marine Grade Electrical Tinned Copper Battery Cable (6-Gauge, Green, 100-Feet)
Customize
Green 6 AWG Battery Cable - 100'. ANCOR Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing. ANCOR's proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion. Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards. Ancor Marine Grade Primary Wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra-flexible (Type 3) stranding helps prevent fatigue due to vibration and flexing. Ancor's proprietary premium vinyl insulation stays flexible even in extreme cold (-40° F/ -40° C) and resists salt water, battery acid, oil, gasoline, and ultraviolet radiation. The wire's exclusive insulation is rated at 600 volts, 221° F / 105° C dry and 167° F / 75° C wet, and is engineered to withstand heat and abrasions. Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46), and ABYC standards. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards
- Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection
- Manufactured from individual copper strands and tinned to perform in the harshest marine environments
- 100 Feet of Green 6 AWG marine grade wire
Specifications:
| Materials & Construction | |
| Color | Green |
| Material | Copper |
| Outer Material | Copper |
| Product Details | |
| Included Components | wire |
| No. of wires | 1 |
| Number of Cable Strands | Multi Strand |
| Style | 6 Awg |
| Voltage | 600 Volts |
| Warranty | 1 year limited |
| Sizing & Dimensions | |
| Height | 4.13 inches |
| Length | 4.13 inches |
| Product Dimensions | 4.13 x 1.77 x 4.13 inches |
| Product Weight | 5 Pounds |
| Size | 100 Feet |
| Weight | 12.52 pounds |
| Width | 1.77 inches |
| Technical Specifications | |
| Voltage Rating | 600 Volts |
| Warranty | 1 year limited |
