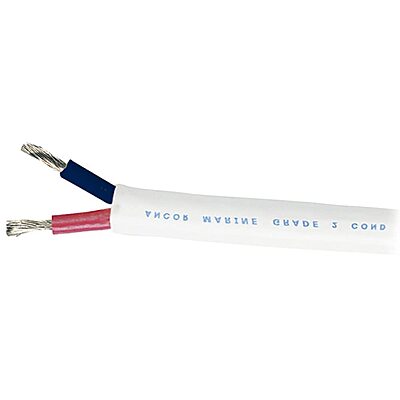

Ancor 120905 Duplex Cable, 8/2 AWG (2 x 8mm2), Flat - 50ft
Customize
Standard Duplex Cable - Flat 8/2 AWG - 2 x 8mm² Red/Black - 50'. Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. Constructed with premium vinyl insulation rated at 600 Volts, 105°C dry and 75°C wet, it stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra-flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. Style: 8 AWG flat duplex; Color: Red/Black; Length: 50'. Suitable for marine and vehicle power installations where corrosion resistance and flexibility are required.
- The premium vinyl insulation is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards
- Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection.
- Manufactured from individual copper strands and tinned to perform in the harshest marine environments.
Specifications:
| Materials & Construction | |
| Color | Black/Red |
| Material | Copper |
| Voltage | 600 Volts |
| Product Details | |
| Gauge | 8/2 Awg |
| Included Components | Does not apply |
| Model Number | 120905 |
| No. of wires | 2 |
| Number of Cable Strands | Multi Strand |
| Style | 8 Awg, Flat Duplex |
| Sizing & Dimensions | |
| Height | 11 inches |
| Length | 11 inches |
| Product Dimensions | 11 x 5 x 11 inches |
| Size | 50 Feet |
| Weight | 4 pounds |
| Width | 5 inches |
| Technical Specifications | |
| Number of Items | 1 |
| Sport Type | Boating |
| Warranty | Warranty |
