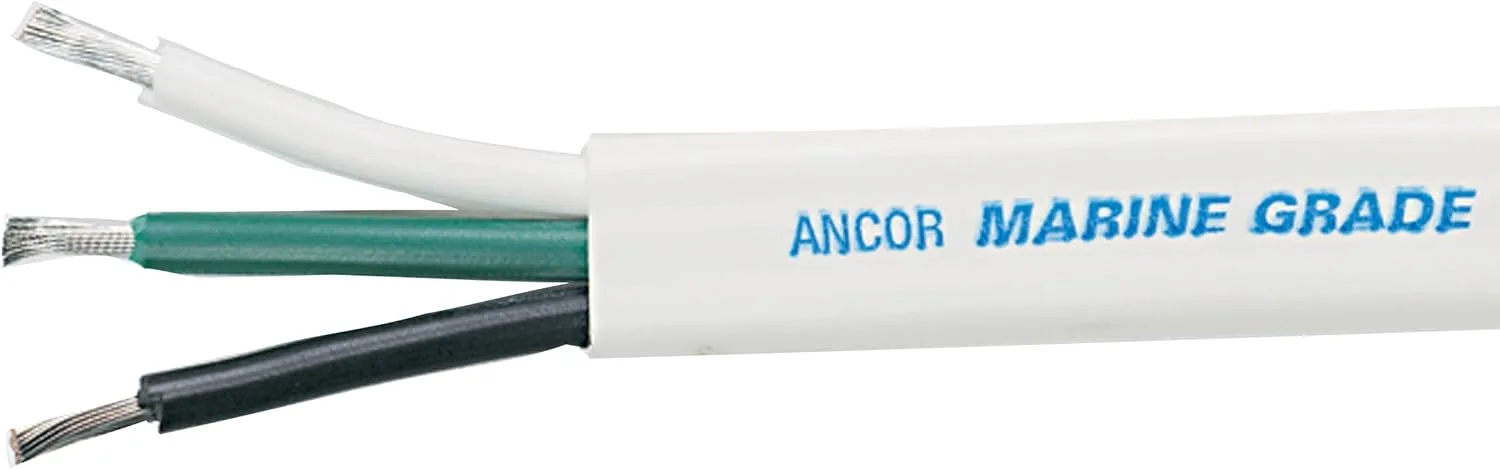

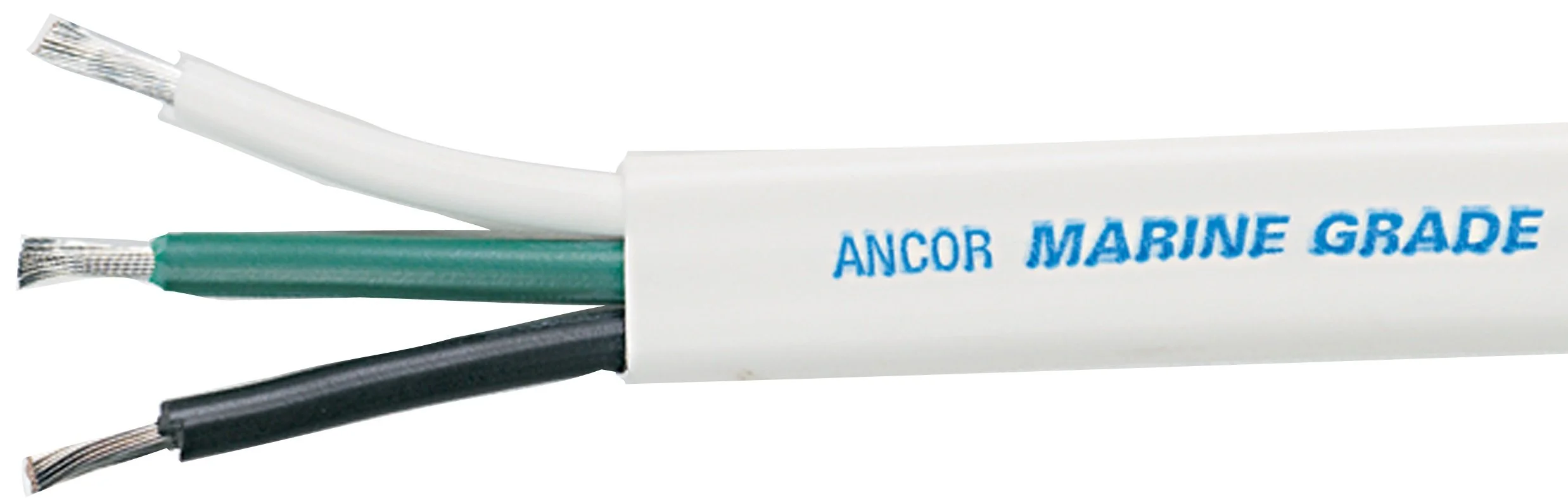

Ancor 131310 Triplex Cable, 12/3 AWG (3 x 3mm2), Flat - 100ft
Customize
Triplex Cable - 12/3 AWG - 100' Features: Ancor Triplex Cable is made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to vibration and flexing. Outer jacket is made for easy removal and provides the best abrasion resistance available Ancors proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 105°C dry and 75°C wet, and is resistant to heat and abrasion. Features three Marine Grade™ primary conductors (white, black and green) in a white common jacket. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 Volts, 105 DegreesC dry and 75 DegreesC wet, stays flexible even in extreme cold (-40 DegreesF/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.
- Sport type: Boating
Specifications:
| Materials & Construction | |
| Color | Black/Green/White |
| Material | Tinned copper |
| Outer Material | Vinyl |
| Product Details | |
| Included Components | Ancor 131310 Triplex Cable - 12/3 (3x5mm), 100' |
| Number of Items | 1 |
| Size | 100 Feet |
| Style | 12 Awg, Flat Triplex |
| Sizing & Dimensions | |
| Height | 4.5 inches |
| Length | 10.5 inches |
| Product Dimensions | 10.5 x 10.5 x 4.5 inches |
| Size | 100 Feet |
| Weight | 12.1 pounds |
| Width | 10.5 inches |
| Technical Specifications | |
| Gauge | 12/3 AWG |
| No. of wires | 3 |
| Number of Cable Strands | Three |
| Style Detail | Flat Triplex |
| Voltage | 600 Volts |
