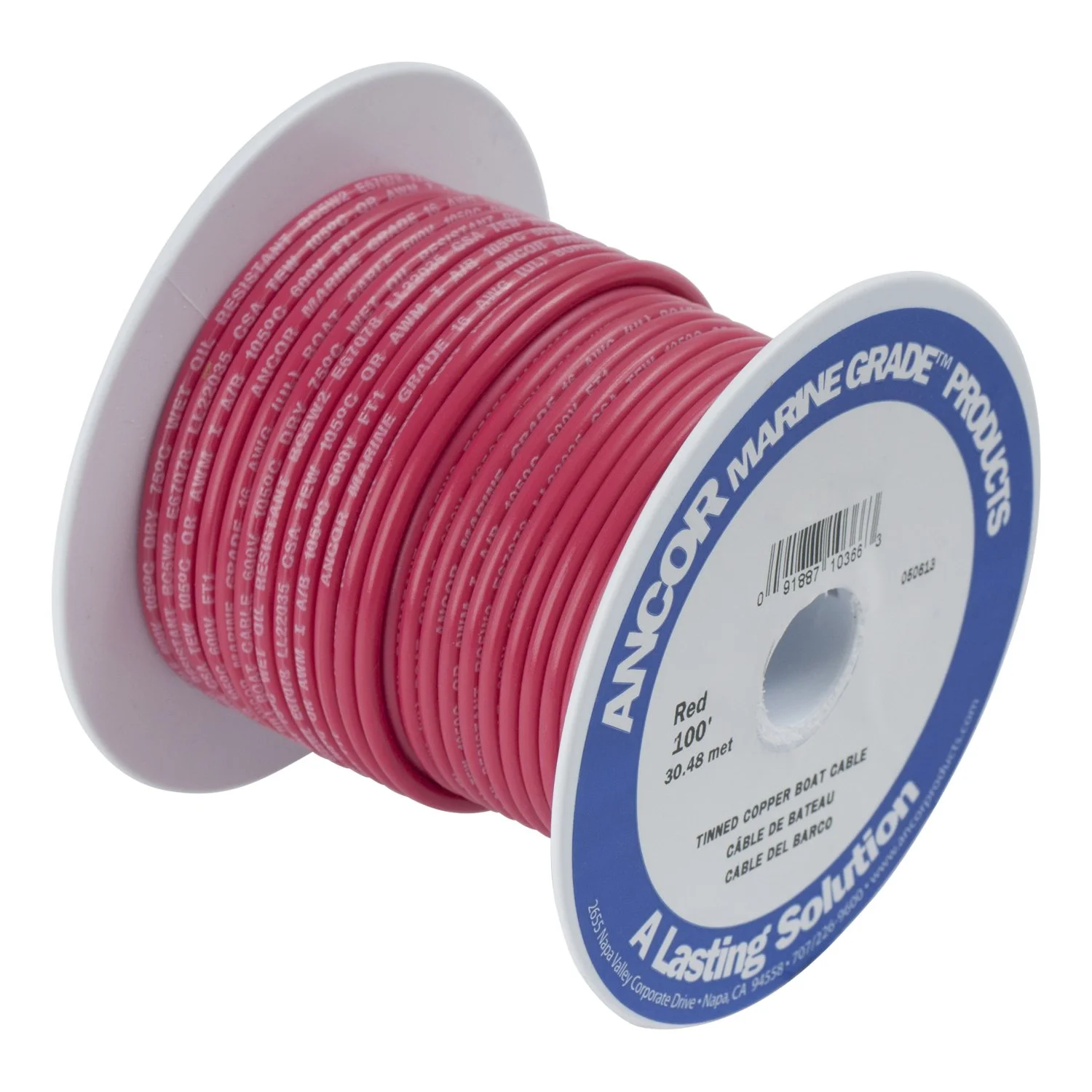

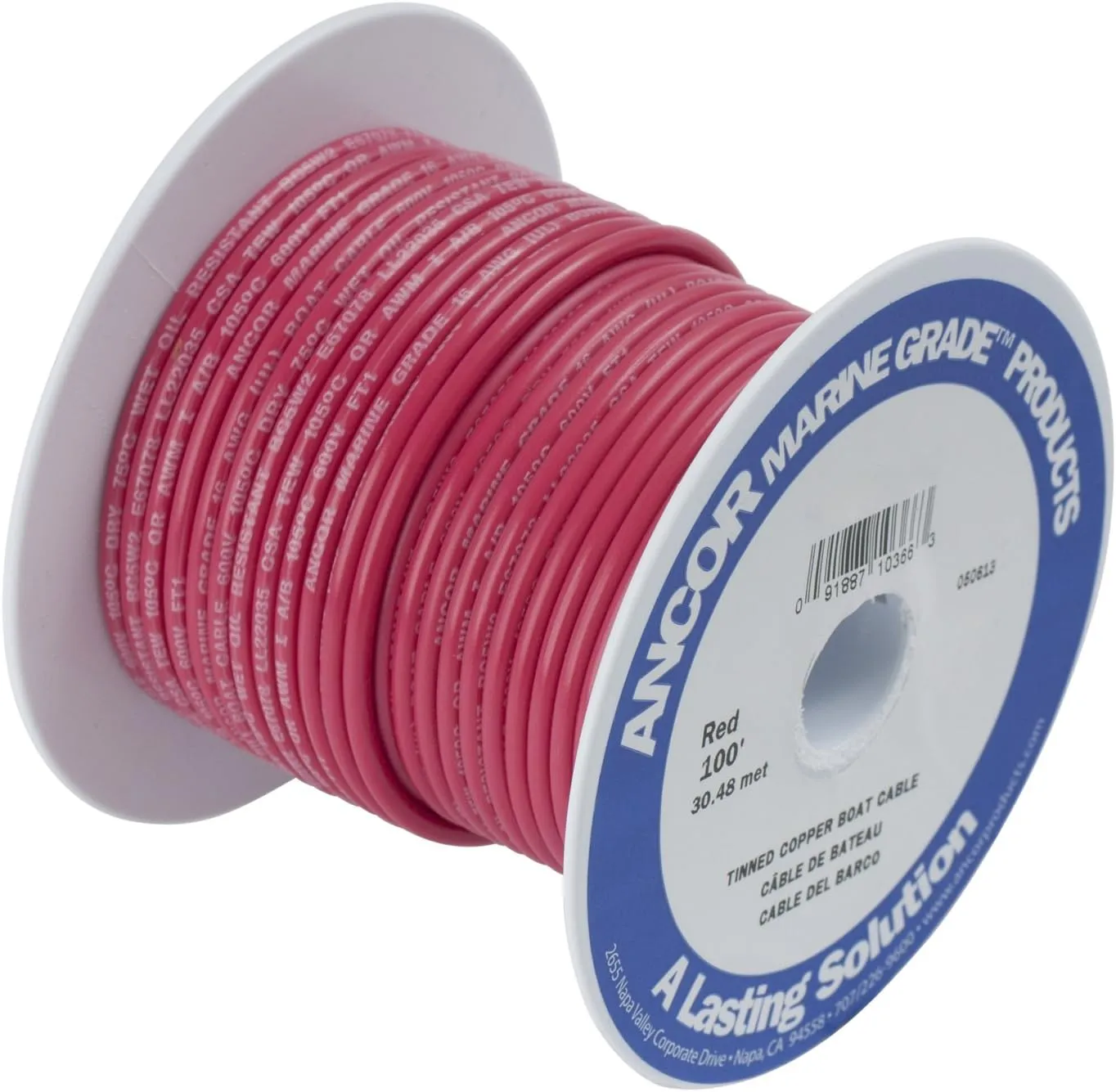

Ancor 180803 Tinned Copper Wire, 18 AWG (0.8mm2), Red - 35ft
Customize
Red 18 AWG Tinned Copper Wire - 35' Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. Wire Gauge: 18 AWG Nominal O.D. (inches): 7/64 Nominal O.D. (mm): 3 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Color: Red , Length (Feet): 35' , Gauge: 18 AWG
- They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards
- Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection
- Manufactured from individual copper strands and tinned to perform in the harshest marine environments
- 35 Feet of Red 18 AWG marine grade wire
Specifications:
| Materials & Construction | |
| Color | Red |
| Material | Copper |
| Outer Material | Copper |
| Product Details | |
| Global Trade Identification Number | 00091887180183 |
| Included Components | Great Product |
| No. of wires | 1 |
| Number of Cable Strands | 18 |
| Number of Items | 1 |
| Style | 18 Awg |
| Voltage | 600 Volts |
| Warranty | Warranty |
| Sizing & Dimensions | |
| Height | 4.25 inches |
| Length | 2.25 inches |
| Product Dimensions | 2.25 x 2.88 x 4.25 inches |
| Size | 35 Feet |
| Weight | 4.8 ounces |
| Width | 2.88 inches |
| Technical Specifications | |
| Voltage | 600 Volts |
| Warranty | Warranty |
