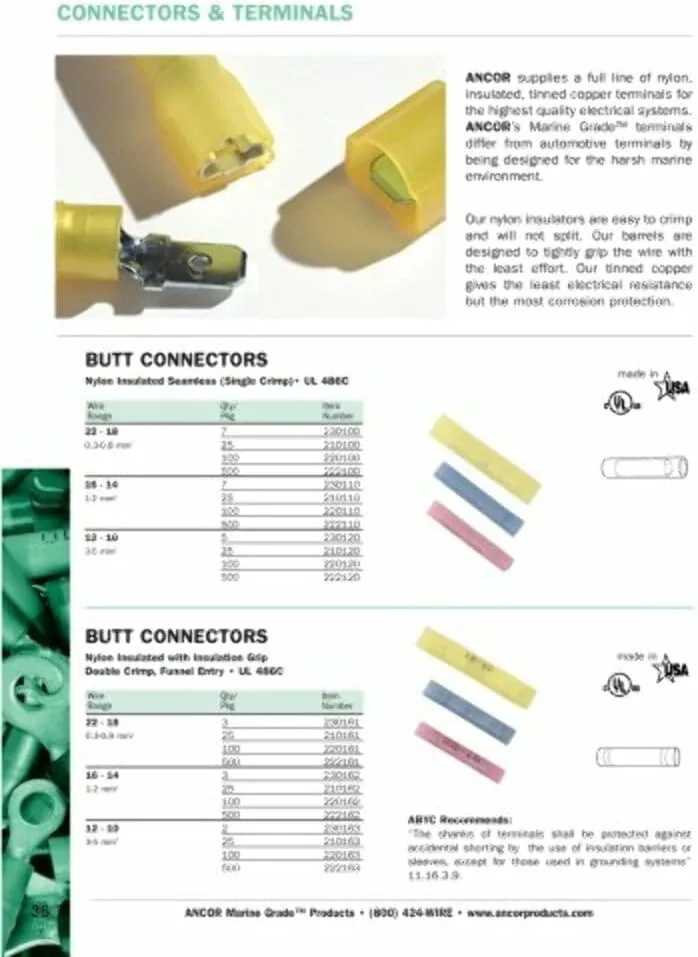

Ancor 210110 Marine Grade Electrical Nylon Insulated Single Crip Butt Connectors (16 to 14-Gauge, 25-Pack)
Customize
Ancor 16-14 AWG Nylon Single Crimp Butt Connector - 25-Pack. Marine-grade terminals are designed for harsh marine environments. Nylon insulators are easy to crimp and resist splitting. Barrels are tinned copper to provide low electrical resistance and superior corrosion protection. Serrated barrel grips help prevent wire pull-out. Features: Nylon insulated with insulation grip, UL 486C. Package quantity: 25. Connector Type: Single Crimp Butt Connector. Gauge: 16-14 AWG. Heat shrink: No. Temperature rating up to 221°C. Ideal for boating and marine electrical applications where reliable corrosion resistance is required. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Sport type: Boating
- UL 486C
- Tinned copper gives the least electrical resistance but the most corrosion protection
- Barrels are designed to tightly grip the wire with the least effort
- Nylon insulators are easy to crimp and will not split
- 25 Pack of 16-14 AWG Nylon, Single Crimp Butt Connectors
Specifications:
| Materials & Construction | |
| Color | 16-14 AWG |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Material | Copper |
| Product Details | |
| Connector Style | Nylon, Single Crimp |
| Connector Type | Crimp |
| Contact Material | Copper |
| Gauge | 16-14 AWG |
| Global Trade Identification Number | 00091887211108 |
| Included Components | Does not apply |
| Insulation Material | Nylon |
| Number of Items | 1 |
| Size | 25 Pack |
| Specification Met | UL |
| Style | Nylon, Single Crimp |
| Temperature Rating | 221 degree celsius |
| Temperature Rating (display) | 221 degree celsius |
| Unit Count | 1.0 Count |
| Warranty Description | As labeled |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 1 inches |
| Product Weight | 0.2 Ounces |
| Size | 25 Pack |
| Weight | 1.41 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Specification Met | UL |
| Temperature Rating | 221 degree celsius |
| Warranty | As labeled |
