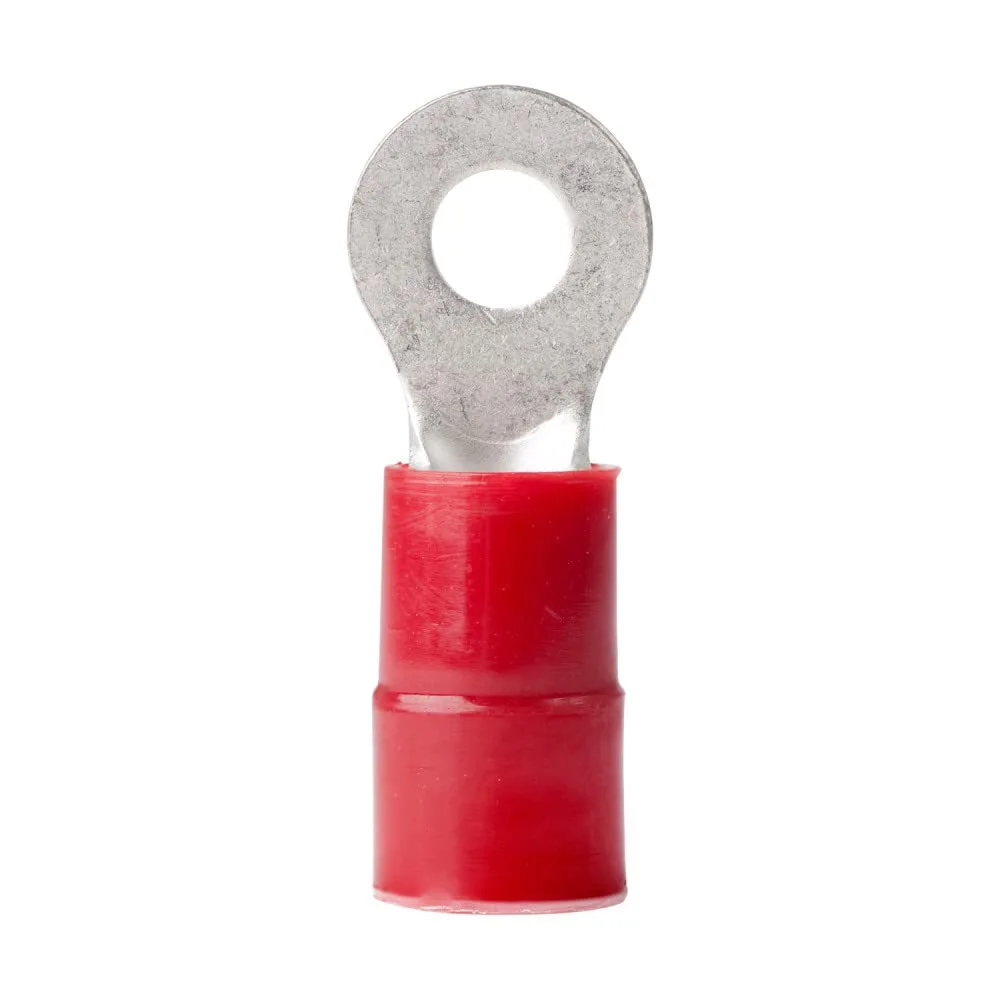

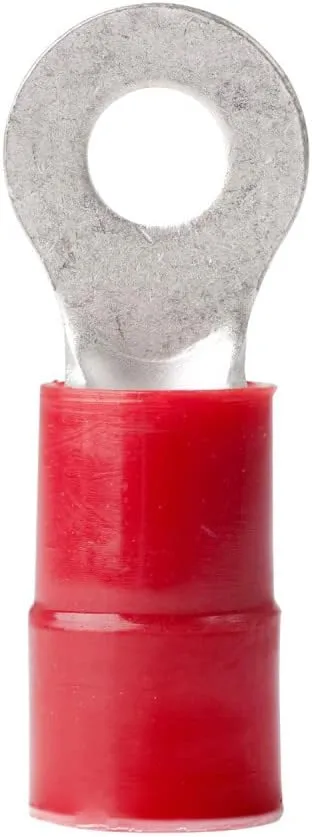

ANCOR MARINE GRADE 210233 Electrical Nylon Insulated Double Crip Funnel Entry Ring Terminals with Insulation Grip (8-Gauge
Customize
8 AWG - #10 Nylon Ring Terminal - 25-Pack. Ancor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection. Features: Nylon insulated with insulation grip; Double crimp, funnel entry; UL 486C. Type: Ring Terminals. Post Size: #10. Package Qty: 25. Heat Shrink: No. Gauge: 8 AWG. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Package length: 9.398 cm
- Package width: 6.096 cm
- Package height: 2.286 cm
- Product Type: FISHING EQUIPMENT
Specifications:
| Materials & Construction | |
| Color | 8 AWG |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Material | Plastic |
| Product Details | |
| Connector Type | Crimp |
| Contact Material | Copper |
| Heat Shrink | No |
| Model Number | 210233 |
| Package Qty | 25 |
| Post Size | #10 |
| Specification Met | UL |
| Type | Ring Terminals |
| Voltage | 12 Volts |
| Sizing & Dimensions | |
| Height | 2.4 inches |
| Length | 3.7 inches |
| Product Dimensions | 3.7 x 2.4 x 2.4 inches |
| Size | 8 AWG |
| Weight | 0.32 ounces |
| Width | 2.4 inches |
| Technical Specifications | |
| Temperature Rating | 221 degree fahrenheit |
