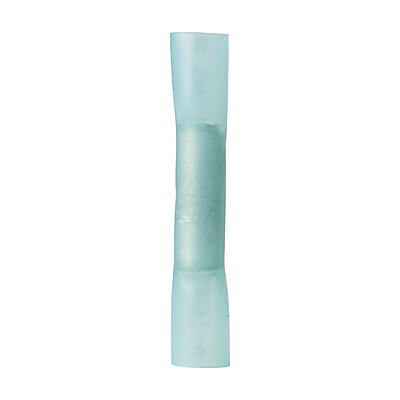

Ancor 309103 Marine Grade Electrical Nylon Insulated Adhesive Lined Heat Shrink Butt Connectors (16 to 14-Gauge, 3-Pack)
Customize
16-14 Heatshrink Butt Connectors - 3-Pack. Gauge Size: 16-14. Quantity: 3. Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized. Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range -40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire range: 16-14 AWG. Type: Butt Connectors. Package Qty: 3. Heat Shrink: Yes. Gauge: 16-14 AWG. UL listed and CSA recognized. 3 Pack of 16-14 AWG Heat Shrink Butt Connectors. Temperature Rating: 257°F. Maximum Voltage: 120 Volts (AC).
- UL listed and CSA recognized
- Tinned for corrosion resistance, Pure copper for maximum current flow
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Heat activated adhesive built into the sleeve of the heat shrink tubing
- 3 Pack of 16-14 AWG Heat Shrink Butt Connectors
Specifications:
| Materials & Construction | |
| Color | 16-14 AWG |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Material | Nylon, Copper |
| Product Details | |
| Connector Type | Butt Splice |
| Gauge | 16-14 AWG |
| Heat Shrink | Yes |
| Package Qty | 3 |
| Specification Met | UL |
| Style | Heat Shrink |
| Type | Butt Connectors |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 1 inches |
| Product Dimensions | 1 x 1 x 1 inches |
| Size | 3 Pack |
| Weight | 0.48 ounces |
| Width | 1 inches |
| Technical Specifications | |
| EU Spare Part Availability Duration | 5 Years |
| Included Components | Great Product |
| Item Dimensions Lx Wx H | 0.5 x 1.6 x 4 inches |
| Maximum Voltage | 120 Volts (AC) |
| Temperature Rating | 257 degree fahrenheit |
| Unit Count | 1.0 Count |
| Warranty | Warranty |
