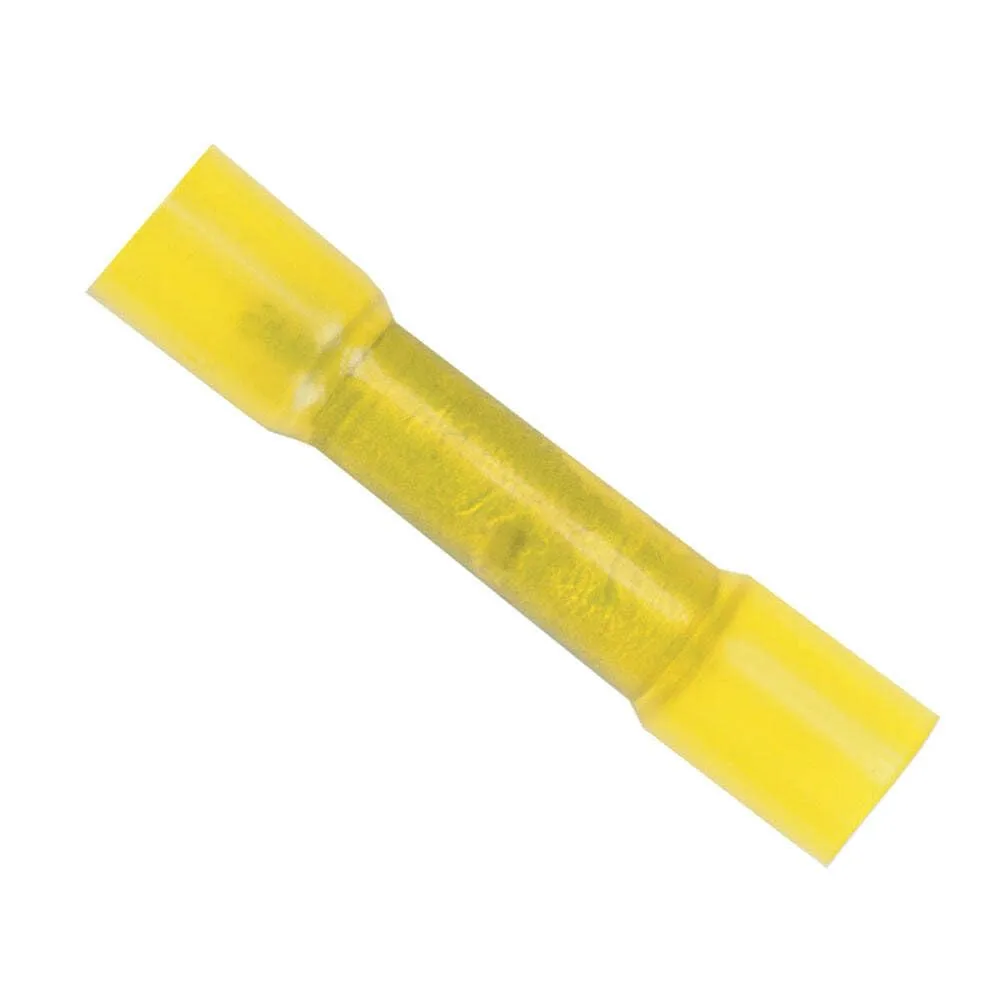

Ancor 309203 Marine Grade Heat Shrink Butt Connectors combine cross-linked polyolefin tubing and heat-activated adhesive lining to provide a durable, watertight seal for 12–10 AWG connections. The nylon insulator offers marine-grade resistance to sunlight, water, oil and chemicals and provides strain relief and cut-through protection. Contacts are tinned copper for corrosion resistance and maximum current flow; brazed seam ensures strength. Highest shrink ratio (shrinks to 1/3 original size); shrinks at 257°F (125°C). Operating temperature range -40°C to 110°C. UL listed and CSA recognized. Pack quantity: 3. Ideal for marine and general electrical wiring applications.
- UL listed and CSA recognized
- Tinned for corrosion resistance, Pure copper for maximum current flow
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Heat activated adhesive built into the sleeve of the heat shrink tubing
- 3 Pack of 12-10 AWG Heat Shrink Butt Connectors
Specifications:
| Materials & Construction |
| Color | 12-10 AWG |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Material | Nylon, Copper |
| Product Details |
| Connector Type | Butt Splice |
| Gauge | 12-10 AWG |
| Heat Shrink | Yes |
| Included Components | Great Product |
| Number of Items | 1 |
| Package Qty | 3 |
| Style | Heat Shrink |
| Sizing & Dimensions |
| Height | 4 inches |
| Length | 0.5 inches |
| Product Dimensions | 0.5 x 1.6 x 4 inches |
| Product Weight | 0.03 pounds |
| Size | 3 Pack |
| Weight | 0.48 ounces |
| Width | 1.6 inches |
| Technical Specifications |
| Specification Met | UL |
| Temperature Rating | 257 degree fahrenheit |
| Terminal | Butt Terminal |
| Warranty | Warranty |
