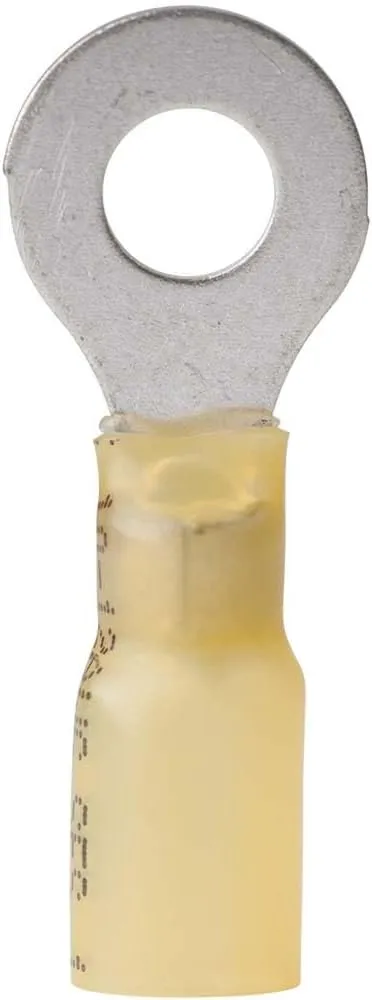

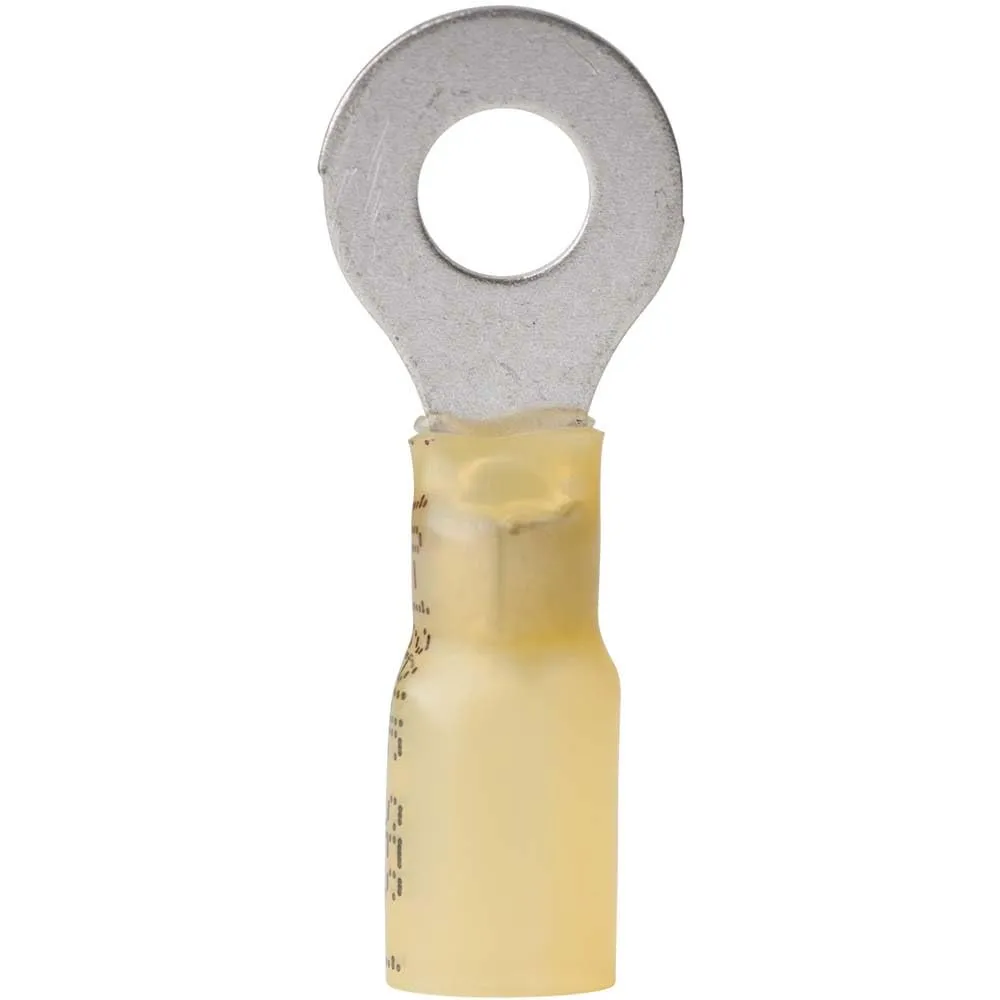

Ancor 312425 Marine Grade Electrical Nylon Insulated Adhesive Lined Heat Shrink Ring Terminals (12 to 10-Gauge
Customize
12-10 Gauge - 1/4" Heat Shrink Ring Terminal - 25-Pack. Gauge Size: 12-10. Screw Size: 1/4". Quantity: 25. Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized. Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257°F/125°C. Operating temperature range -40°C to 110°C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Features (marketing/SEO): UL listed and CSA recognized. Tinned for corrosion resistance. Pure copper for maximum current flow. Shrinks to form a water tight seal and the ultimate vibration and strain relief. Heat activated adhesive built into the sleeve of the heat shrink tubing. 1/4" Screw, 12-10 AWG, 25 Pack of Heat Shrink Ring Terminals.
- UL listed and CSA recognized
- Tinned for corrosion resistance, Pure copper for maximum current flow
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Heat activated adhesive built into the sleeve of the heat shrink tubing
- 1/4" Screw, 12-10 AWG, 25 Pack of Heat Shrink Ring Terminals
Specifications:
| Materials & Construction | |
| Color | 12-10 AWG |
| Contact Material | Copper |
| Insulation Material | Polyolefin |
| Material | Nylon, Copper |
| Product Details | |
| Connector Type | Ring |
| Gauge | 12-10 Awg |
| Heat Shrink | Yes |
| Included Components | Does not apply |
| Package Qty | 25 |
| Post Size | 1/4" |
| Specification Met | UL |
| Style | 1/4" Screw |
| Type | Ring Terminals |
| Sizing & Dimensions | |
| Height | 0.88 inches |
| Length | 4.38 inches |
| Product Dimensions | 4.38 x 2.69 x 0.88 inches |
| Size | 25 Pack |
| Weight | 2.47 ounces |
| Width | 2.69 inches |
| Technical Specifications | |
| Specification Met | UL |
| Temperature Rating | 25 degree celsius |
| Warranty | As labeled |
