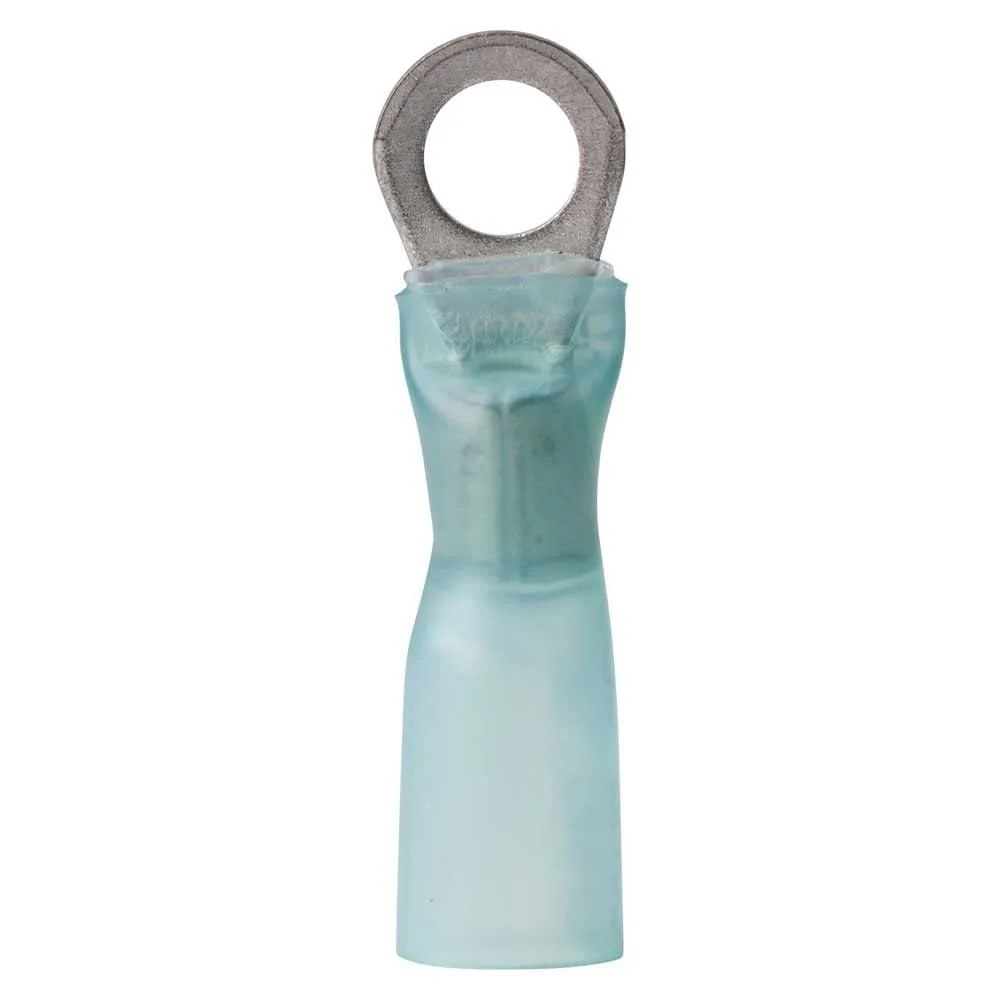

Ancor 311225 Marine Grade Electrical Nylon Insulated Adhesive Lined Heat Shrink Ring Terminals (16 to 14-Gauge, Size 8 Screw
Customize
16-14 Gauge - #8 Heat Shrink Ring Terminal - 25-Pack. Cross-linked polyolefin heat-shrink tubing provides higher strength than PVC and will not burn like PVC. Heat-activated adhesive lining forms an impervious seal to salt water, oil, acids and sunlight while providing strain relief. Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized. Highest shrink ratio — shrinks to 1/3 original size at 257°F (125°C). Operating temperature range -40°C to 110°C. ANCOR heat shrink connectors include adhesive built into the sleeve to form a water-tight seal and provide vibration and strain relief. Contacts are tinned for corrosion resistance; pure copper construction for maximum current flow; brazed seam for strength. Wire Range: 16-14 AWG. Screw/Post Size: #8. Quantity: 25. Package Qty: 25. Heat Shrink: Yes. Type: Ring Terminals. Post Size: #8. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- #8 Screw , 16-14 AWG, 25 Pack of Heat Shrink Ring Terminals
- Heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance, Pure copper for maximum current flow
- UL listed and CSA recognized
Specifications:
| Materials & Construction | |
| Color | 16-14 AWG |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Material | Nylon |
| Terminal | Ring Terminal |
| Product Details | |
| Connector Type | Ring |
| Gauge | 14.0 |
| Included Components | Great Product |
| Maximum Voltage | 24 Volts (DC) |
| Model Name | 311225 |
| Model Number | 311225 |
| Number of Items | 1 |
| Size | 25 Pack |
| Specification Met | UL |
| Style | #8 Screw |
| Temperature Rating | 25 degree celsius |
| Type | Ring Terminals |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 1 inches |
| Product Dimensions | 1"L x 4"W x 4"H |
| Size | 25 Pack |
| Weight | 3.20 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Maximum Voltage | 24 Volts (DC) |
| Specification Met | UL |
| Temperature Rating | 25 degree celsius |
| Warranty | Warranty |
