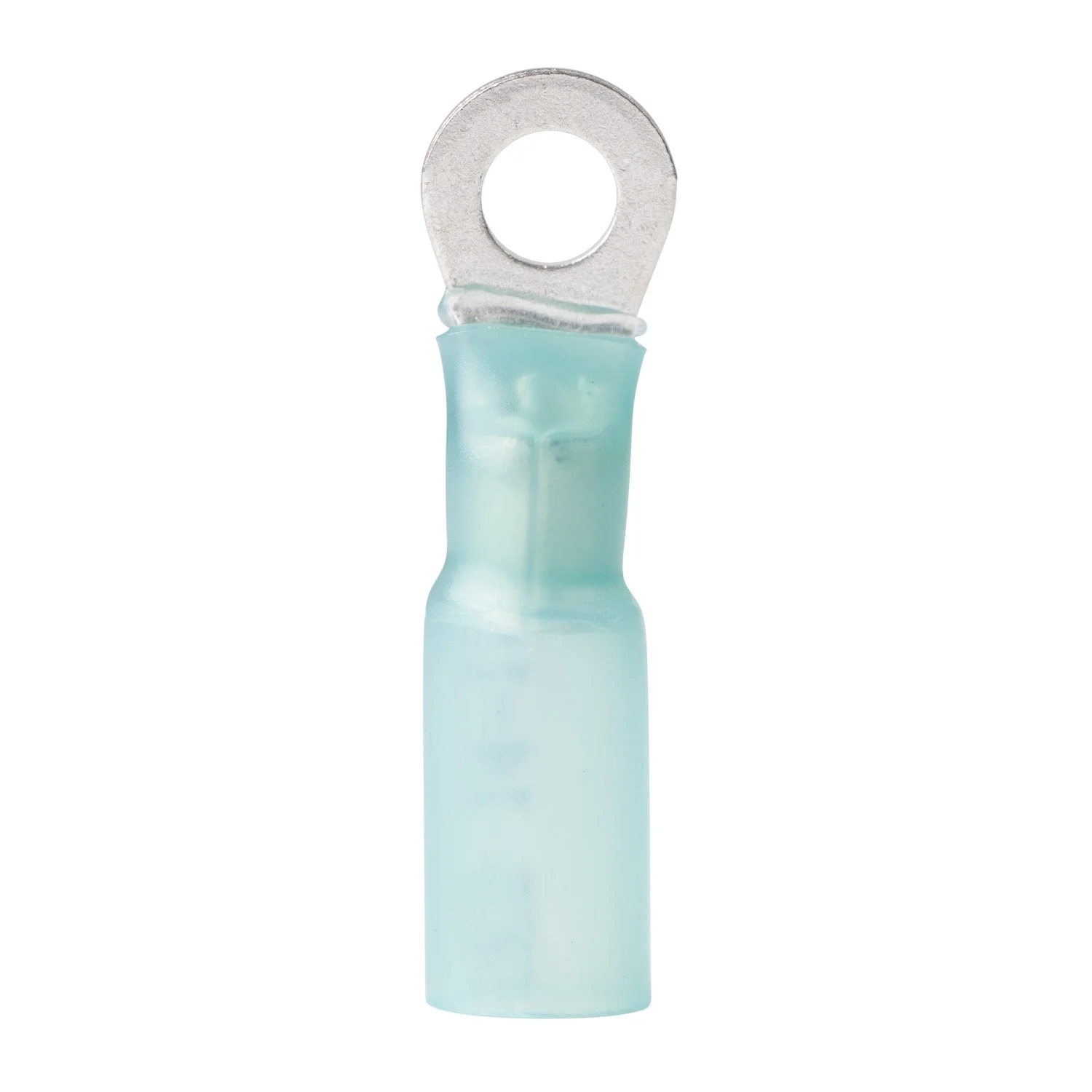

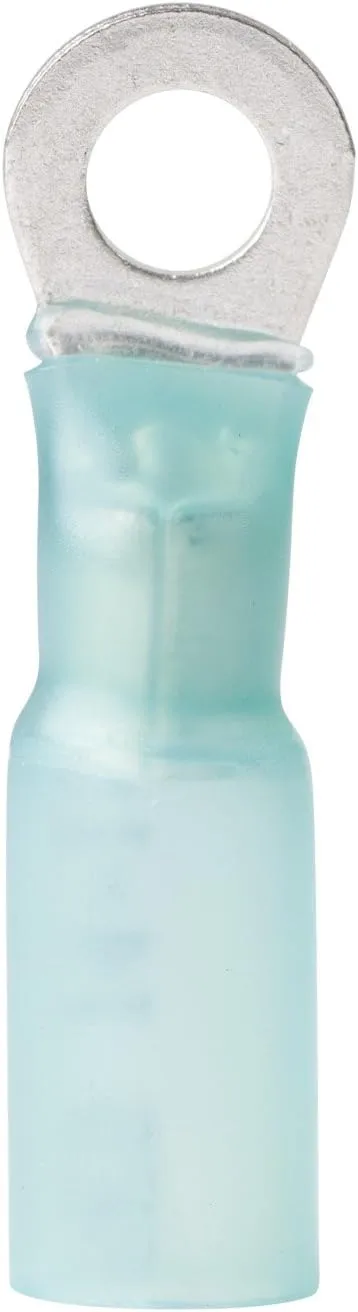

Ancor 311499 Marine Grade Electrical Nylon Insulated Adhesive Lined Heat Shrink Ring Terminals (16 to 14-Gauge
ANCOR marine-grade heat shrink ring terminals (16-14 AWG) with nylon insulation and adhesive-lined polyolefin tubing; tinned copper for corrosion resistance. 1/4" screw size, 100-pack.
$59.99
Customize
Available Quantity
4 GSA Item
No GSA Compliant
Yes Product Details
Ancor 311499 marine-grade heat shrink ring terminals (16-14 AWG, 1/4" screw) — 100 pack. Cross-linked polyolefin heat shrink tubing with heat-activated adhesive lining forms a watertight seal for marine and harsh environments. Nylon insulator provides superior resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. Tinned copper contacts provide corrosion resistance and excellent conductivity; brazed seam for strength. Shrinks at 257°F/125°C to approximately 1/3 of original size. UL listed and CSA recognized. Ideal for marine, automotive, and general electrical wiring requiring reliable corrosion-resistant connections. Package includes 100 heat shrink ring terminals.
- UL listed and CSA recognized
- Tinned for corrosion resistance, Pure copper for maximum current flow
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Heat activated adhesive built into the sleeve of the heat shrink tubing
- 1/4" Screw, 16-14 AWG, 100 Pack of Heat Shrink Ring Terminals
Specifications:
| Materials & Construction | |
| Color | 16-14 AWG |
| Contact Material | Copper |
| Material | Nylon |
| Outer Material | Polyolefin |
| Product Details | |
| Connector Type | Ring |
| Contact Material | Copper |
| Gauge | 16-14 Awg |
| Heat Shrink | Yes |
| Included Components | Does not apply |
| Insulation Material | Polyolefin |
| Number of Items | 1 |
| Package Qty | 100 |
| Part Number | 311499 |
| Post Size | 1/4" |
| Size | 100 Pack |
| Specification Met | UL |
| Sport Type | Boating |
| Style | 1/4" Screw |
| Temperature Rating | 257 degree fahrenheit |
| Terminal | Ring Terminal |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Item Dimensions Lx Wx H | 4.38 x 2.69 x 1.25 inches |
| Item Package Dimensions L x W x H | 3.7 x 2.5 x 1.8 inches |
| Length | 4.38 inches |
| Weight | 1.6 ounces |
| Width | 2.69 inches |
| Technical Specifications | |
| Specification Met | UL |
| Temperature Rating | 257 degree fahrenheit |
