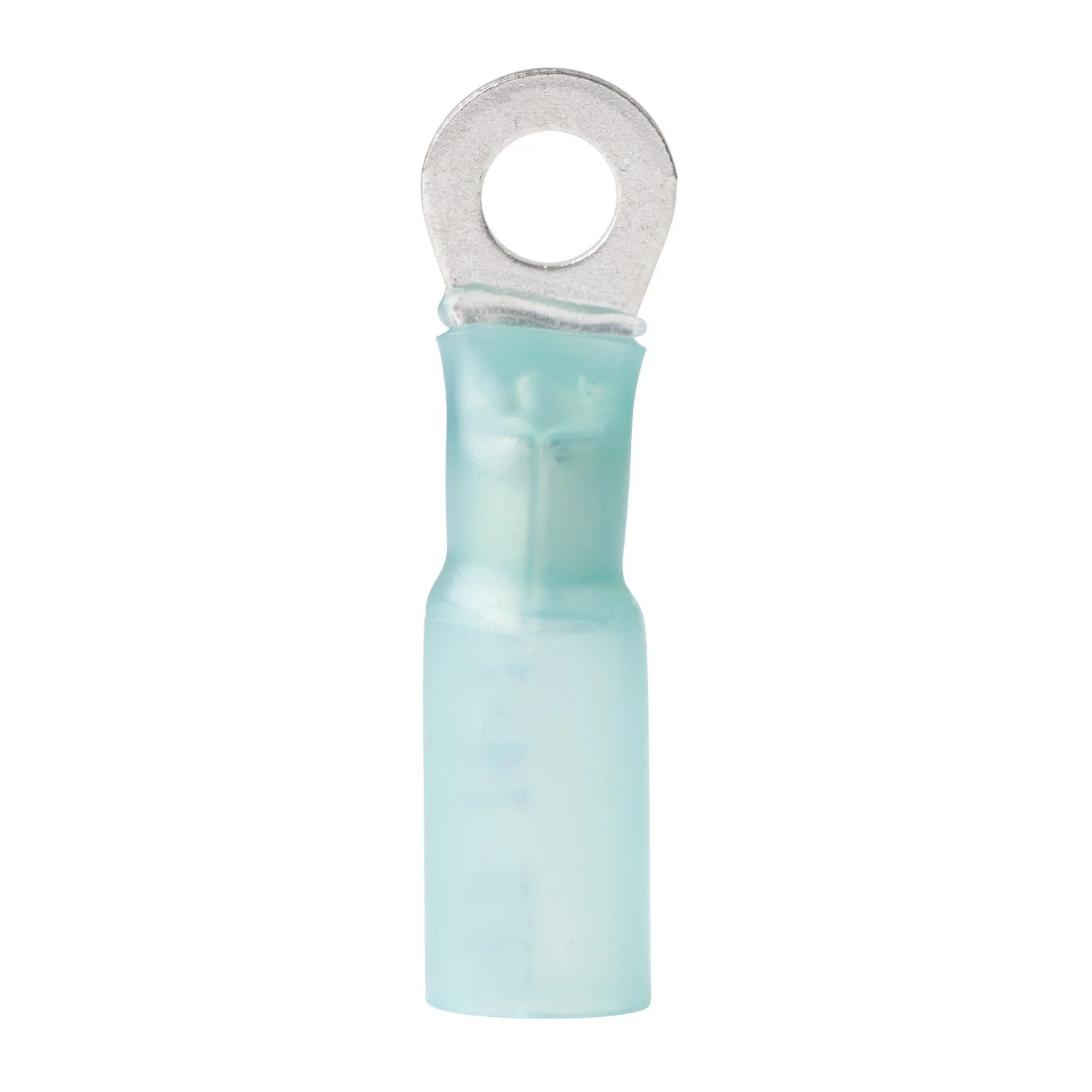

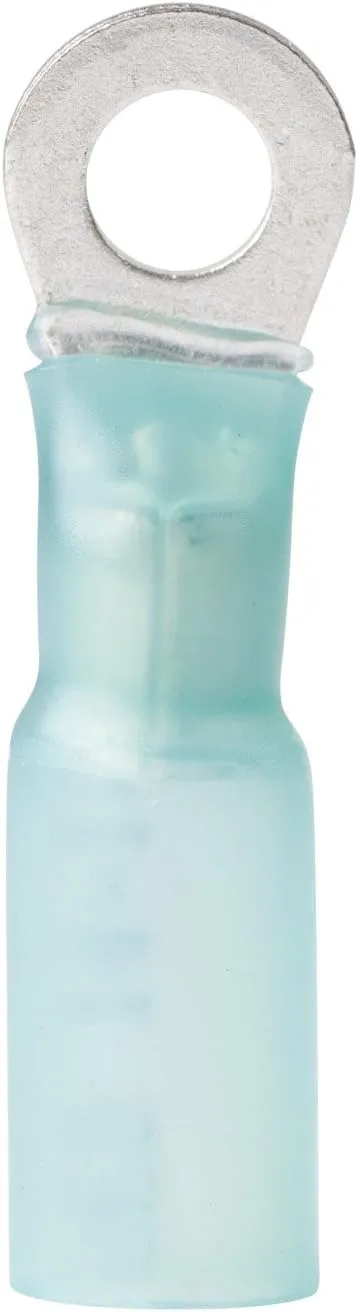

Ancor 311503 Marine Grade Electrical Nylon Insulated Adhesive Lined Heat Shrink Ring Terminals (16 to 14-Gauge
Customize
16-14 Gauge - 5/16" Heat Shrink Ring Terminal - 3-Pack Wire Range: 16-14 Screw Size: 5/16" Quantity: 3 Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257° F/125° C Operating temperature range 40° C to 110° C ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Gauge: 16-14 AWG , Package Qty: 3 , Heat Shrink: Yes , Type: Ring Terminals , Post Size: 5/16" Great Product
- UL listed and CSA recognized
- Tinned for corrosion resistance, Pure copper for maximum current flow
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Heat activated adhesive built into the sleeve of the heat shrink tubing
- 5/16" Screw, 16-14 AWG, 3 Pack of Heat Shrink Ring Terminals
Specifications:
| Materials & Construction | |
| Color | 16-14 AWG |
| Material | Nylon, Copper, Plastic |
| Outer Material | Nylon |
| Product Details | |
| Connector Type | Ring |
| Contact Material | Copper |
| Country of Origin | China |
| Gauge | 16-14 AWG |
| Global Trade Identification Number | 00091887313147 |
| Insulation Material | Nylon |
| Manufacturer Part No | 311503 |
| Model | 311503 |
| Specification Met | UL |
| Stud Size | 5/16 |
| Temperature Rating | 257 degree fahrenheit |
| Terminal | Ring Terminal |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 1 inches |
| Product Dimensions | 1 x 1 x 1 inches |
| Size | 16-14 AWG |
| Weight | 0.32 ounces |
| Width | 1 inches |
