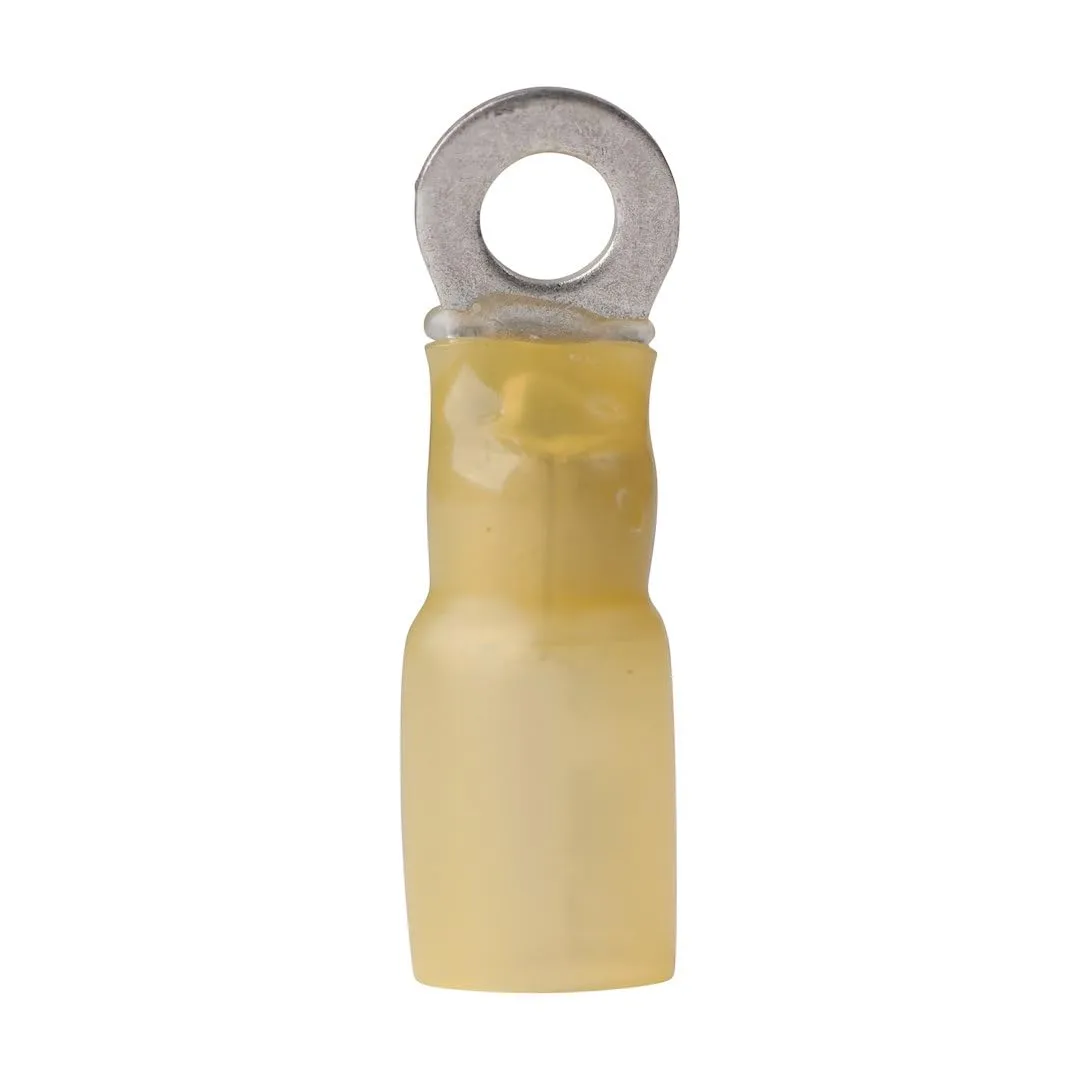

Ancor 312203 Marine Grade Electrical Nylon Insulated Adhesive Lined Heat Shrink Ring Terminals (12 to 10-Gauge, Size 8 Screw
Customize
12-10 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack Gauge Size: 12-10 Screw Size: #8 Quantity: 3 Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire Range: 12-10 mm: 3-5 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Heat Shrink: Yes , Type: Ring Terminals , Post Size: #8 , Package Qty: 3 , Gauge: 12-10 AWG
- UL listed and CSA recognized
- Tinned for corrosion resistance, Pure copper for maximum current flow
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Heat activated adhesive built into the sleeve of the heat shrink tubing
- #8 Screw , 12-10 AWG, 3 Pack of Heat Shrink Ring Terminals
Specifications:
| Materials & Construction | |
| Color | 12-10 AWG |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Material | Plastic |
| Outer Material | Nylon |
| Product Details | |
| Connector Type | Ring |
| Contact Material | Copper |
| Gauge | 12-10 Awg |
| Heat Shrink | Yes |
| Included Components | Great Product |
| Insulation Material | Nylon |
| Model Name | 312203 |
| Package Qty | 3 |
| Post Size | #8 |
| Size | 3 Pack |
| Specification Met | UL |
| Sport Type | Boating |
| Style | #8 Screw |
| Temperature Rating | 257 degree fahrenheit |
| Terminal | Ring Terminal |
| Type | Ring Terminals |
| Unit Count | 1.0 Count |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 1 inches |
| Product Dimensions | 1"L x 1"W x 1"H |
| Size | 3 Pack |
| Weight | 0.48 ounces |
| Width | 1 inches |
| Technical Specifications | |
| Specification Met | UL |
| Temperature Rating | 257 degree fahrenheit |
