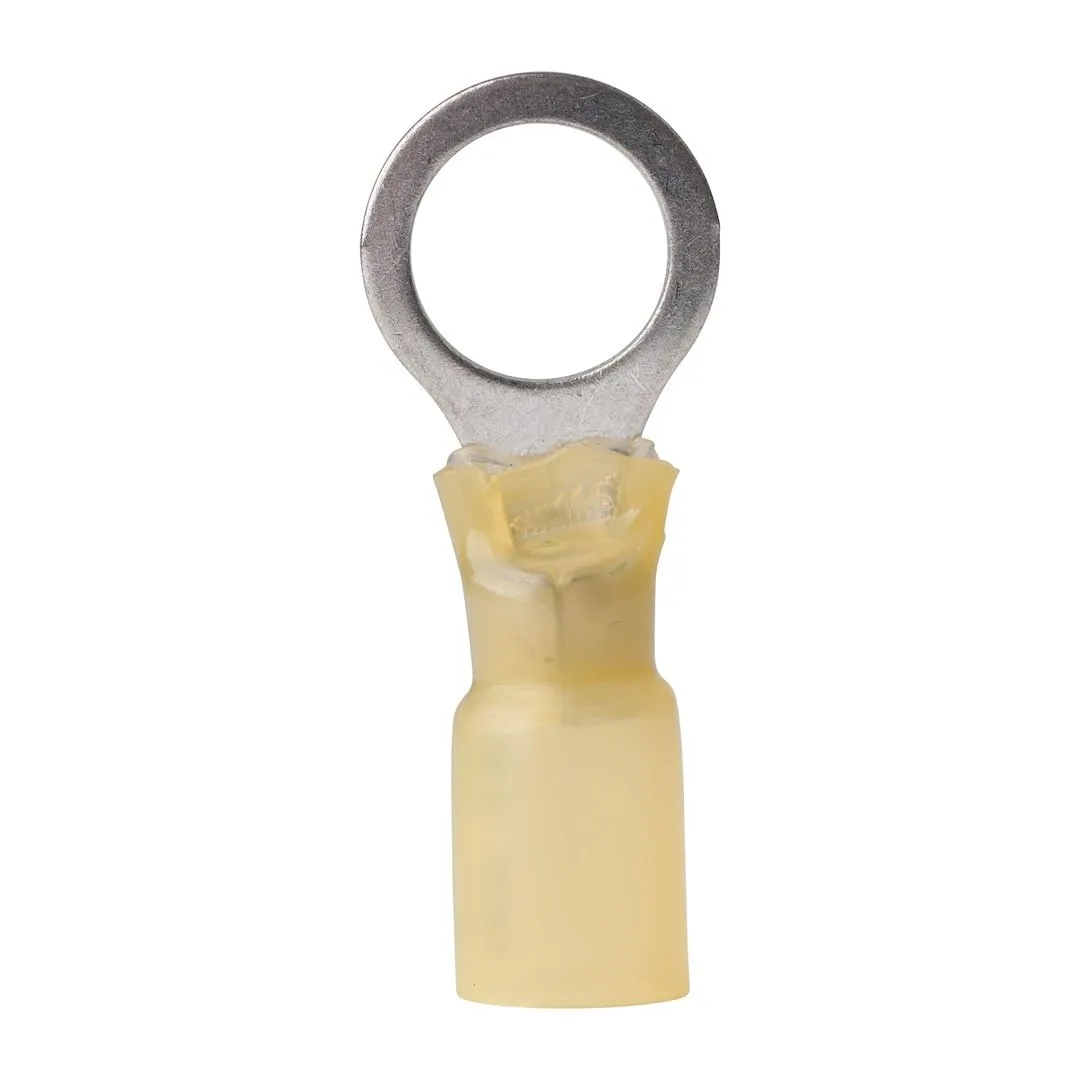

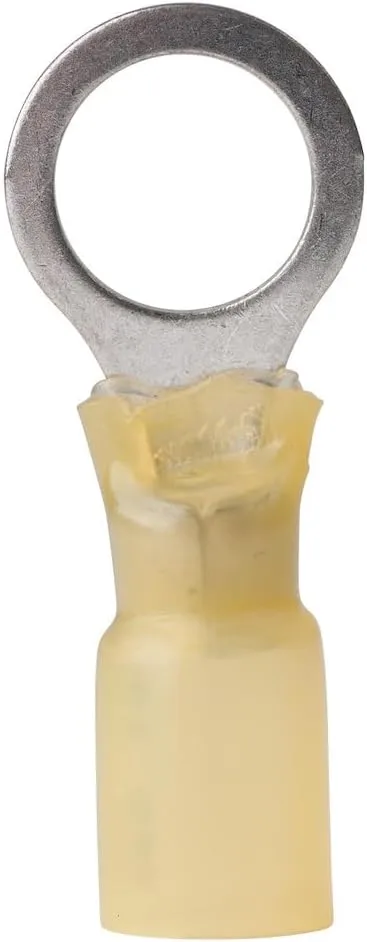

Ancor 312603 Marine Grade Electrical Nylon Insulated Adhesive Lined Heat Shrink Ring Terminals (12 to 10-Gauge
Customize
12-10 Gauge - 3/8" Heat Shrink Ring Terminal - 3-Pack. Cross-linked polyolefin tubing (stronger than PVC) with heat-activated adhesive lining for a watertight seal resistant to salt water, oil, acids and sunlight. Nylon insulator for marine-grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized. Tinned copper for corrosion resistance and maximum current flow. Brazed seam for maximum strength. Shrinks to 1/3 original size at ~257°F/125°C. Refrigeration/temperature operating range and rugged construction provide strain relief and long service life. Package Qty: 3. Gauge Size: 12-10 AWG. Post/Stud Size: 3/8". Includes adhesive-lined heat shrink sleeve for corrosion protection. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- UL listed and CSA recognized
- Tinned for corrosion resistance, Pure copper for maximum current flow
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Heat activated adhesive built into the sleeve of the heat shrink tubing
- 3/8" Screw, 12-10 AWG, 3 Pack of Heat Shrink Ring Terminals
Specifications:
| Materials & Construction | |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Material | Plastic |
| Product Details | |
| Connector Type | Ring |
| Gauge | 12-10 Awg |
| Included Components | Great Product |
| Specification Met | UL |
| Stud Size | 3/8" |
| Temperature Rating | 257 degree fahrenheit |
| Terminal Type | Ring Terminal |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 1 inches |
| Product Dimensions | 1 x 1 x 1 inches |
| Size | 3 Pack |
| Weight | 1.6 ounces |
| Width | 1 inches |
| Technical Specifications | |
| Specification Met | UL |
| Temperature Rating | 257 degree fahrenheit |
