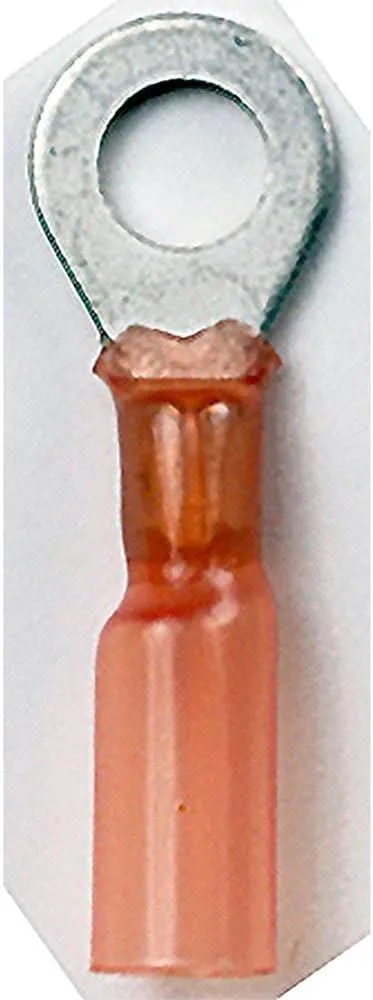

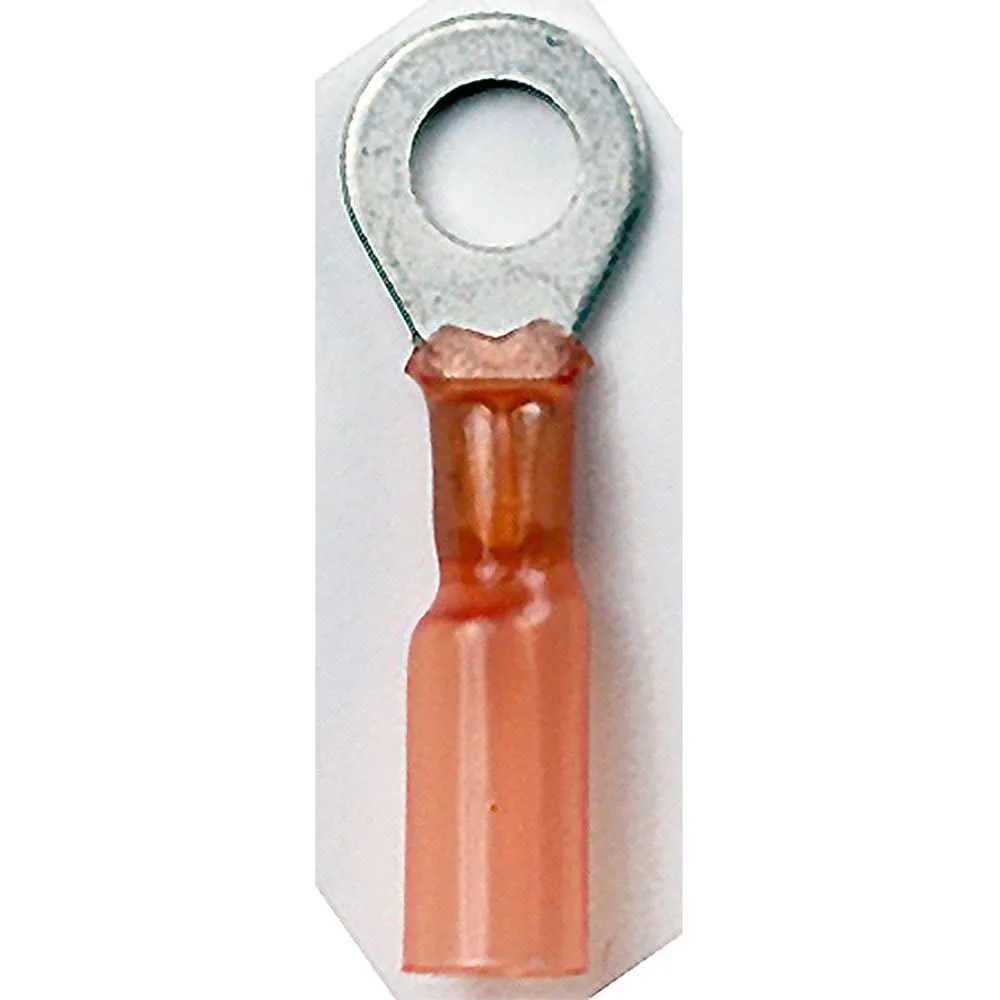

Ancor 310203 Marine Grade Electrical Nylon Insulated Adhesive Lined Heat Shrink Ring Terminals (22 to 18-Gauge, Size 8 Screw
Customize
22-18 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack. Cross-linked polyolefin tubing provides high durability and resists burning versus PVC. Heat-activated adhesive lining forms an impervious seal to salt water, oil, acids and sunlight while providing strain relief. Nylon insulator for marine-grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized. Highest shrink ratio — shrinks to one-third of original size; shrinks at 257 °F (125 °C). Operating temperature range -40 °C to 110 °C. Tinned for corrosion resistance. Pure copper contact for maximum current flow with brazed seam for strength. Wire range 22-18 AWG (0.3-0.8 mm). Package quantity: 3. Ideal for marine and general electrical wiring applications where a sealed, vibration-resistant connection is required.
- UL listed and CSA recognized
- Tinned for corrosion resistance, Pure copper for maximum current flow
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Heat activated adhesive built into the sleeve of the heat shrink tubing
- #8 Screw, 22-18 AWG, 3 Pack of Heat Shrink Ring Terminals
Specifications:
| Materials & Construction | |
| Color | 22-18 AWG |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Material | Plastic |
| Product Details | |
| Connector Type | Ring |
| Gauge | 18.0 |
| Included Components | Great Product |
| Model Name | 310203 |
| Specification Met | UL |
| Style | #8 Screw |
| Temperature Rating | 257 degree fahrenheit |
| Terminal | Ring Terminal |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 1 inches |
| Product Dimensions | 1"L x 1"W x 1"H |
| Size | 3 Pack |
| Weight | 1.6 ounces |
| Width | 1 inches |
| Technical Specifications | |
| Gauge (Wire Range) | 22-18 AWG |
| Stud Size | 8 |
