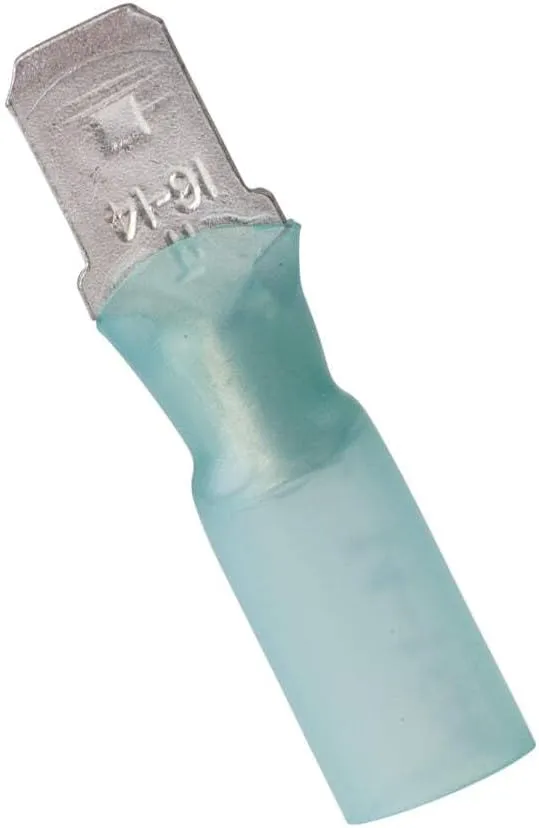

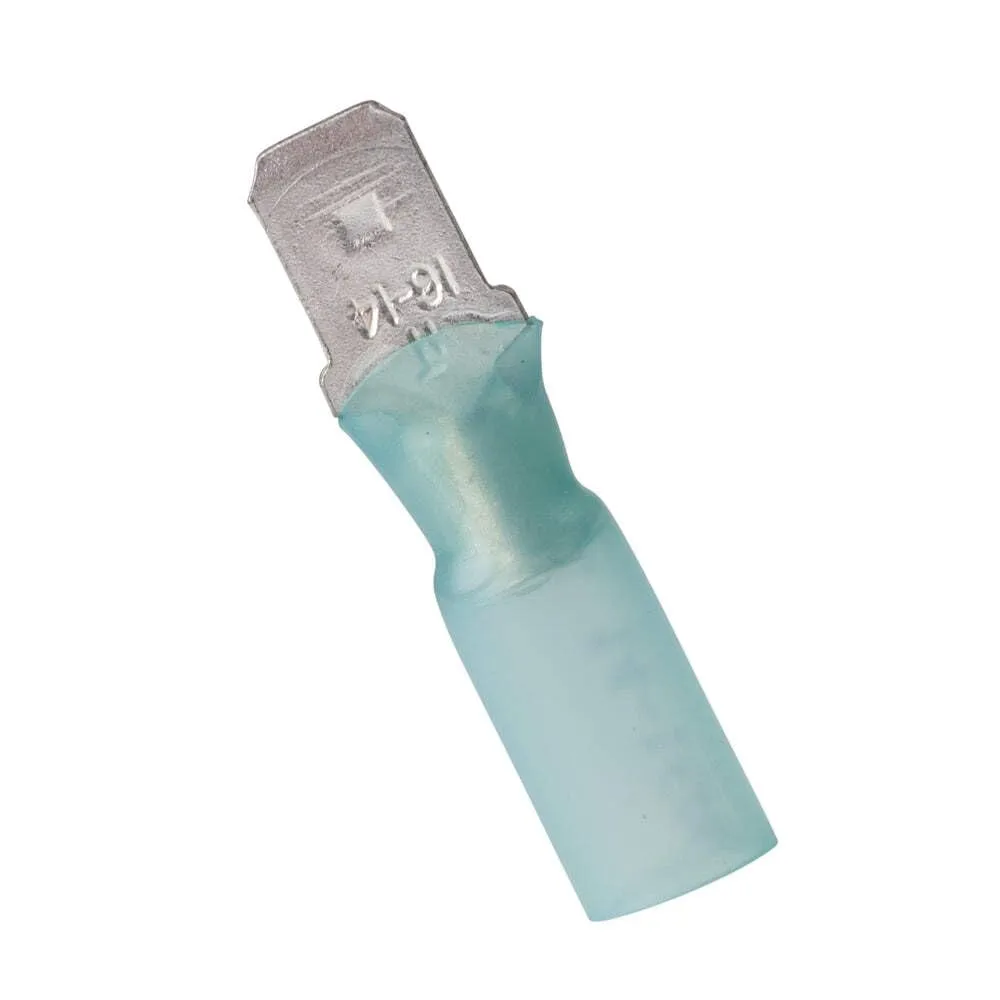

Ancor 317999 Marine Grade Electrical Nylon Insulated Adhesive Lined Heat Shrink Disconnects (Male16 to 14-Gauge, 100-Pack)
Customize
Ancor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire Range: 16-14/.250. Size: 3.5mm/6.4mm. Gender: Male. Qty/Pkg: 100. Gauge: 16-14 AWG. Type: Disconnects. Heat Shrink: Yes. Features include UL 310 and CSA recognition, nylon insulation, adhesive-lined heat shrink tubing and marine-grade construction. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- UL 310 and CSA recognized
- Tinned for corrosion resistance, Pure copper for maximum current flow
- Shrinks to form a water tight seal and the ultimate vibration and strain relief
- Heat activated adhesive built into the sleeve of the heat shrink tubing
- 100 Pack of 16-14 AWG Male Heat Shrink Disconnects
Specifications:
| Materials & Construction | |
| Color | 16-14 AWG |
| Material | Nylon, Copper, Plastic |
| Outer Material | Plastic |
| Product Details | |
| Connector Type | Heat Shrink |
| Contact Material | Copper |
| Included Components | Great Product |
| Insulation Material | Nylon |
| Number of Items | 1 |
| Size | 100 Pack |
| Specification Met | UL |
| Style | Heatshrink - Male |
| Temperature Rating | 40 to 110 C |
| Terminal | Butt Terminal |
| Sizing & Dimensions | |
| Height | 2.69 inches |
| Length | 1.25 inches |
| Product Dimensions | 1.25 x 4.38 x 2.69 inches |
| Size | 100 Pack |
| Weight | 4.64 ounces |
| Width | 4.38 inches |
| Technical Specifications | |
| Gauge | 16-14 AWG |
| Heat Shrink | Yes |
| Temperature Rating | 40 to 110 C |
| Type | Disconnects |
| Unit Count | 1.0 Count |
| Warranty | Warranty |
| Wire Range | 16-14/.250 |
