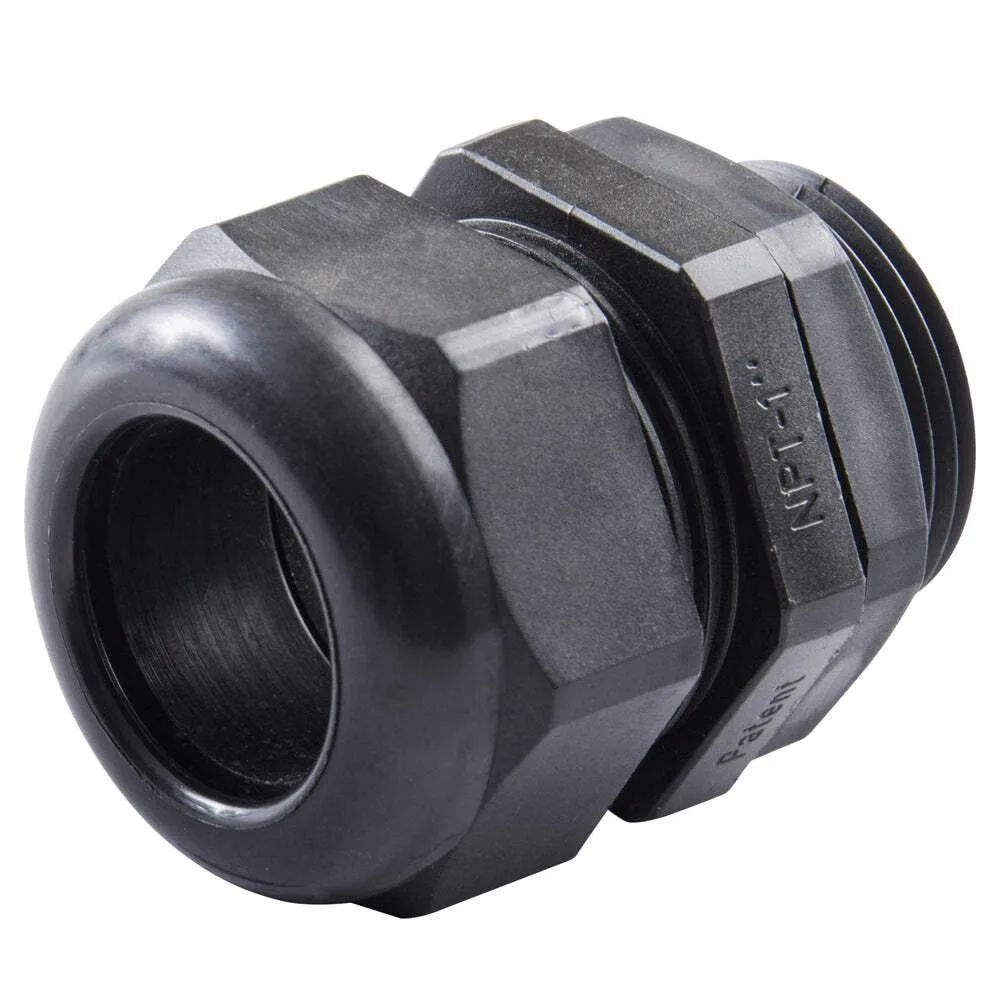

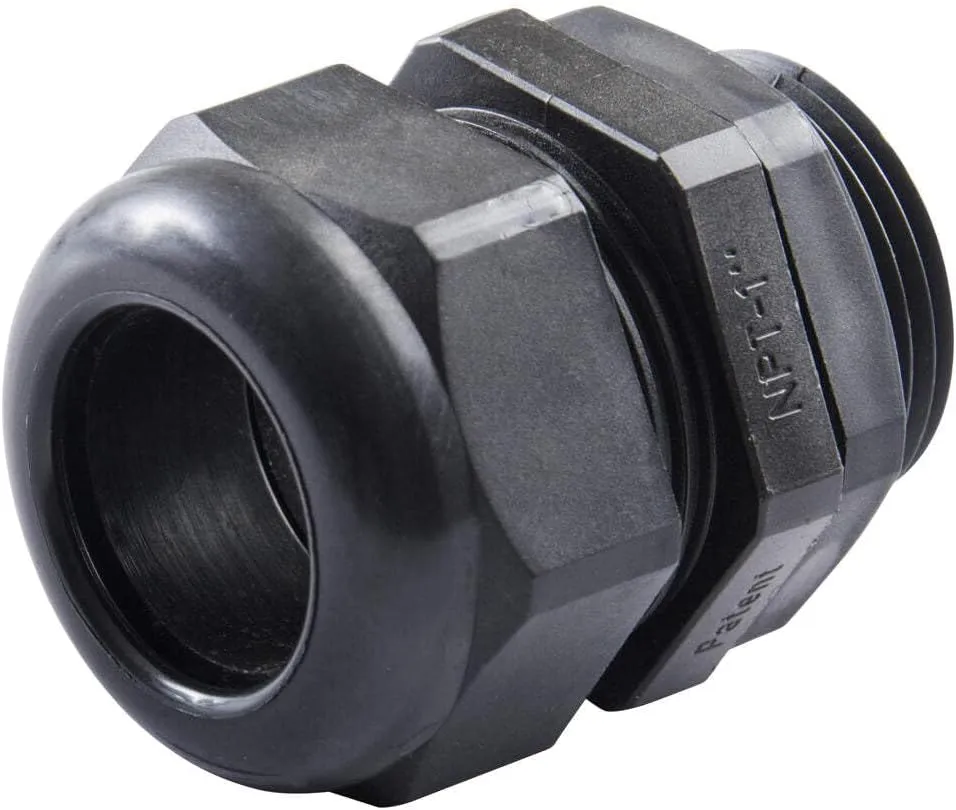

Ancor Marine Grade Electrical Wire Seal - Round Cable, 4/0 AWG, 1" NPT
Customize
Marine Grade Electrical Wire Seal - Round Cable, 4/0 AWG, 1" NPT Liquid Tight Wire Seals provide low cost watertight cable entries into panels and junction boxes. UL and CSA approved to work with round and flat cable. Resistant to saltwater, gasoline, alcohol, ketones and mineral oil. Safe underwater to 300ft. (150 PSIG). Features: Round Cable AWG Range: 4/0+ Min/Max: .71-.98 Clearance Hole: 1.35 NPT Size: 1" WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Wire seals provide low cost cable entries into panels and junction boxes. They are made of Nylon 6/6 flame resistant, self extinguishing Buna-N form seal. Strain relief fittings are resistant to salt water, acids, alkalis, alcohol, oils and are non-corrosive for use in the marine environment. They are good underwater to 300 feet /91.4 m (150 PSIG) provided there is a liquid tight seal between body and housing. Overlapping clamping spines allow for superior pull-out protection and resistance.
- Package Weight: 0.018 Kilograms
- Country Of Origin: China
- Product Type: Fishing Equipment
- Package Dimensions: 4.572 L X 5.334 W X 9.144 H (Centimeters)
Specifications:
| Materials & Construction | |
| Color | marine |
| Material | Plastic |
| Product Details | |
| Included Components | Wire Management |
| Model Name | 765006 |
| Number of Items | 1 |
| Part Number | 765006 |
| Size | STANDARD |
| Type | Cable Gland |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Item Dimensions Lx Wx H | 5 x 2 x 3 inches |
| Item Package Dimensions L x W x H | 3.6 x 2.1 x 1.8 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 2 x 3 inches |
| Weight | 0.71 ounces |
| Width | 2 inches |
| Technical Specifications | |
| Global Trade Identification Number | 00091887803990 |
| No. of wires | 1 |
| Number of Cable Strands | 150 |
| UPC | 091887803990 |
| Voltage | 94 Volts |
