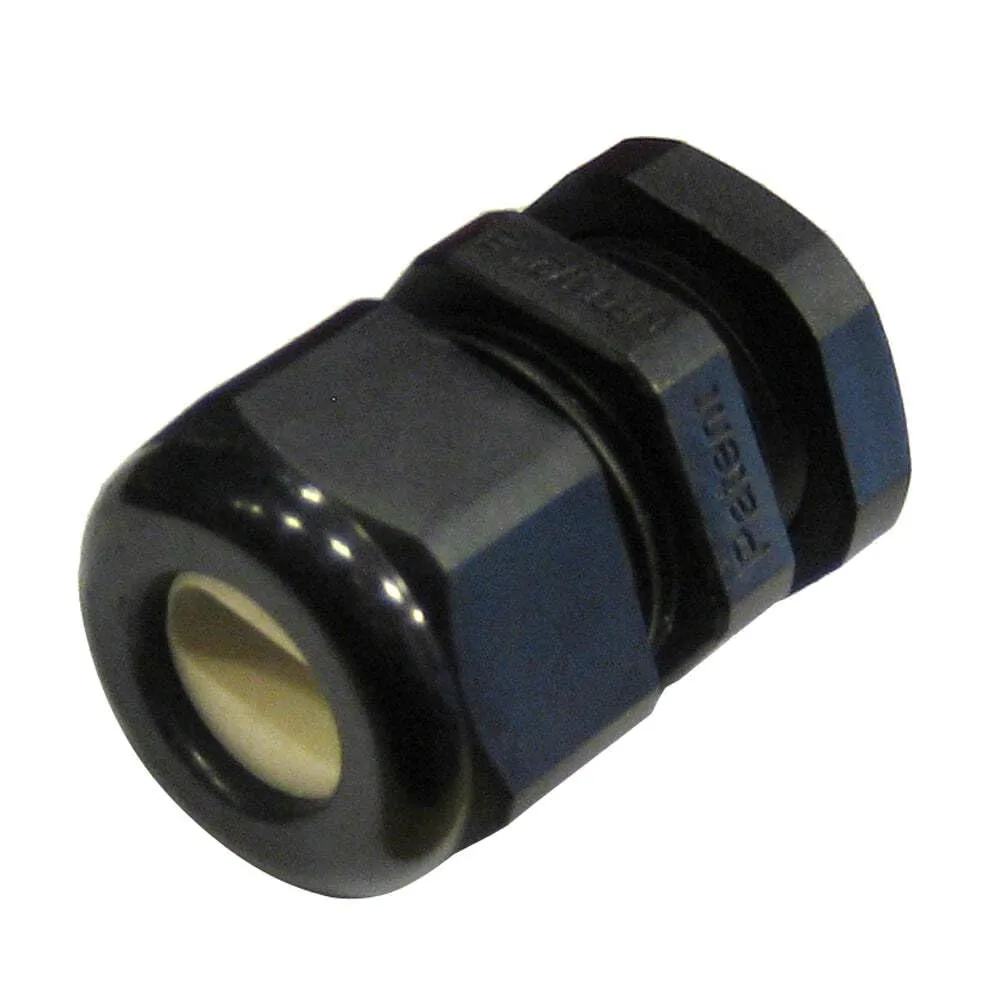

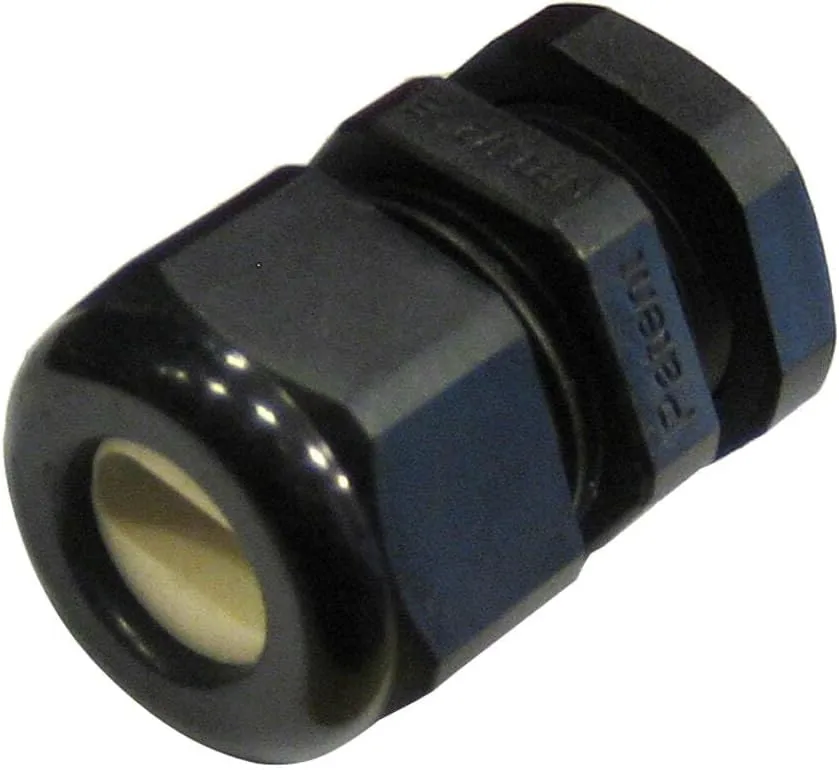

Ancor 765012 Wire Seal, Flat Cable, 14/3-12/3 & 12/2-10/2 AWG, 3/4" NPT
ANCOR 765012 marine-grade liquid-tight wire seal for flat cable. Fits 14/3–12/3 & 12/2–10/2 AWG, 3/4" NPT. Black plastic, UL/CSA approved, saltwater- and gasoline-resistant; safe underwater to 300 ft.
$21.99
Customize
Available Quantity
6 GSA Item
No GSA Compliant
No Product Details
Marine Grade Electrical Wire Seal - Flat Cable, 14/3 to 12/3 AWG, 3/4" NPT Liquid Tight Wire Seals provide low cost watertight cable entries into panels and junction boxes. UL and CSA approved to work with round cable. Resistant to saltwater, gasoline, alcohol, ketones, and mineral oil. Safe underwater to 300ft. (150 PSIG). Features: Flat Cable AWG Range: 14/3 to 12/3 Min/Max: .34-.60 Clearance Hole: 1.05 NPT Size: 3/4" WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
- Product Type: ELECTRONIC WIRE
- Package height: 10.0 cm
- Package width: 6.8 cm
- Package length: 2.9 cm
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Connector Type | Twist |
| Included Components | Wire Management |
| Specification Met | CSA, UL |
| Stud Size | 3/4 inch |
| Style | Flat Cable |
| Type | Cable Gland |
| Unit Count | 1.0 Count |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Item Dimensions Lx Wx H | 4 x 3 x 2 inches |
| Item Package Dimensions L x W x H | 3.94 x 2.68 x 1.14 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 3 x 2 inches |
| Size | 3/8-Inch Diameter |
| Weight | 1.06 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Global Trade Identification Number | 00091887807578 |
| Included Components | Wire Management |
| Model Name | 765012 |
| Number of Items | 1 |
| Size (Descriptive) | 3/8-Inch Diameter |
| Specification Met | CSA, UL |
| Temperature Rating | 257 degree fahrenheit |
| Unit Count | 1.0 Count |
| UPC | 091887807578 |
