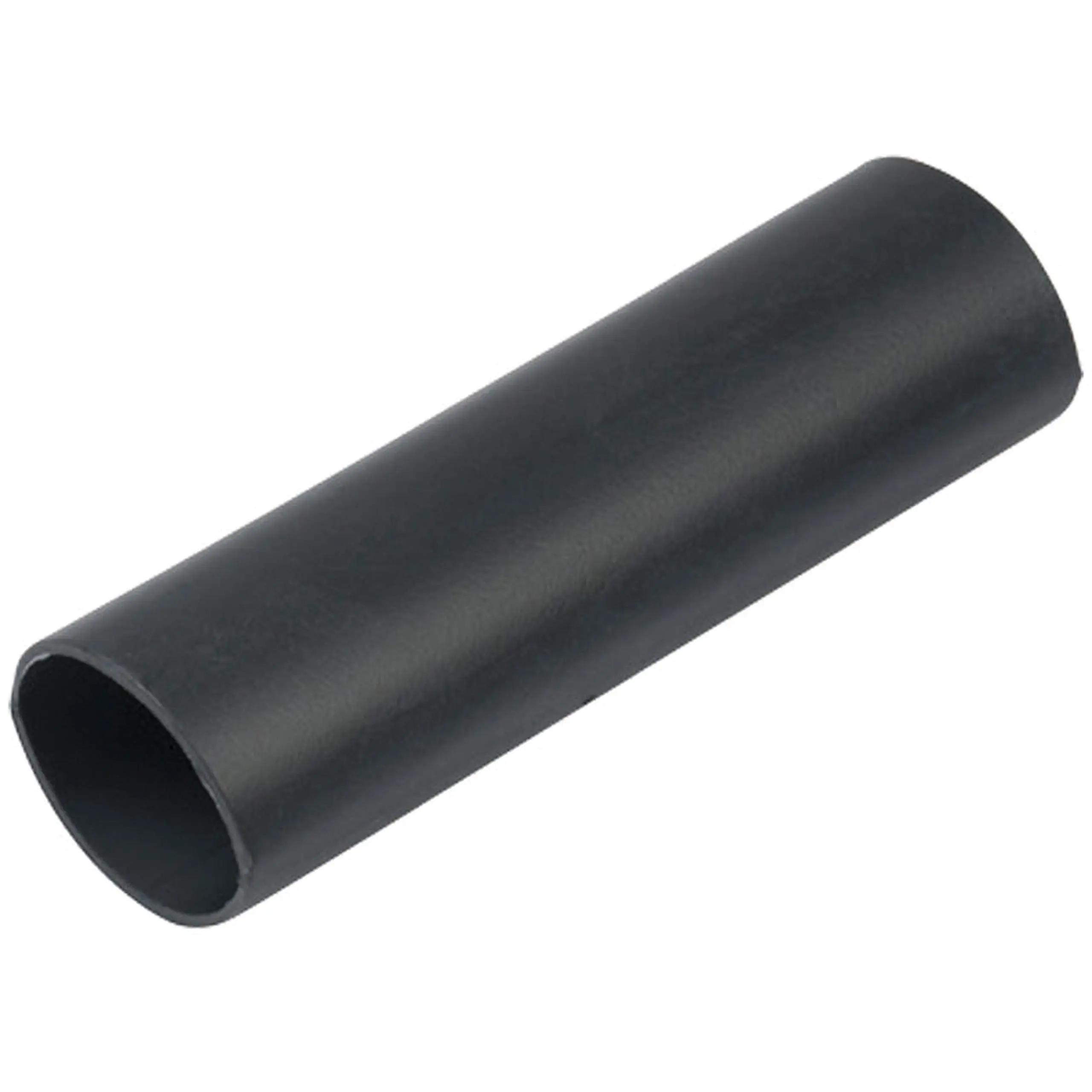

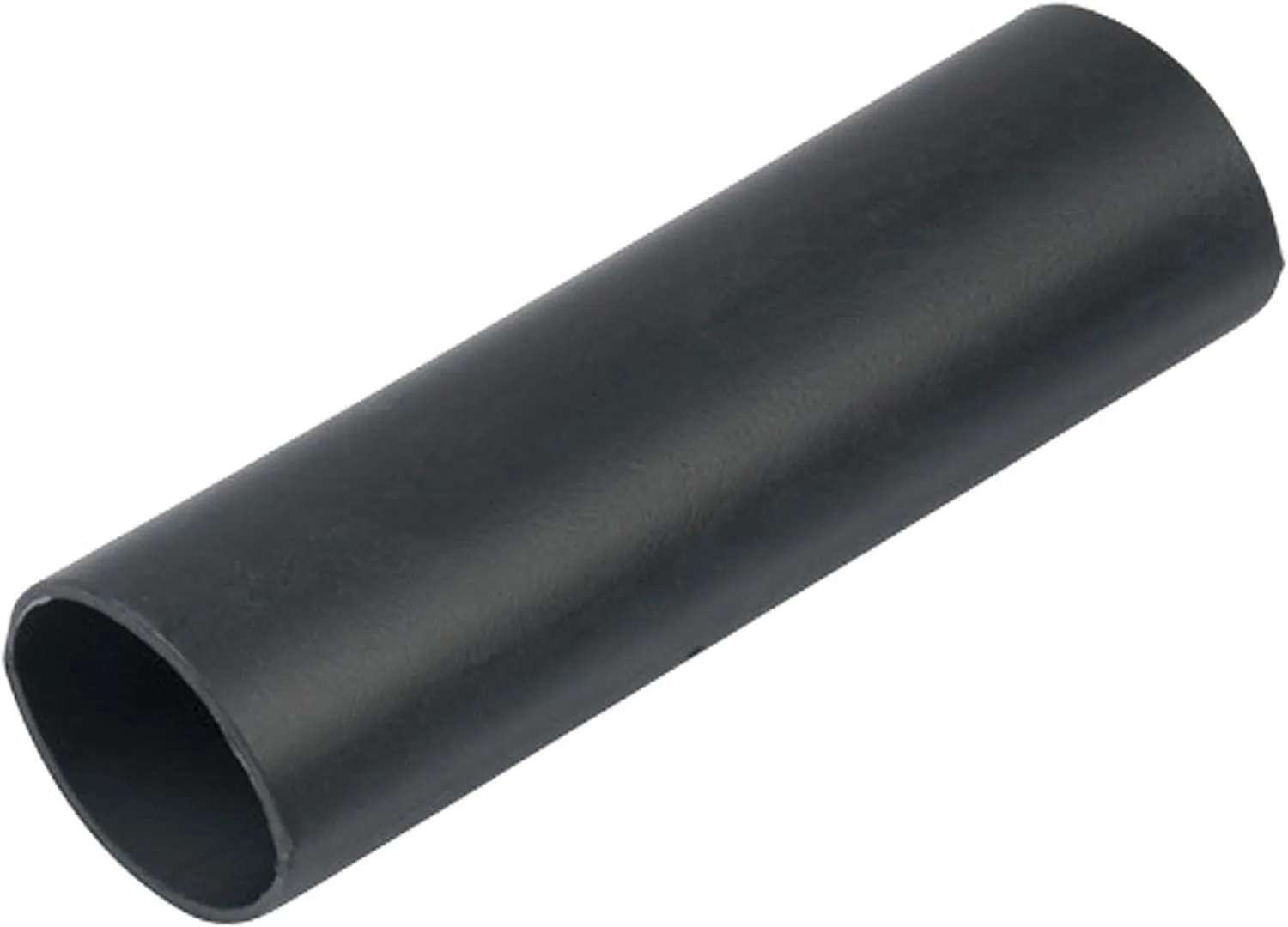

Heavy Wall Heat Shrink Tubing - 3/4" x 48" - 1-Pack - Black. Package of 1 black 48" (122 cm) long section with a 3/4" (19 mm) outside diameter that shrinks to approximately 1/4" (6.4 mm). Wire range: 8-2/0 AWG. Cross-linked polyolefin construction (stronger than PVC and will not burn like PVC). Adhesive-lined for an impervious seal to salt water, oil, acids, and sunlight while providing strain relief. 3:1 shrink ratio. Shrinks at 257°F (125°C). Operating temperature range -40°C to 110°C. UL 224. Manufacturer part/model number: 326148. Proposition 65 warning applies. Suitable for marine and battery cable applications.
- BCT Diameter: 3/4" (19 mm), Length: 48" (122 cm)
- BCT Color: Black
- 3: 1 ratio; UL 224
- Shrinks at 257°F (125°C)
- Heavy-wall construction
Specifications:
| Materials & Construction |
| Color | Black |
| Material | Plastic |
| Nominal Wall Thickness | greater than standard inches |
| Outside Diameter | 0.75 Inches |
| Product Details |
| Manufacturer Part No | 326148 |
| Model | 326148 |
| Specific Uses For Product | SportingGoods |
| Type | Heat Shrink |
| Sizing & Dimensions |
| Length | 48 inches |
| Product Dimensions | 49"L x 1"W |
| Product Weight | 0.2 Pounds |
| Size | 3/4" x 48" |
| Weight | 3.2 ounces |
| Width | 0.75 inches |
| Technical Specifications |
| Operating Temperature Range | -40°C to 110°C |
| Shrink Ratio | 3:1 |
| Shrink Temperature | 257°F (125°C) |
| Standards | UL 224 |
