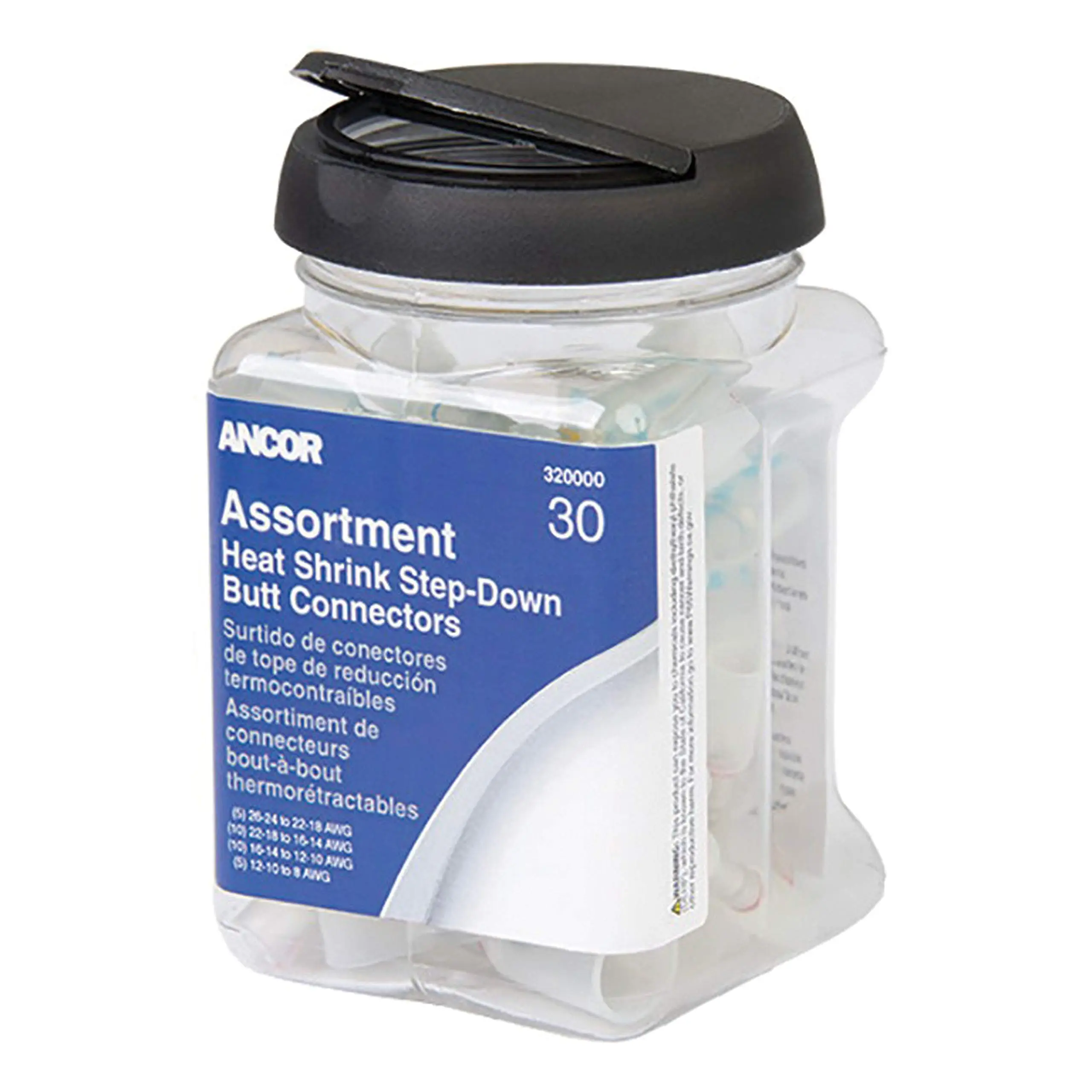

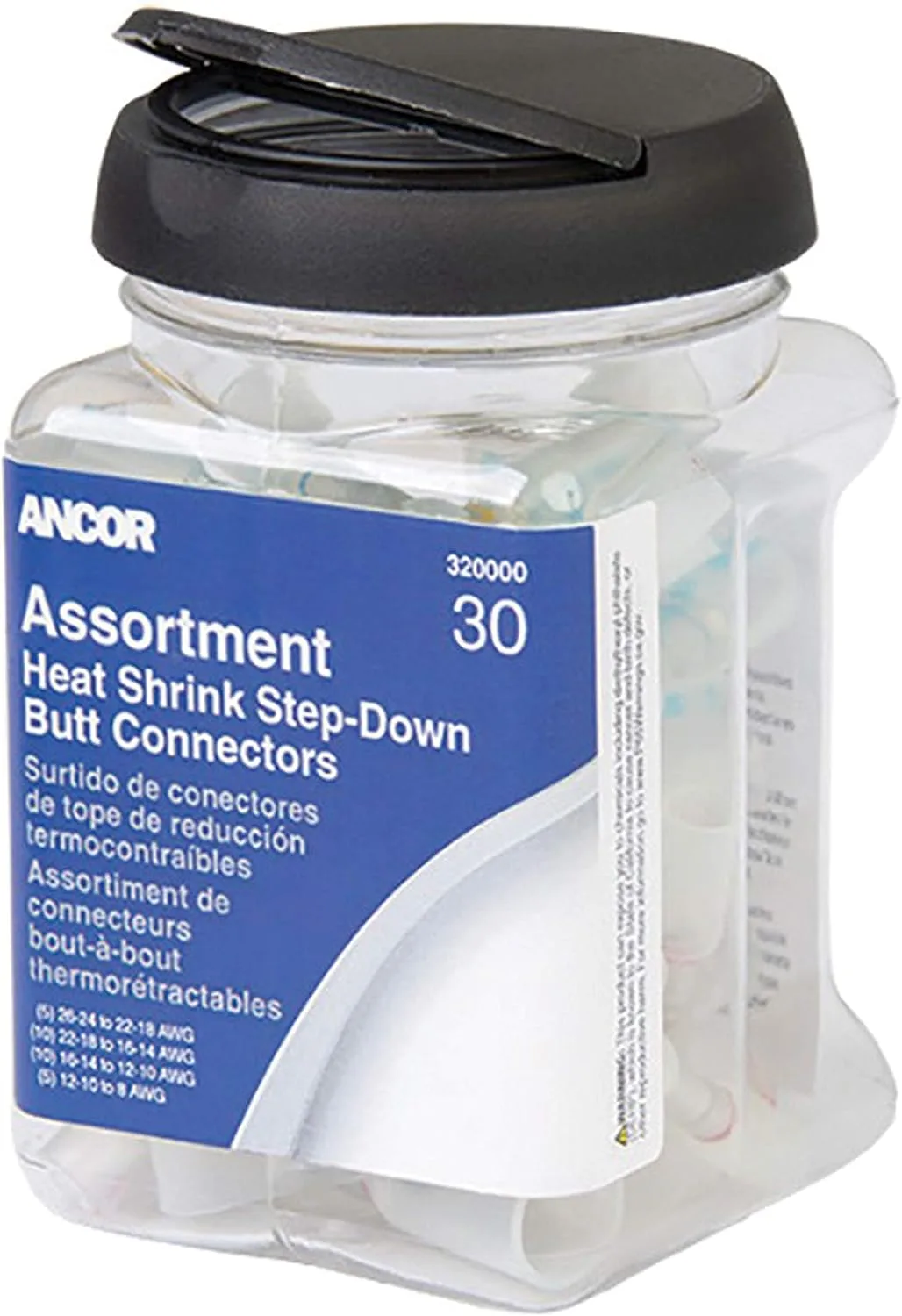

Ancor Heat Shrink Multi-Wire Step Down Butt Connectors 24-8 Assorted 30-Piece Jar
Customize
Heat Shrink Multi-Wire Step Down Butt Connectors 24-8 Assorted 30-Piece Jar Ancor's adhesive lined heat shrink butt connectors can be used as a step-down from one gauge size to another or as a multi-wire connector for one gauge size wire. These connectors offer a sealed alternative for products such as a quick-tap or 3-way connector in areas where corrosion is a concern. Features: 4:1 shrink ratio tubing to ensure a watertight seal between wires Flared barrel with uniform copper wall ensures an easy and proper mechanical crimp Crimp indicator on barrel for proper placement of installation tool Clear heat shrink tubing ensures crimp accuracy Colored stripes on the barrel indicate which crimp die to use, regardless of application Reusable jar is clear for easy identification of the terminals and has a flip lid for ease of use Multi-pack contains (5) 24-22/24-18 AWG butt connectors, (10) 22-18/16-14 AWG butt connectors, (10) 16-14/12-10 AWG and (5) 12-10/8 AWG butt connectors. Made for the harshest environments. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Jar contains: (5) 24-22/24-18 AWG butt connectors, (10) 22-18/16-14 AWG butt connectors, (10) 16-14/12-10 AWG and (5) 12-10/8 AWG butt connectors
- Colored stripes on the barrel indicate which crimp die to use, regardless of application
- Crimp indicator on barrel for proper placement of installation tool
- Flared barrel with uniform copper wall ensures an easy and proper mechanical crimp
- Made for the harshest environments. 4: 1 shrink ratio tubing to ensure a watertight seal between wires
Specifications:
| Materials & Construction | |
| Color | Assorted colors |
| Material | Plastic |
| Outer Material | Heat shrink tubing (adhesive-lined) |
| Product Details | |
| Heat Shrink | Yes |
| Included Components | 30 butt connectors, plastic jar |
| Model Name | Heat Shrink, Butt Connector, Step-Down, 24-8 Assort 30pc Jar |
| Number of Items | 30 |
| Size | No Size |
| Type | Kits |
| Sizing & Dimensions | |
| Height | 2.5 inches |
| Item Dimensions Lx Wx H | 4.5 x 2.5 x 2.5 inches |
| Item Package Dimensions L x W x H | 4.21 x 1.93 x 0.83 inches |
| Length | 4.5 inches |
| Weight | 4.64 ounces |
| Width | 2.5 inches |
| Technical Specifications | |
| Included Wire Gauges | 24-22/24-18, 22-18/16-14, 16-14/12-10, 12-10/8 AWG |
| Proposition 65 Warning | True |
| Shrink Ratio | 4:1 |
