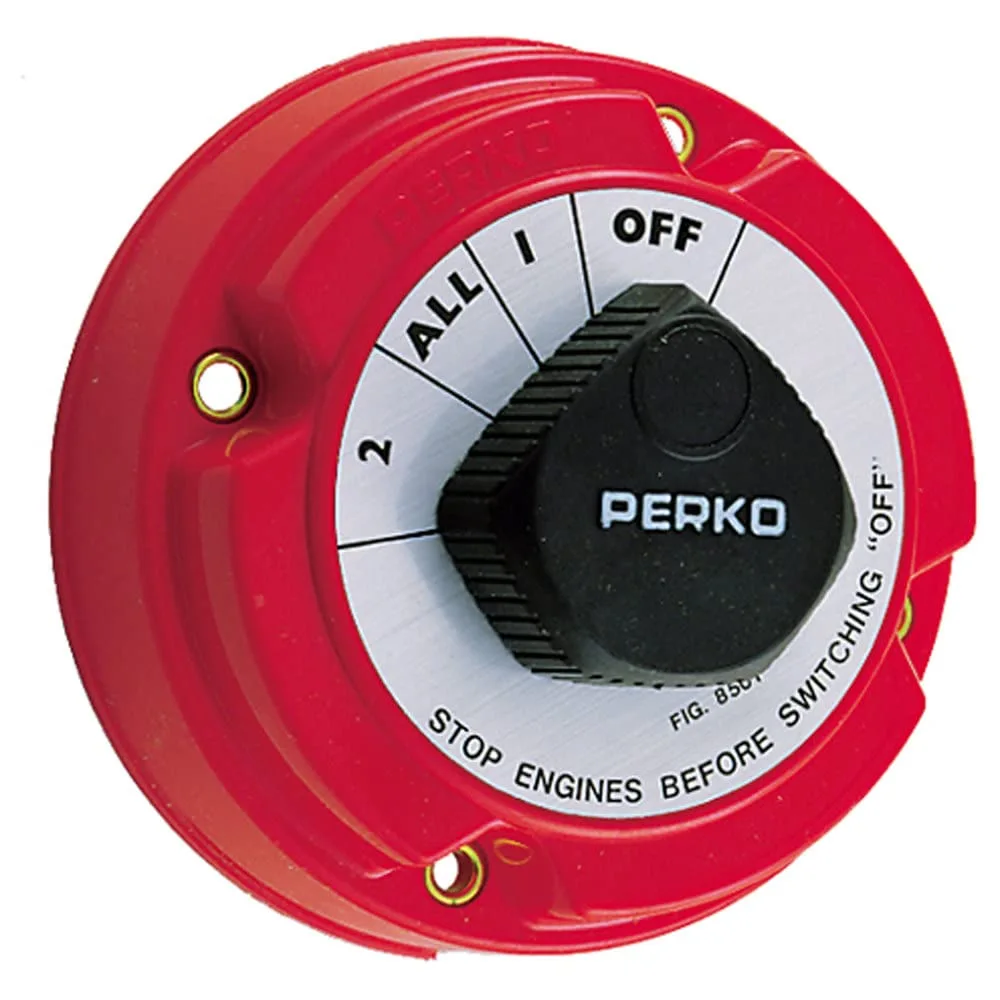

Perko 8501DP Medium Duty Battery Selector Switch - 250A Continuous (Red)
Perko 8501DP medium-duty marine battery selector switch — 250A continuous / 360A intermittent; rotary actuator, ignition protected; for 6–32V systems; 8 x 6 x 3 inches; 6.24 ounces.
$102.81
Customize
UPC
85226559471 Available Quantity
2 GSA Item
Yes GSA Compliant
Yes Product Details
For use with two or more batteries and single or dual engine systems. They permit selection between batteries for starting and charging or operation of both batteries in parallel. For use with systems under 50 volts. Use two switches for dual engine systems. When used with Non-Unitized Alternators, these models will interrupt the field current (reducing the possibility of damage) if turned "OFF" with the engine running. Capacity: 250 Amps continuous, 360 Amps Intermittent. Dimensions: 5-1/2" dia., 2-5/8" depth. Built with quality materials. Ignition Protected. For use with 12, 24 and 32 Volt Marine Electrical Systems. Rotary actuator; clamp connectors; marine terminals. National Stock Number: 5930-01-255-0629.
- For use with 12, 24 and 32 Volt Marine Electrical Systems
- Built with quality materials
- Ignition Protected
- Capacity - 250 AMPS Continuous, 360 AMPS Intermittent
Specifications:
| Materials & Construction | |
| Color | Red |
| Product Details | |
| Actuator Type | Rotary |
| Circuit Type | Distributed Power System |
| Connector Type | Clamp |
| Contact Type | Normally Open |
| Current Rating | 2.5E+2 Amps |
| Is Discontinued By Manufacturer | No |
| National Stock Number | 5930-01-255-0629 |
| Operating Voltage | 32 Volts |
| Operation Mode | OFF-NONE-ON-ON |
| Terminal | Marine |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 6 x 3 inches |
| Weight | 6.24 ounces |
| Width | 6 inches |
| Technical Specifications | |
| Actuator Type | Rotary |
| Connector Type | Clamp |
| Contact Type | Normally Open |
| Current Rating | 2.5E+2 Amps |
| Operating Voltage | 32 Volts |
