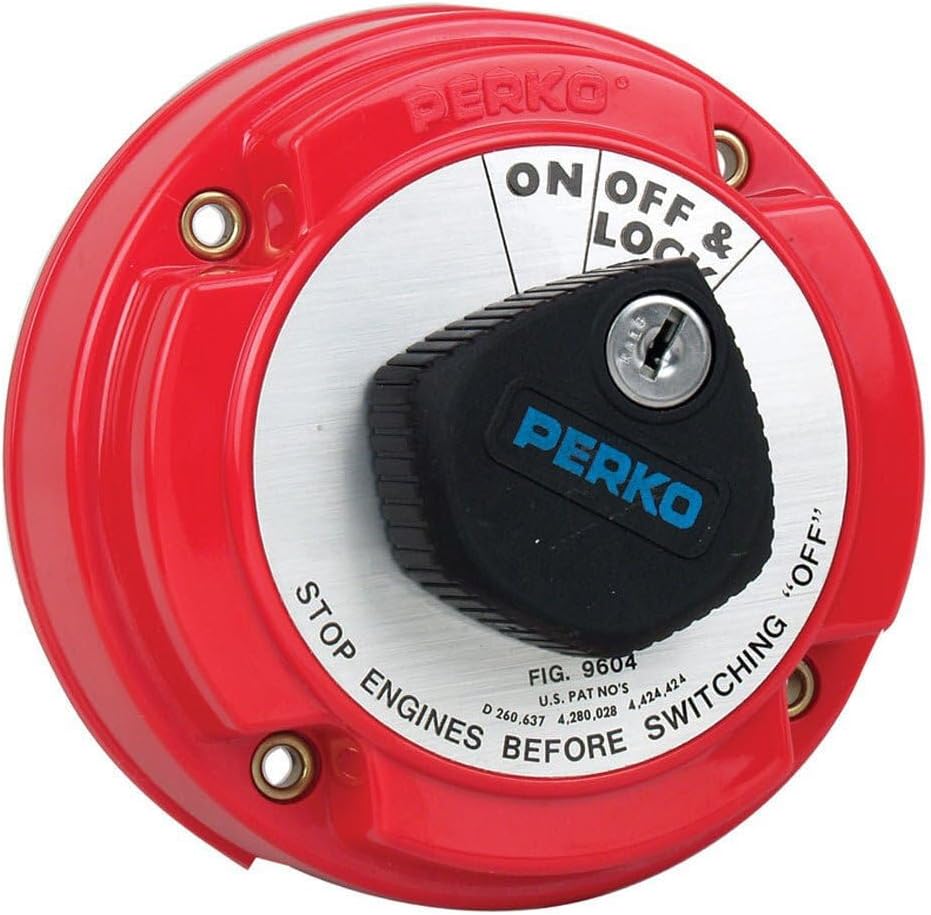

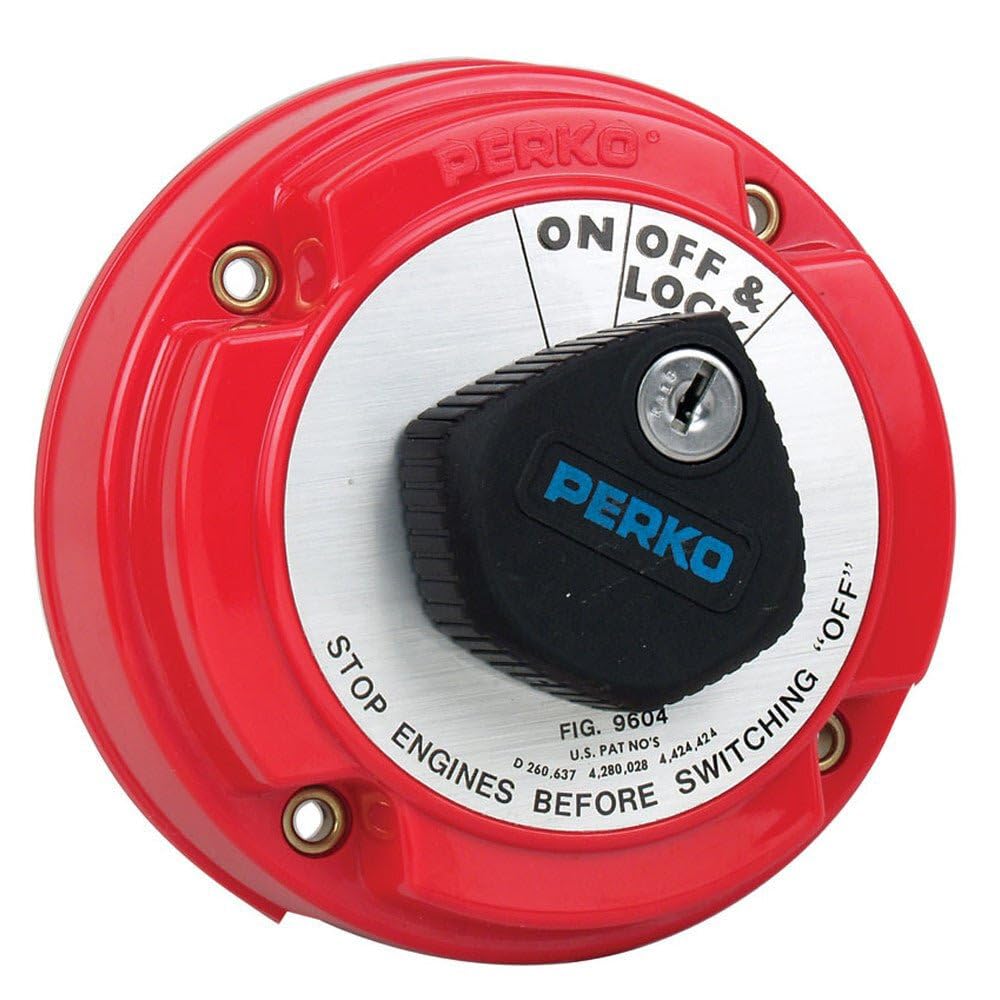

The PERKO 9604DP Medium Duty Main Battery Disconnect Switch provides reliable battery isolation for marine electrical systems. Designed for 12, 24 and 32 volt systems, it features an alternator field disconnect (AFD) and a keyed lock for secure operation. Rated 250 amps continuous and 360 amps intermittent, this ignition-protected, panel-mount switch uses stainless steel contact material and screw terminals for secure connectivity. The unit includes a push-button actuator, normally open contact type, and is supplied in a red finish. Item dimensions are approximately 3.15 x 5.98 x 8.82 inches (L x W x H). Package dimensions (manufacturer) are 8.82 x 5.98 x 3.15 inches with a package weight of about 0.86 pounds. Ideal for boating and marine battery management applications where a lockable, high-current disconnect with alternator field isolation is required.
| Materials & Construction | |
| Color | Red |
| Contact Material | Stainless Steel |
| Material | Stainless Steel |
| Product Details | |
| Actuator Type | Push Button |
| Actuator Type (duplicate-check) | Push Button |
| Afd | Yes |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw |
| Contact Material | Stainless Steel |
| Contact Type | Normally Open |
| Continuous Amperage | 250a |
| Control Method | Touch |
| International Protection Rating | IP00 |
| Lockable | Yes |
| Model Name | 9604DP |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Part Number | 9604DP |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 8.82 inches |
| Length | 3.15 inches |
| Package Weight | 0.86 pounds |
| Product Dimensions | 3.15 x 5.98 x 8.82 inches |
| Size | One Size |
| Width | 5.98 inches |
| Technical Specifications | |
| Current Rating | 250 Amps |
| Operating Voltage | 32 Volts |
| UPC | 085226560934 |
