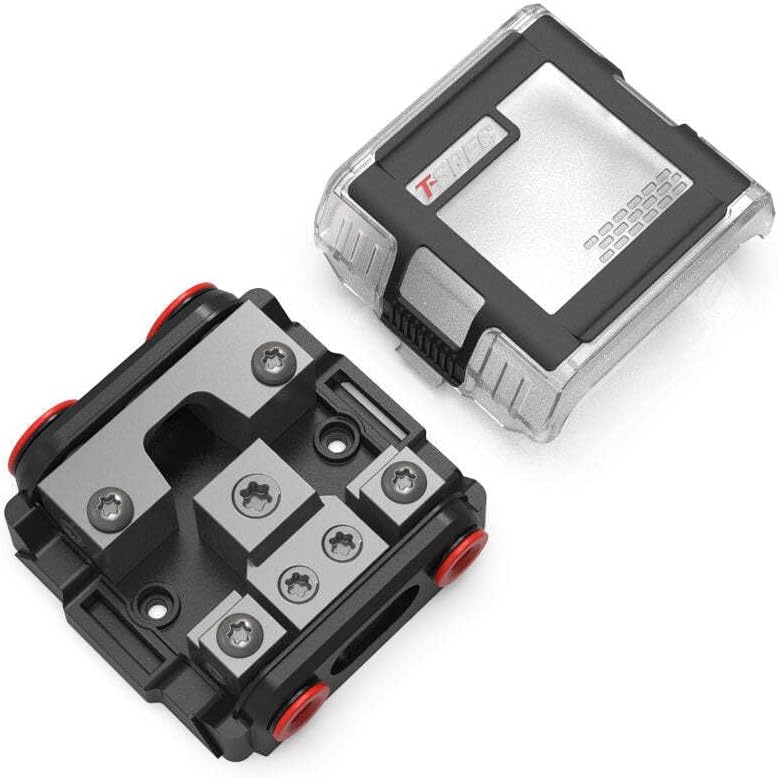

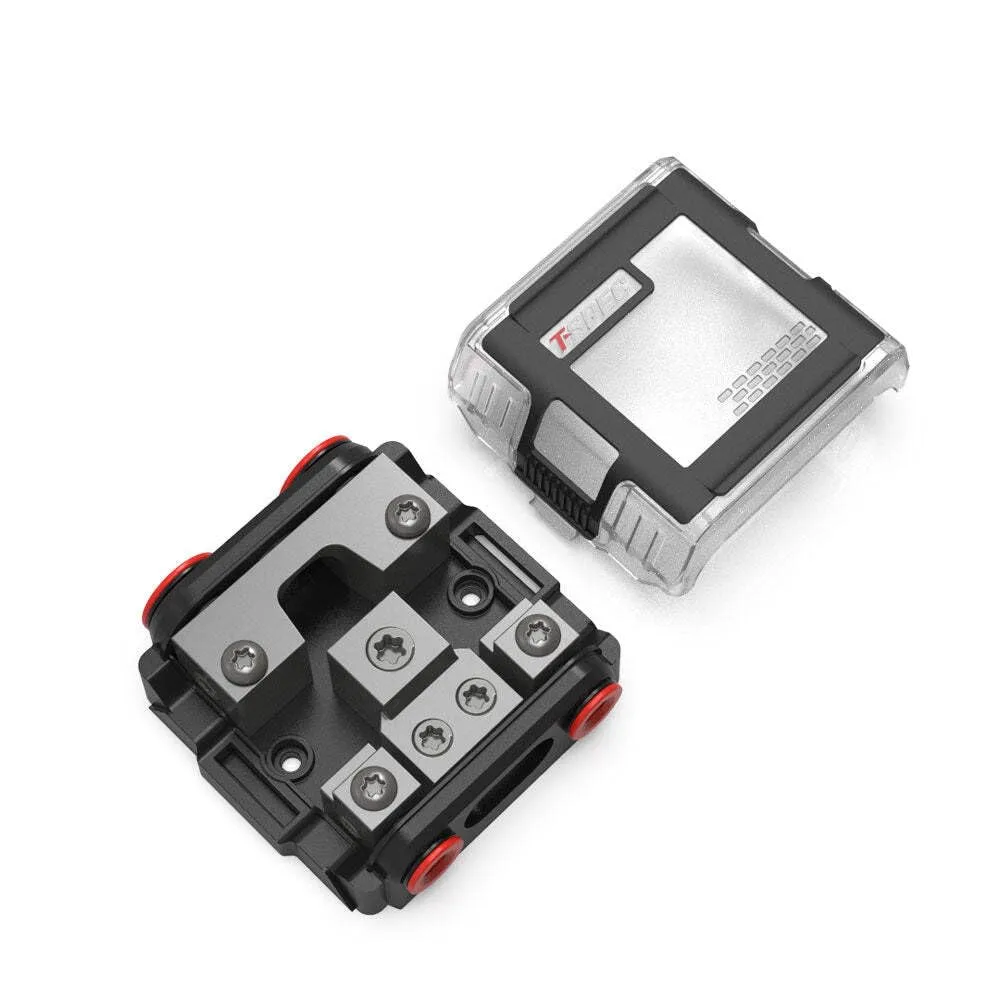

T-Spec VPNB2 MANL 2 Position All-In-One Distribution Block w/Cover
Customize
VPNB2 MANL 2 Position All-In-One Distribution Block with Cover T-Spec designed VPNB2 distribution block to handle the high-current power and ground distribution for two (2) power sources, and protect them each with a mini-ANL fuse. This hefty little block distributes power from one (1) 1/0-gauge positive power cable to two (2) 4- to 8-gauge power leads, each routed through a mini-ANL fuse. Then, the same block receives the amps' two ground wires and combines them for a single 1/0-gauge ground cable. Fuses sold separately. Features: (2 positive) 1/0 to 4 AWG in to (2 positives) 4/8 AWG out (1 negative) 1/0 to 4 AWG in to (2 negatives) 4/8 AWG out TPE wrapped soft touch Dual sizes gasket set Water-resistant Solid brass construction Black nickel finish T20 Torx screws Gate Lock technology. In the Box: Distribution block for both power and ground; Plastic cover (attached); 2 Rubber grommets and sleeves on power inputs (installed); 2 Rubber grommets and sleeves on power outputs (installed). Sold as an Individual. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Water-resistant
- Dual sizes gasket set
- TPE wrapped soft touch
- (1 negative) 1/0-4 AWG in/(2 negative) 4/8 AWG out
- (2 positive) 1/0-4 AWG in/(2 positive) 4/8 AWG out
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Color | No Color |
| Included Components | T-Spec MANL 2-Position All-In-One Distribution Block |
| Material | Plastic |
| Model Name | T-Spec MANL 2-Position All-In-One Distribution Block |
| Number of Items | 1 |
| Size | No Size |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1.6 inches |
| Length | 4.6 inches |
| Product Dimensions | 4.6 x 3.5 x 1.6 inches |
| Product Weight | 0.3 Pounds |
| Size | No Size |
| Weight | 4.8 ounces |
| Width | 3.5 inches |
| Technical Specifications | |
| Warranty | Warranty |
