Ancor 124925 Safety Duplex Cable, 18/2 AWG (2 x 0.8mm2), Flat - 250ft
Customize

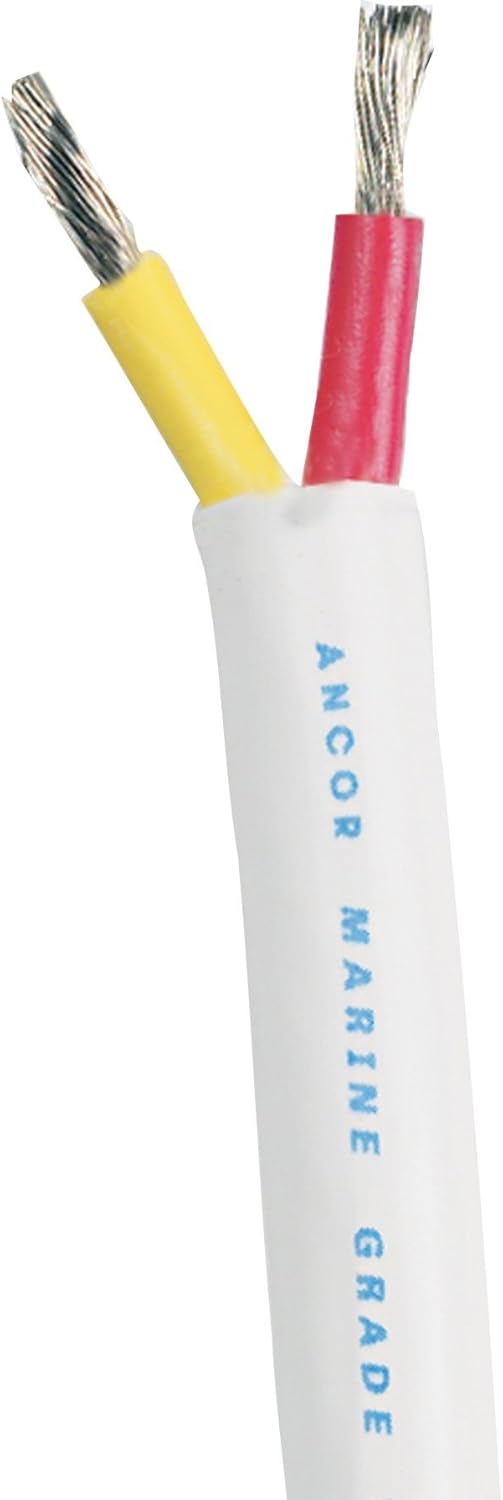

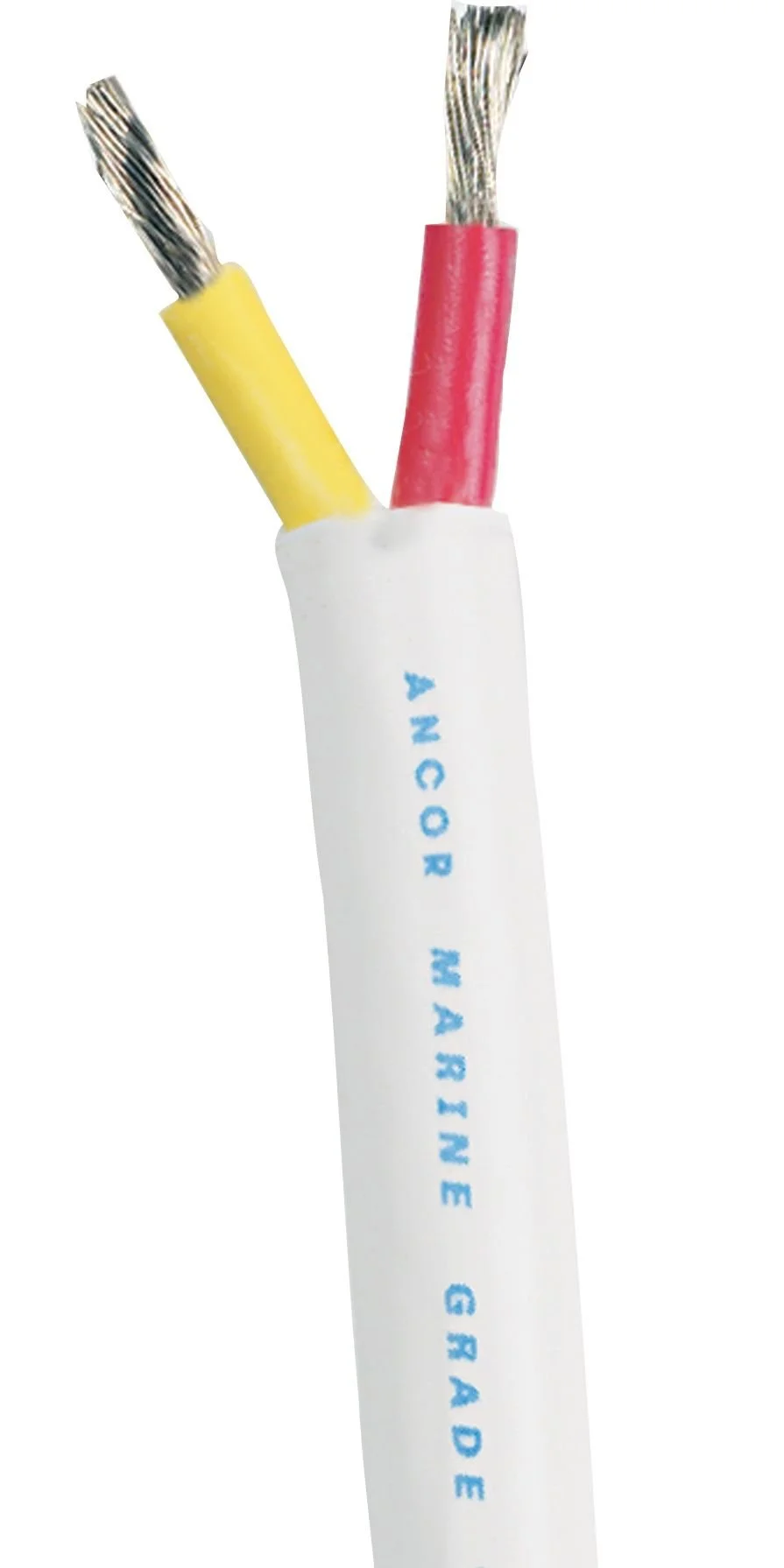

Safety Duplex Cable - 18/2 AWG - Red/Yellow - Flat - 250' Ancor safety duplex cable features red and yellow Marine Grade primary conductors (correctly color-coded to ABYC standards) in a white common jacket that is made for easy removal while providing the best abrasion resistance available. These cables exceed UL 1426 standards and are made from the highest quality ultra flexible (Type 3/Class K) tinned copper stranding that provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. The premium vinyl insulation is rated at 600V, 105°F dry and 75°F wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Manufactured by Ancor Marine Grade Products. Sport type: Boating. Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards. Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection.
- Sport type: Boating
- The premium vinyl insulation is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards
- Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection.
- Manufactured from individual copper strands and tinned to perform in the harshest marine environments.
Specifications:
| Materials & Construction | |
| Color | Red/Yellow |
| Material | Copper |
| Product Details | |
| Color | Red/Yellow |
| Gauge | 18/2 Awg |
| Included Components | Does not apply |
| Material | Copper |
| Model Name | 60724 |
| No. of wires | 2 |
| Number of Cable Strands | Multi Strand |
| Number of Items | 1 |
| Size | 250 Feet |
| Sport Type | Boating |
| Style | 18 Awg, Flat Duplex |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 11 inches |
| Product Dimensions | 11 x 11 x 5 inches |
| Size | 250 Feet |
| Weight | 1 pounds |
| Width | 11 inches |
| Technical Specifications | |
| Voltage | 600 Volts |
| Warranty | As labeled |
