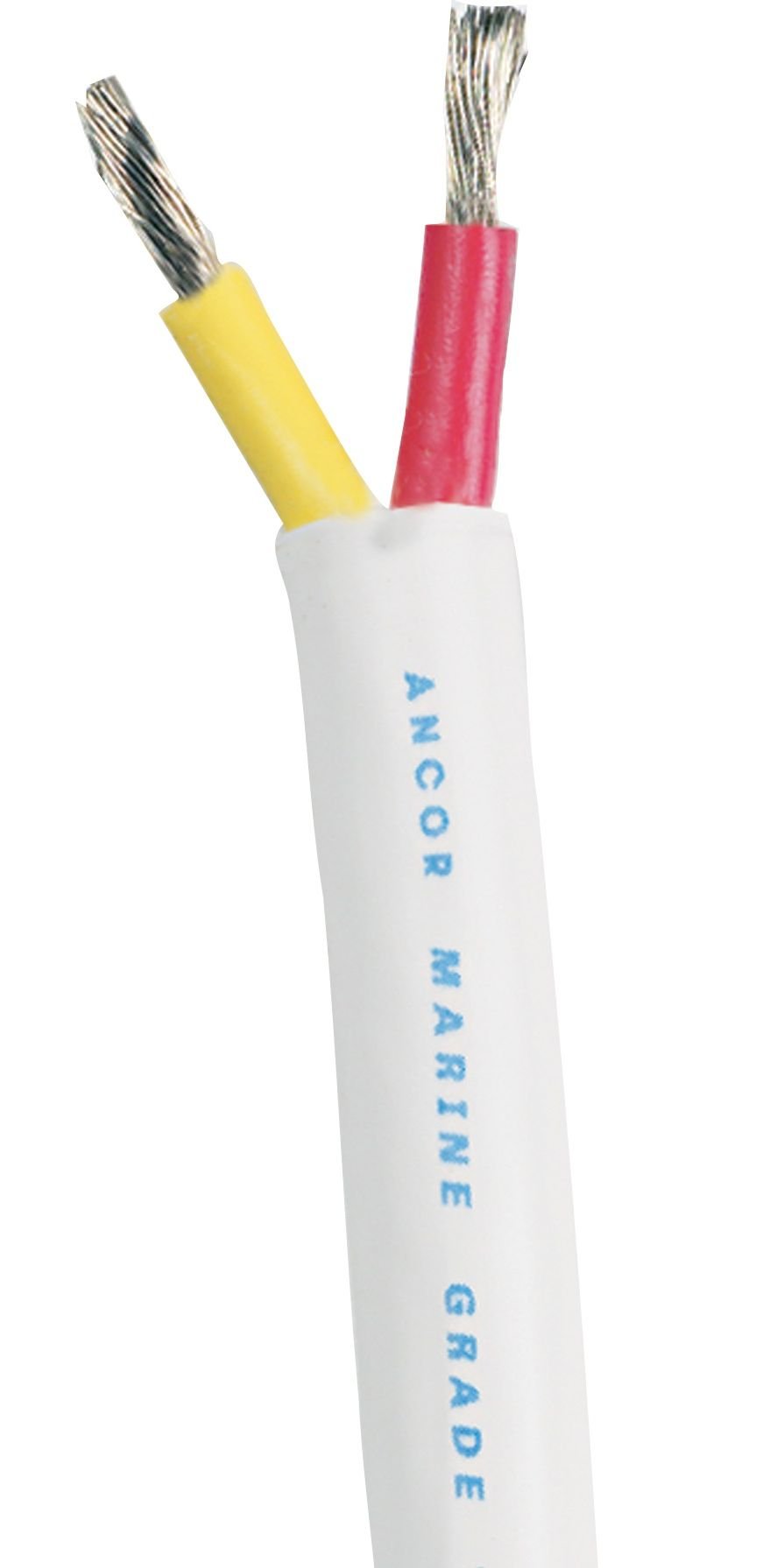

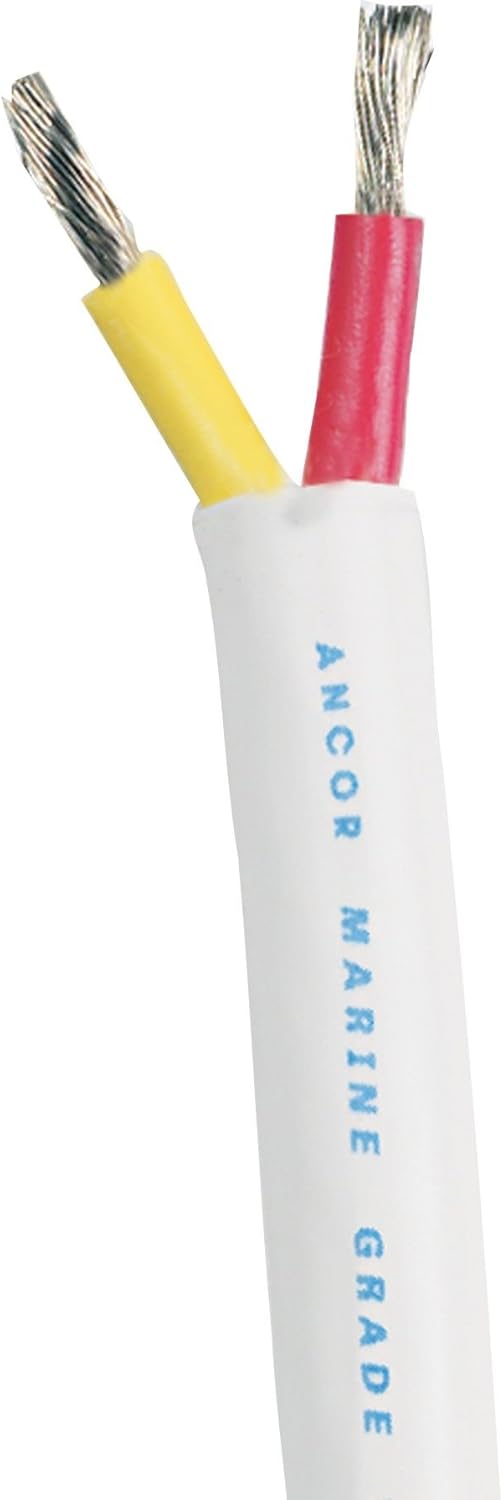

Ancor 126510 Safety Duplex Cable, 14/2 AWG (2 x 2mm2), Round - 100ft
Customize
Safety Duplex Cable - 14/2 AWG - Red/Yellow - Round - 100' Ancor safety duplex cable features red and yellow Marine Grade primary conductors (correctly color-coded to ABYC standards) in a white common jacket that is made for easy removal while providing the best abrasion resistance available. These cables exceed UL 1426 standards and are made from the highest quality ultra flexible (Type 3/Class K) tinned copper stranding that provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. The premium vinyl insulation is rated at 600V, 105° C dry and 75° C wet, stays flexible even in extreme cold (-40° F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Color: Red/Yellow , Length (Feet): 100' , Gauge: 14/2 AWG
- The premium vinyl insulation is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards
- Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection.
- Manufactured from individual copper strands and tinned to perform in the harshest marine environments.
Specifications:
| Materials & Construction | |
| Material | Copper |
| Product Details | |
| Global Trade Identification Number | 00091887806847, 10091887806844 |
| Included Components | Does not apply |
| Model Name | 60747 |
| No. of wires | 2 |
| Number of Cable Strands | Multi Strand |
| Style | 14 Awg, Round Duplex |
| Sizing & Dimensions | |
| Height | 10.5 inches |
| Length | 4.25 inches |
| Product Dimensions | 4.25 x 10.5 x 10.5 inches |
| Product Weight | 64 ounces |
| Size | 100 Feet |
| Weight | 4 pounds |
| Width | 10.5 inches |
| Technical Specifications | |
| Voltage | 600 Volts |
| Warranty | As labeled |
