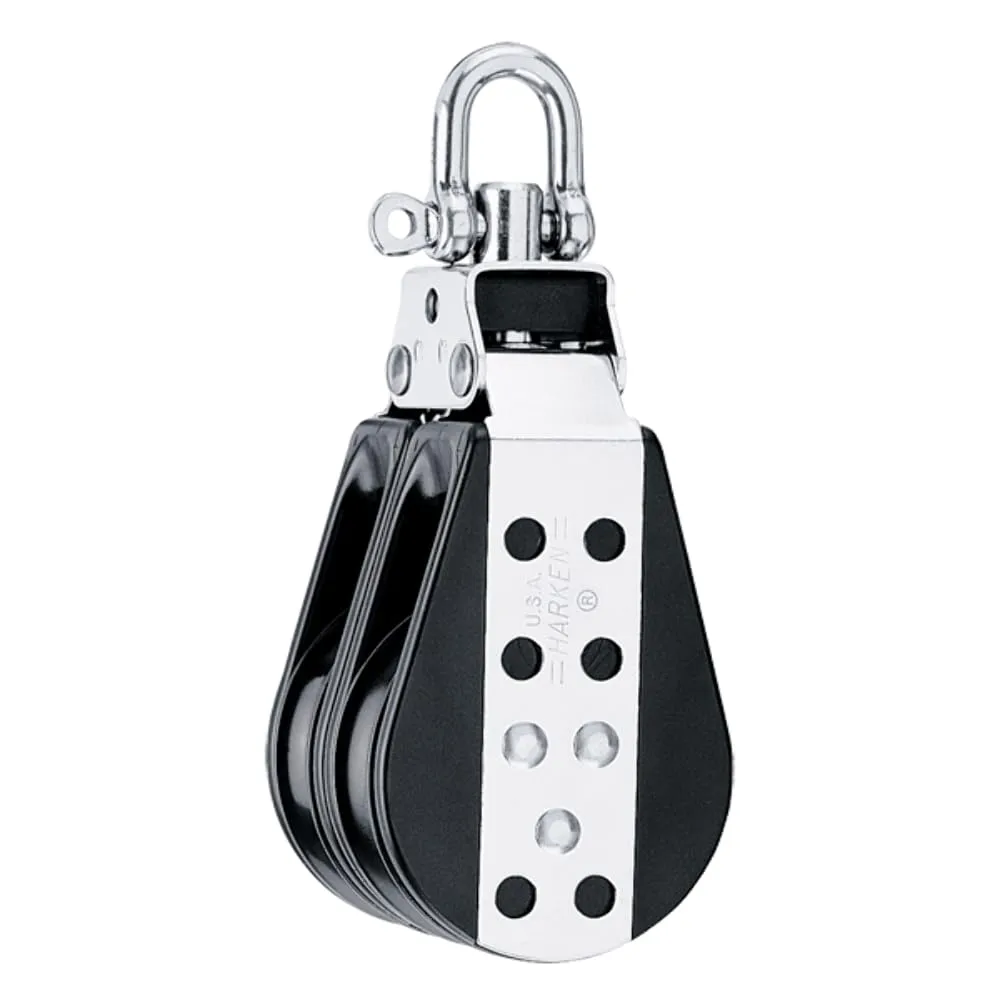

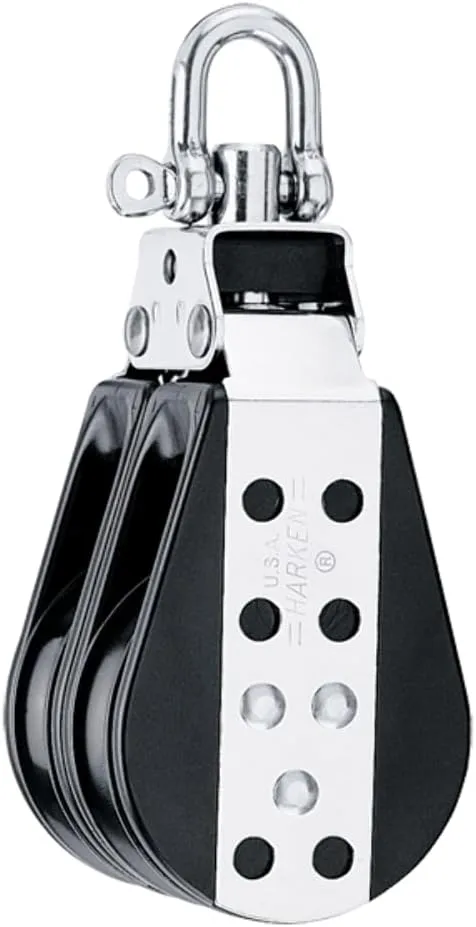

Harken 3.00 Midrange Double Block (1544)

Harken 3.00 Midrange Double Block 1544Harken 3.00 Midrange Double Block 1544 * Description: Double * Sheave dia. (in): 3 * Sheave dia. (mm): 76 * Length (in): 7 1/2 * Length (mm): 191 * Weight (oz): 25 1/2 * Weight (g): 723 * Max. line dia. (in): 9/16 * Max. line dia. (mm): 14 * Shackle pin dia. (in): 5/16 * Shackle pin dia. (mm): 8 * Max. working load (lb): 2800 * Max. working load (kg): 1270 * Breaking load (lb): 7000 * Breaking load (kg): 3175

• Shackle pin Ø (mm)8 mm Shackle pin Ø (in)5/16 in Maximum line Ø (mm)14 mm Maximum line Ø (in)9/16 in Maximum working load (kg)1270 kg Maximum working load (lb)2800 lb Breaking load (kg)3175 kg Breaking load (lb)7000 lb
• Sheave Ø (mm)76 mm Sheave Ø (in)3 in Length (mm)191 mm Length (in)7 1/2 in Weight (g)723 g Weight (oz)25.5 oz
• ffshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load
• Midrange blocks’ robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load.
