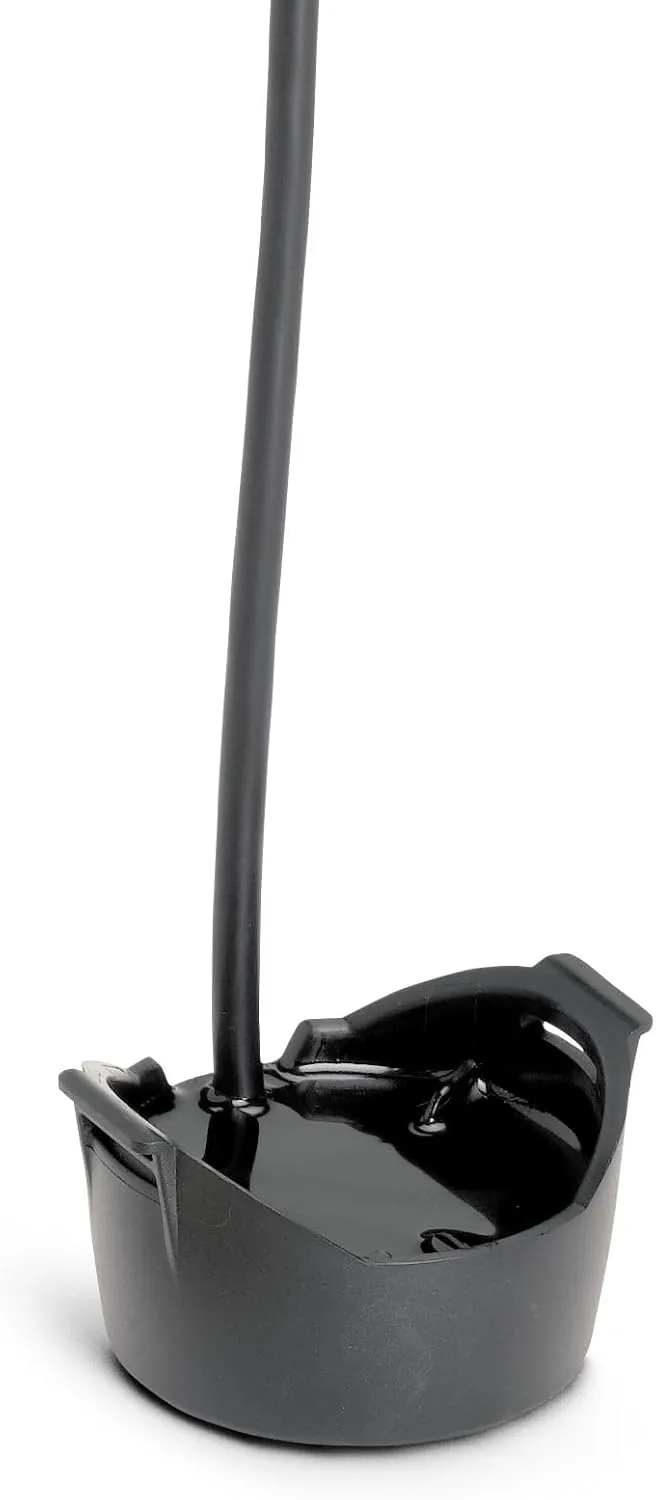

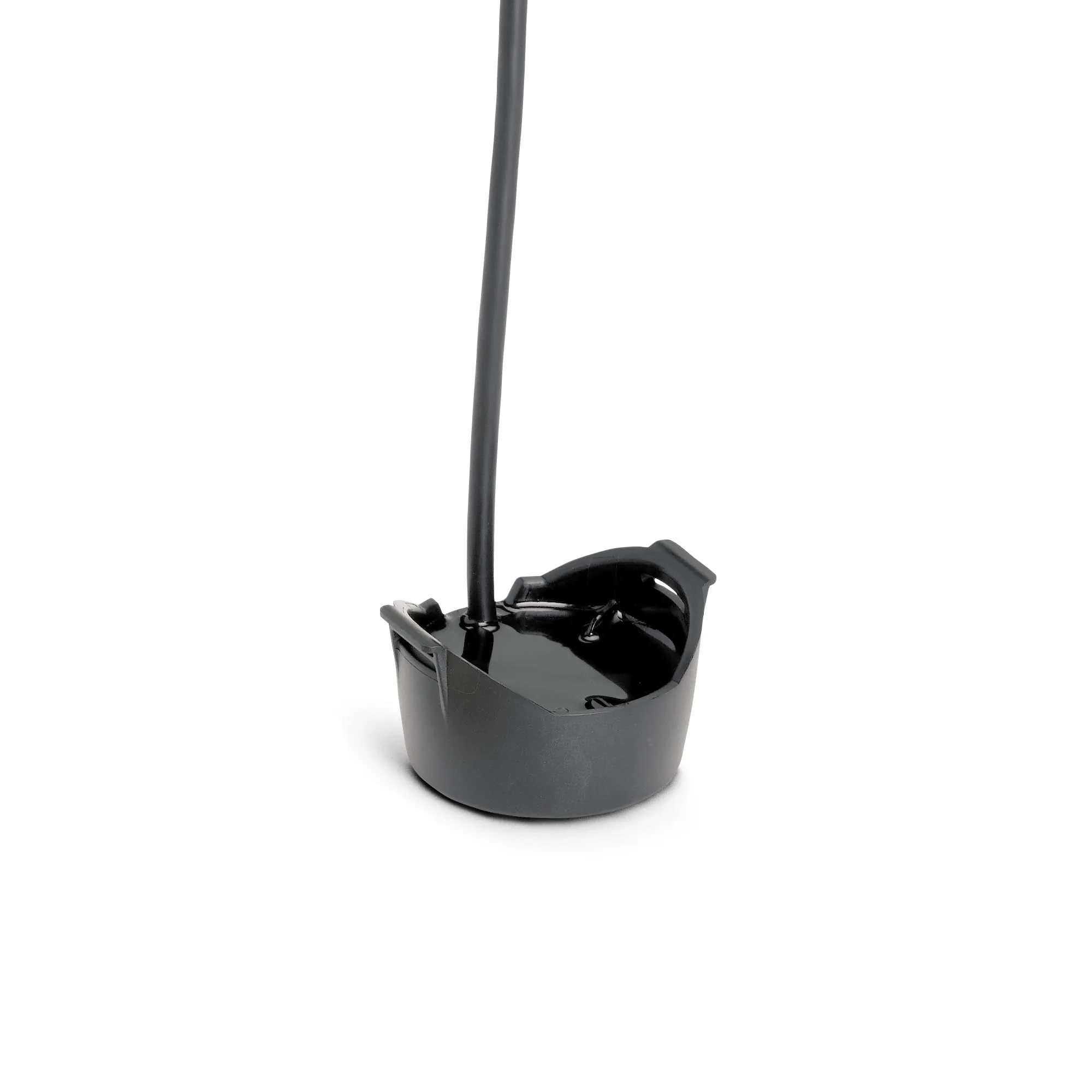

Humminbird XP 9 HW In-Hull Transducer for HELIX with Dual Spectrum CHIRP Sonar
Customize

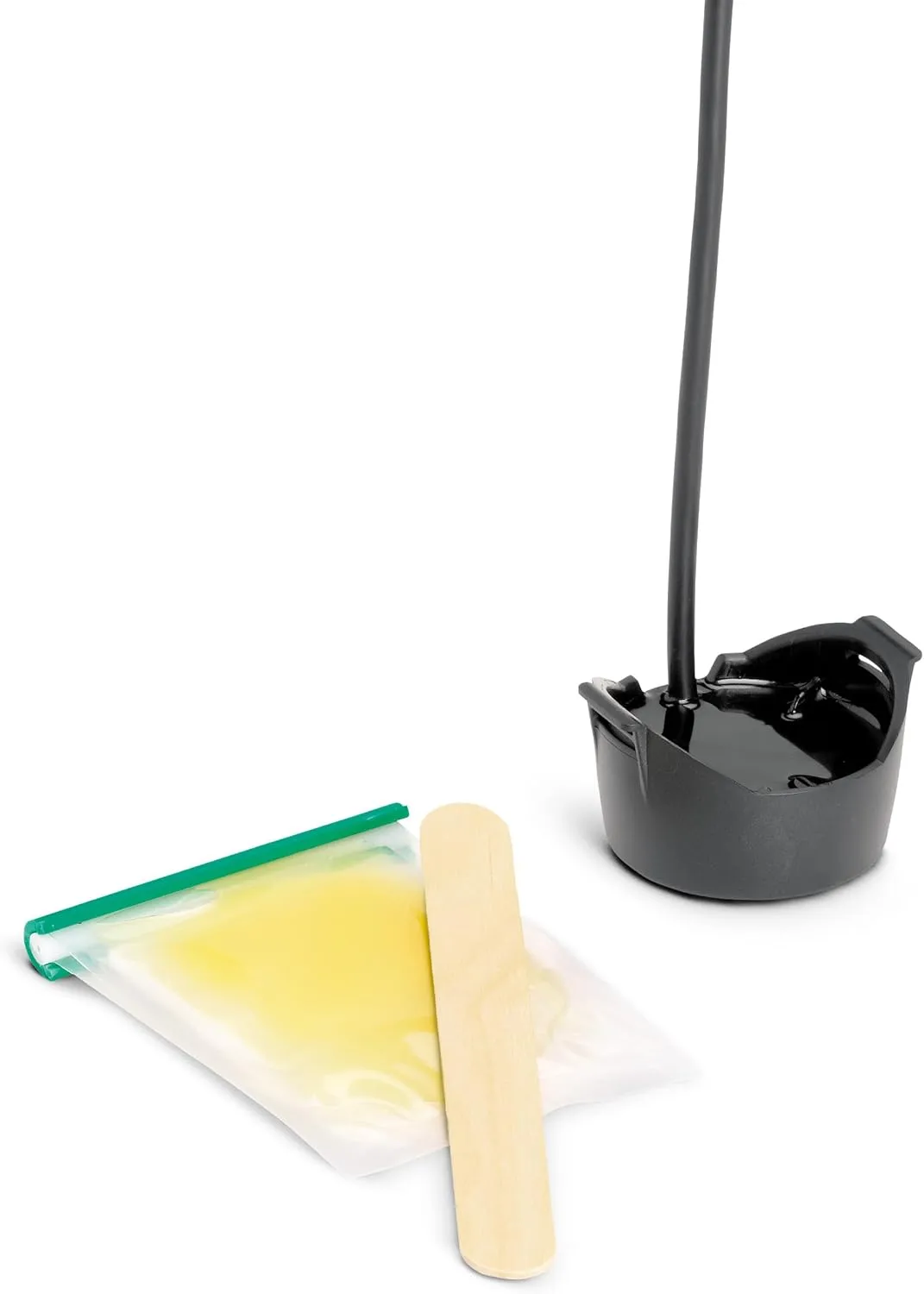

XP 9 HW In-Hull Transducer. In-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Intended for glue-in installation inside single layer fiberglass hulls. Includes epoxy kit and 20' cable. This accessory is compatible with the following Humminbird products: HELIX 5 CHIRP G2 – GPS-equipped models only, HELIX 7 CHIRP G2/G3 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N – All models, HELIX 8 CHIRP G3N – All models, HELIX 9 CHIRP G2N/G3N – All models, HELIX 10 CHIRP G2N/G3N – All models, HELIX 12 CHIRP G2N/G3N – All models, ICE HELIX CHIRP G2 – All models (In Open Water Mode). Side Imaging and Down Imaging units can support the XP 9 HW as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz. Dual Spectrum CHRIP Max Depth: 1200ft (365m). Features from marketplace data: 1-Year Limited Warranty; Compatible with a wide range of HELIX models; Includes epoxy kit and mounting hardware; Cable length options referenced in sources (15 ft listed in marketplace specs; 20' listed in product database).
- 1-Year Limited Warranty
- Dual Spectrum CHRIP Max Depth: 1200ft (365m)
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Side Imaging and Down Imaging units can support the XP 9 HW as a 2D sonar only transducer. This transducerdoes not support Side Imaging or Down Imaging.
- Cable Length: 15 Feet
- Compatible with: HELIX 5 CHIRP G2/G3 – GPS-equipped models only, HELIX 7 CHIRP G2/G3/G4 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N/G4N – All models, HELIX 8 CHIRP G3N/ G4N – All models, HELIX 9 CHIRP G2N/G3N/G4N – All models, HELIX 10 CHIRP G2N/G3N/G4N – All models, HELIX 12 CHIRP G2N/G3N/G4N – All models, ICE HELIX CHIRP G2/G3 and newer – All models (in Open Water Mode) Side Imaging and Down Imaging units can support this transducer as a 2D sonar only transducer.
Specifications:
| Materials & Construction | |
| Color | Not Available |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Display Type | LCD |
| Included Components | In-Hull transducer (no Temperature) with 15 ft cable length; Mounting hardware; Installation instructions |
| Model Name | In-Hull Transducer |
| Model Year | 2019 |
| Number of Items | 1 |
| Power Source | Battery Powered |
| Sport Type | Boating, Fishing |
| Style | Transducers |
| Warranty Description | 1 year Manufacturer |
| Sizing & Dimensions | |
| Height | 3.75 inches |
| Length | 7.5 inches |
| Product Dimensions | 7.5 x 8.5 x 3.75 inches |
| Size | One Size |
| Weight | 0.75 pounds |
| Width | 8.5 inches |
| Technical Specifications | |
| Cable Length (Feet) | 20' |
| Chirp | High Wide |
| Maximum measuring depth | 1200 Feet |
| Mounting Type | Flush Mount |
| Pins | 7 |
| Warranty | 1 year Manufacturer |
