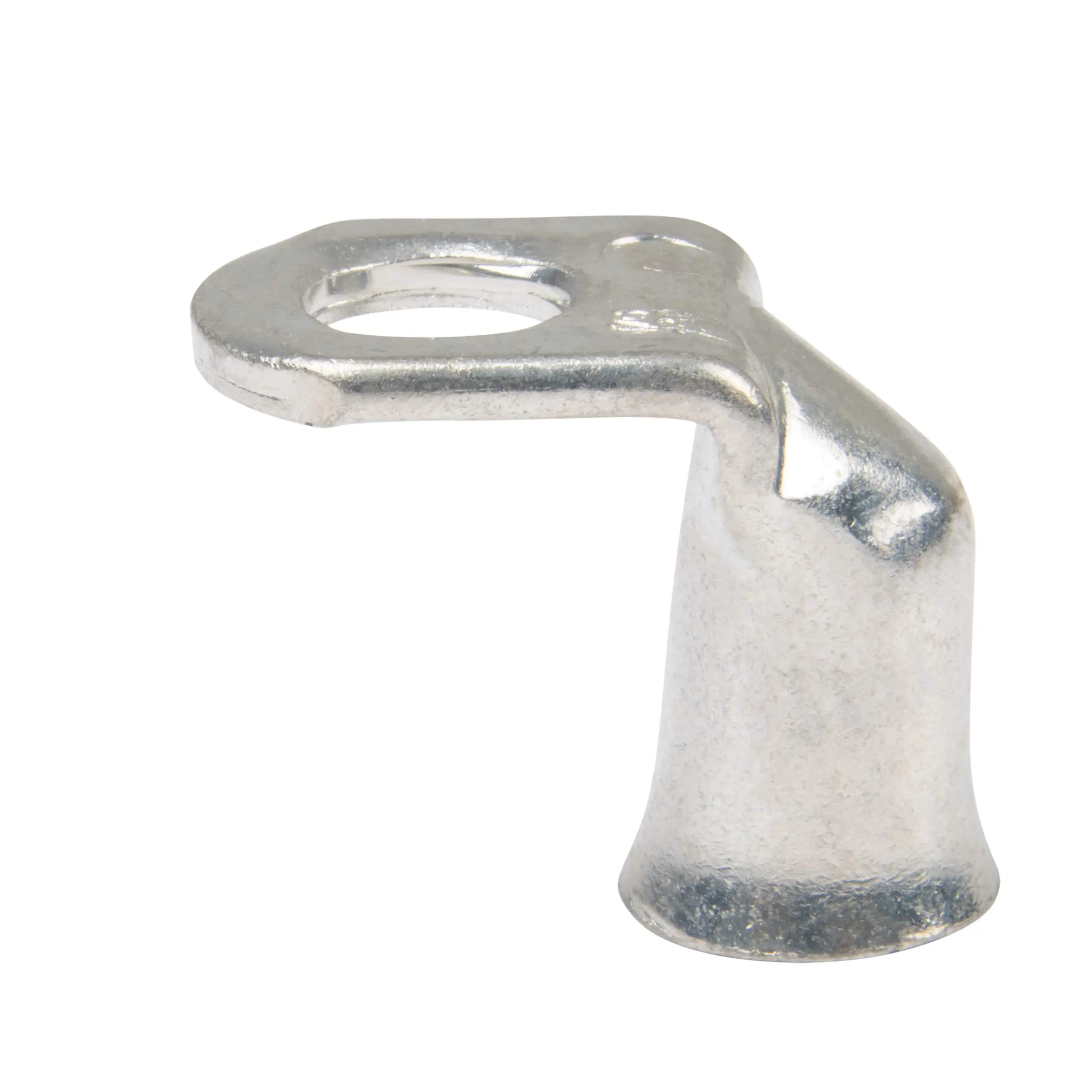

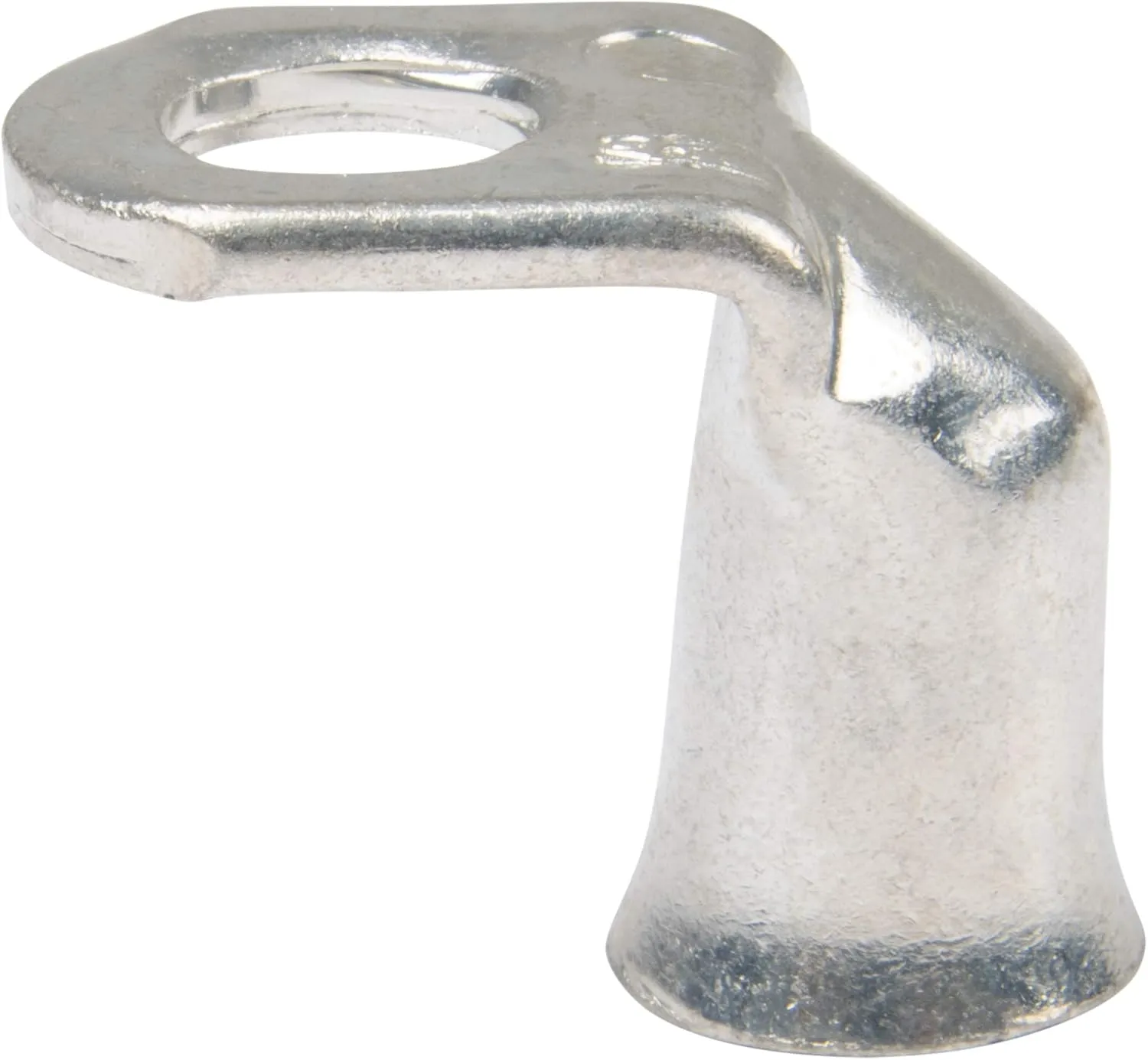

Ancor 262285 Tinned Lug 90degree #1/0 5/16", 2pc,Silver
ANCOR tinned 90° copper lug for 1/0 AWG wire with 5/16" stud. 2-piece pack; 100% tin-plated copper resists corrosion; seamless barrel and closed end seals out moisture. UL 486A rated.
$11.99
Customize
Available Quantity
4 GSA Item
No GSA Compliant
Yes Product Details
90° Tinned Copper Lug #1/0 - 5/16" - 2-Piece. 90° bend for ease of wire routing. Type: Lugs. Post Size: 5/16". Package Qty: 2. Heat Shrink: No. Gauge: 1/0 AWG. Ancor Marine Grade® lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow. 100% tin plated copper resists corrosion from salt and moisture. Seamless barrel design allows for maximum strength when crimped. Closed end design seals out moisture so cables stay dry and corrosion free. UL 486A. Included components: 2 copper lugs. Item Dimensions LxWxH: 3 x 1 x 1 inches; Product Dimensions: 3.5"L x 1"W x 1.2"H. Temperature rating: 221 degree celsius.
- 100% tin plated copper resists corrosion from salt and moisture
- Ancor Marine Grade lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow
- Screw size: 5/16", 7.9 mm
- 94 degree bend for ease of wire routing and seamless barrel design allows for maximum strength when crimped
- Tinned Lug 90degree 1/0 AWG 5/16", 2pc
Specifications:
| Materials & Construction | |
| Color | Silver |
| Contact Material | Copper |
| Insulation Material | Non-Insulated |
| Product Details | |
| Connector Type | Crimp |
| Contact Material | Copper |
| Gauge | 1/0 Awg |
| Heat Shrink | No |
| Included Components | 2 copper lugs |
| Insulation Material | Non-Insulated |
| Model Name | Ancor boating wire terminals |
| Package Qty | 2 |
| Post Size | 5/16" |
| Specification Met | UL |
| Stud Size | 5/16 inch |
| Terminal | Screw Terminal |
| Type | Lugs |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 1.2 inches |
| Length | 3.5 inches |
| Product Dimensions | 3.5"L x 1"W x 1.2"H |
| Size | 2 Pack |
| Weight | 0.16 ounces |
| Width | 1 inches |
| Technical Specifications | |
| Specification Met | UL |
| Temperature Rating | 221 degree celsius |
