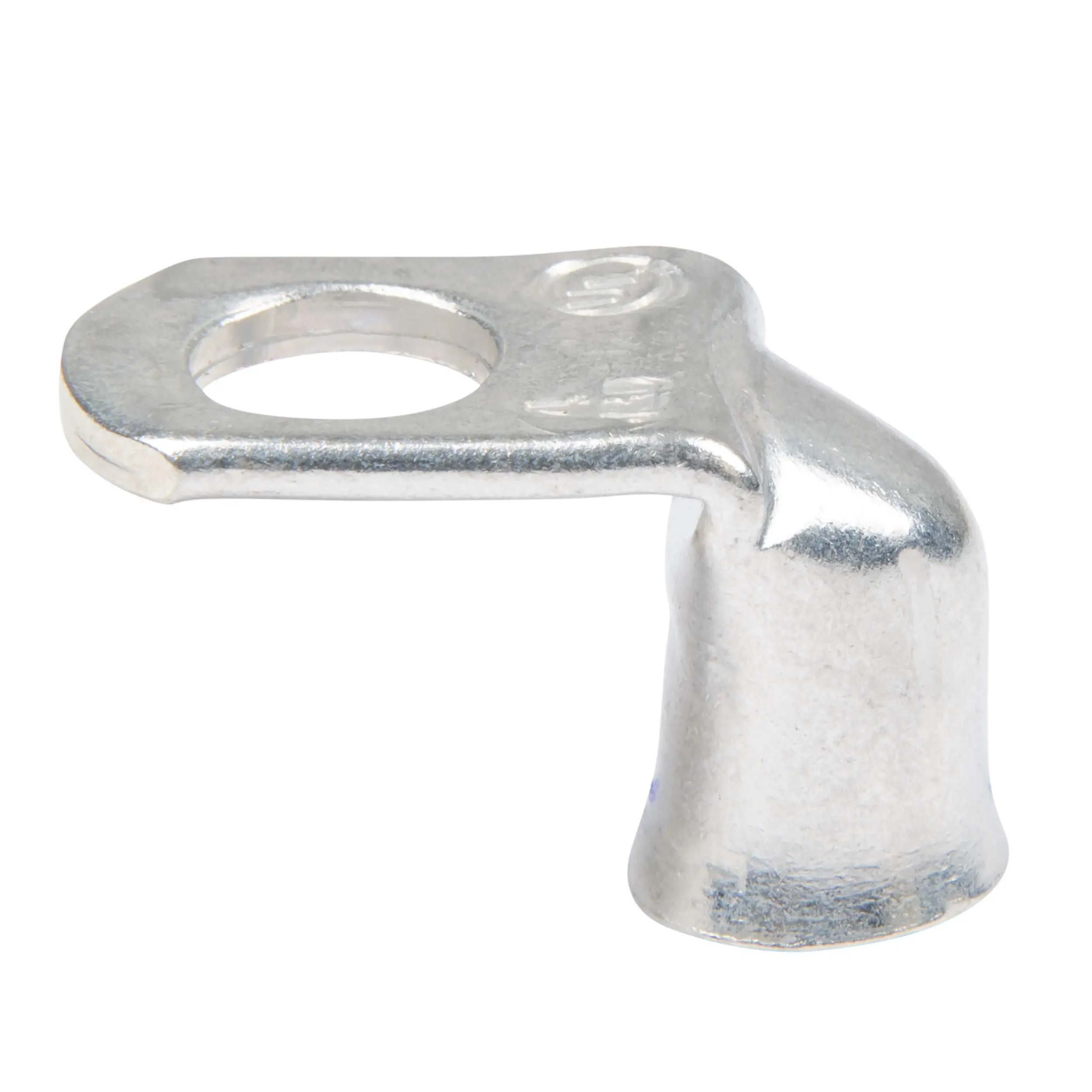

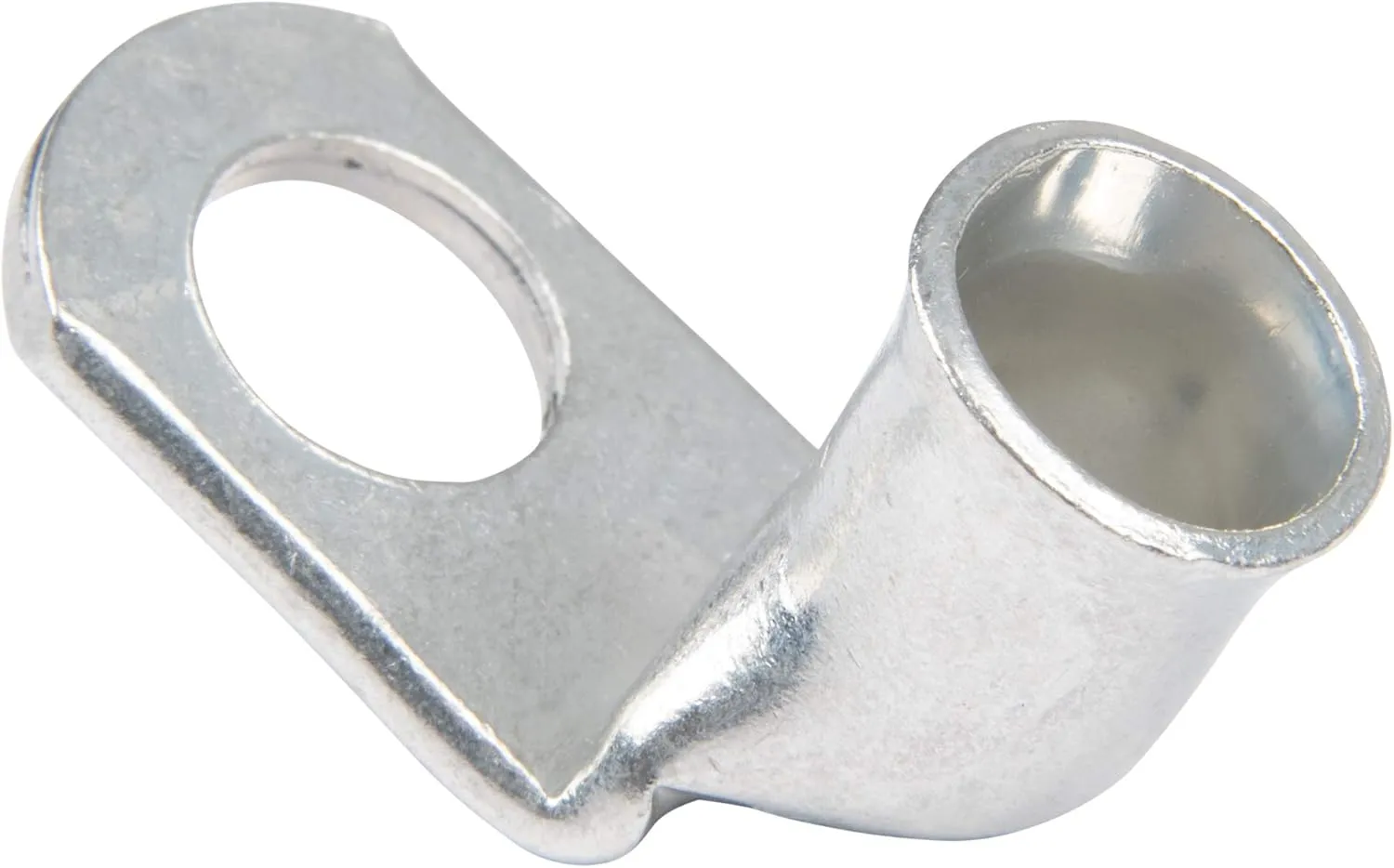

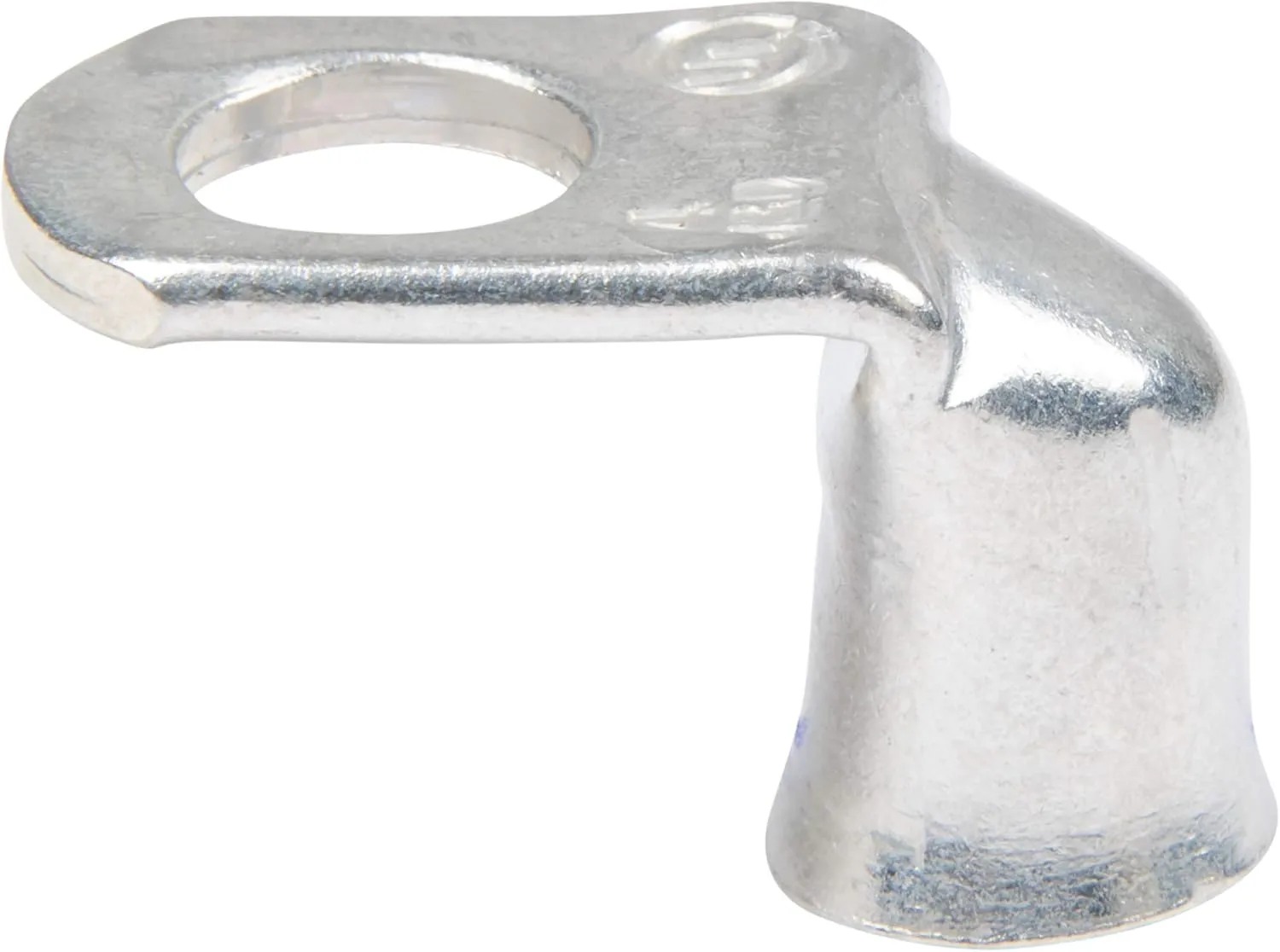

Ancor Marine Grade Products 262255 Tinned Lug 90degree #4 5/16', 2pc
ANCOR Marine Grade 90° tinned copper lug — 4 AWG, 5/16" stud, closed-end screw terminal, non-insulated. Corrosion-resistant tin plating, seamless barrel for strong crimps. 2-piece pack, UL 486A.
$7.99
Customize
Available Quantity
3 GSA Item
No GSA Compliant
Yes Product Details
90° Tinned Copper Lug #4 - 5/16" - 2-Piece 90° bend for ease of wire routing., Heat Shrink: No , Gauge: 4 AWG , Type: Lugs , Post Size: 5/16" , Package Qty: 2 Ancor Marine Grade® lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow. 100% tin plated copper resists corrosion from salt and moisture. Seamless barrel design allows for maximum strength when crimped. Closed end design seals out moisture so cables stay dry and corrosion free. UL 486A.
- 100% tin plated copper resists corrosion from salt and moisture
- Ancor Marine Grade lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow
- Screw size: 5/16", 7.9 mm
- 91 degree bend for ease of wire routing and seamless barrel design allows for maximum strength when crimped
- Tinned Lug 90degree 4 AWG 5/16", 2pc
Specifications:
| Materials & Construction | |
| Color | Silver |
| Contact Material | Copper |
| Material | Copper |
| Product Details | |
| Connector Type | Closed End |
| Contact Material | Copper |
| Gauge | 4 Awg |
| Included Components | 2 copper lugs |
| Insulation Material | Non-Insulated |
| Number of Items | 1 |
| Post Size | 5/16" |
| Size | 2 Pack |
| Specification Met | UL |
| Temperature Rating | 221 degree celsius |
| Terminal | Screw Terminal |
| Type | Lugs |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 3 inches |
| Product Dimensions | 3 x 2 x 1 inches |
| Size | 2 Pack |
| Weight | 0.71 ounces |
| Width | 2 inches |
| Technical Specifications | |
| Connector Type | Closed End |
| Specification Met | UL |
| Stud Size | 5/16 |
| Temperature Rating | 221 degree celsius |
