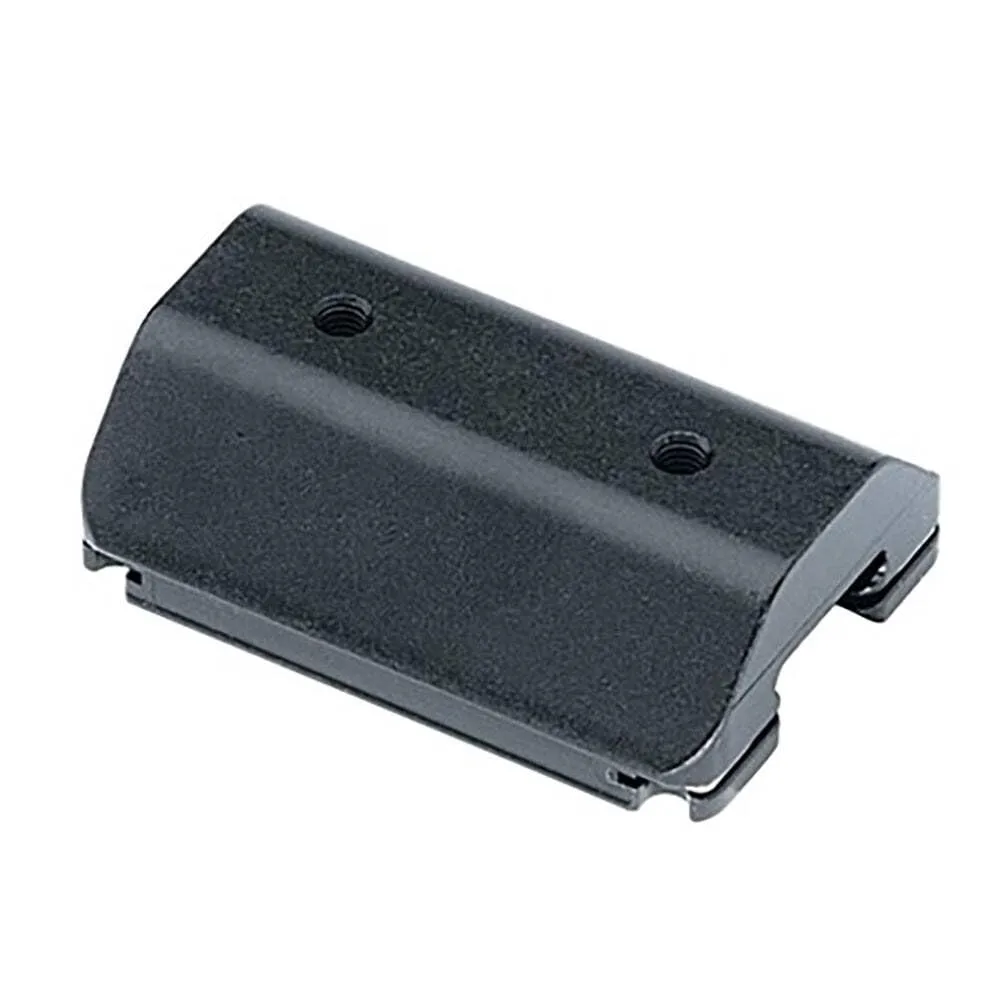

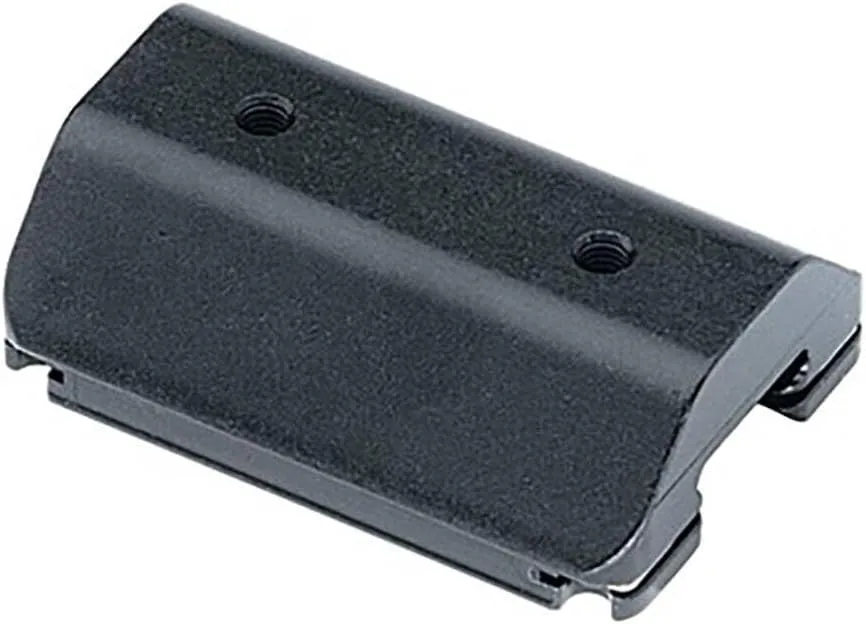

13mm High-Load Trolley with 2X M4 Tapped Holes This trolley features recirculating ball bearings housed in strong, lightweight, corrosion-resistant aluminum for dependable, low-friction linear travel. Use for moving loads and equipment, hoisting, and moving stage equipment, and architectural solutions. Features: High-load trolley with two M4-tapped holes on top Torlon ball bearings handle high loads, reducing friction so the trolley moves smoothly along the rail Retaining clips keep ball bearings captive when the trolleys are removed for maintenance Specifications: Length (mm): 56 mm Length (in): 2-3/16 in Width (mm): 40 mm Width (in): 1-9/16 in Weight (g): 57 g Maximum Rated Load (kN): 1.4 kN Height (mm): 19 mm Height (in): 3/4 in Weight (oz): 2.01 oz Breaking Load (kN): 6.7 kN Great Product
| Materials & Construction | |
| Color | Black |
| Material | Aluminum |
| Outer Material | Aluminum |
| Product Details | |
| Included Components | Great Product |
| Style | High-Load trolley with two M4-tapped holes on top |
| Warranty | Warranty |
| Sizing & Dimensions | |
| Height | 0.75 inches |
| Length | 2.19 inches |
| Product Dimensions | 2.19 x 1.56 x 0.75 inches |
| Weight | 2.01 ounces |
| Width | 1.56 inches |
| Technical Specifications | |
| Breaking Load | 6.7 kN |
| Maximum Rated Load | 1.4 kN |
