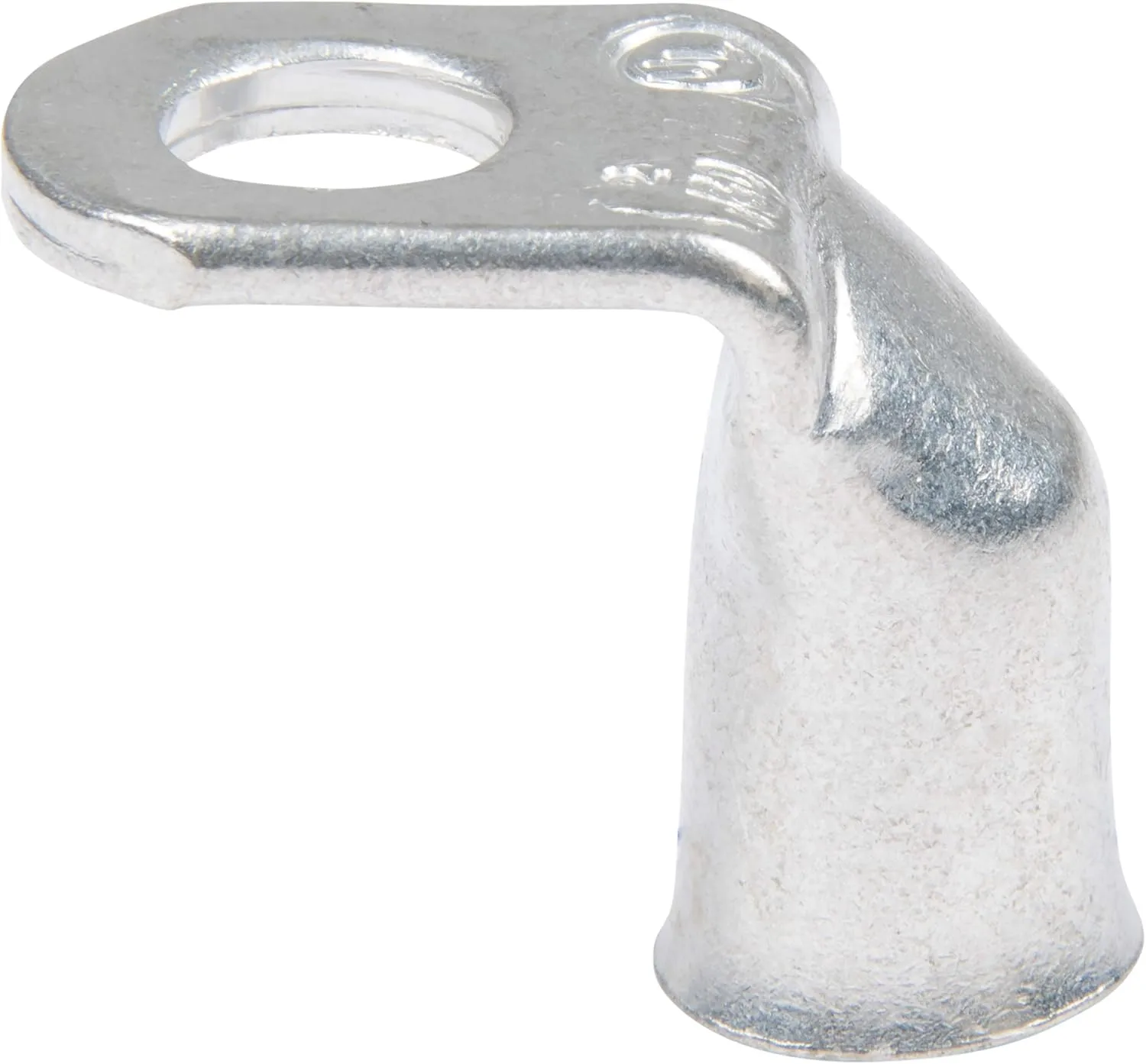

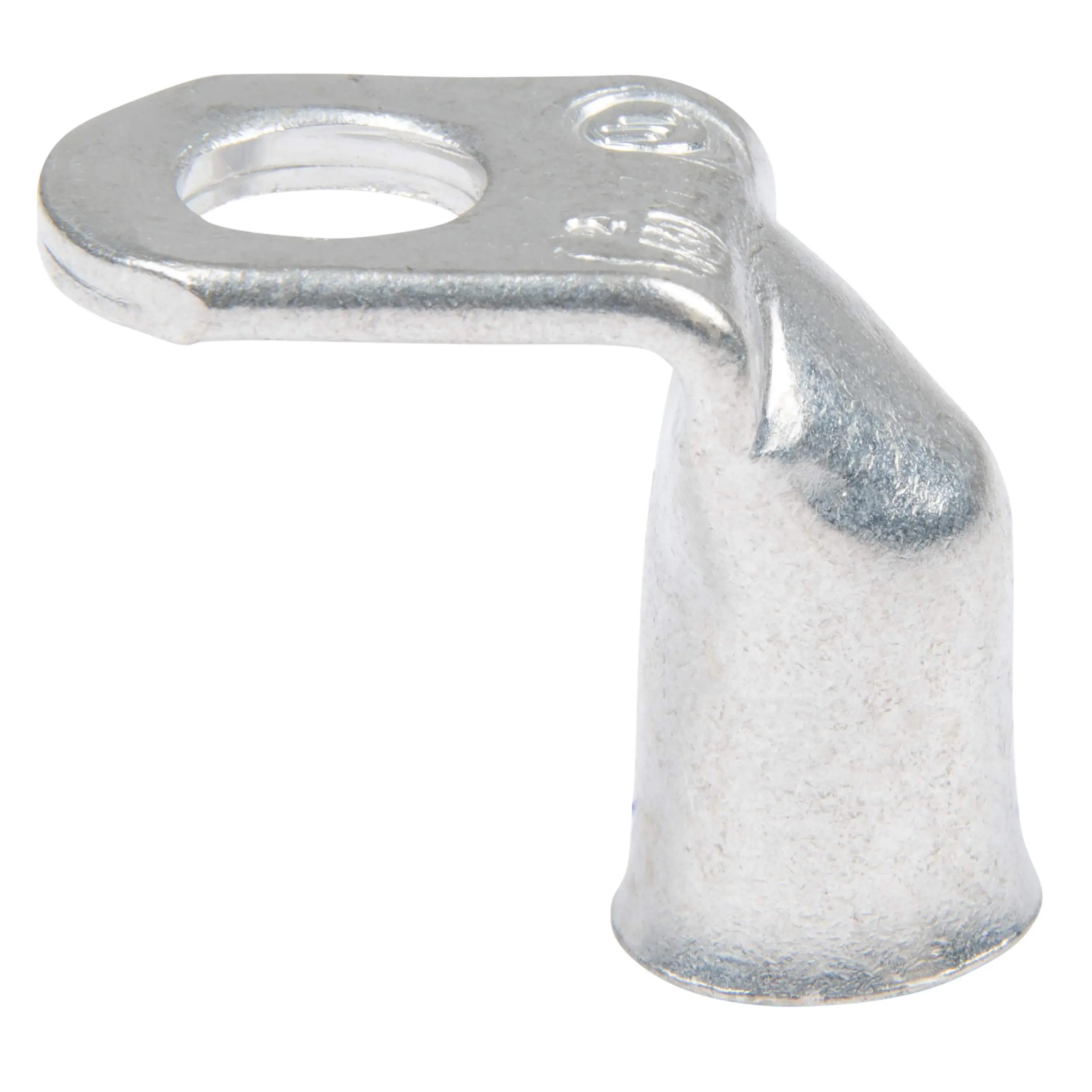

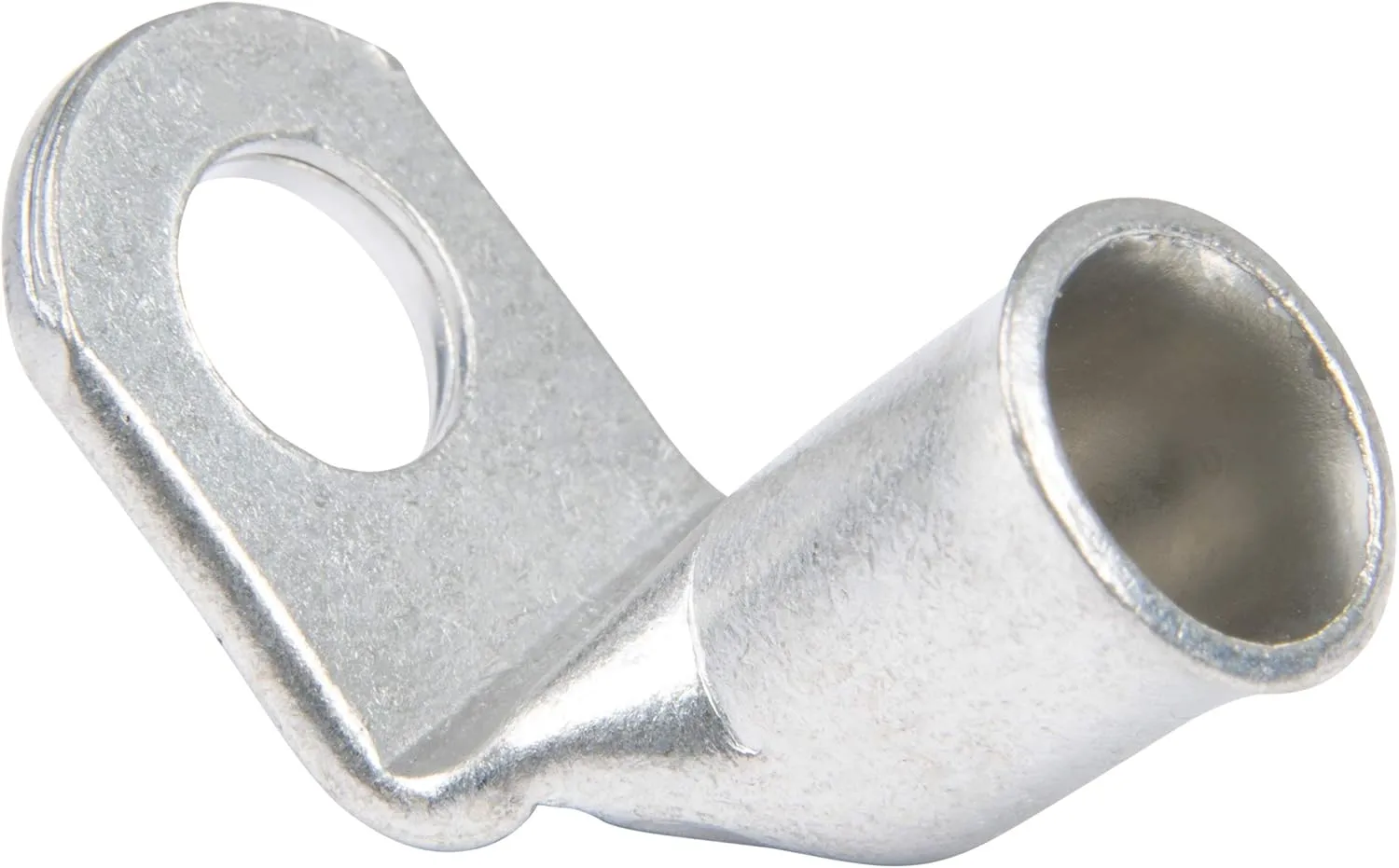

Ancor 262265 Tinned Lug 90degree #2 5/16", 2pc,Silver
ANCOR tinned copper 90° lug, 2 AWG gauge, 5/16" post size. 100% tin-plated copper for corrosion resistance, seamless barrel for strong crimps; sold in 2-piece package.
$8.99
Customize
UPC
91887991680 Available Quantity
19 GSA Item
Yes GSA Compliant
Yes Product Details
Ancor 90° tinned copper lugs (part 262265) are heavy-duty, annealed, 100% tin-plated copper terminals designed for marine and general electrical use. The 90° bend helps with wire routing in tight spaces. Features include a seamless barrel for maximum crimp strength, closed-end design to seal out moisture and resist corrosion, UL 486A specification compliance, non-insulated screw terminal connector type, and a 5/16" post size suitable for #2 AWG wire. Sold as a 2-piece package. Package Qty: 2. Heat Shrink: No. Gauge: 2 AWG. Type: Lugs. Post Size: 5/16". Item Dimensions approx. 4" L x 1.63" W x 0.5" H. Package dimensions approx. 4.88 x 2.05 x 2.01 inches. Package weight (ProductDatabase): 0.1000 (unit as provided).
- 100% tin plated copper resists corrosion from salt and moisture
- Ancor Marine Grade lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow
- Screw size: 5/16", 7.9 mm
- 92 degree bend for ease of wire routing and seamless barrel design allows for maximum strength when crimped
- Tinned Lug 90degree 2 AWG 5/16", 2pc
Specifications:
| Materials & Construction | |
| Color | Silver |
| Material | Copper |
| Outer Material | Copper |
| Product Details | |
| Connector Type | Crimp |
| Contact Material | Copper |
| Gauge | 2 Awg |
| Included Components | 2 copper lugs |
| Insulation Material | Non-Insulated |
| Number of Items | 1 |
| Package Qty | 2 |
| Post Size | 5/16" |
| Specification Met | UL |
| Terminal | Screw Terminal |
| Type | Lugs |
| Sizing & Dimensions | |
| Height | 0.5 inches |
| Length | 4 inches |
| Product Dimensions | 4"L x 1.6"W x 0.5"H |
| Size | 2 Pack |
| Weight | 0.96 ounces |
| Width | 1.63 inches |
| Technical Specifications | |
| Model Name | Ancor boating wire terminals |
| Unit Count | 1.0 Count |
| UPC | 091887991680 |
